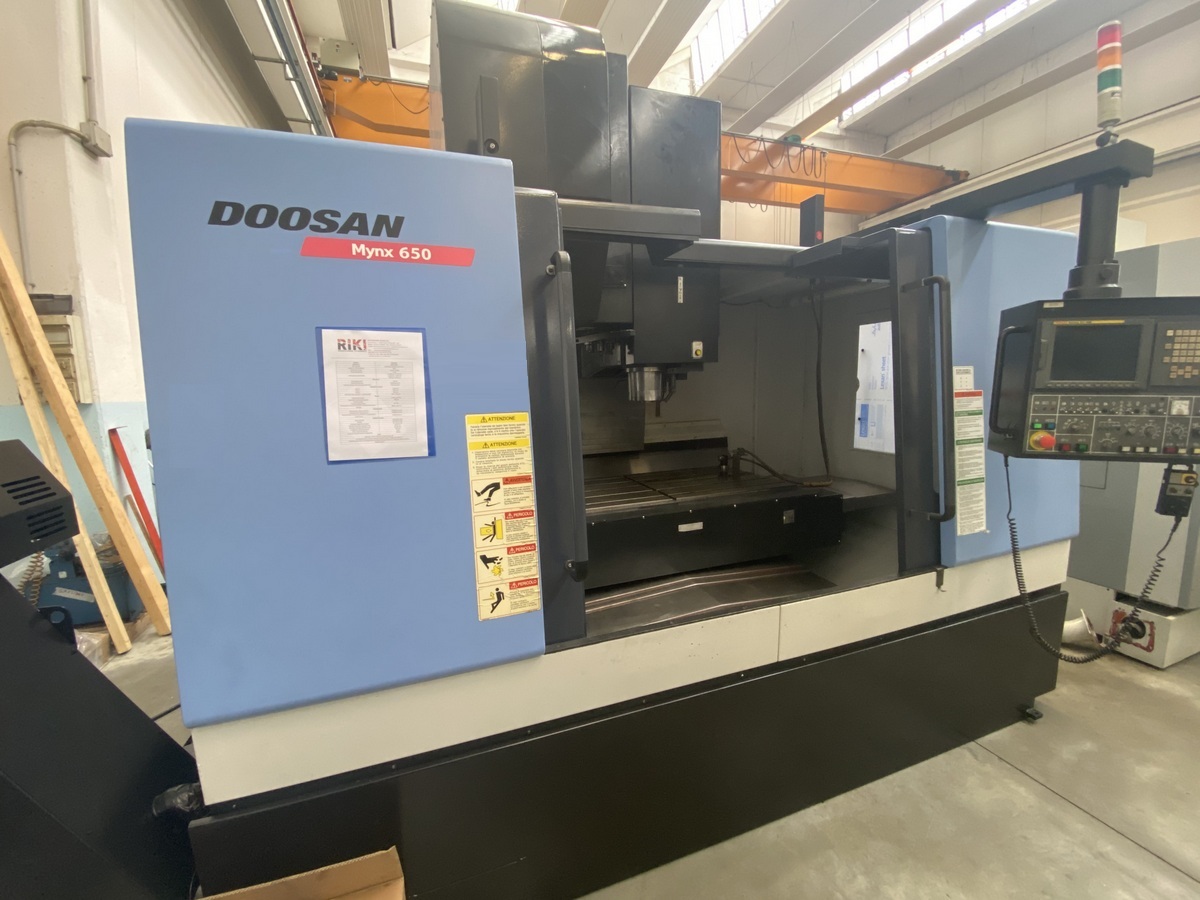

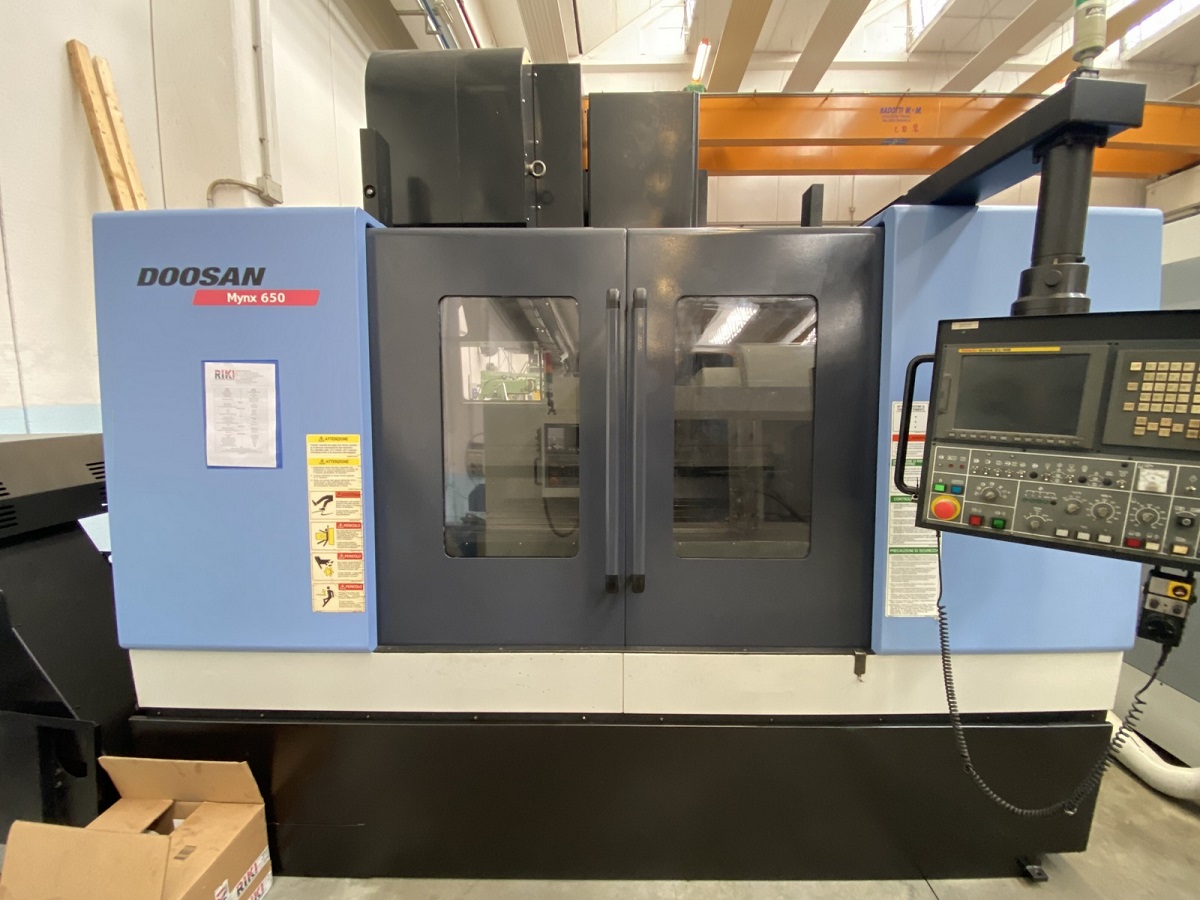

2007 Doosan MYNX 650/40

2007 Doosan MYNX 650/40

oChiama +39 0522 1536494

Descrizione

Refurbished machine as follows:

  • X and Y axis completely refurbished: turcite B revised, ballscrews and new bearings
  • Revised ATC with new bearing and changing oils
  • Reconditioned all axis lubrification system
  • Reconditioned all pneumatic system
  • Reconditioned telescopic steel covers and guides seals

Specifiche

ProduttoreDoosan
ModelloMYNX 650/40
Anno2007
CondizioneRefurbished

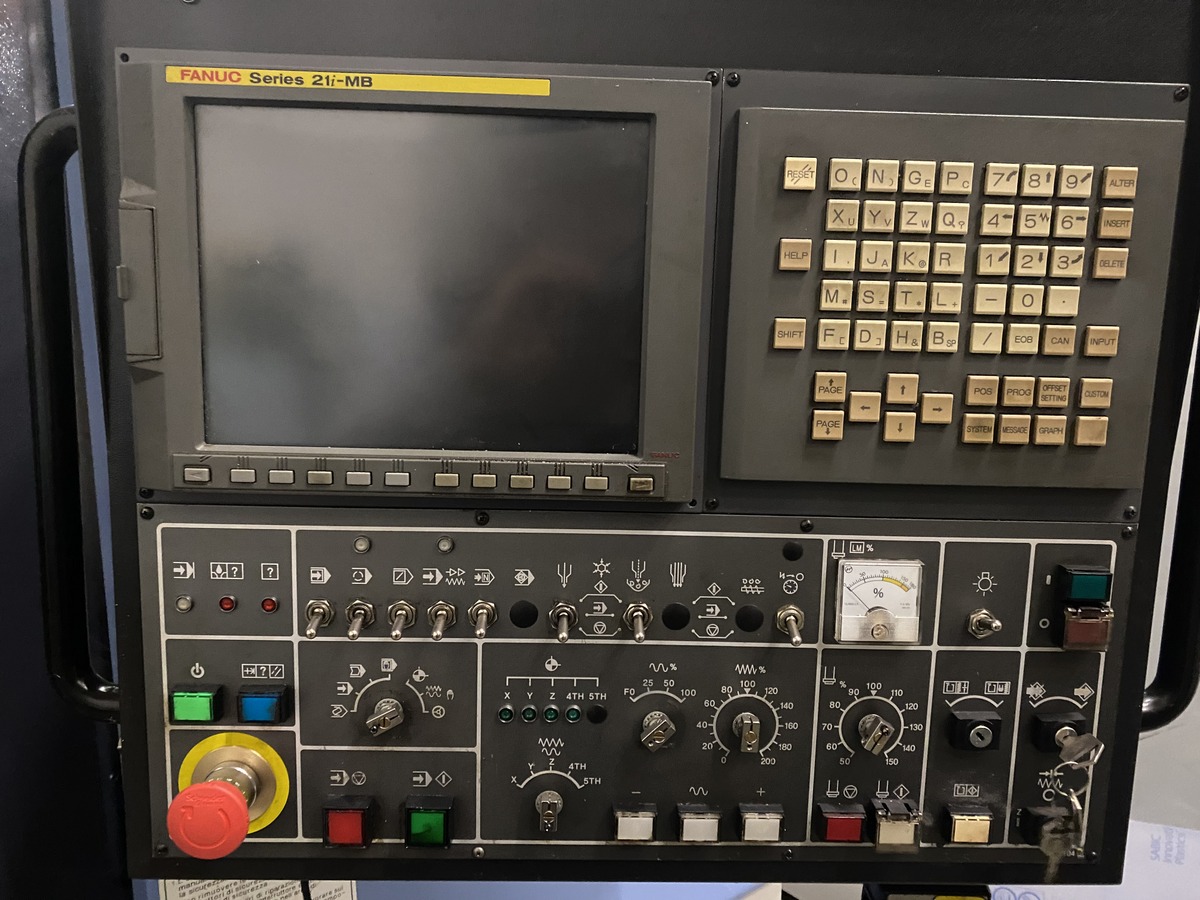

CNC ControlFANUC 21i-MB
Spindle tool sizeISO-40
Spindle speed12.000 RPM
Spindle motor power (cont/30 min)22 kW
X axis1.300 mm
Y axis650 mm
Z axis625 mm

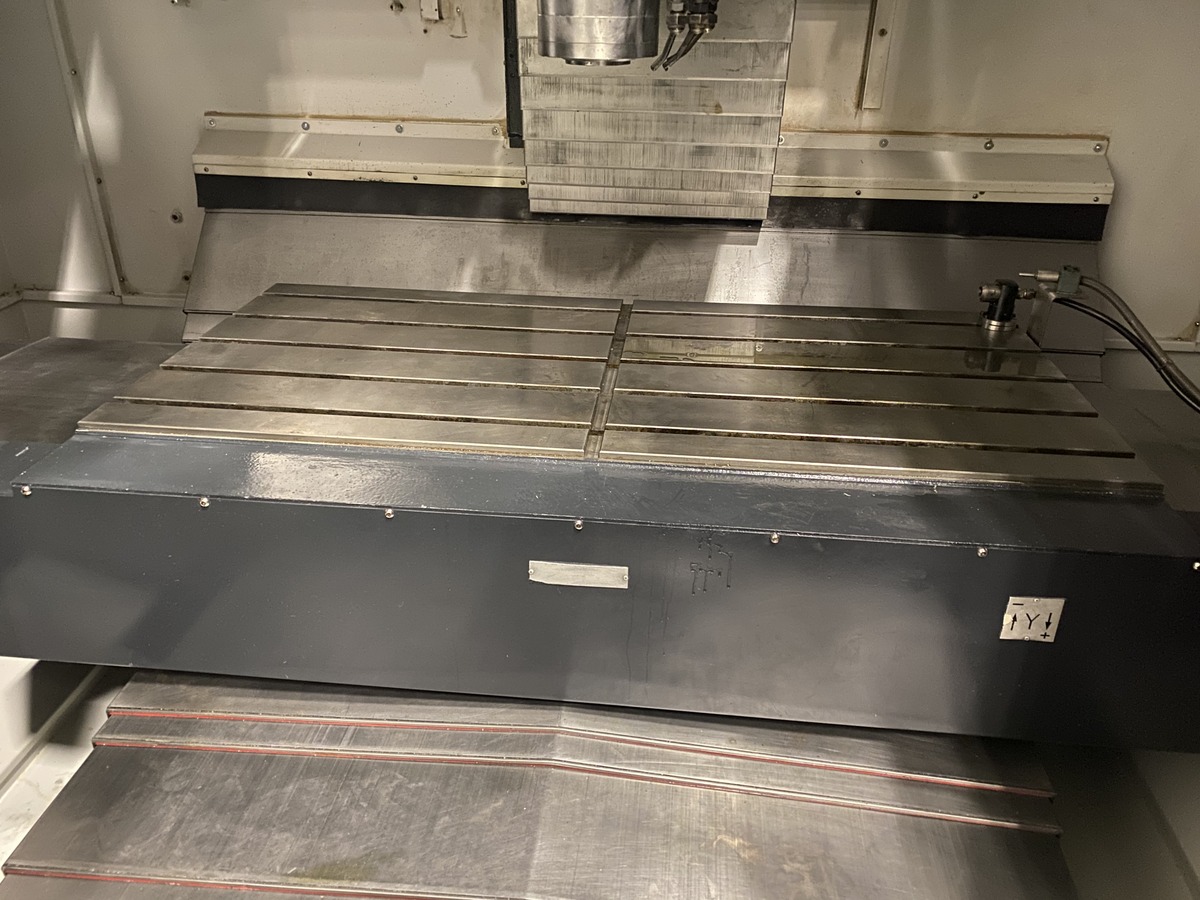

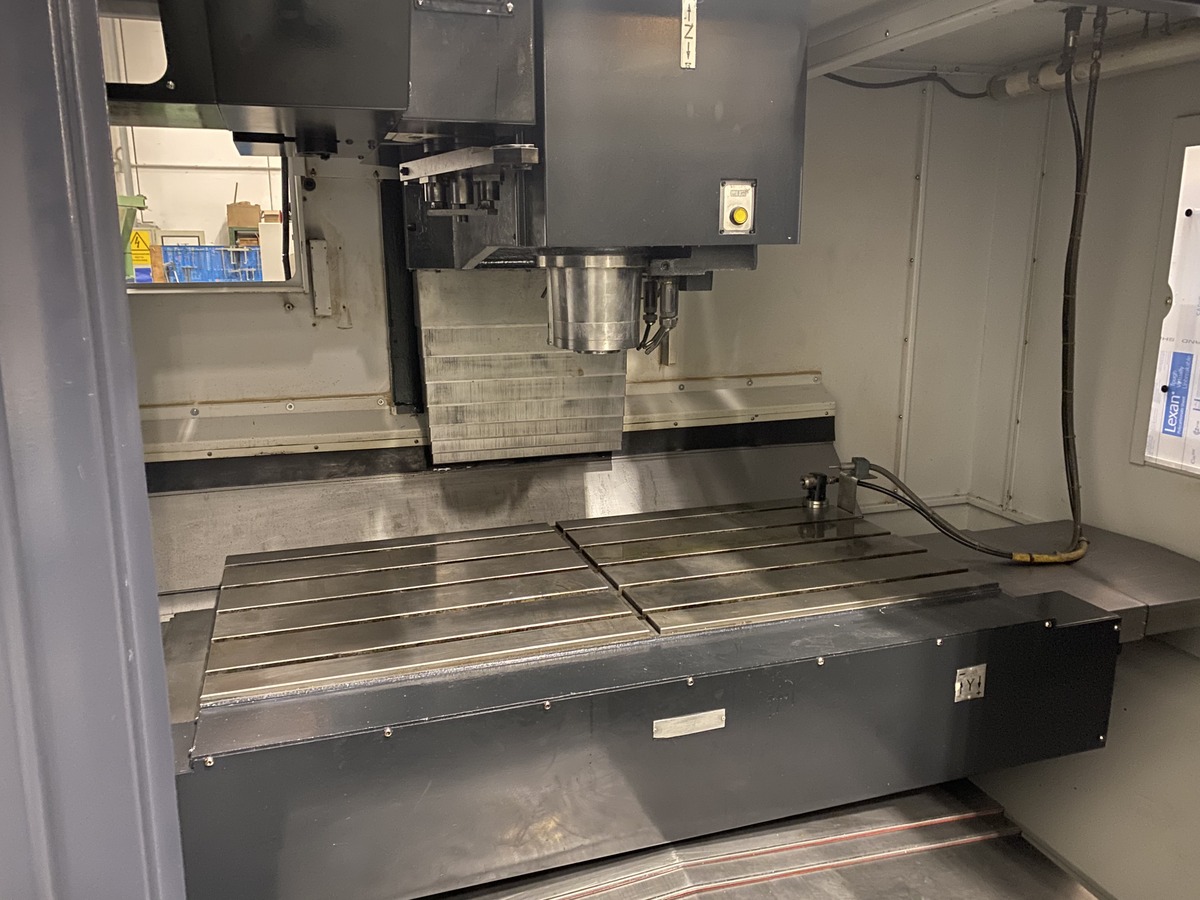

Table dimensions1.400 x 650 mm
Max load allowed on table1.000 Kg
X / Y / Z axis rapid feedrates24.000 / 24.000 / 20.000 mm/min
X / Y / Z axis working feedrates in linear interpolation (max)8.000 mm/min
Tool typeDIN 69871-A40
Tool pull stud typeDIN 69872-A40
ATC capicity30 positions
Max tool diameterØ 90 / 150 mm
Max tool lenght300 mm
Max tool weight8 Kg
AccessoriesCoolant tank (300 Lt capacity) and chip conveyor with left exit, Chiller for spindle head, transformer, Manuals, Electric diagrams and CE/EU Declaration
