12/2006 Doosan Daewoo PUMA 280LM
Sold
12/2006 Doosan Daewoo PUMA 280LM
Specifications
| Manufacturer | Doosan Daewoo |
| Model | PUMA 280LM |
| Year | 2006 |
| Condition | Refurbished |

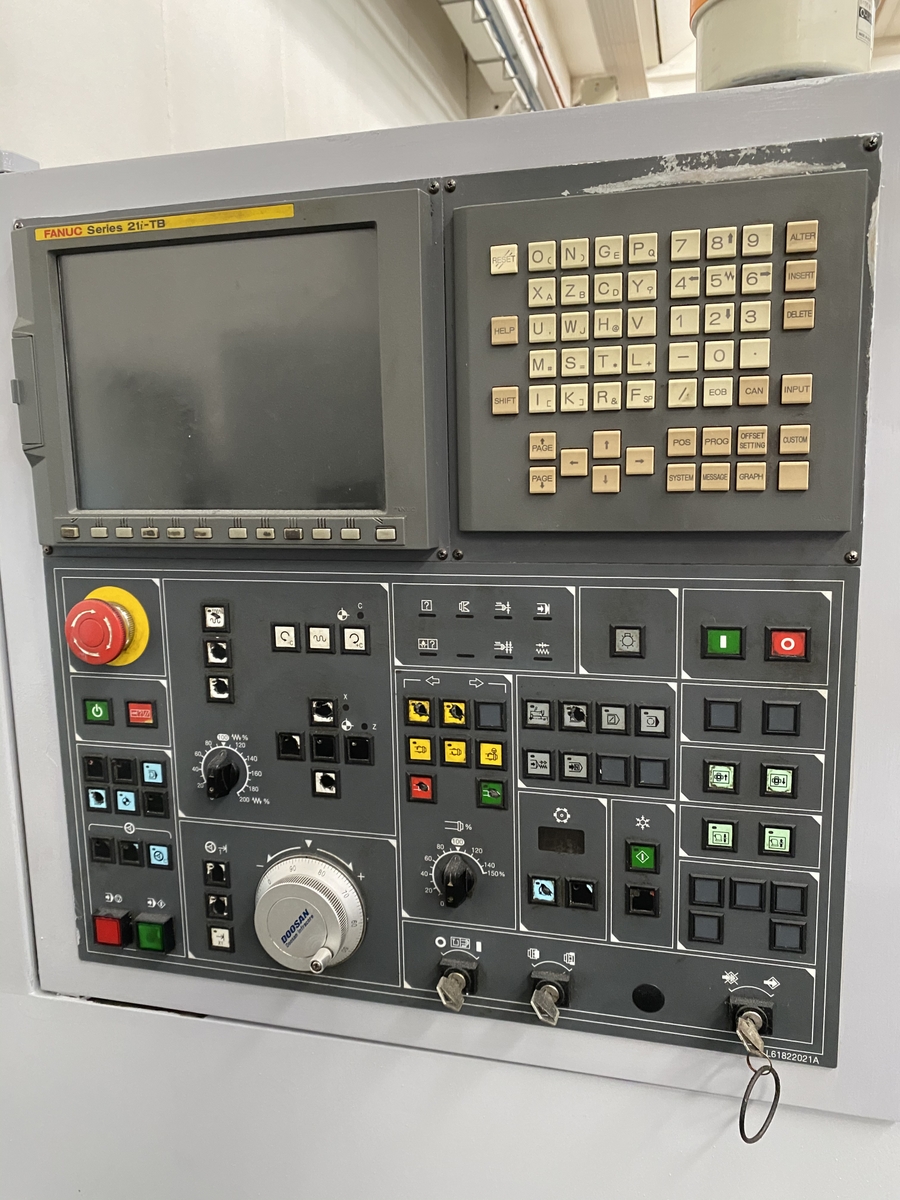

| CNC control | FANUC 21i-TB |
| Max rotating diameter on the bench | Ø 630 mm |
| Max rotating diameter on the carriage | Ø 500 mm |
| Max turning diameter | Ø 410 mm |
| Max turning length | 1.030 mm |
| Bar passage diameter | Ø 76 mm |
| X axis | 242 mm |
| Axis z | 1.100 mm |
| Axis c | +/- 360 ° |

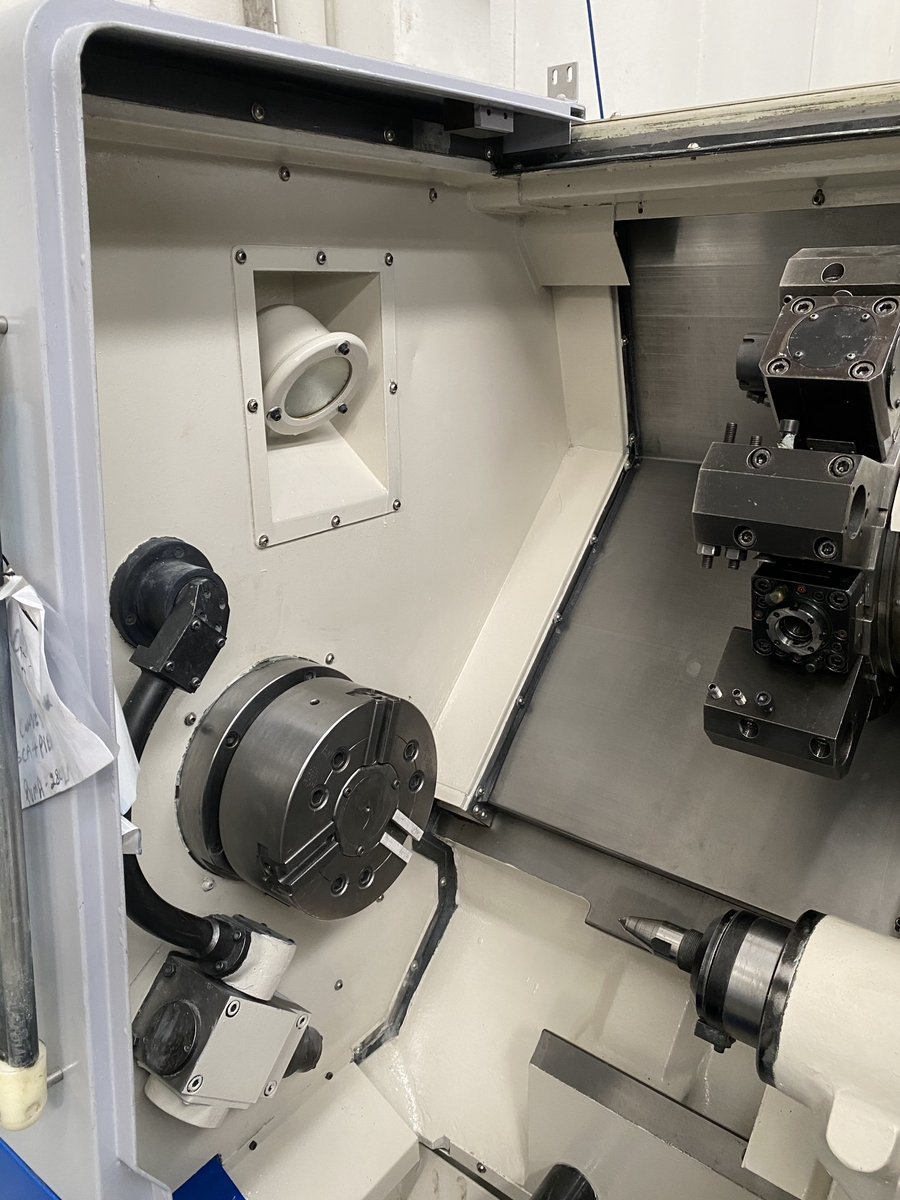

| Self-centering diameter | Ø 254 mm |
| Spindle speed | 35-3.500 RPM |
| Spindle nose | ASA A2-8 |
| Interpolation, resolution, | 0.001 ° |

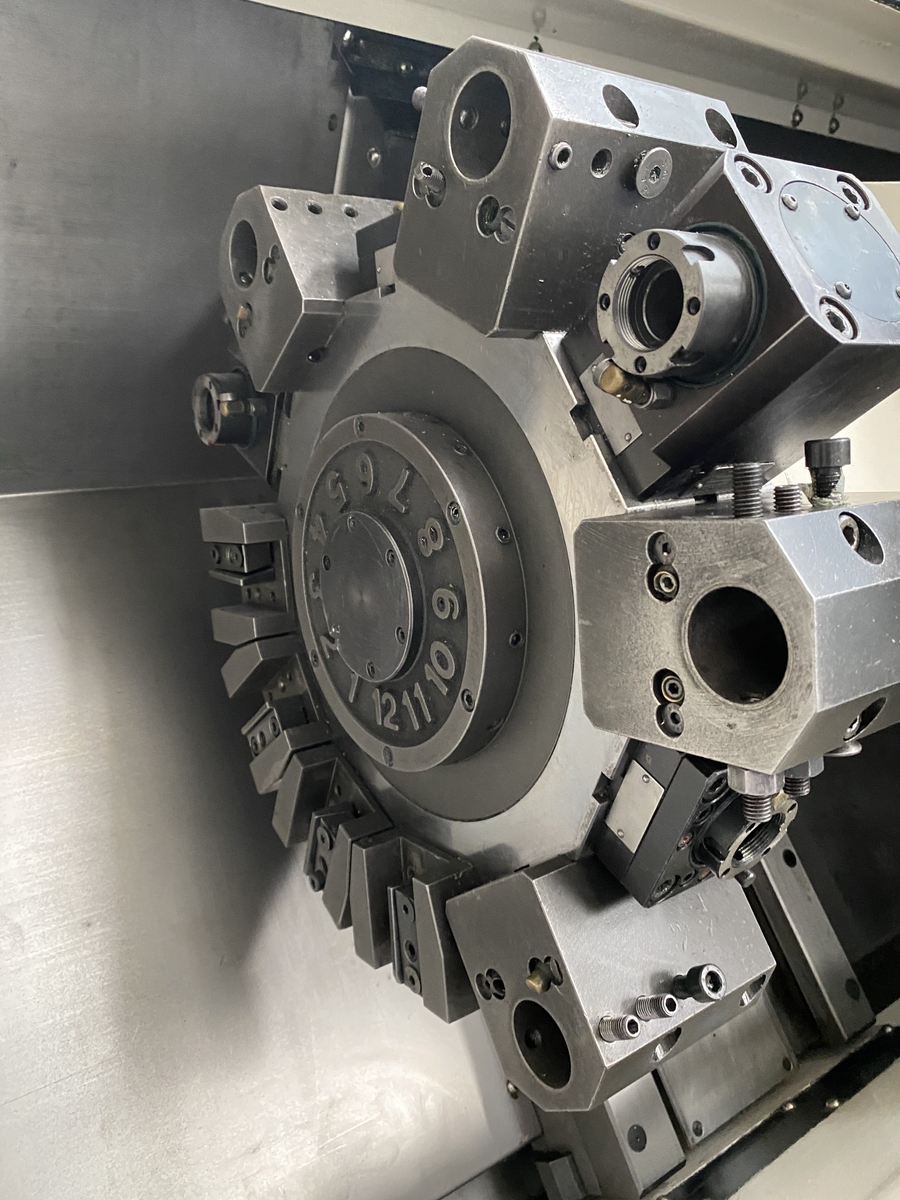

| Turret positions | 12 live-tool positions |
| Speed driven tools | 50 - 5.000 RPM |
| Indexing time | 0.6 seconds |
| Turning / boring tools dimensions | 25x25 mm / Ø 40 mm |
| X Axis rapid feedrate | 20.000 mm / min |
| Z Axis rapid feedrate | 24.000 mm / min |
| Rapid feedrate of rotating C Axis | 200 RPM |
| Quill diameter | Ø 100 mm |
| Quill taper size | MT-4 |
| Quill travel | 100 mm |
