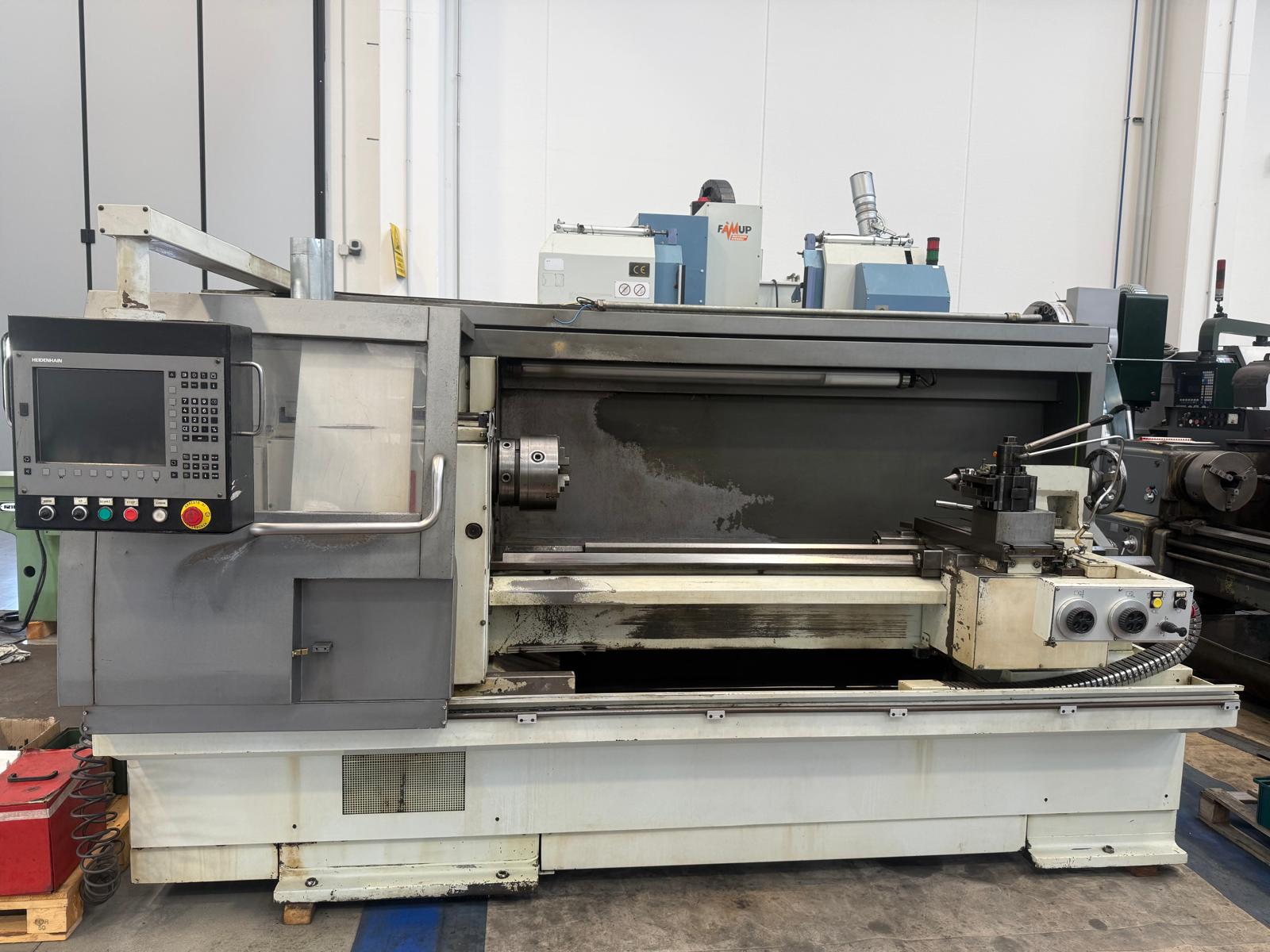

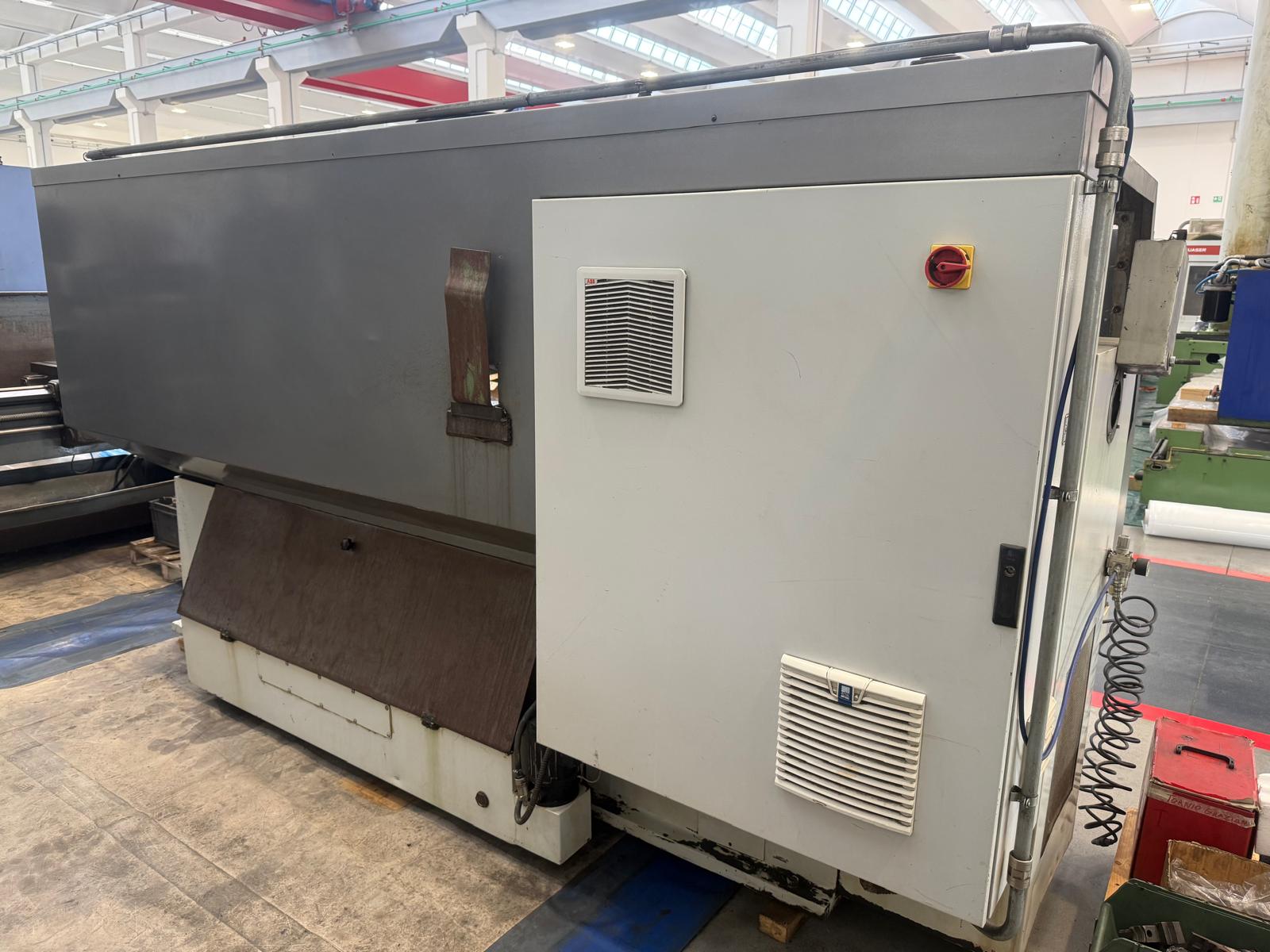

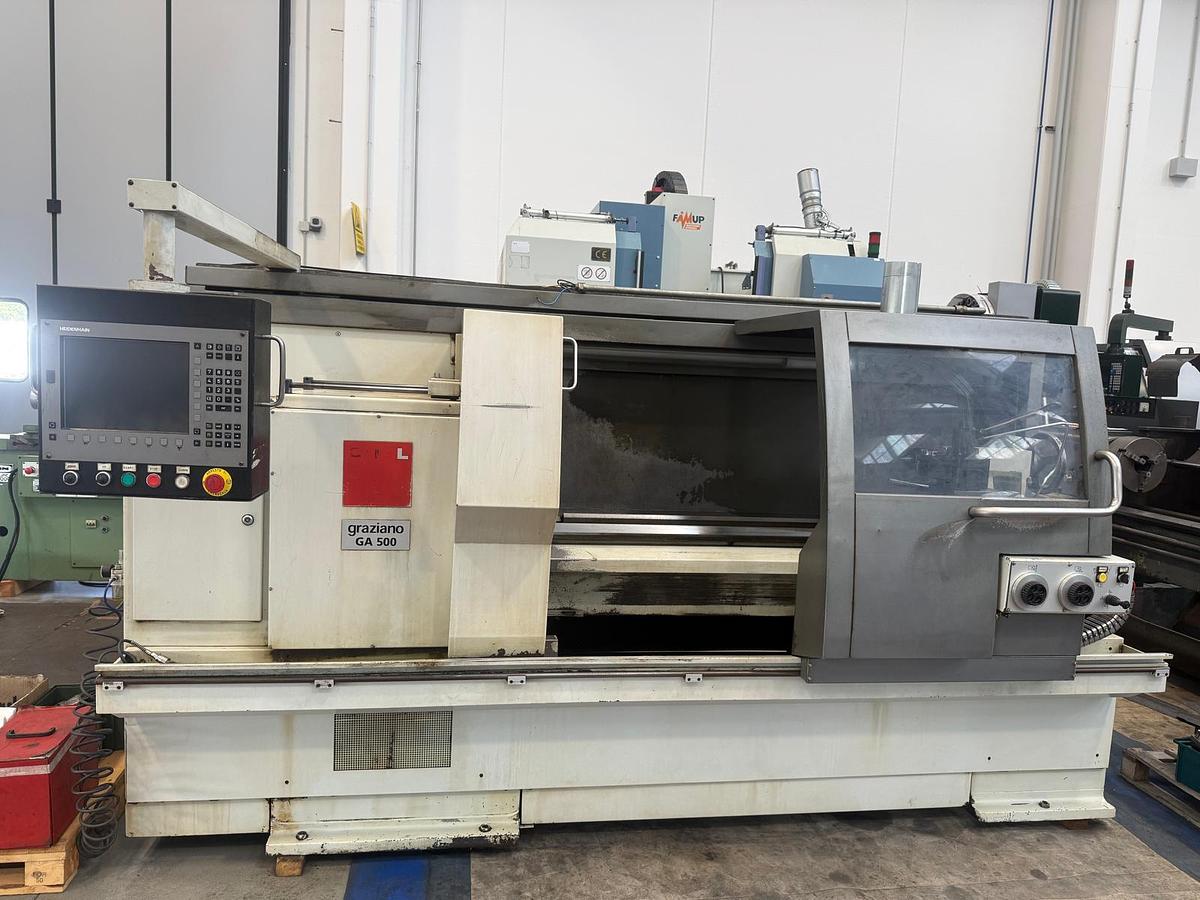

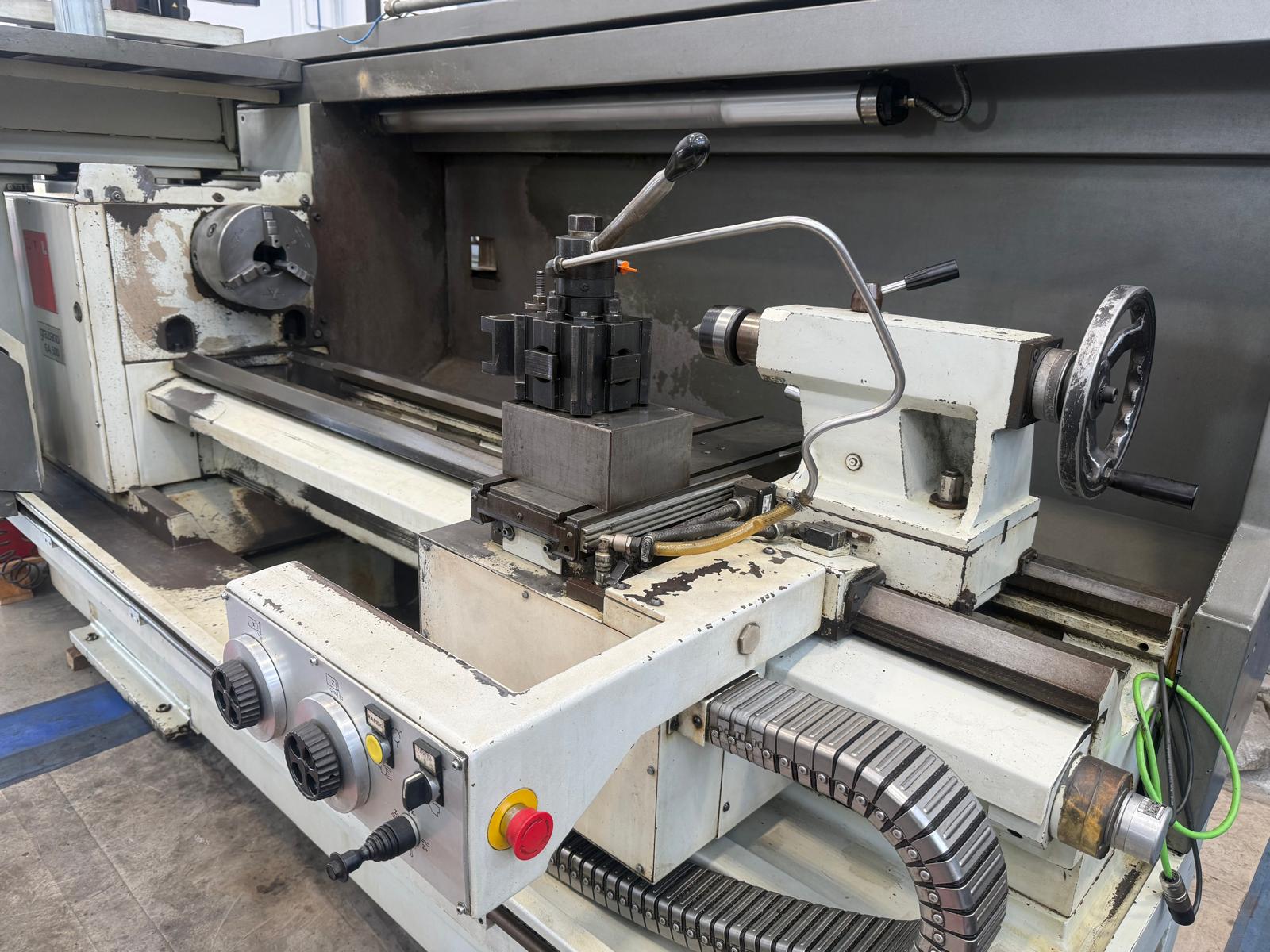

2001 GRAZIANO GA-500
2001 GRAZIANO GA-500
or
Call +39 0522 1536494
Specifications
| Manufacturer | GRAZIANO |
| Model | GA-500 |
| Year | 2001 |
| Condition | Refurbished |

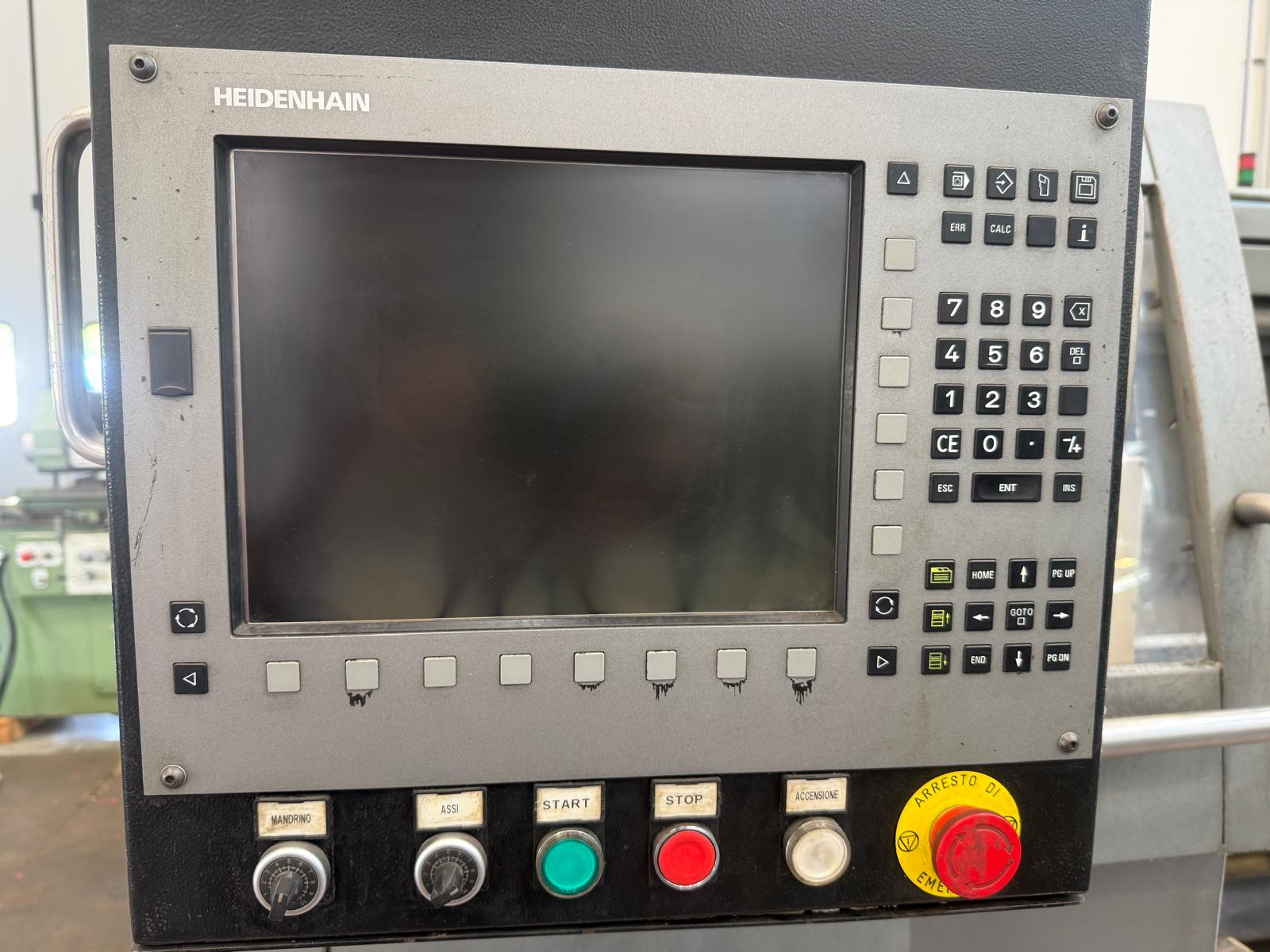

| CNC Control | HEIDENHAIN MANUAL-Plus 620 |
| Center height | 260 mm |
| Distance between centers | 1.500 mm |
| Max swing over the bench | Ø 530 mm |
| Max swing over the gap | Ø 780 mm |
| Max swing over longitudinal carriage | Ø 475 mm |
| Max swing over trasversal carriage | Ø 315 mm |
| Banch width | 350 mm |
| X axis travel | 285 mm |
| Z axis travel | 1.500 mm |
| Bar diameter capacity through the spindle | Ø 78 mm |

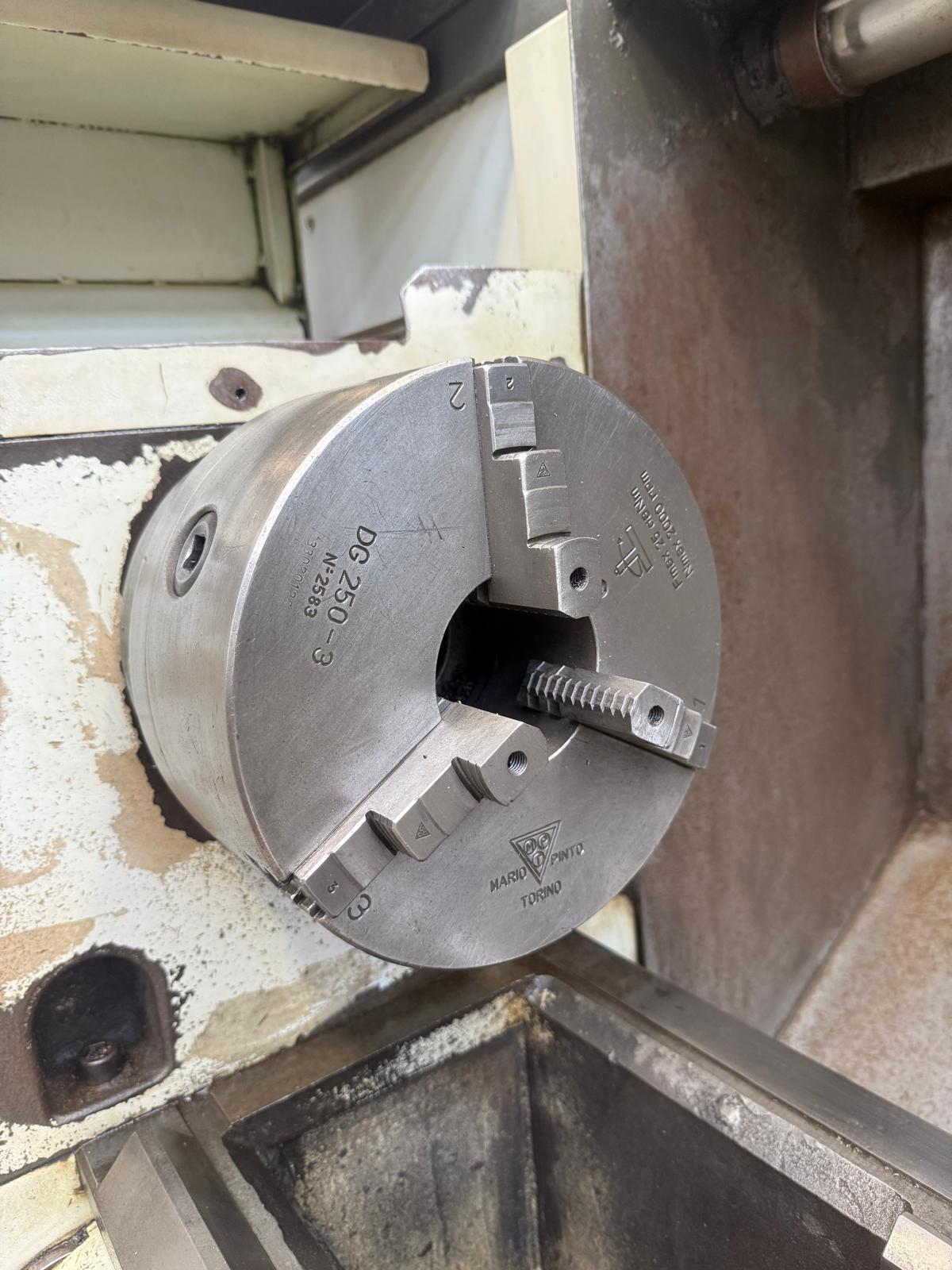

| Spindle chuck diameter | Ø 250 mm |
| Spindle nose size | 8" Cam Lock |
| Spindle cone nose type | MT 5 |
| Spindle speed | 1.700 Rpm |
| Spindle motor power | 7,5 kW |
| Manual Turret positions | 4 positions |
| X/Z axes feedrate | 10.000 mm/min |
| X/Z axes cutting feedrates | 1 - 10.000 mm/min |

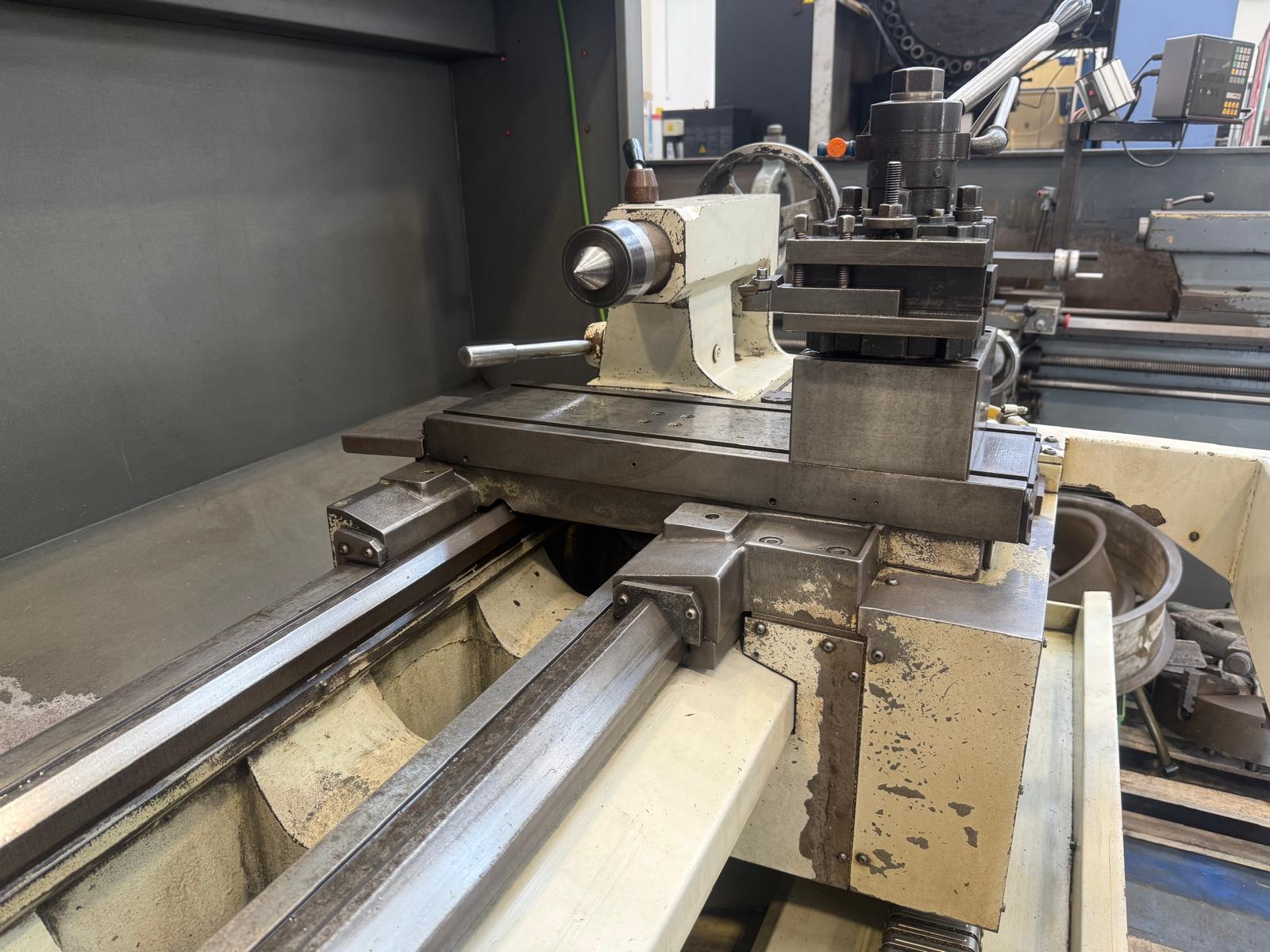

| Tailstock quill diameter | Ø 72 mm |
| Tailstock taper size | MT-5 |
| Tailstock quill travel | 180 mm |

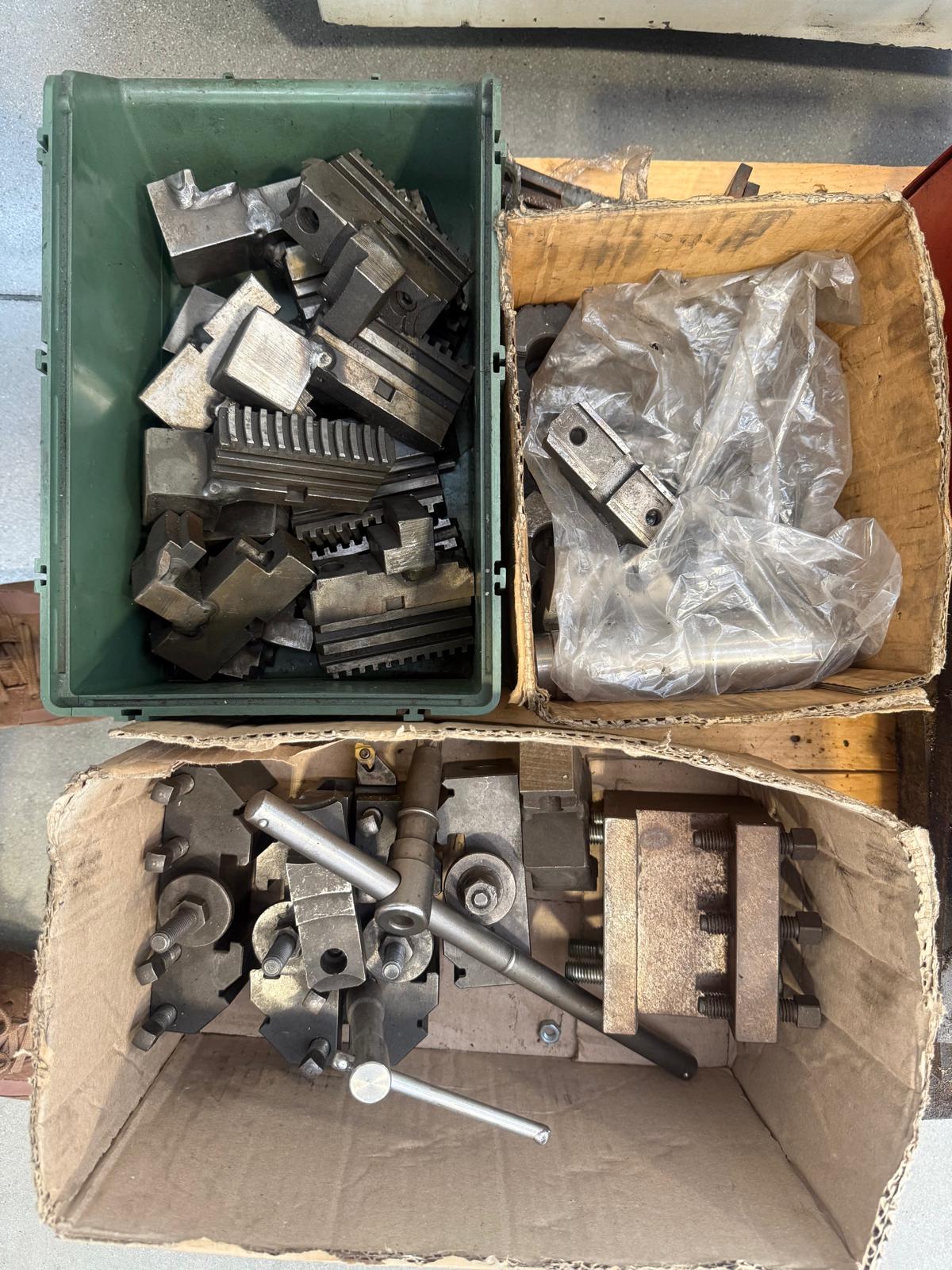

| Accessories | Coolant tank with pump + Tailstock + Tool holders + Manuals + Electrical diagrams + EC CE Declaration |
