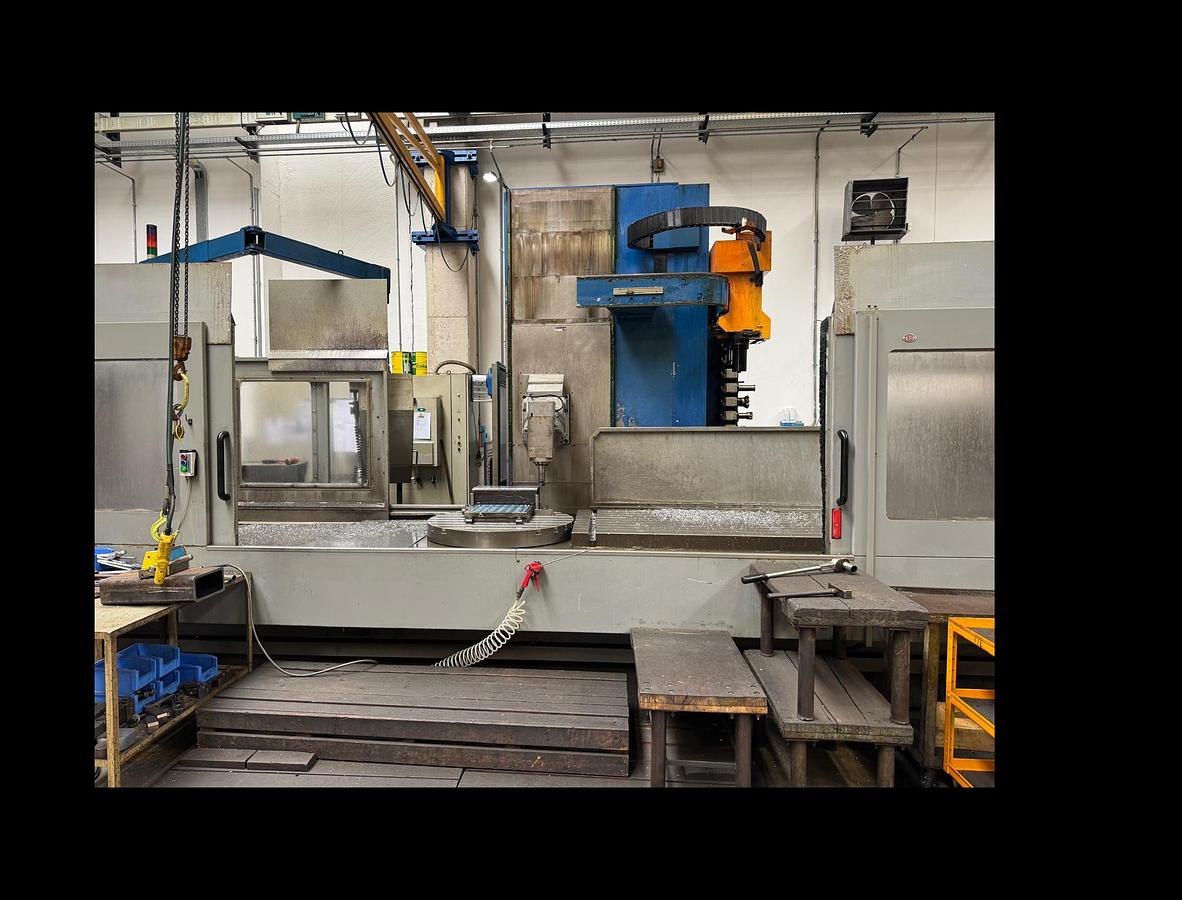

FIL FBT/G 300
FIL FBT/G 300
or
Call +39 0522 1536494
Specifications
| Manufacturer | FIL |
| Model | FBT/G 300 |
| Year | 1999 |
| Condition | Used |

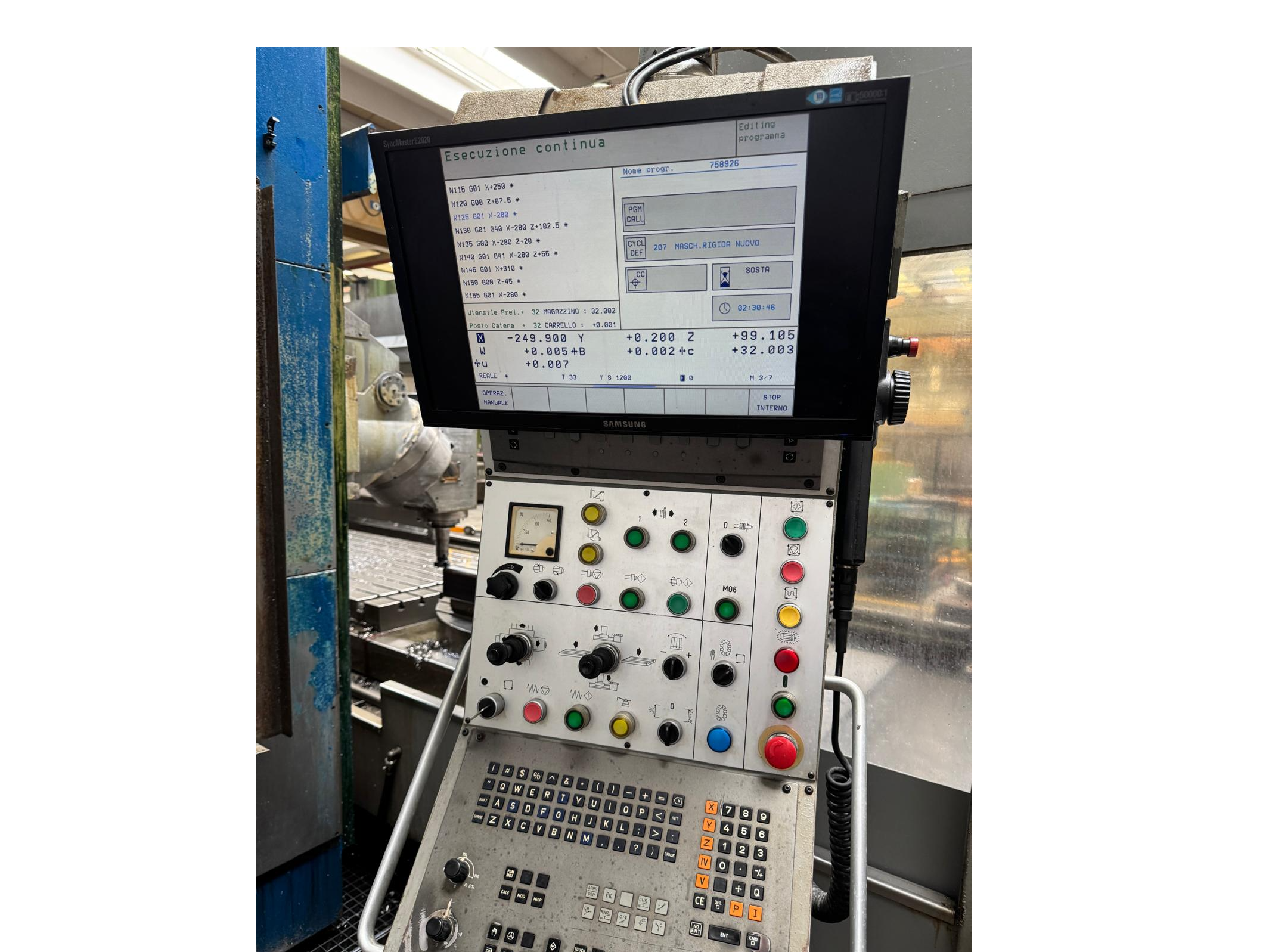

| CNC CONTROL | HEIDENHAIN iTCN 430 |
| Cone size | ISO 50 |
| Spindle speed range | 10 - 4.000 Rpm |
| Spindle speed steps | 2 steps |
| Spindle motor power | 33 kW |

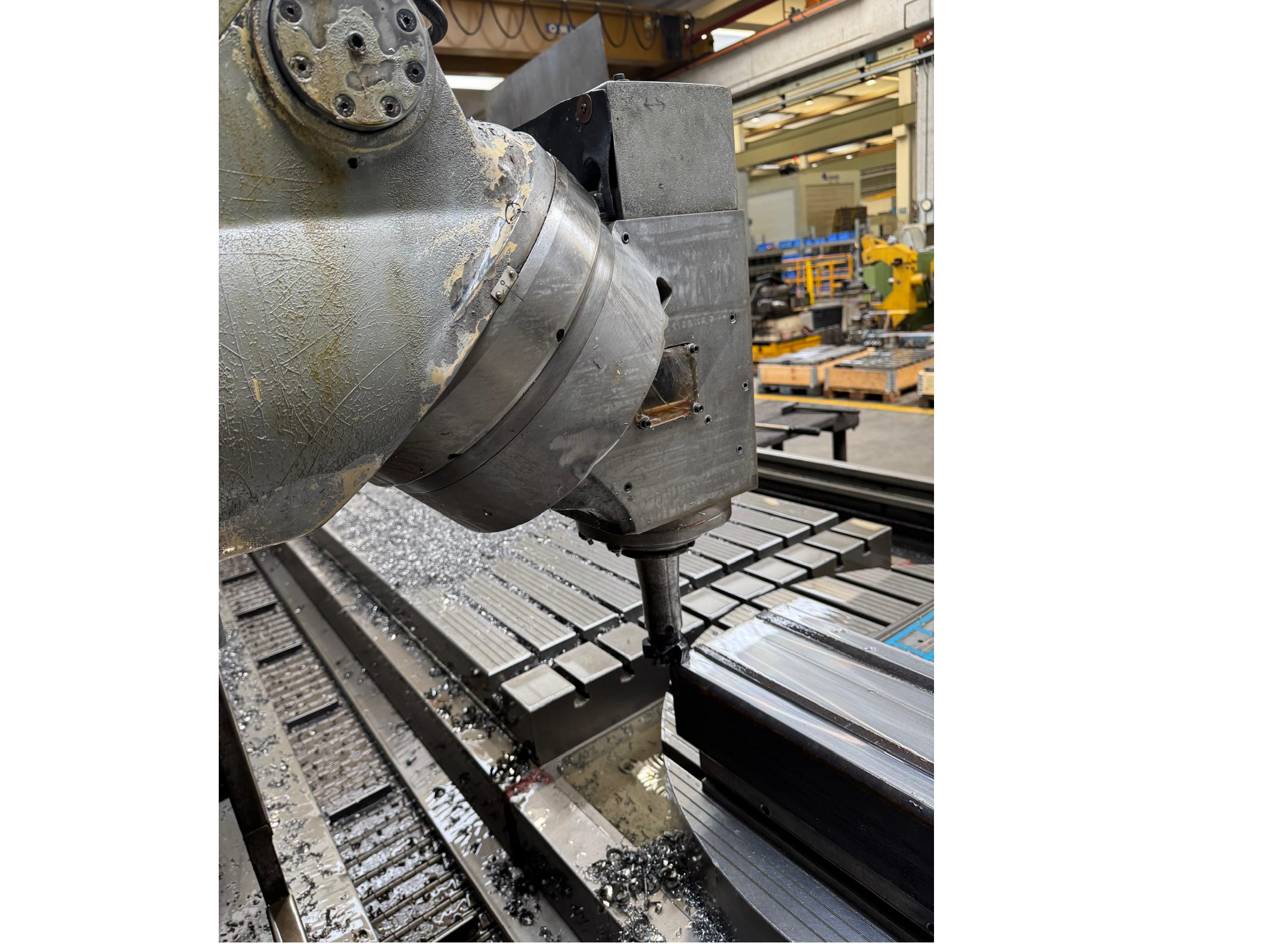

| Spindle note | Automatic Bi-Rotative Head with A and B axes in CONTINUOUS |
| X Axis (Longitudinal) | 3.000 mm |
| Y Axis (Vertical) | 1.500 mm Z Axis |
| Z Axis (Trasversal RAM) | 1.000 mm |
| W Axis (Trasversal Column) | 1.000 mm |
| U Axis (Rotary table) | 360° (0,001° Min. Angle) |
| Table dimensions | 2.000 x 1.000 mm |
| Maximum load capacity of the table | 3.000 Kg |

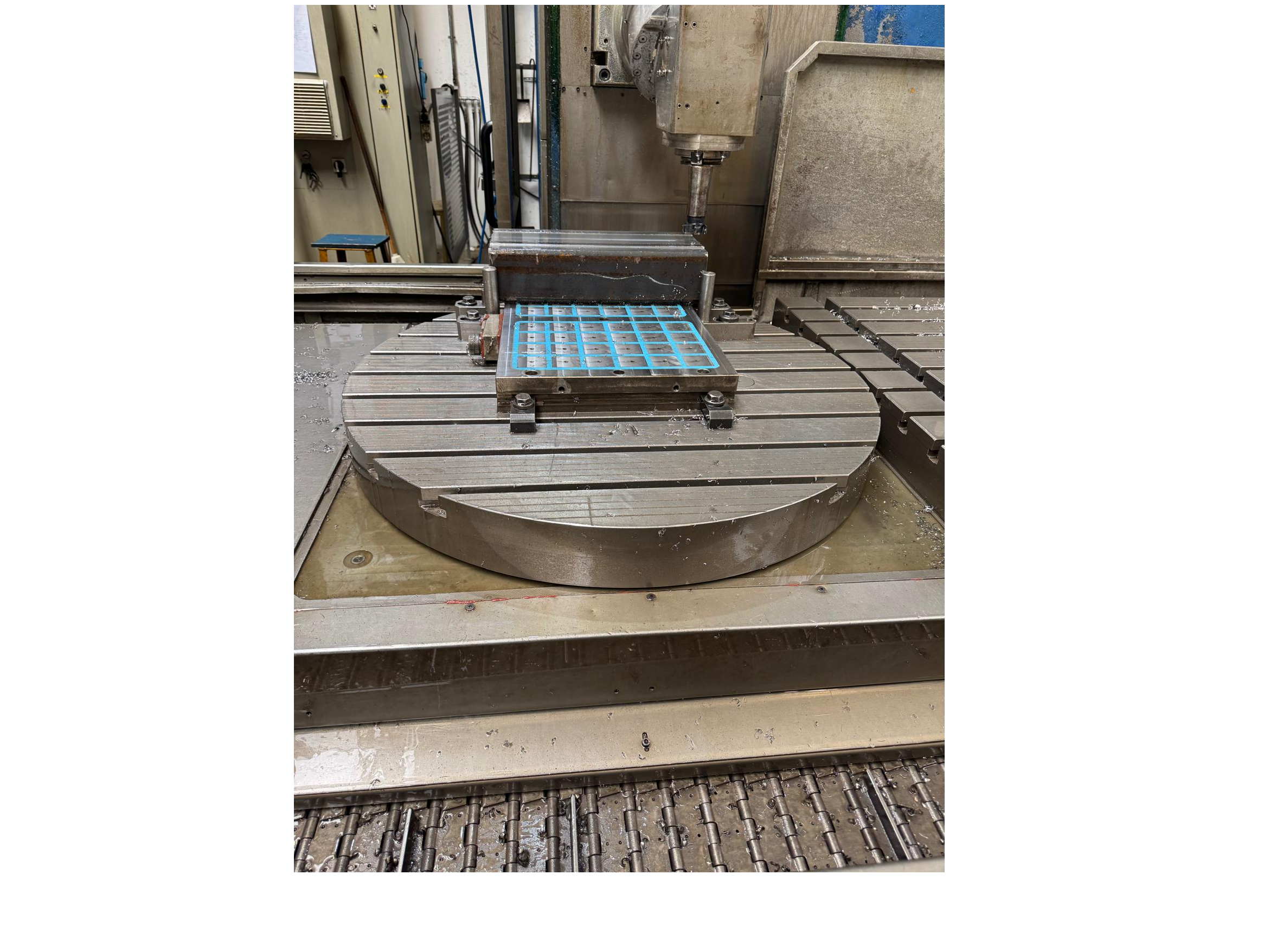

| Rotary Table dimensions (diameter) | Ø 1.000 mm |
| Maximum load capacity of the Rotary table | 2.000 Kg |
| Rapid feed Axes X / Y / Z / W | 10.000 mm/min |
| Working feed Axes X / Y / Z / W | 5 – 10.000 mm/min |
| Rotary table rapid feed | 2 Rpm |
| Tool type | DIN 69871-A50 |
| Pull-stud type | DIN 69872-A50 |

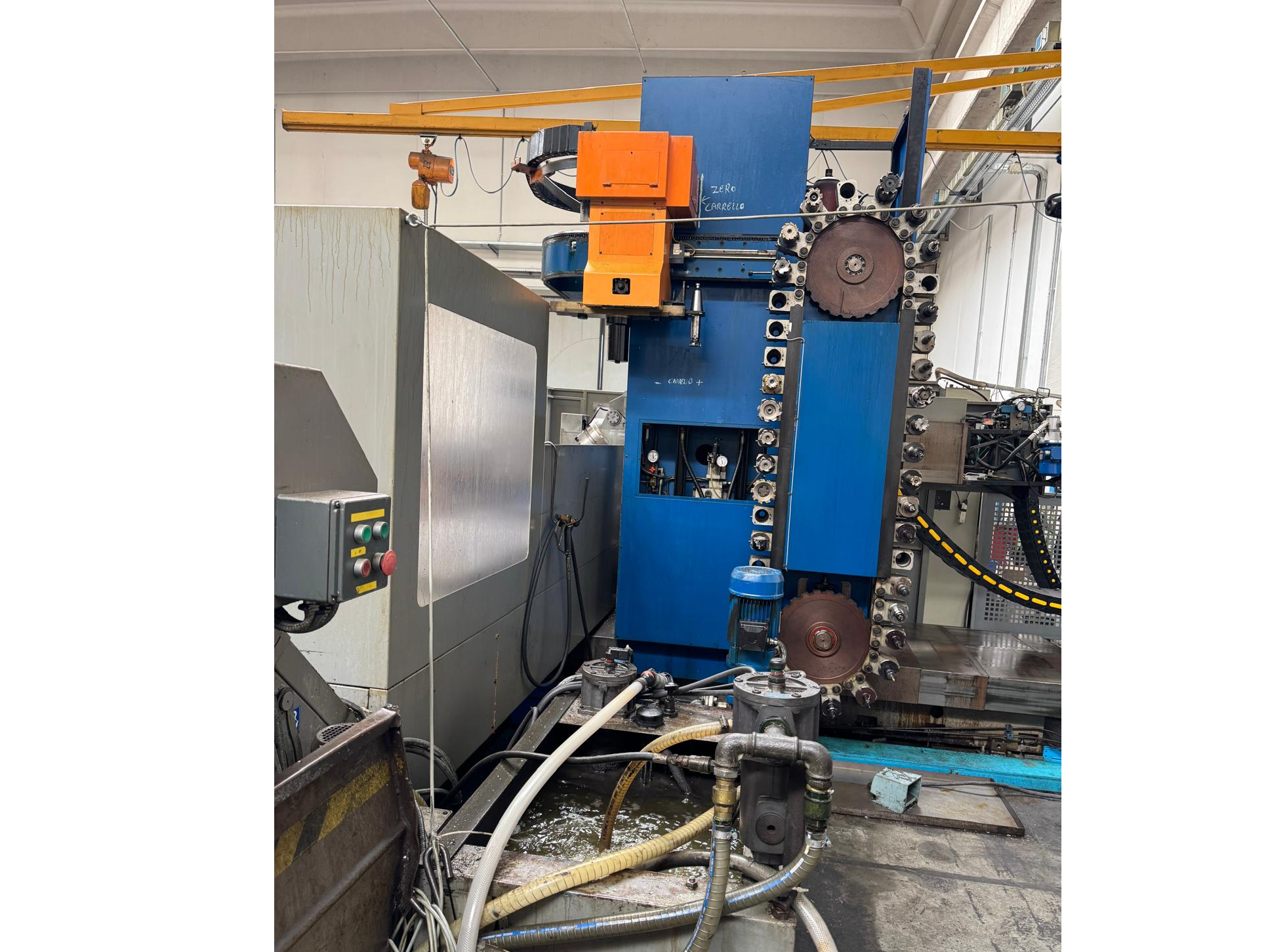

| Tool magazine capacity | Nr. stazioni 40 |
| Max tool diameter (adjacent tools full/empty) | Ø 120 / Ø 400 mm |
| Max tool length | 500 mm |
| Max tool weight | 25 Kg |
| Accessories | Chip conveyor Coolant tank with pumps High pressure pump for coolant through spindle Manuals, Electrical diagrams and EC CE Decleration |
