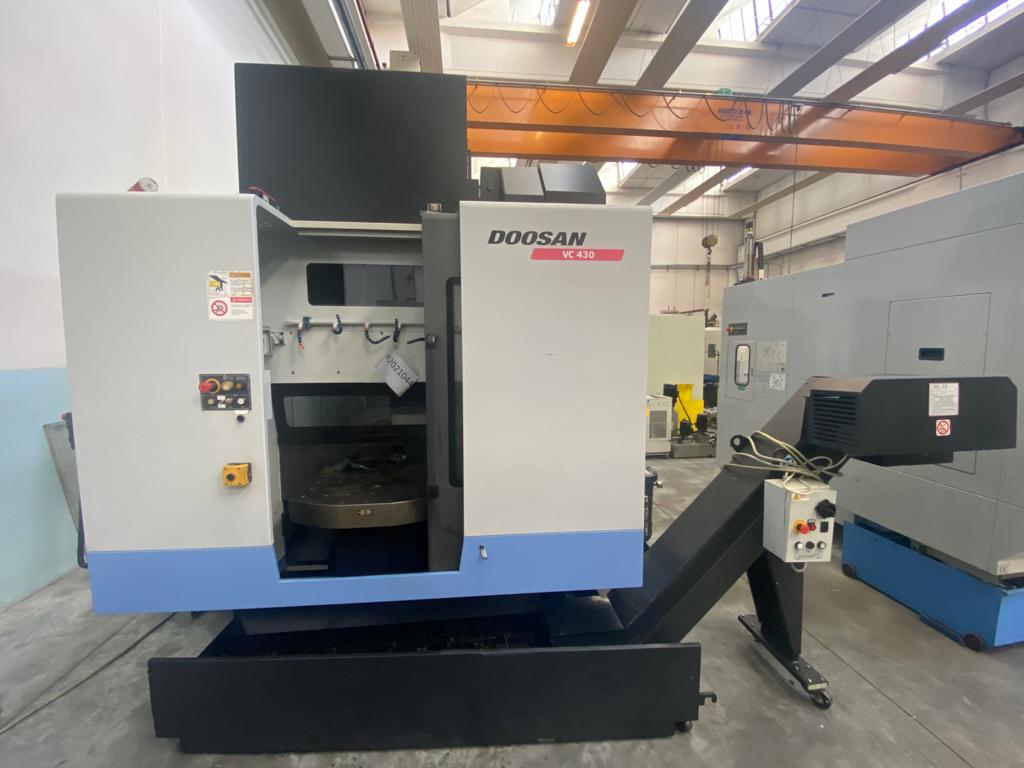

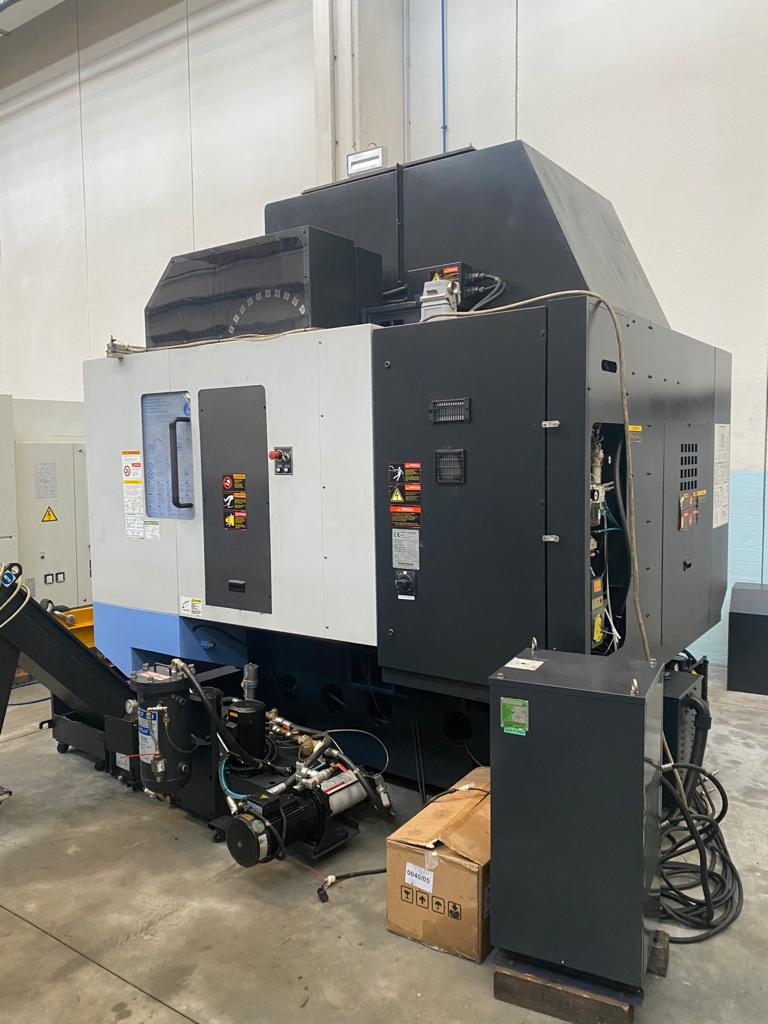

2014 DOOSAN VC-430
Sold
2014 DOOSAN VC-430
Specifications
| Manufacturer | DOOSAN |
| Model | VC-430 |
| Year | 2014 |
| Condition | Used |

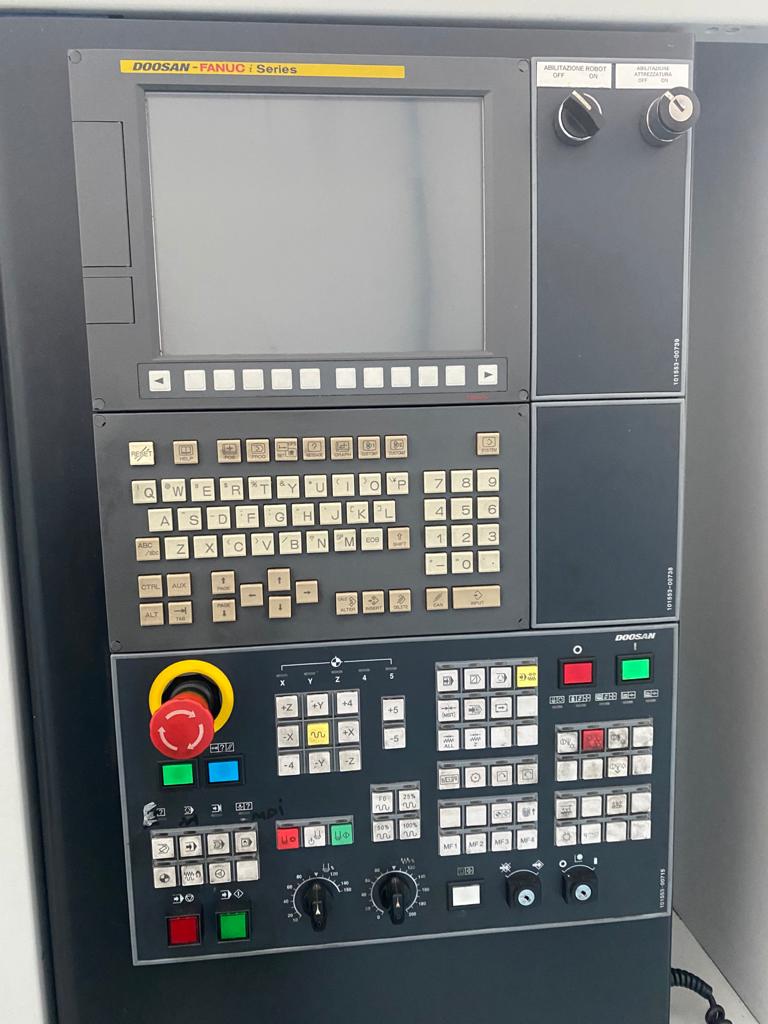

| CNC Control | FANUC i-Series |
| Spindle tool size | ISO 40 |
| Spindle speed | 12.000 rpm |
| Spindle motor power (cont/30 min) | 15/18,5 kW |
| X axis | 560 mm |
| Y axis | 430 mm |
| Z axis | 570 mm |

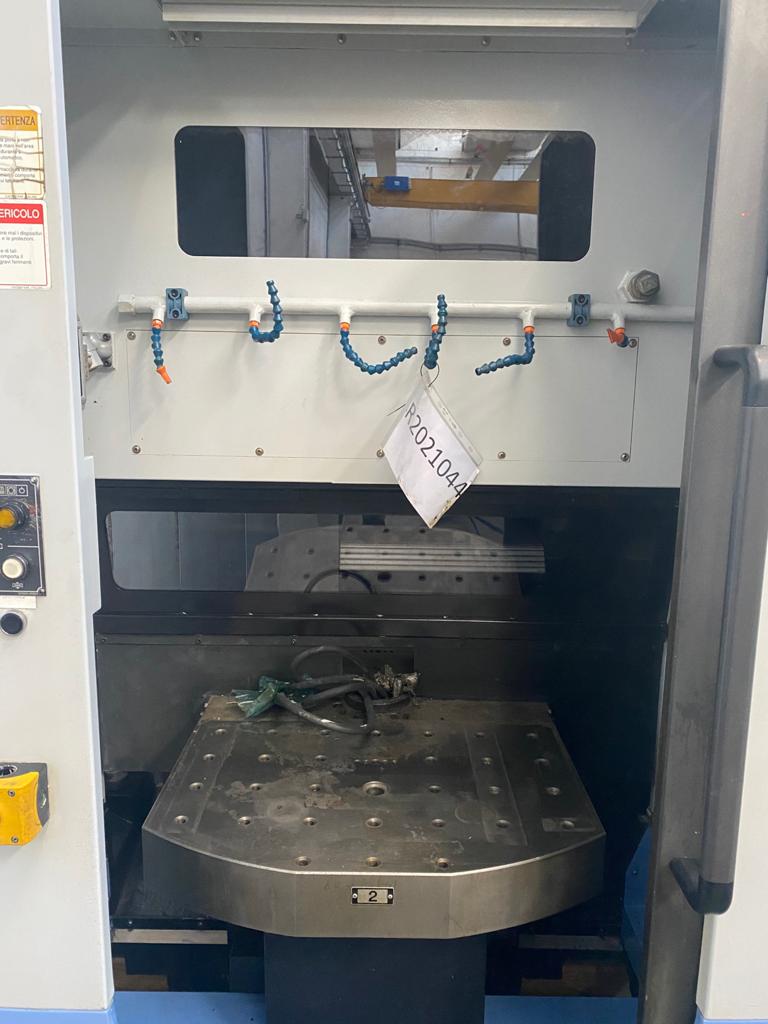

| Table dimensions | 2 x (712 x 490 mm) |
| Number of pallets | 2 pallet |
| Max load allowed on table | 300 kg |
| Tbale surface | 2-29 x M16 x P2.0 |
| Distance between spindle - table surface | 150 - 720 mm |
| Max workable piece height | 460 mm |
| Pallet change time | 5,5 seconds |
| X / Y / Z axis rapid feedrates | 40.000 / 40.000 / 36.000 mm/min |
| X / Y / Z axis working feedrates in linear interpolation (max) | 1 - 15.000 mm/min |
| Tool type | DIN 69871-A40 |
| Tool pull stud type | DIN 69872-A40 |

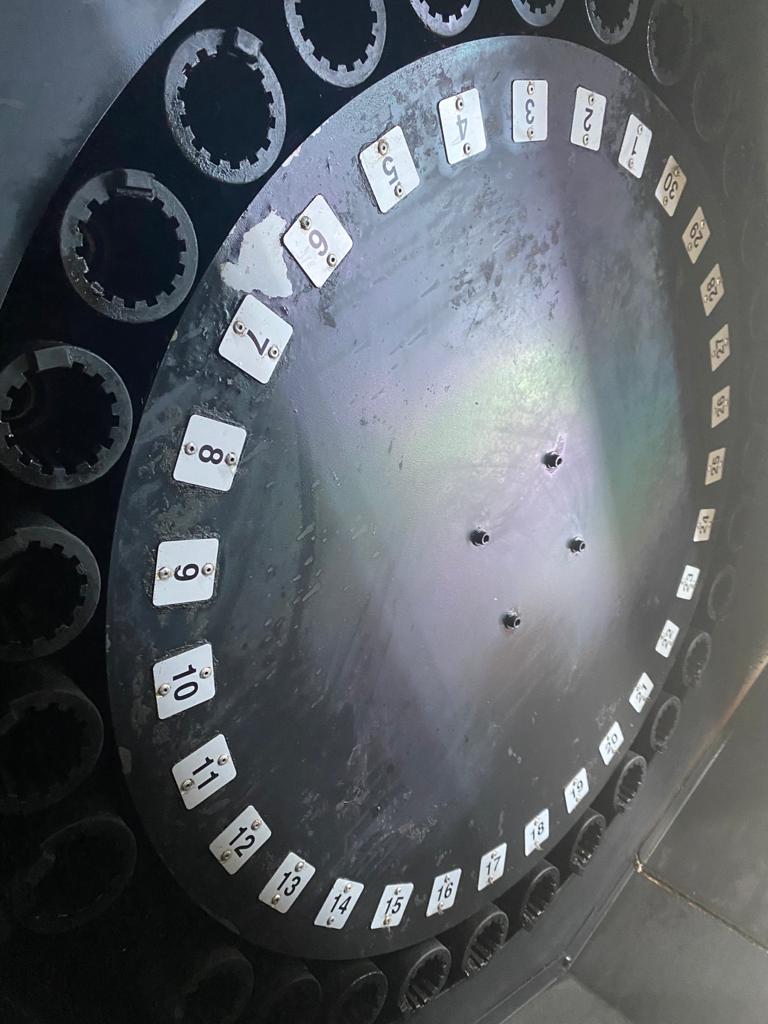

| ATC capicity | 30 positions |
| Max tool diameter | Ø80 / Ø125 mm |
| Max tool lenght | 220 mm |
| Max tool weight | 8 kg |

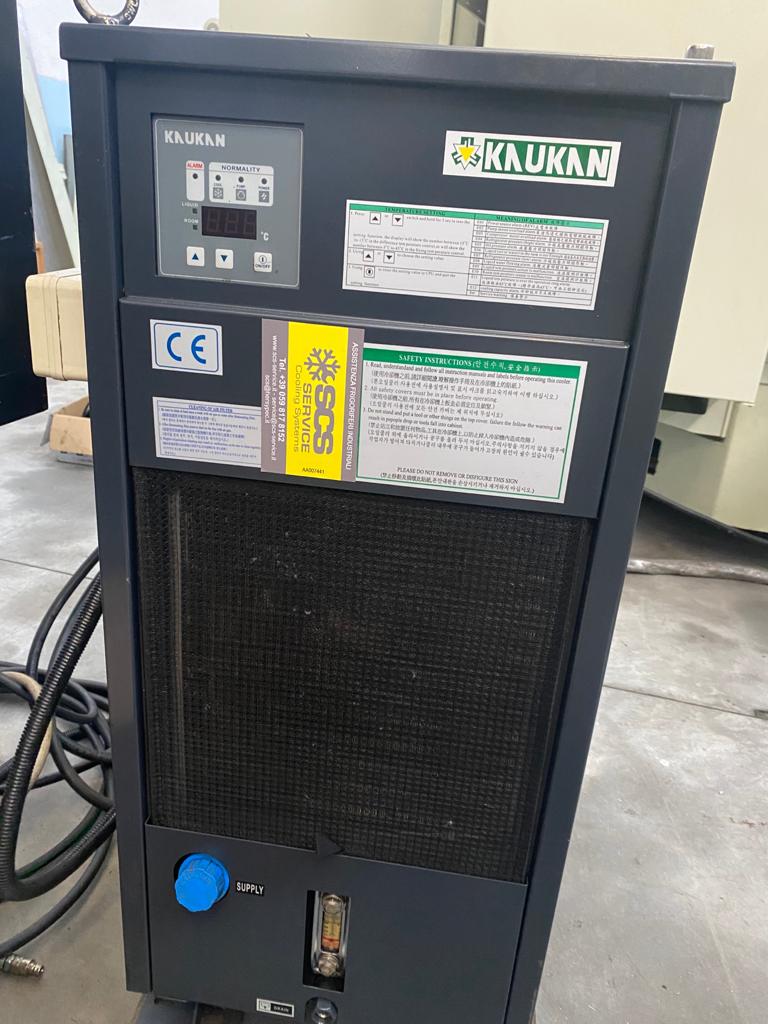

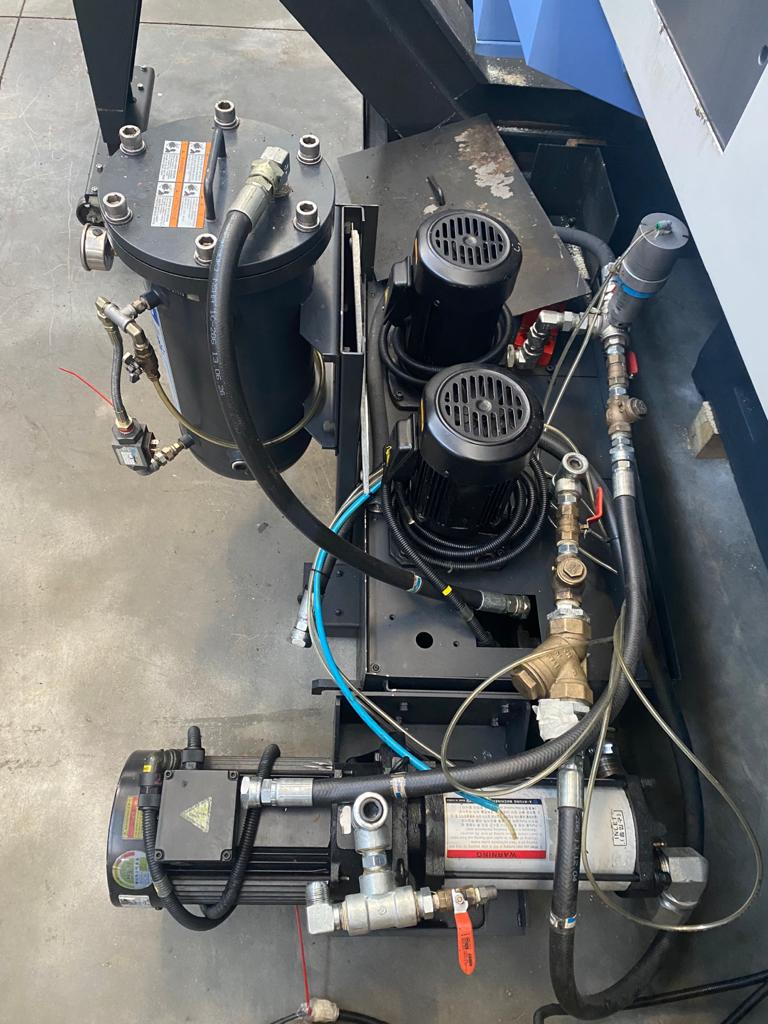

| Accessories | Coolant tank, Chip conveyor, Coolant through spindle high pressure 20 bar, Chiller for spindle, Manuals, Electrical diagrams and EC CE Decleration |
