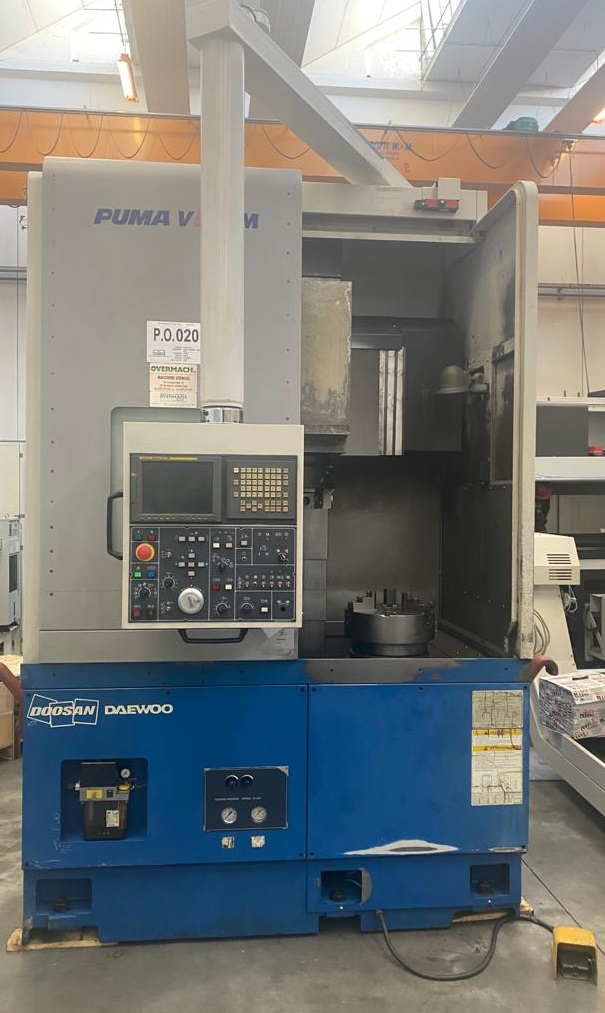

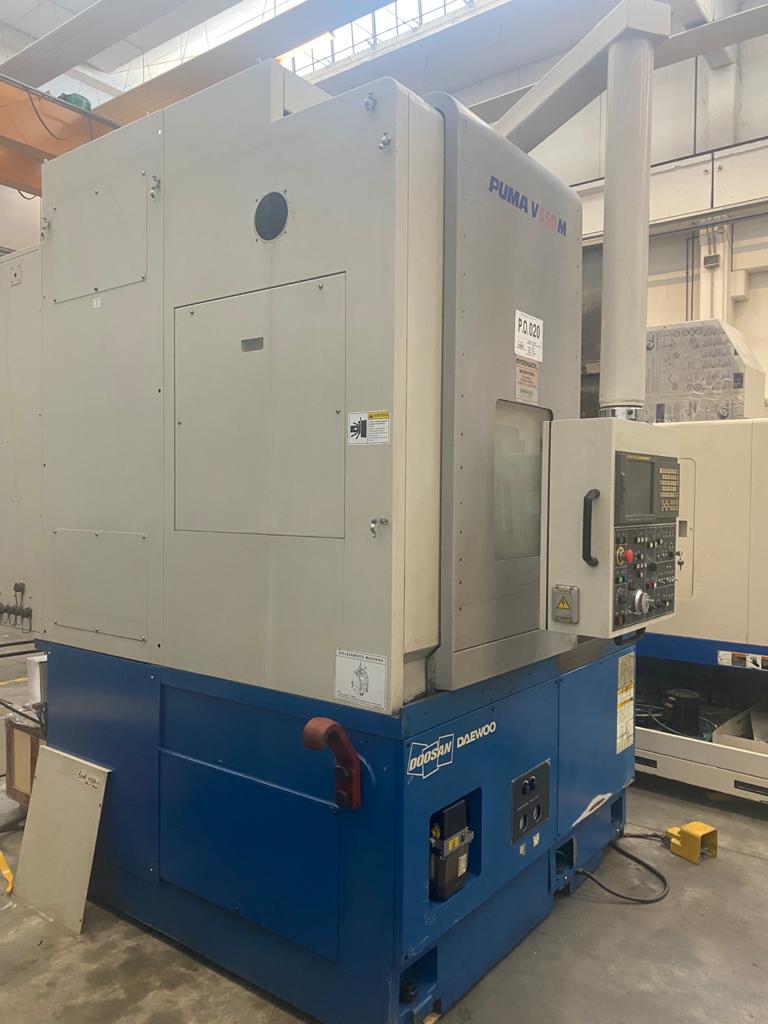

2006 Doosan Daewoo V550M
Sold
2006 Doosan Daewoo V550M
Specifications
| Manufacturer | Doosan Daewoo |
| Model | V550M |
| Year | 2006 |
| Condition | Used |
| Max diameter swing over bed | Ø 800 mm |
| Max diameter swing over saddle | Ø 490 mm |
| Max turning diameter | Ø 730 mm |
| Max turning height | 750 mm |
| Max weight allowed | 650 kg |
| X axis travel | 490 mm |
| Z axis travel | 780 mm |
| C asix travel | +/- 360° |

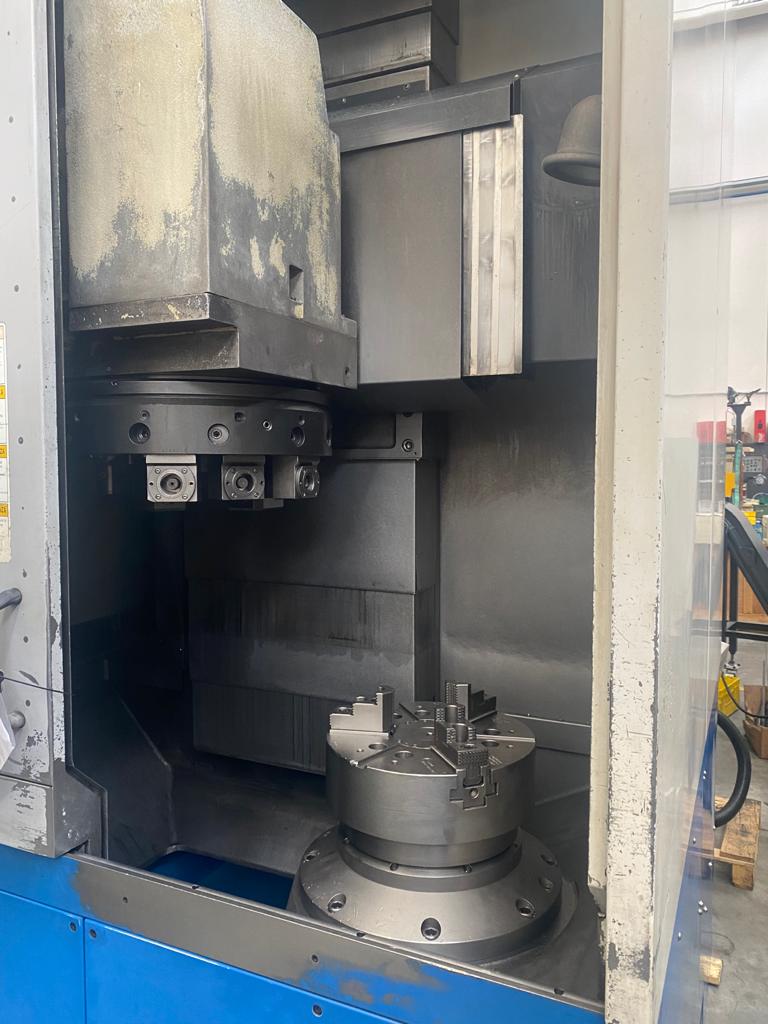

| Chuck diameter | Ø 390 mm |
| Spindle speed | 20 - 2.000 rpm |
| Spindle speed steps (Auto) | 2 steps |
| Spindle nose | ASA A2-11 |
| Spindle motor power (cont/30 min) | 30/37 kW |
| C axis angular positioning | 0.001° |
| Turret positions (VDI-50) | 12 positions |
| Live-tool positions | 6 positions |
| Live-tool speed | 30 - 3.000 rpm |
| Live-tool motor power | 3,7 / 5,5 kW |
| Tools dimensions / boring bar diameter | 32x32 / Ø50 mm |
| Rapid feedrates X Axis | 12.000 mm/min |
| Rapid feedrates Z Axis | 16.000 mm/min |
| Rapid feedrates C Axis | 200 rpm |

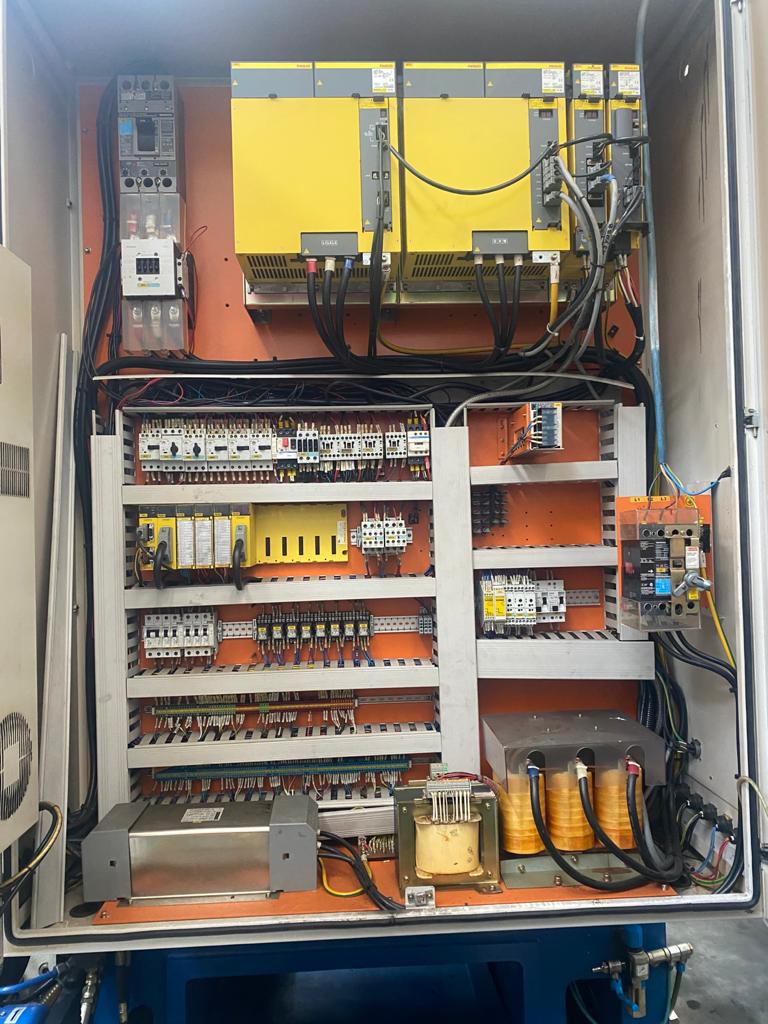

| Accessories | Various tool holders (live-tool / fix tool), Coolant tank with high pressure pump, Chip conveyor, Manuals, Electric diagrams and EC CE Decleration |
