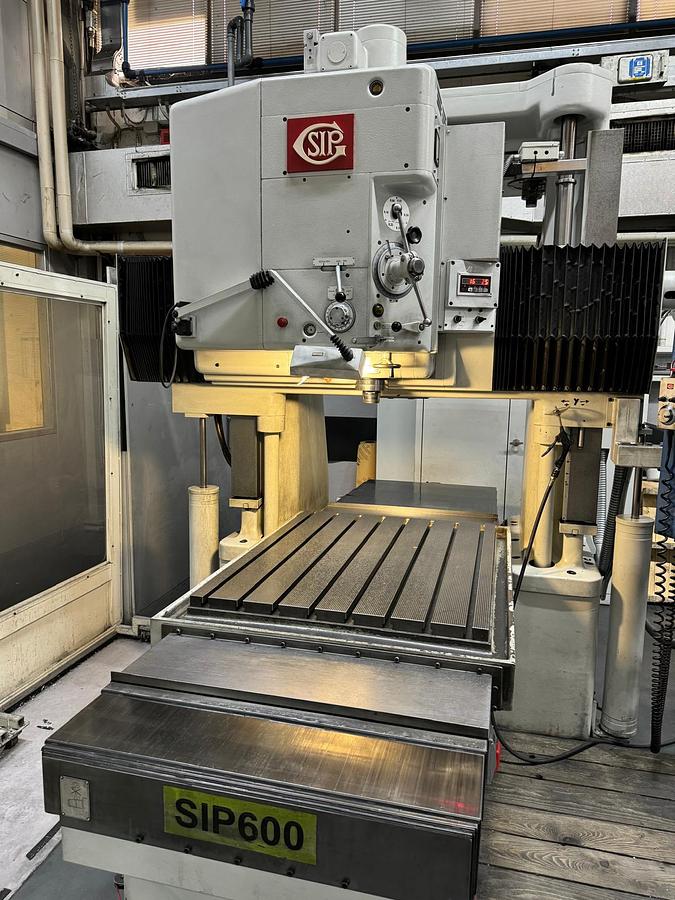

SIP - 600
SIP - 600
or
Call +39 0522 1536494
Specifications
| Manufacturer | Sip Genevoise |
| Model | SIP - 600 |
| Condition | Used |
| CNC Control | Fanuc Series 21i-M |
| Table travel (X axis) | 1.000 mm |
| Saddle travel (Y axis) | 700 mm |
| Quill vertical travel | 300 mm |
| Cross rail vertical travel | 780 mm |
| Distance between columns | 1.100 mm |
| Max distance spindle nose – table | 1.000 mm |
| Table working surface | 1.100 × 842 mm |
| Maximum table load | 1.500 kg |
| Feed rates on Table | 1 – 1.000 mm/min |
| Rapid traverse on Table | 5.000 mm/min |
| Feed rates on Saddle | 1 – 1.000 mm/min |
| Rapid traverse Saddle | 5.000 mm/min |
| Spindle speed range | 40 – 2.000 rpm (18 speed) |
| Automatic boring feeds | 0,04 – 0,35 mm/giro |
| Tool taper | Morse 4 – SIP 4e |
| Spindle motor power | 5,9 kW (8 CV) |
| Hydrostatic quill diameter | 135 mm |
| Machine + cabinet Dimensions | 3.870 × 4.000 mm |
| Machine height | 3.235 mm |
| Machine weight with cabinet and accessories | 11.000 kg |
