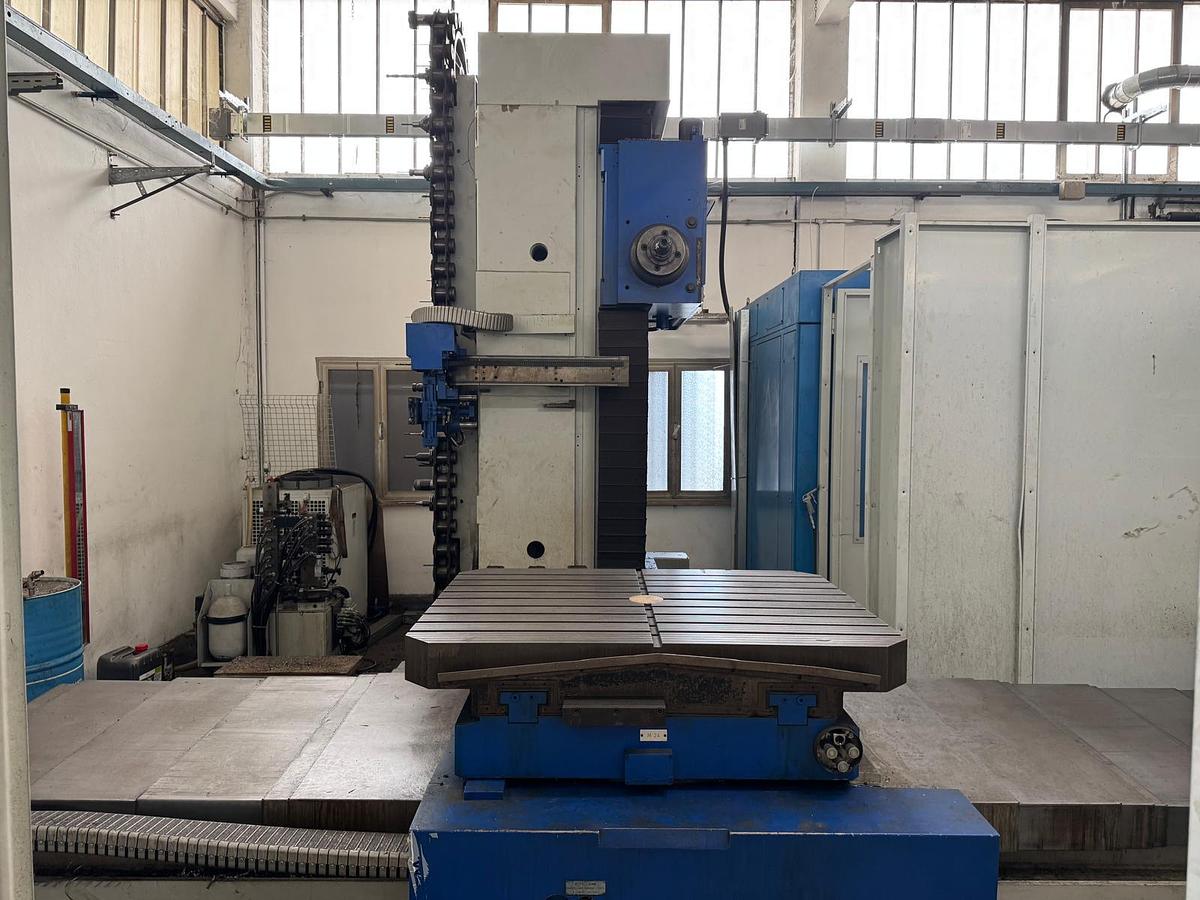

Bragonzi Creusmatic 110T CNC Retrofitted
Bragonzi Creusmatic 110T CNC Retrofitted
or
Call +39 0522 1536494
Specifications
| Manufacturer | Bragonzi |
| Model | Creusamatic 110T CNC Retrofitted |
| Year | 2019 |
| Condition | Used |

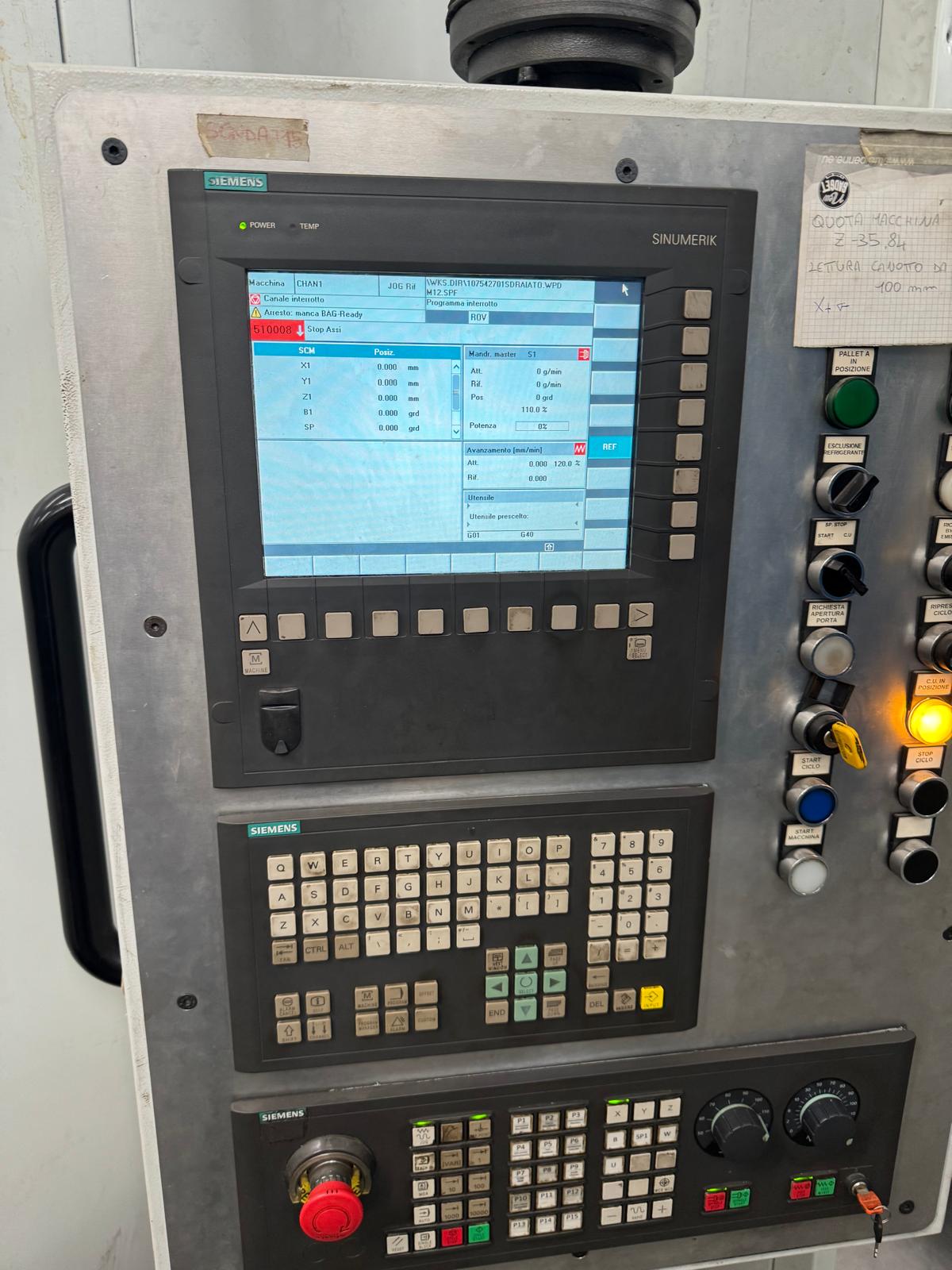

| CNC Control | SIEMENS 840D |
| Machine weight | 28.000 Kg |
| Dimensions machine only | Length: 4.500 mm Width: 4.200 mm Height: 4.100 mm |
| Total Power | 45 kW |

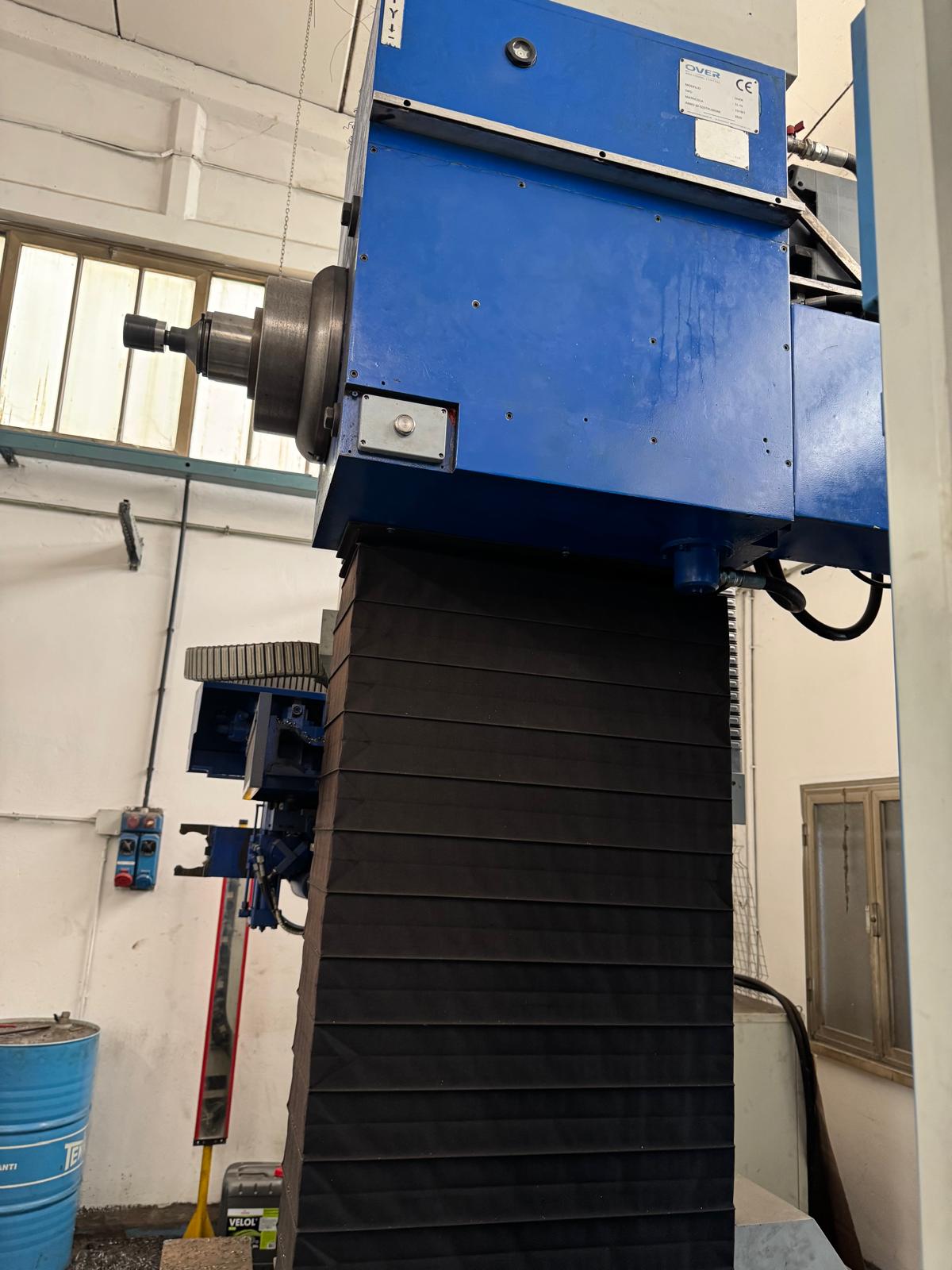

| Boring spindle diameter | Ø 110 mm |
| Spindle nose (mounting type) | ISO 50-7388/1-DIN 69871 double drive keys |
| Milling cutter mounting diameter: | Ø 221.44 mm |
| Spindle speed range (continuous variation) | 15 ÷ 596 rpm 50 ÷ 2.000 rpm |
| Spindle motor power | 22 kW |
| Working feeds X / Y / Z / W axes (continuous variation) | 2 ÷ 5.000 mm/min |
| Rapid traverse X / Y / Z / W axes | 10.000 mm/min |
| X axis (longitudinal) | 2.500 mm |
| Y axis (vertical) | 1.500 mm |
| Z axis (transversal) | 1.300 mm |
| W axis (quill) | 550 mm |

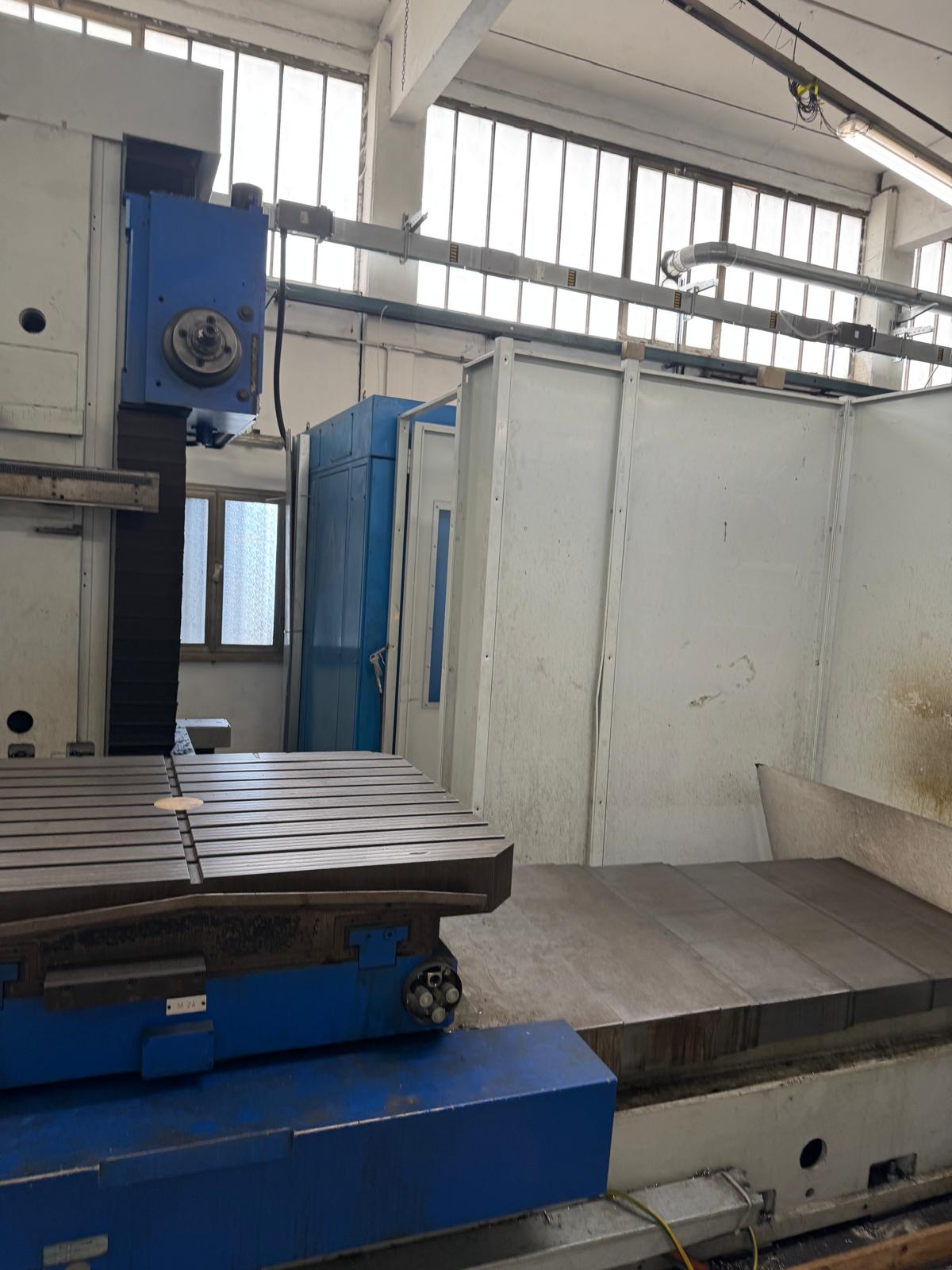

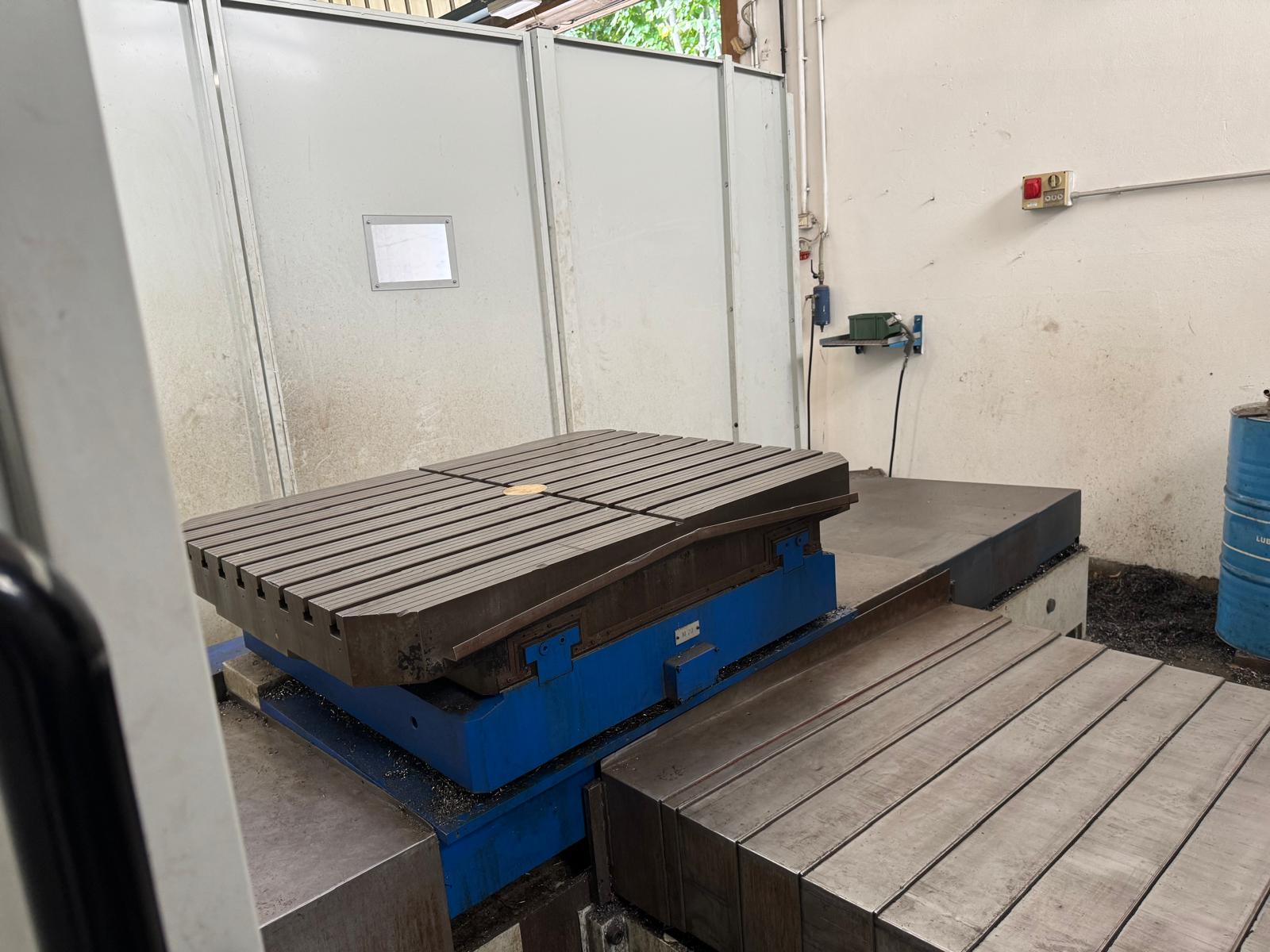

| Usable pallet dimensions | 1.040 x 1.350 mm |
| Maximum load | 4.000 Kg |
| Rapid rotation speed | 3 rpm |
| Tool magazine capacity | 60 stations |
| Tool holder type | CONO ISO 50-7388/1 |
| Maximum tool diameter with adjacent stations (occupied/free) | Ø138 / Ø280 mm |
| Maximum tool length (excluding taper) | 400 mm |
| Maximum tool weight | 25 Kg |
| Accessories | Machine complete with its accessories |
