COLGAR FRAL 70 C16
COLGAR FRAL 70 C16
or
Call +39 0522 1536494
Specifications
| Manufacturer | COLGAR |
| Model | FRAL 70 C16 |
| Year | 1998 |
| Condition | Used |

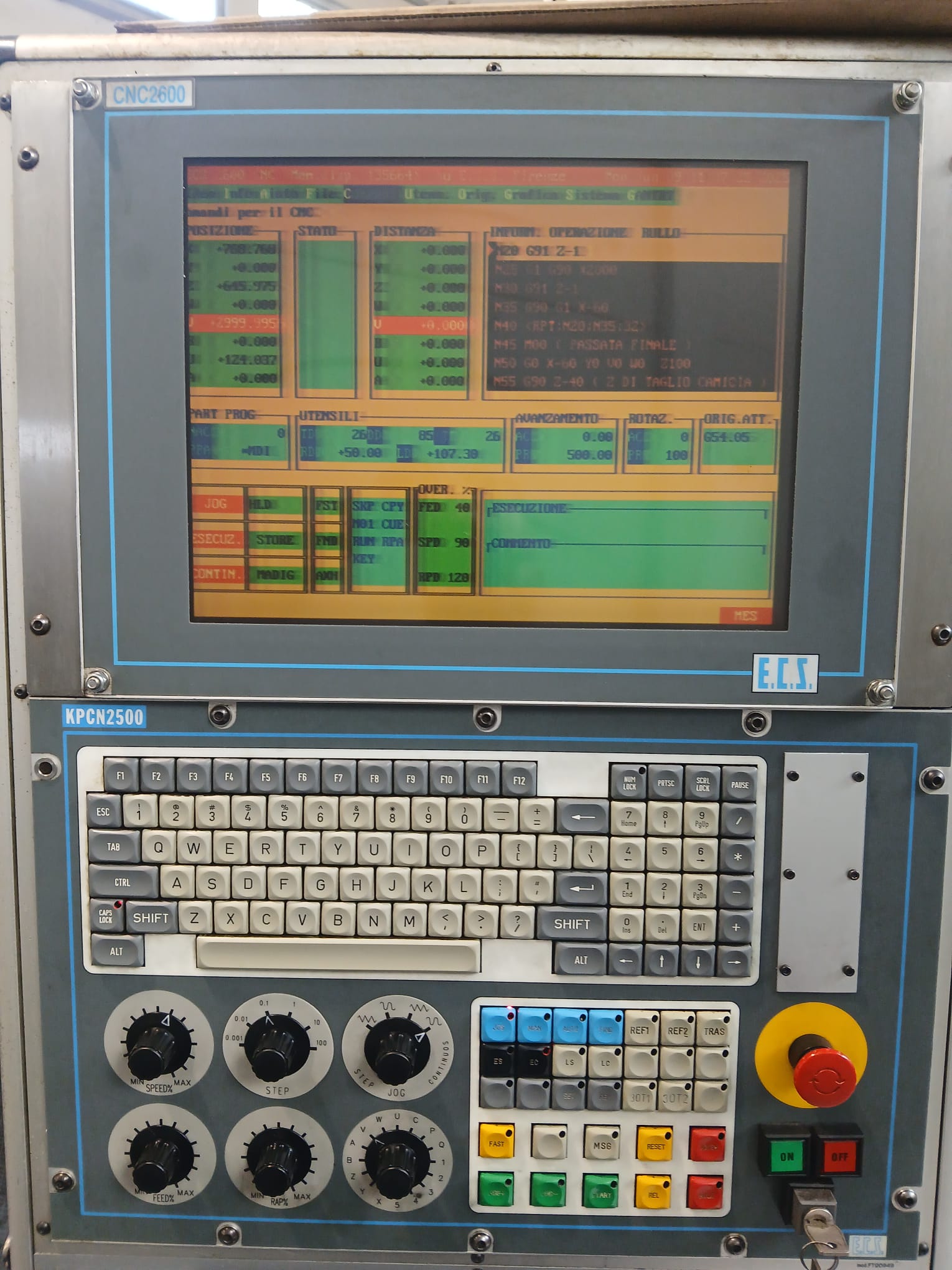

| CNC Control | ECS CNC2600 |
| Machine dimensions | Length: 14.000 mm Width: 9.000 mm Height: 6.500 mm |
| Boring spindle diameter | Ø 160 mm |
| Boring spindle inside taper | ISO 50 |
| Milling spindle diameter | Ø 220 mm |
| Spindle speed range | 2 ÷ 1.665 Rpm |
| Spindle motor power | 55 kW |
| X Axis (Longitudinal of column) | 8.300 mm |
| Y Axis (Vertical of head) | 3.000 mm |
| Z Axis (Trasversal of head RAM) | 1.000 mm |
| V Axis (Trasversal of Table) | 2.000 mm |
| W Axis (Movement of Quill) | 800 mm |
| B Axis (Table Rotation) | 360° |
| A Axis (Bi-Rotative Head) | 360° (Min. Angle 2,5°) |
| C Axis (Bi-Rotative Head) | 360° (Min. Angle 1°) |
| RAM section dimensions | 645 x 500 mm |
| Table dimensions | 2.500 x 2.000 mm |
| Table loading capacity | 30.000 Kg |
| Nr. 2 Floor Plates dimensions | 2 X (4.000 x 2.000 mm) |
| Rapid feed axes X/Y/Z/V/W | 8.000 mm/min |
| Cutting feed axes X/Y/Z/V/W | 1 ÷ 6.000 mm/min |
| Tool magazine capacity | 60 Positions |
| Tool type | DIN 69871-B50 |

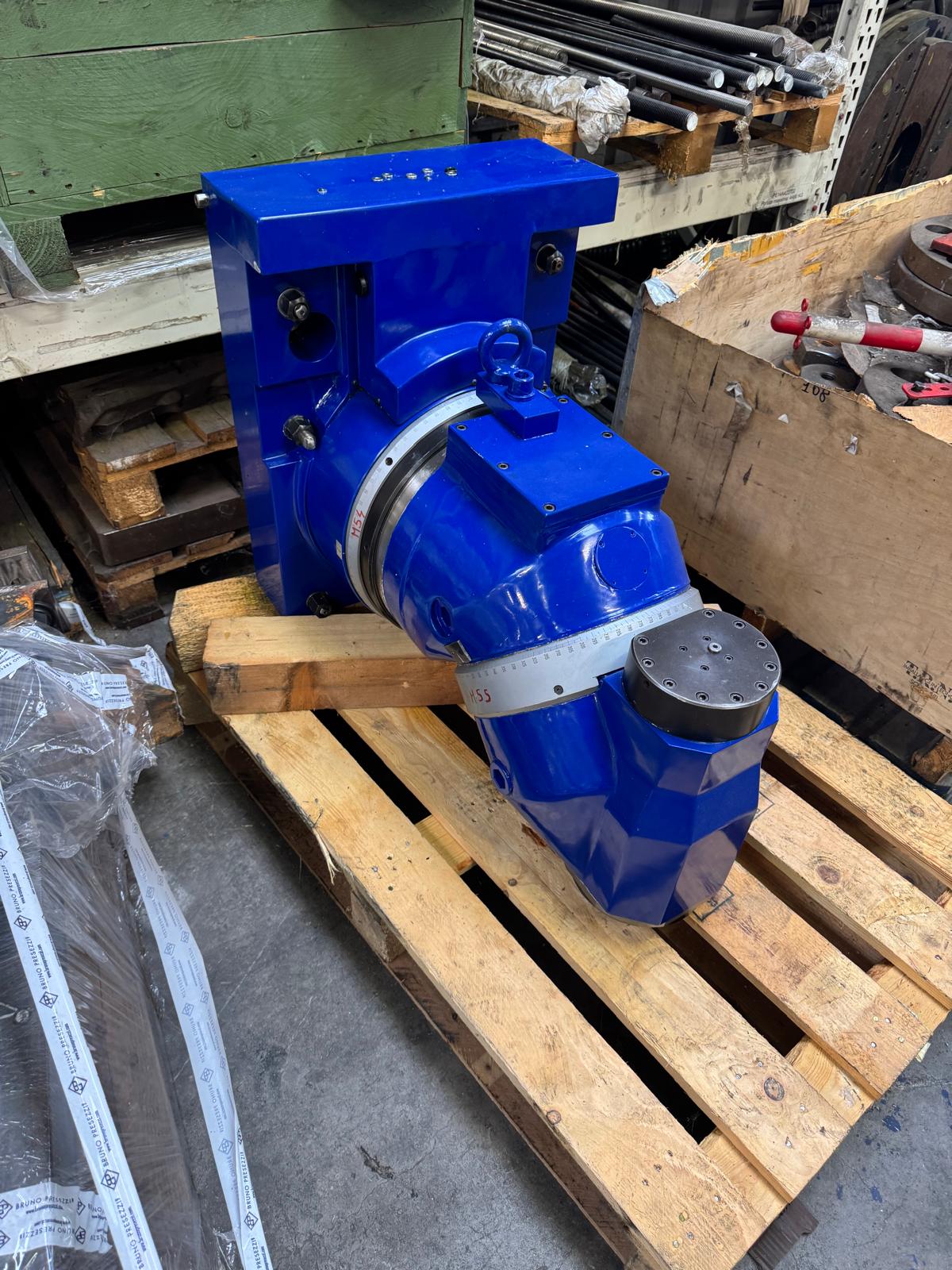

| Note | Automatic Bi-Rotative Head (REFURBISHED) Axis “A” with minimum angle of 2,5° - Axis “C” with minimum angle of 1°, Machine with automatic head changing system, Coolant through spindle (CTS) with high pressure pump, Machine complete of all its Accessories and Floor Plates + Rotary Table |
