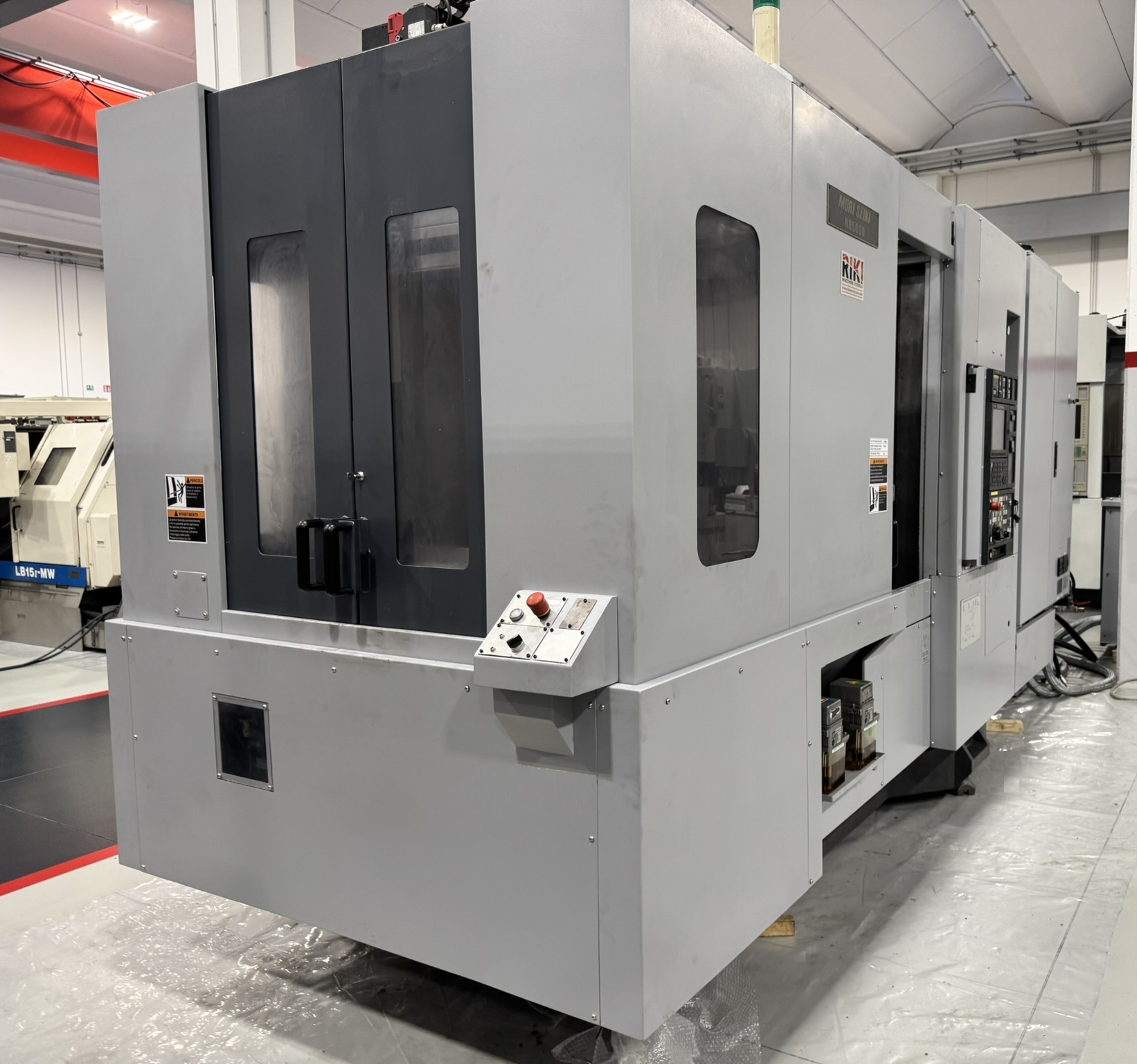

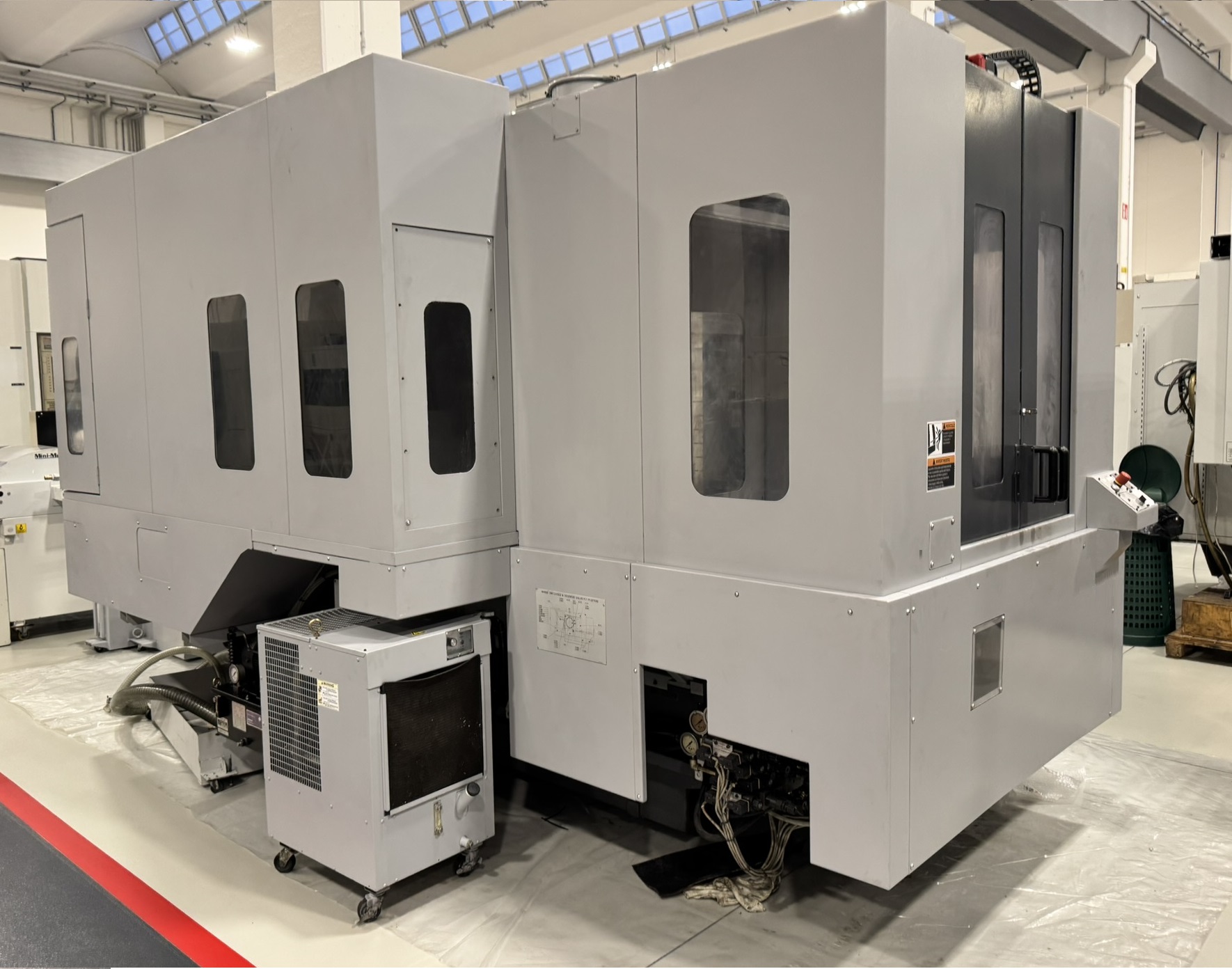

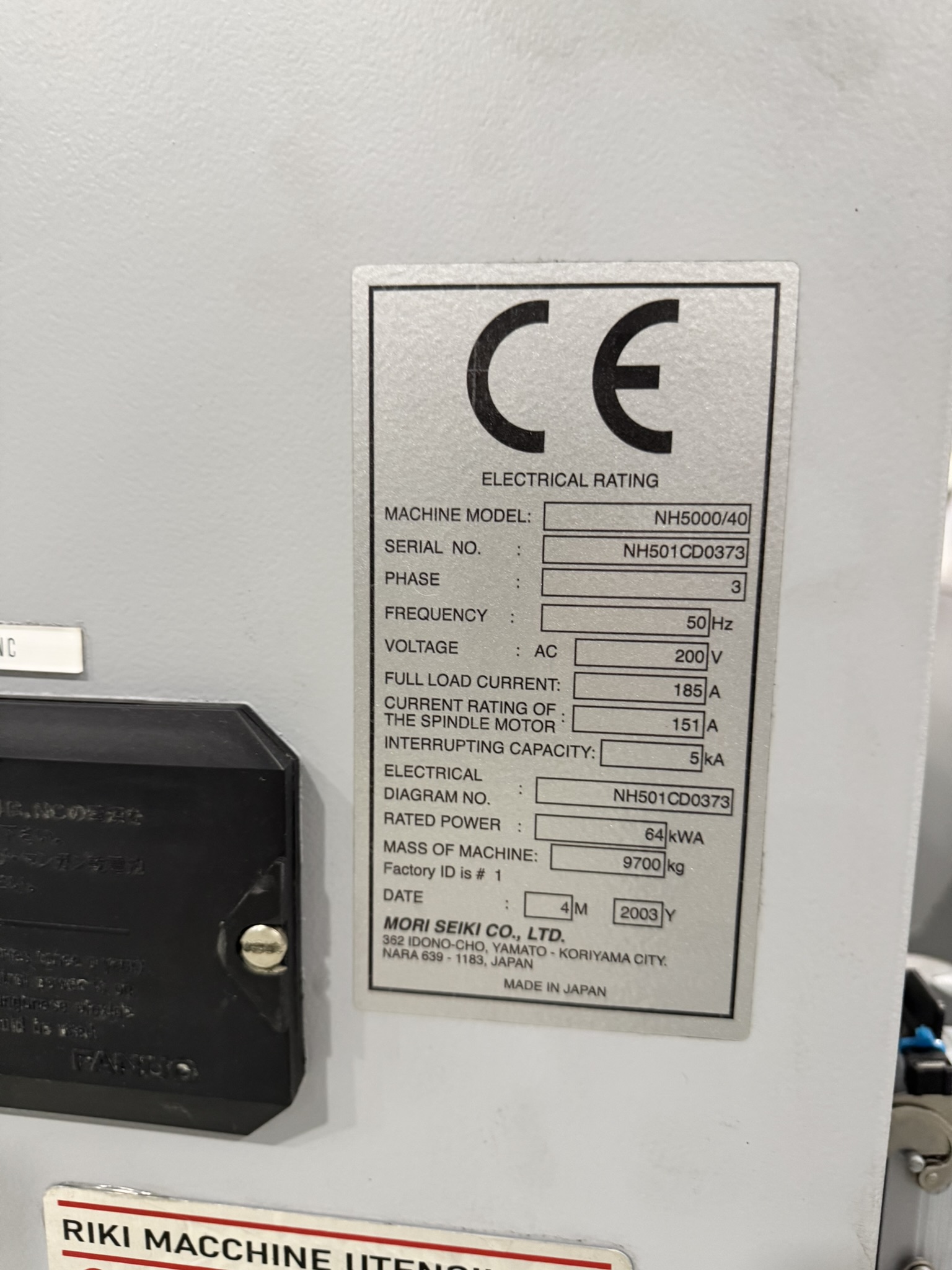

2003 Mori Seiki NH-5000/40
2003 Mori Seiki NH-5000/40
or
Call +39 0522 1536494
Description
List of Completed Works:
- Overhaul of the tool clamping press with replacement of cup springs and hydraulic opening/closing valve
- Replacement of tool change “fingers,” compatible with either BT or DIN standards
- Overhaul of the Z-axis ball screw with replacement of sliders and new original guides, bearings, and refurbishment of the lubrication system
- Inspection of X and Y axes with lubrication of guides and sliders

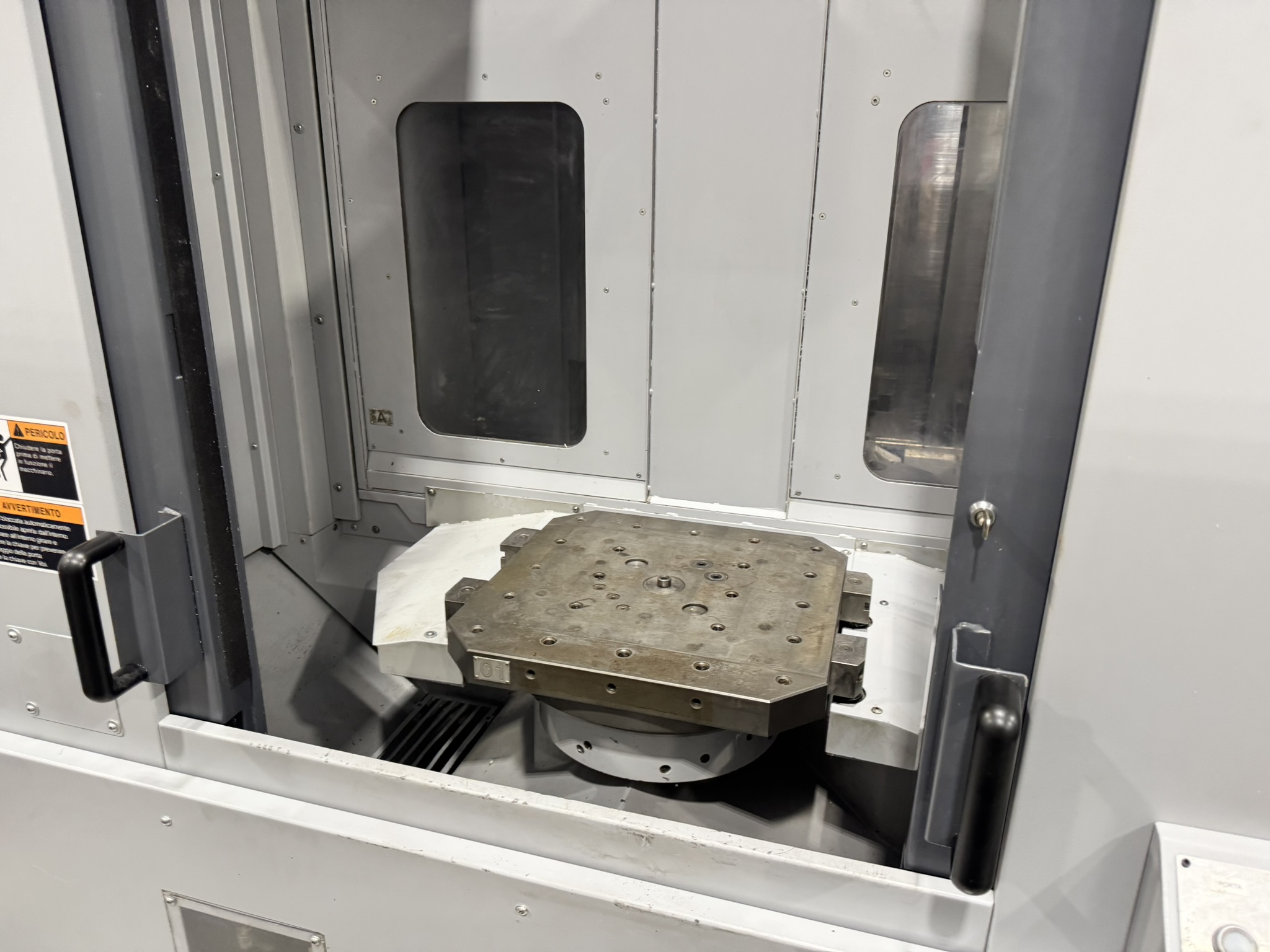

- Complete overhaul of the continuous table with replacement of new clamping spiders, seals, bearings, and belt
- Overhaul of the pallet change fork piston with replacement of bearings and seals

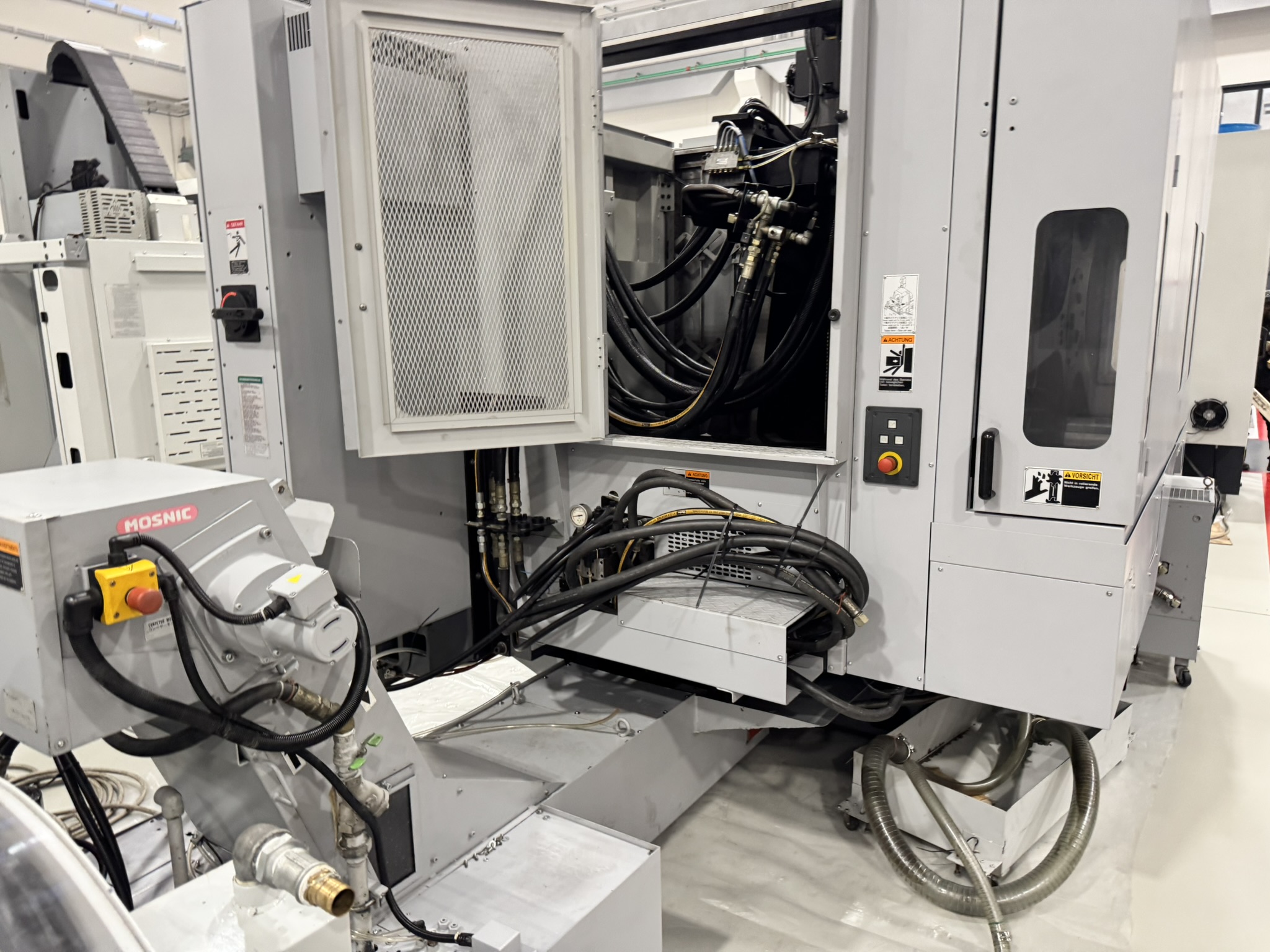

- Complete overhaul of the machine’s pneumatic system
- Overhaul of the lubrication system
- Overhaul of the screw-type chip conveyor
- Overhaul of the tool change door opening/closing piston
- Overhaul of the hydraulic unit with replacement of filters
- Overhaul of the high-pressure pump with replacement of filters
- Overhaul of the spindle line conditioner with system cleaning and filter replacement
- Overhaul of the chip conveyor
- Replacement of drive unit batteries
- Replacement of the main power switch of the transformer
Specifications
| Manufacturer | Mori Seiki |
| Model | NH-5000/40 |
| Year | 2003 |
| Condition | Used |

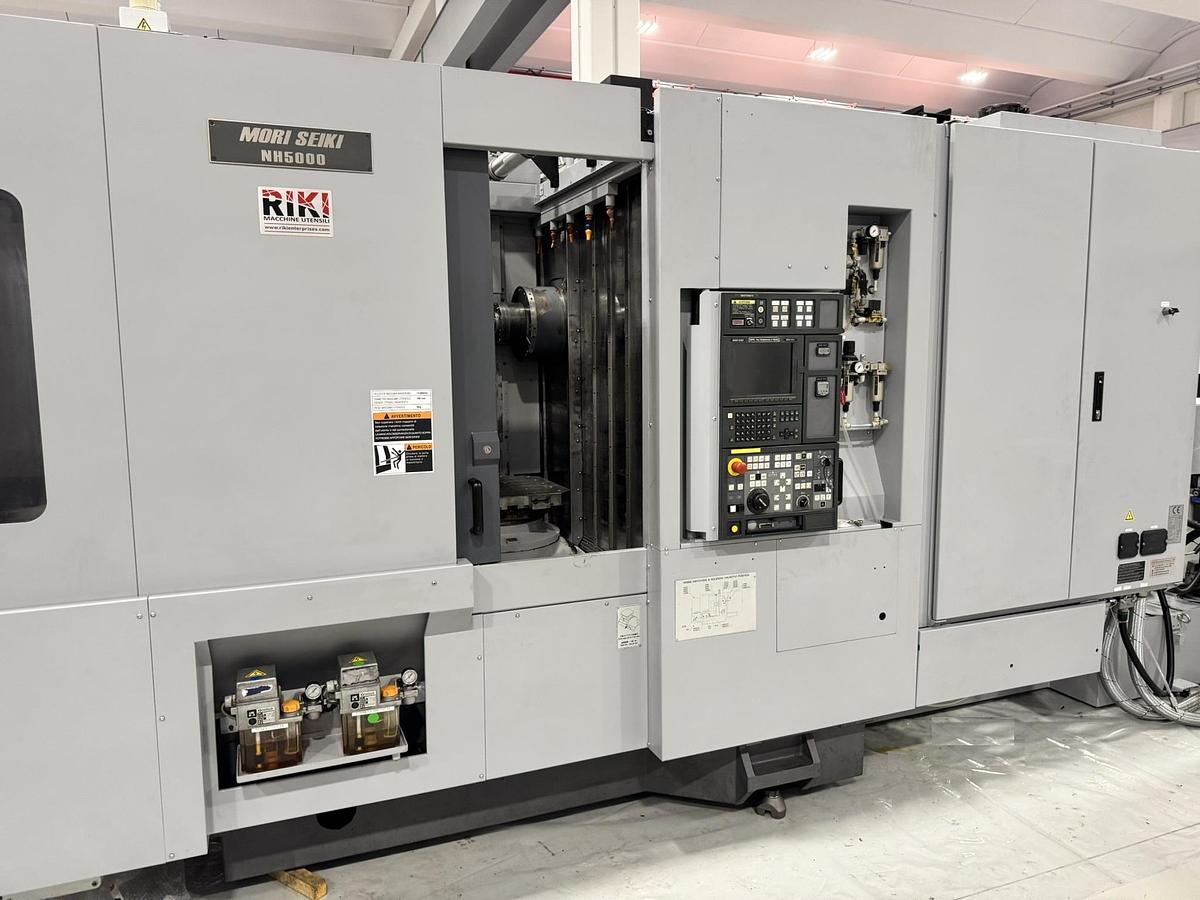

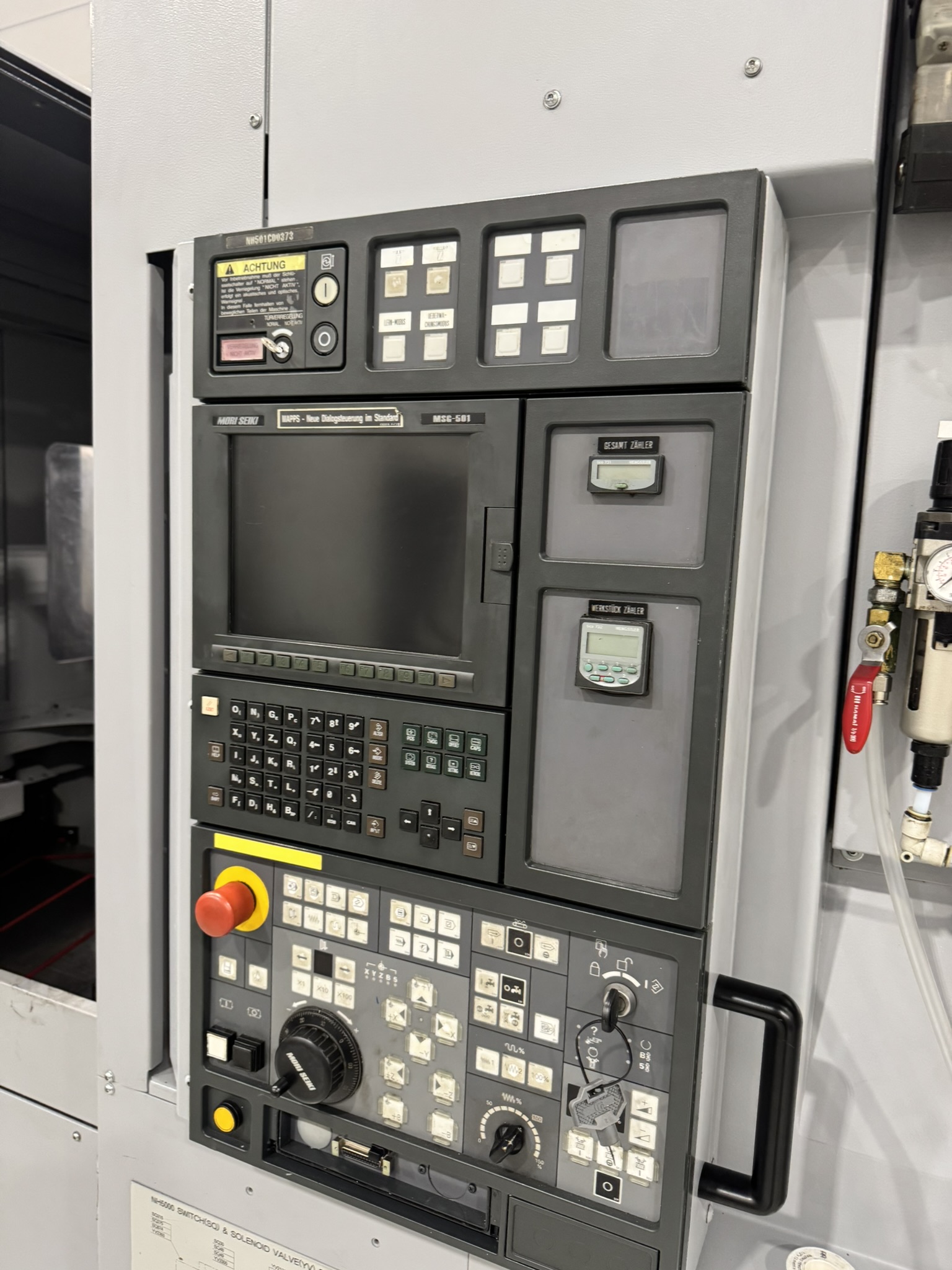

| CNC Control | MORI SEIKI MSG-501 |
| Spindle size | ISO 40 |
| Spindle speed | 14.000 Rpm |
| Spindle motor power (cont/30 min | 18.5 / 22 kW |
| X axis | 630 mm |
| Y Axis | 600 mm |
| Z Axis | 670 mm |
| Distance between spindle center - table surface | 50 ÷ 650 mm |
| Distance between spindle nose - table center | 100 ÷ 770 mm |
| Max workpiece dimensions (Diameter x Height) | Ø730 x 900 mm |

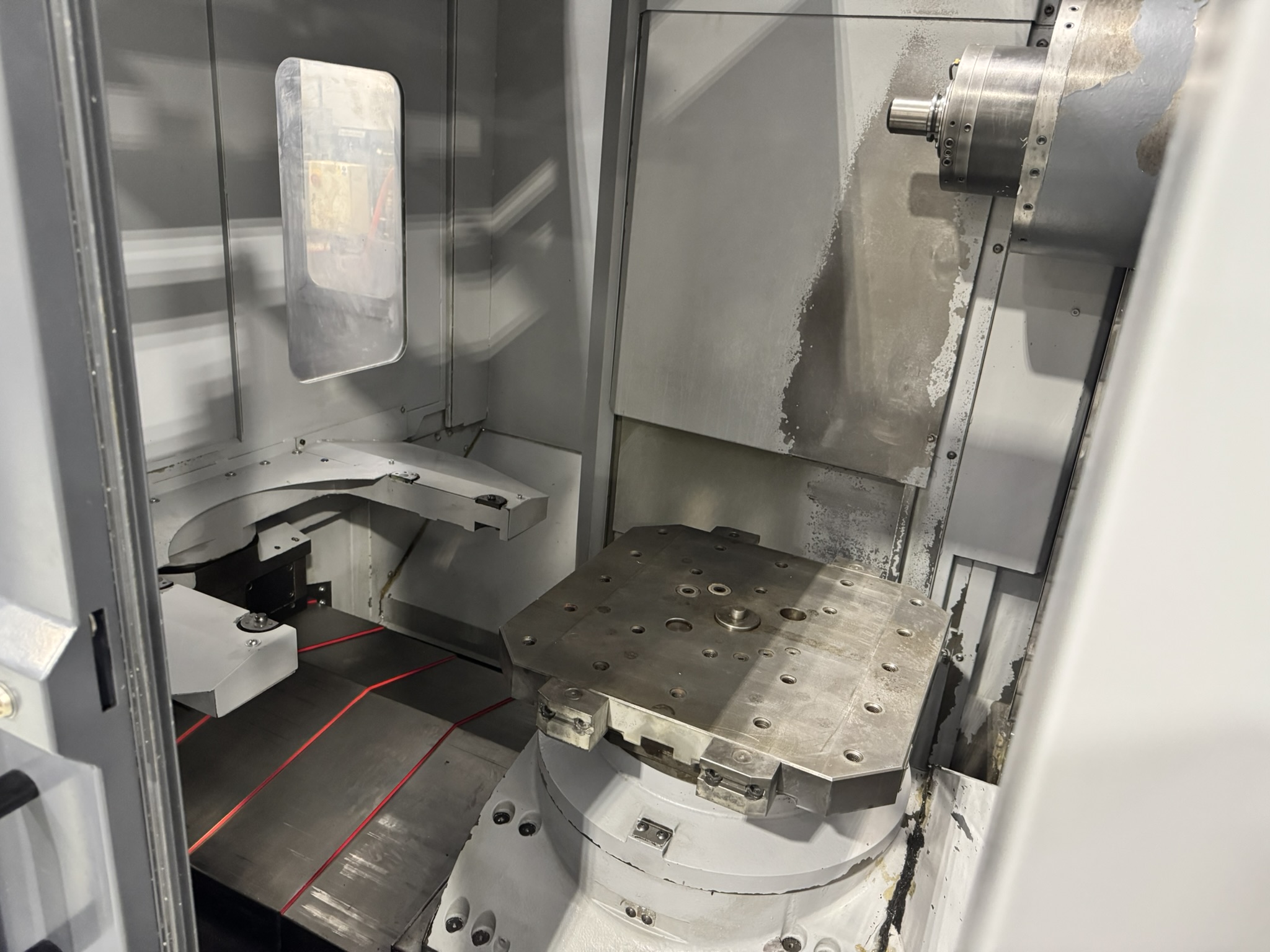

| Table dimensions | 500 x 500 mm |
| Max table load capacity | 500 Kg |
| Table rotation continous | 360.000 positions |
| Nr. of table pallets | 2 |
| Rapid feedrates X / Y / Z | 50.000 mm/min |
| Working feedrates X / Y / Z | 1 ÷ 50.000 mm/min |
| Tool type | MAS BT-40 |
| Pull stud type | Type 90° Mori Seiki |

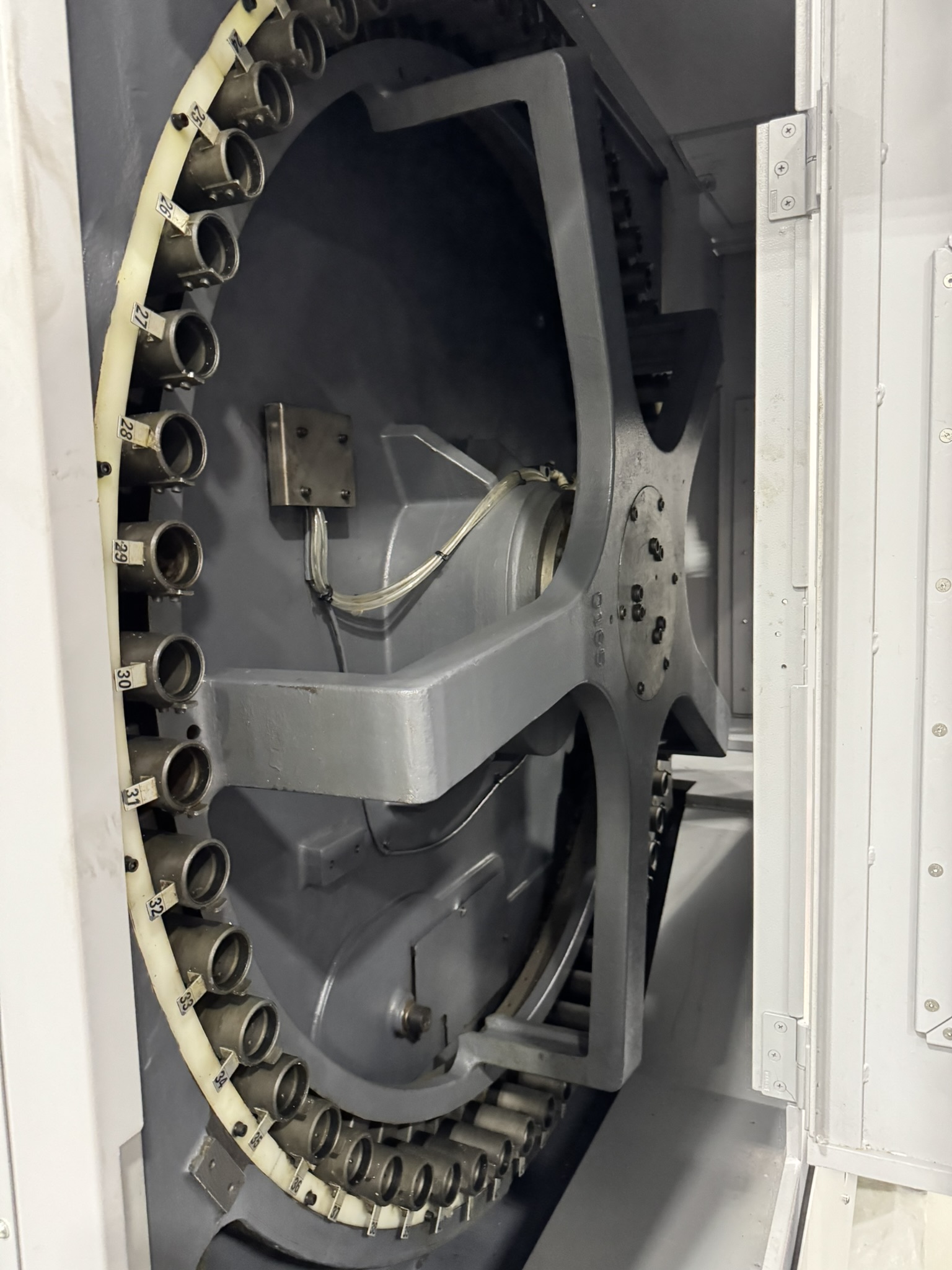

| ATC positions | 60 Stations |
| Tools diameter | Ø125 / Ø80 mm |
| Tools max lenght | 400 mm |
| Tools max weight | 8 Kg |

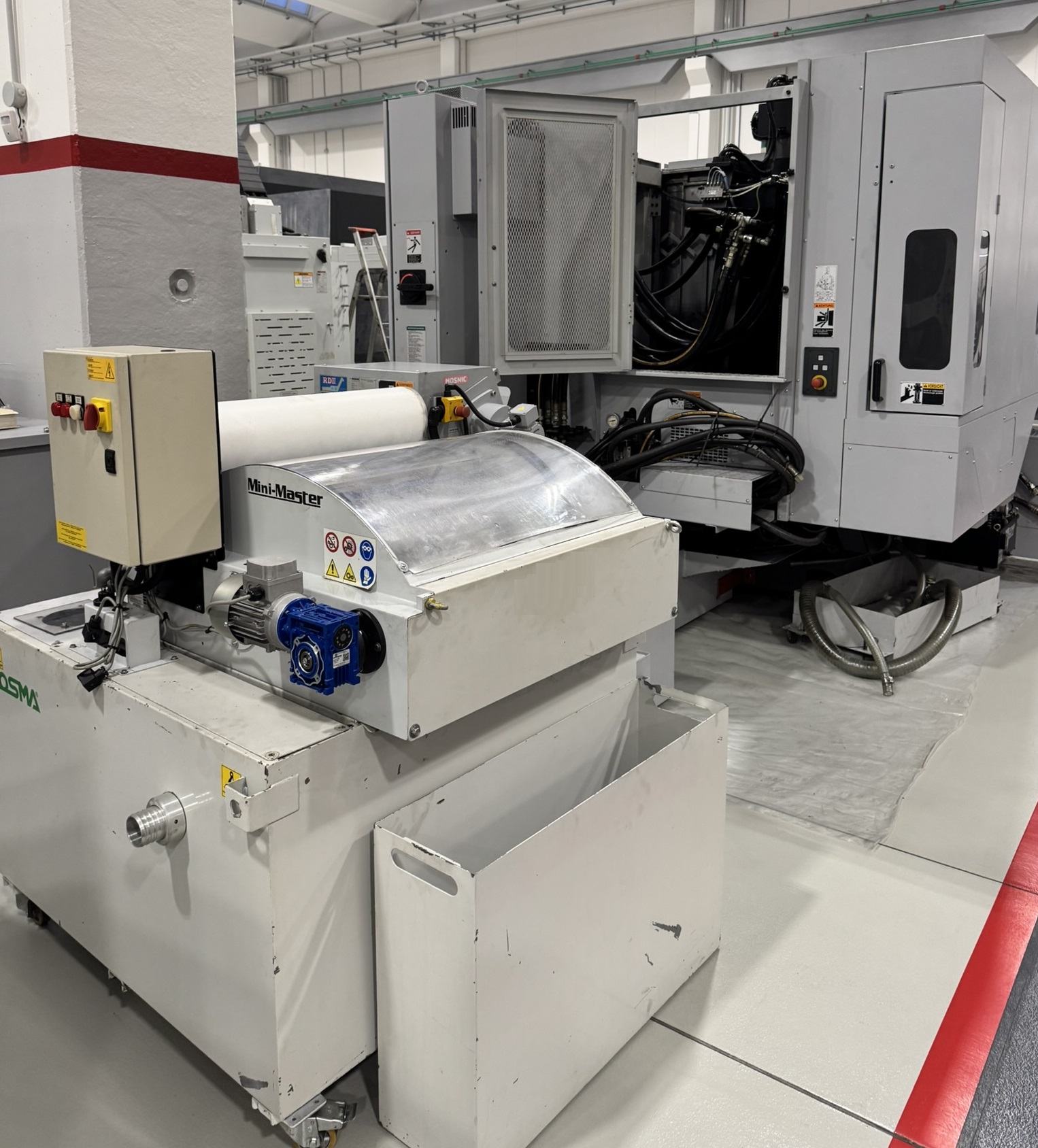

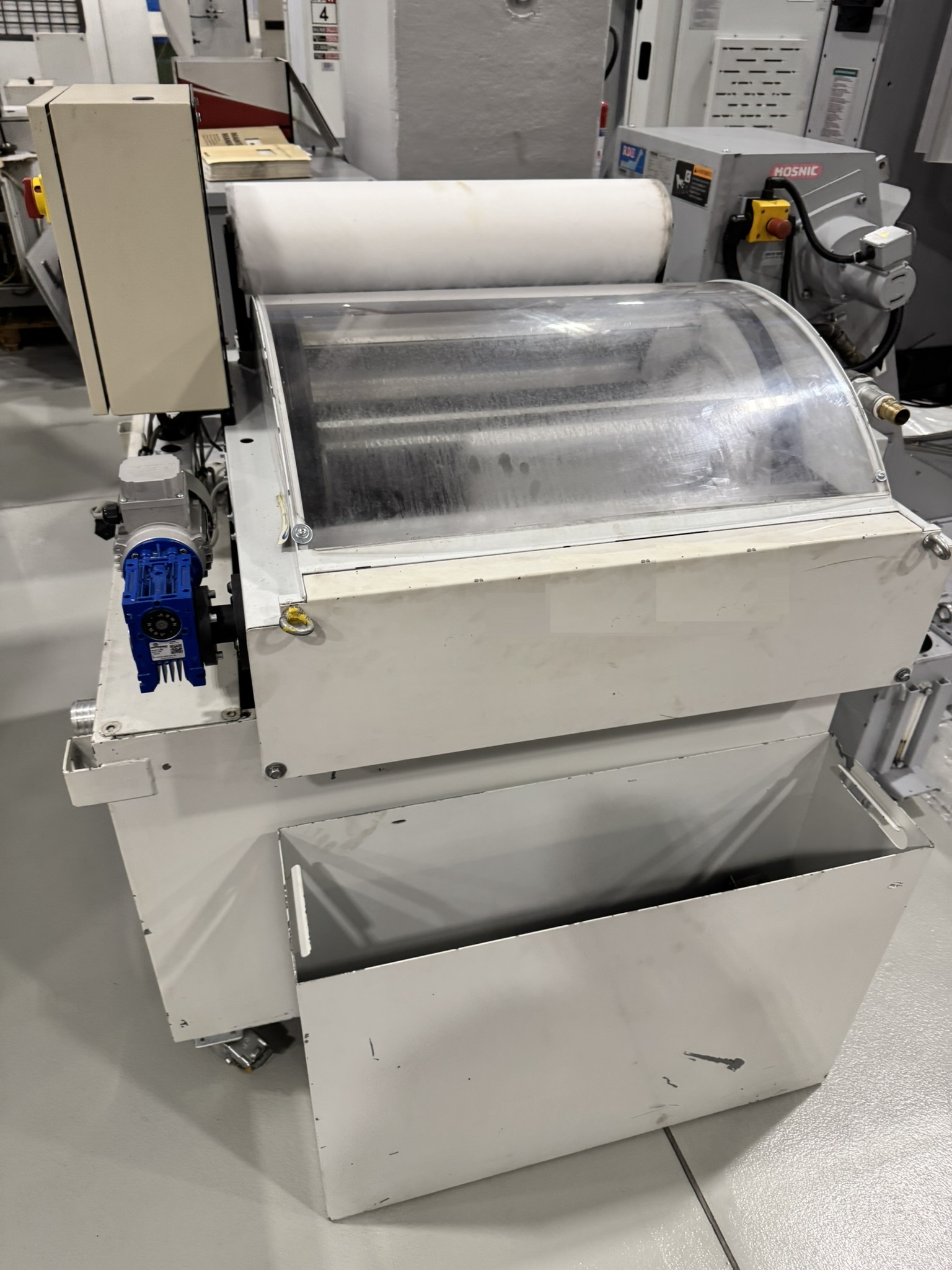

| Accessories | Coolant tank and chip-conveyor, External high-pressure pump for coolant through spindle with double filter, Nr. 2 drilled and tapped overlayed plates for pallets (1/each), Chiller for spindle head, hydraulic unit and electrical transformer, Manuals, Electrical Diagrams and CE Declaration |
