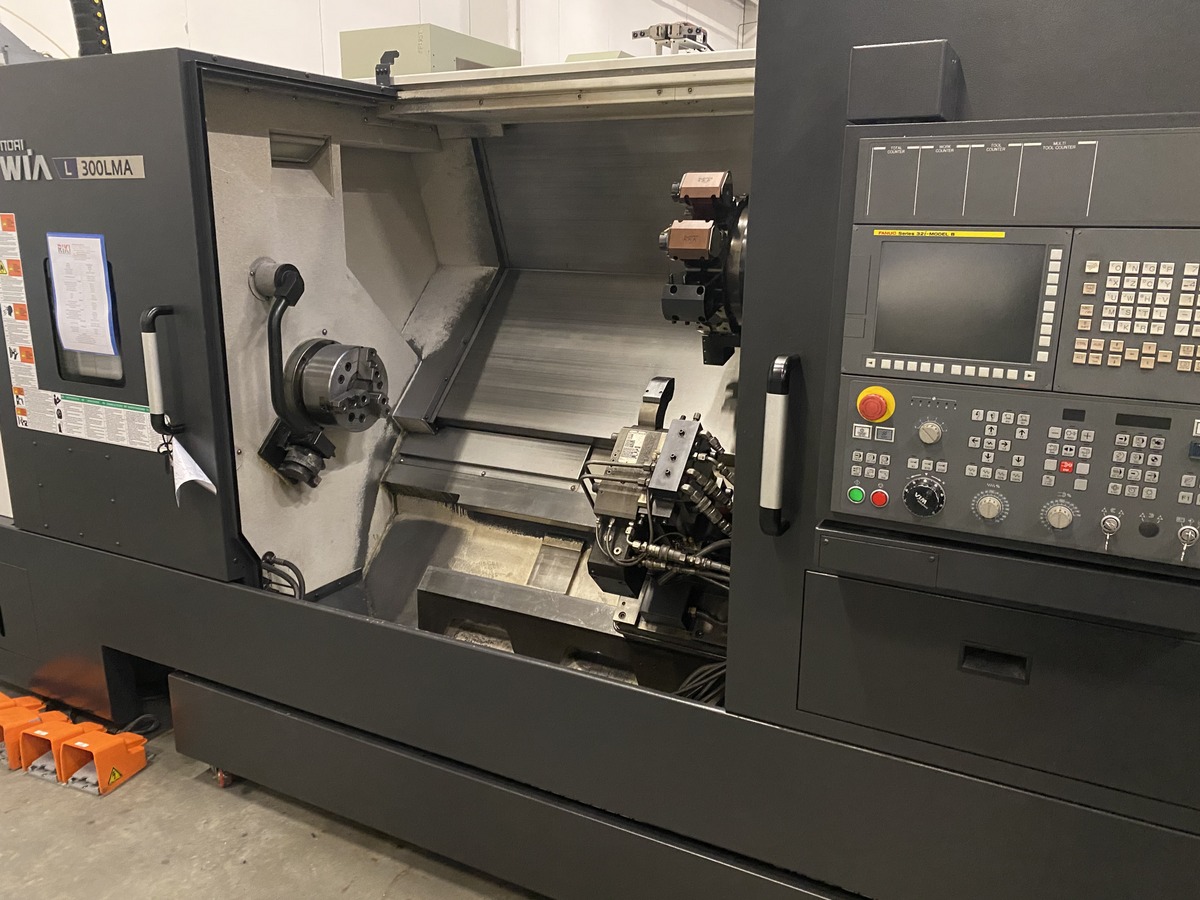

2017 Hyundai WIA L300LMA
Sold
2017 Hyundai WIA L300LMA
Specifications
| Manufacturer | Hyundai WIA |
| Model | L300LMA |
| Year | 2017 |
| Condition | Used |

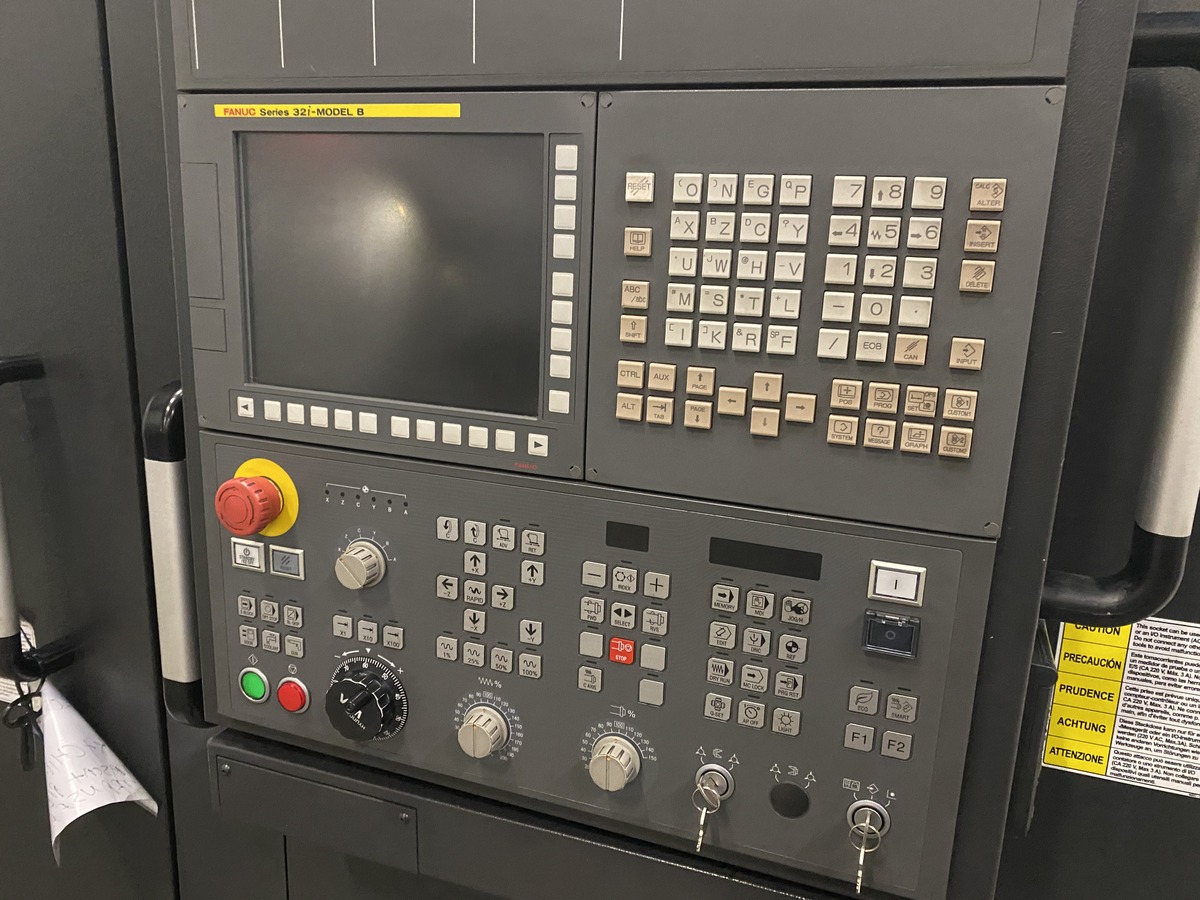

| CNC Control | FANUC 32i-Model B |
| Max swing over the bench | Ø 750 mm |
| Max swing over the carriage | Ø 480 mm |
| Max turning diameter | Ø 410 mm |
| Max turning length | 1.280 mm |
| Bar diameter capacity through the spindle | Ø 76 mm |
| X axis travel | 290 mm |
| Z axis travel | 1.350 mm |
| C axis minimum controlled angle | 0.001° |
| Spindle chuck diameter | Ø 254 mm |
| Spindle speed | 3.500 RPM |
| Spindle nose size | ASA A2-8 |
| Spindle motor power (cont/30 min) | 18.5/22 kW |

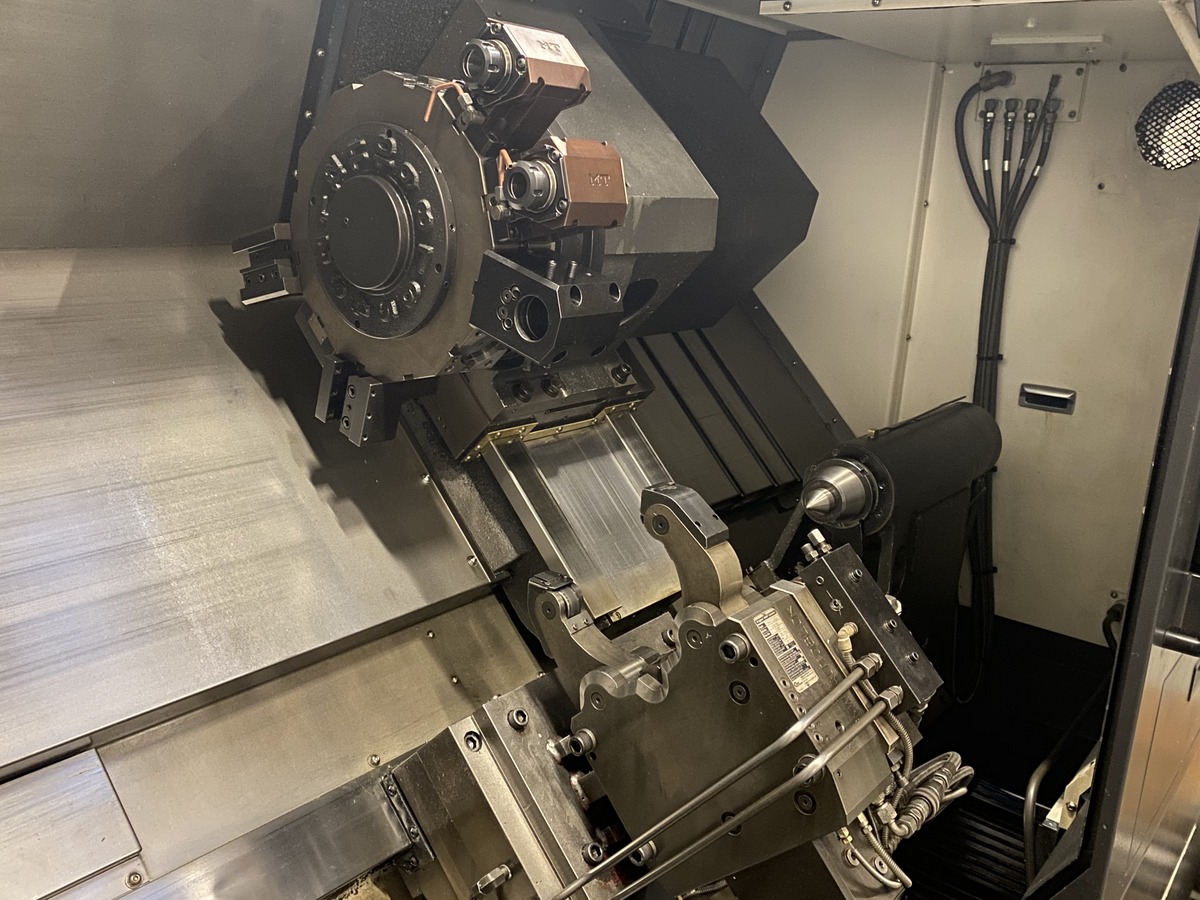

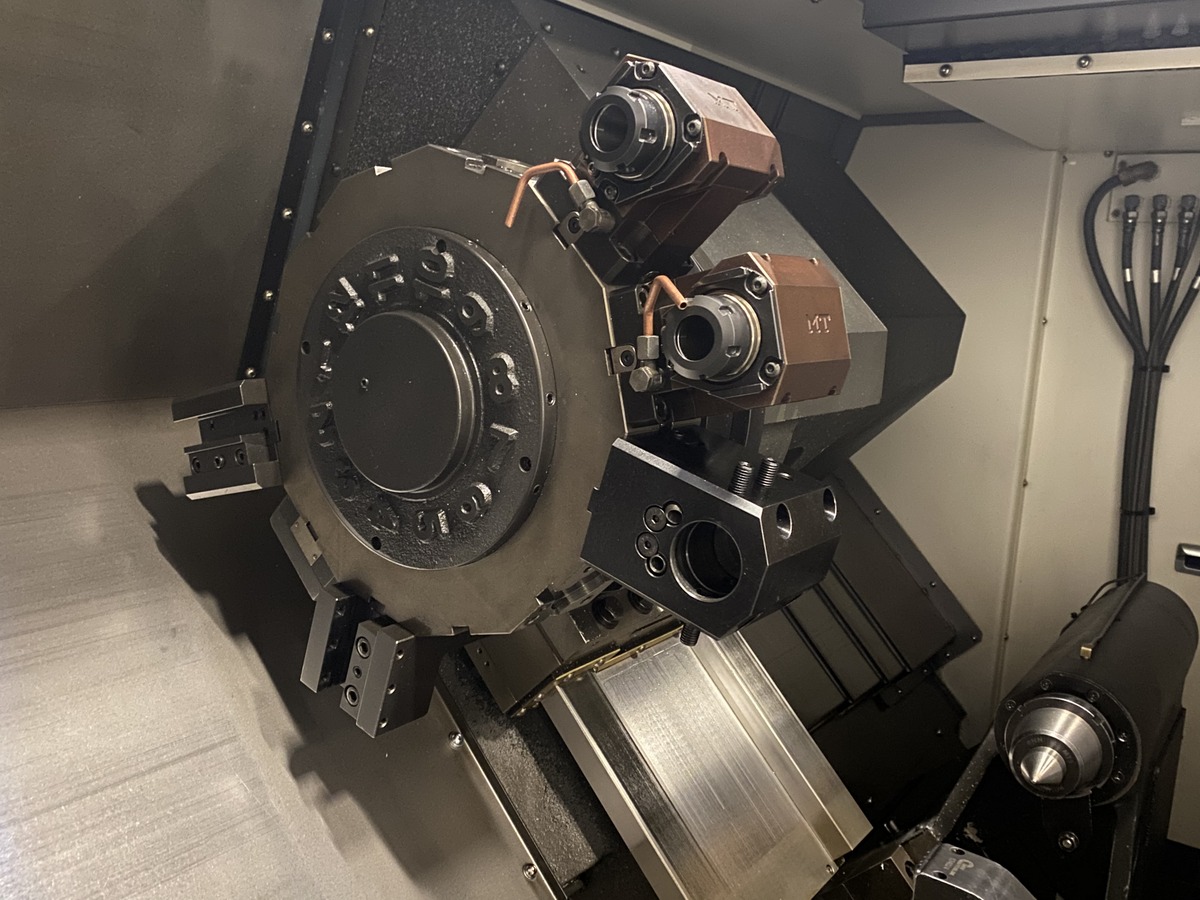

| Turret type | BMT-65 |
| Turret positions | 12 live-tool positions |
| Live-tools speed | 4.000 RPM |
| Live-tools motor power (cont/30 min) | 5.5 kW |
| Turning / boring tool dimensions | 25x25 mm / Ø 50 mm |

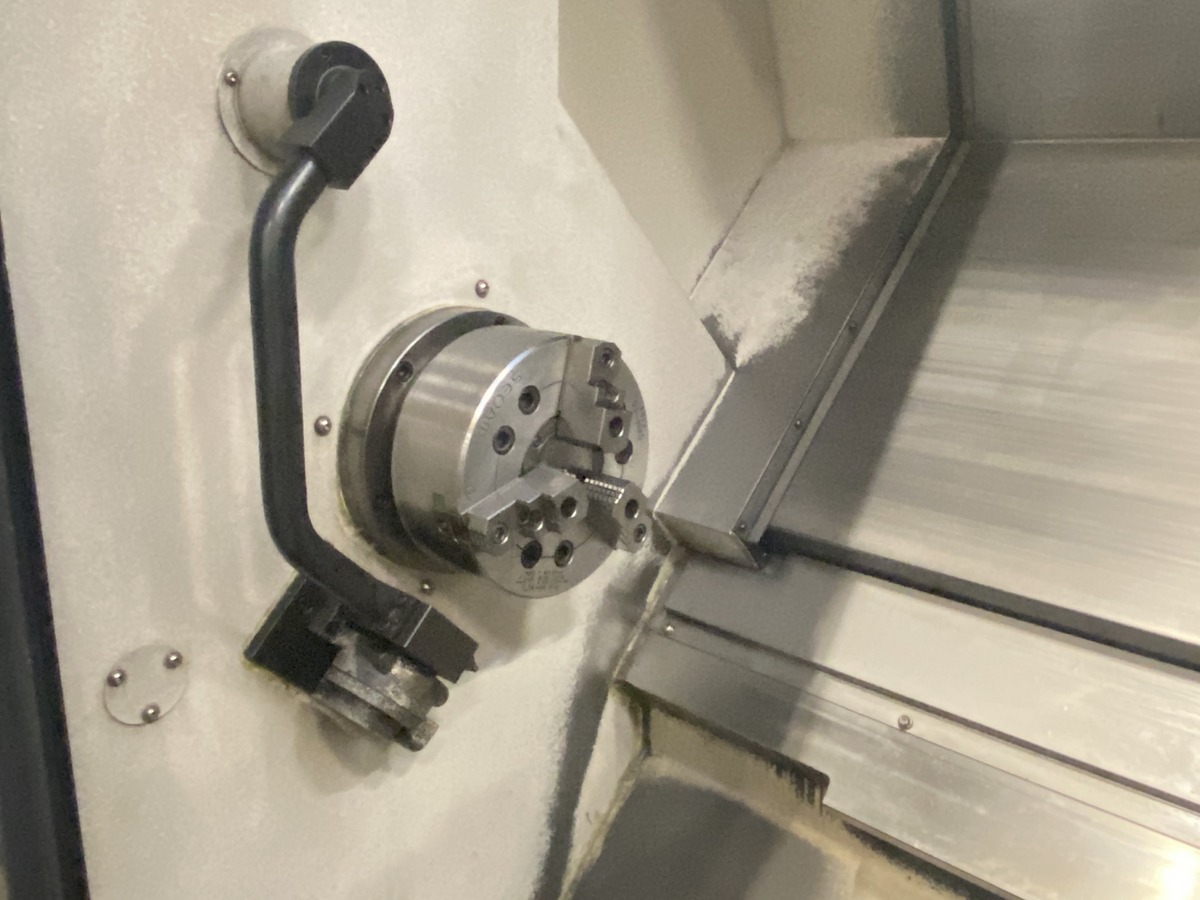

| Tailstock quill diameter | Ø 100 mm |
| Tailstock taper size | MT-5 |
| Tailstock quill travel | 75 mm |

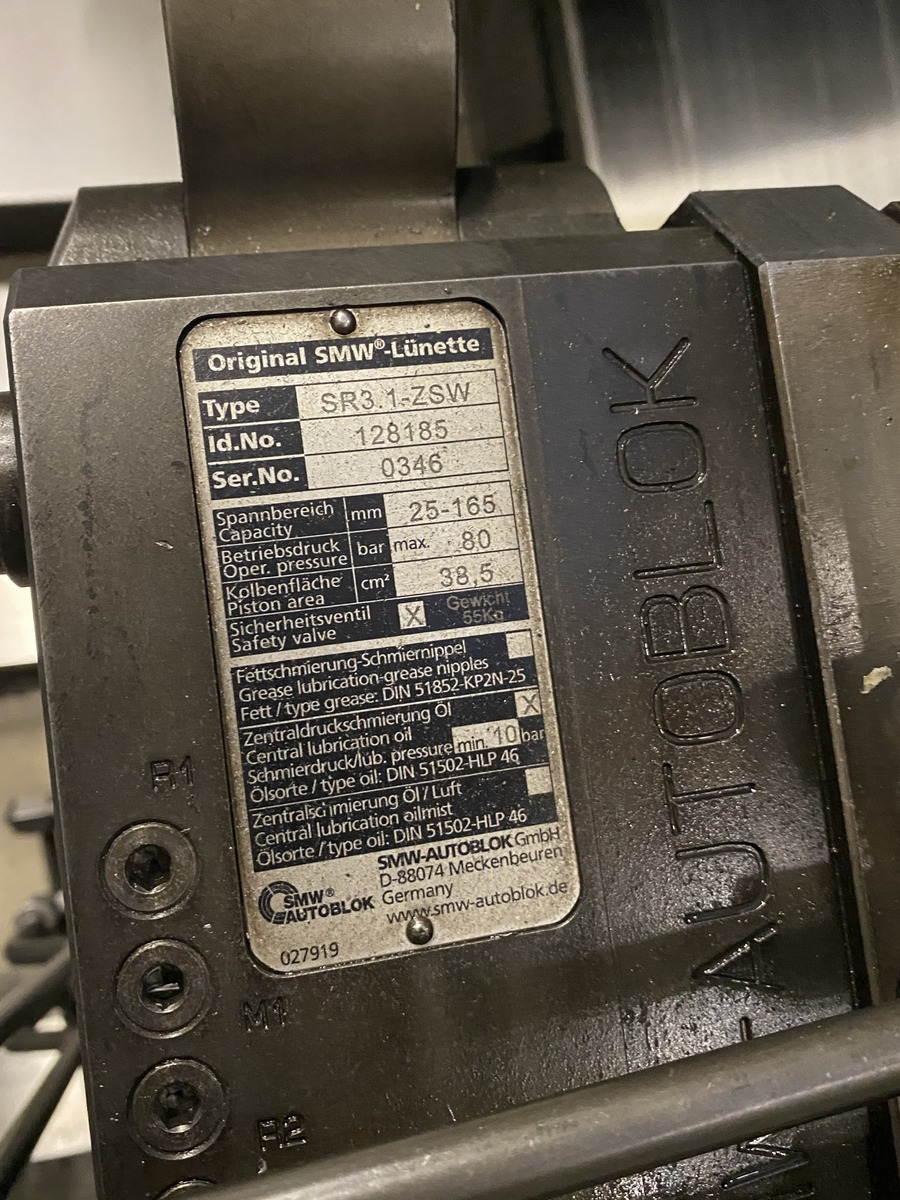

| Accessories | Coolant tank, chip-conveyor, Automatic steady rest make SMW-Autoblok mod. SR 3.1 (25-165 mm) in cycle, Various fix tool-holders and q.ty 3 live-tool holders (2 axials + 1 radial), Manuals, electrical diagrams and CE/EU Declaration |
