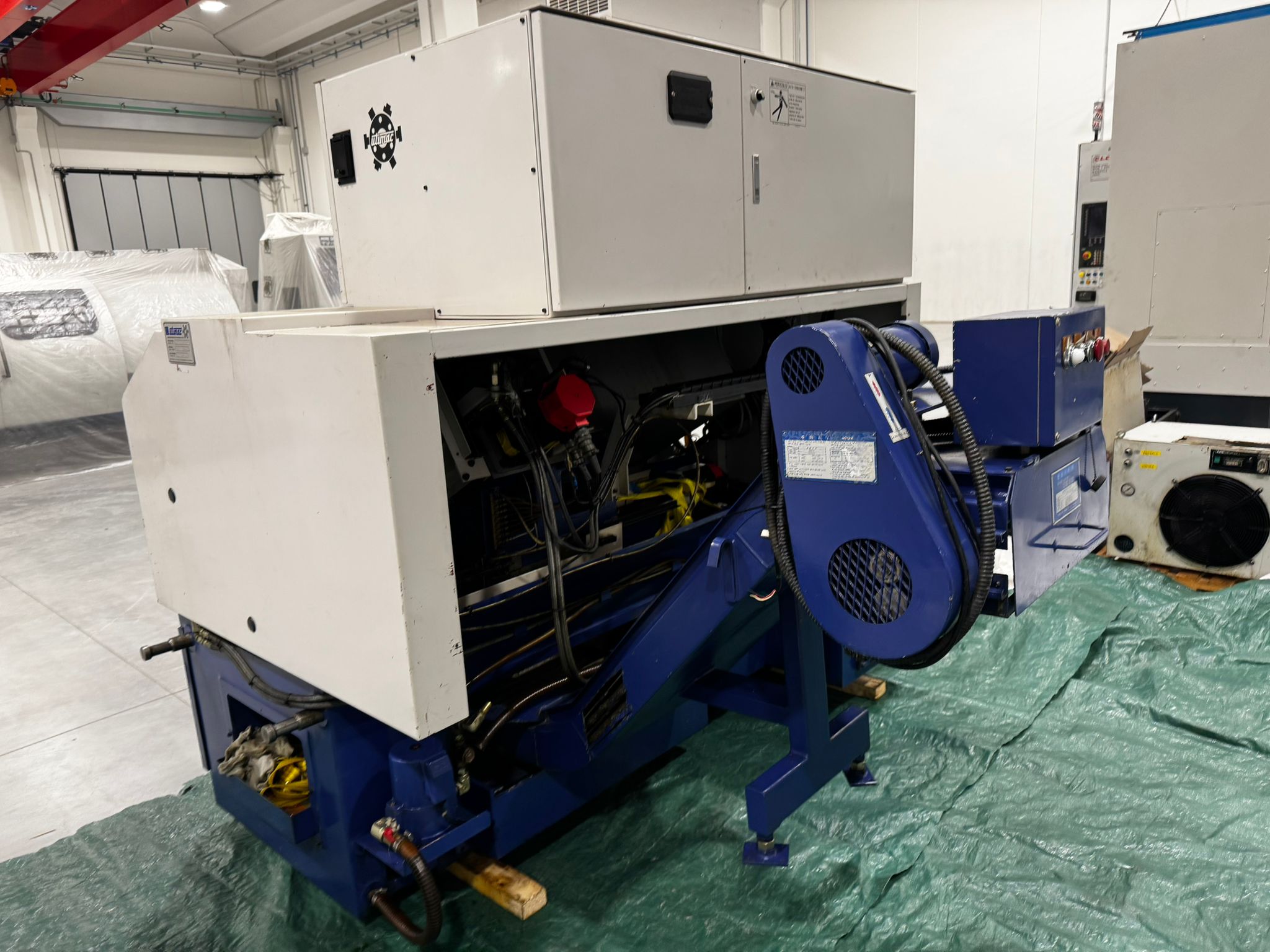

HANWHA HAMA 2-L6
HANWHA HAMA 2-L6
or
Call +39 0522 1536494
Specifications
| Manufacturer | HANWHA |
| Model | HAMA 2-L6 |
| Condition | Refurbished |
| CNC Control | FANUC Series 0-T |
| Max swing over the bench | Ø 420 mm |
| Max turning diameter | Ø 240 mm |
| Max turning length | 600 mm |
| Bar diameter capacity through the spindle | Ø 51 mm |
| X axis travel | 140 mm |
| Z axis travel | 610 mm |
| Spindle chuck diameter | Ø 210 mm |
| Spindle speed | 4.000 Rpm |
| Spindle nose size | ASA A2-6 |
| Turret positions | 8 stations |
| Turning / boring tool dimensions | 25x25 mm / Ø40 mm |
| X axis feedrate | 17.000 mm/min |
| Z axis feedrates | 20.000 mm/min |
| Tailstock quill diameter | Ø 60 mm |
| Tailstock taper size | MT 4 |
| Tailstock quill travel | 100 mm |

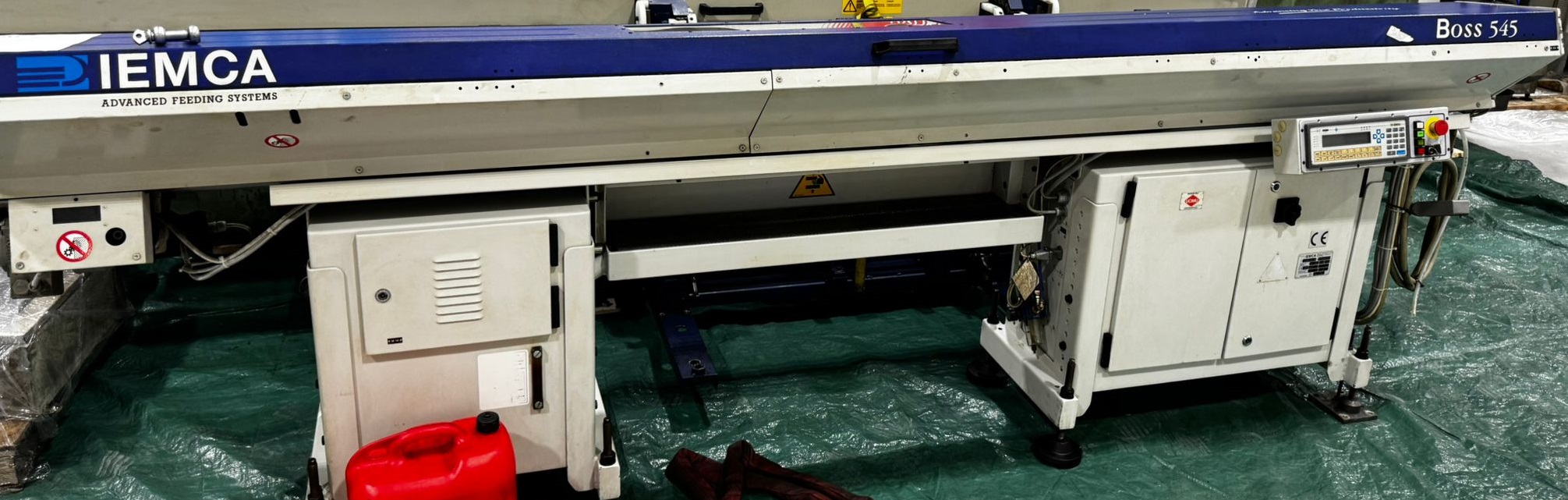

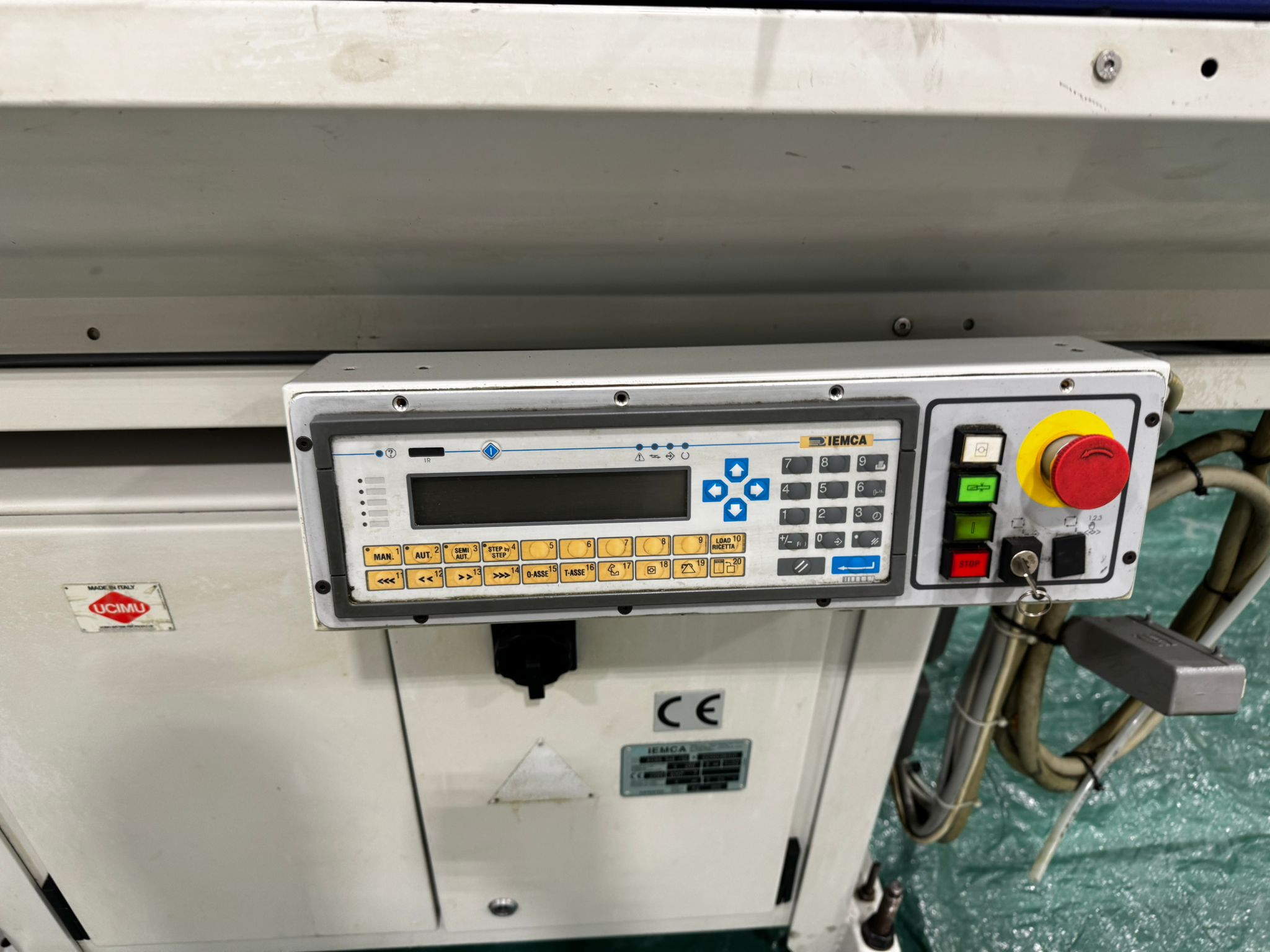

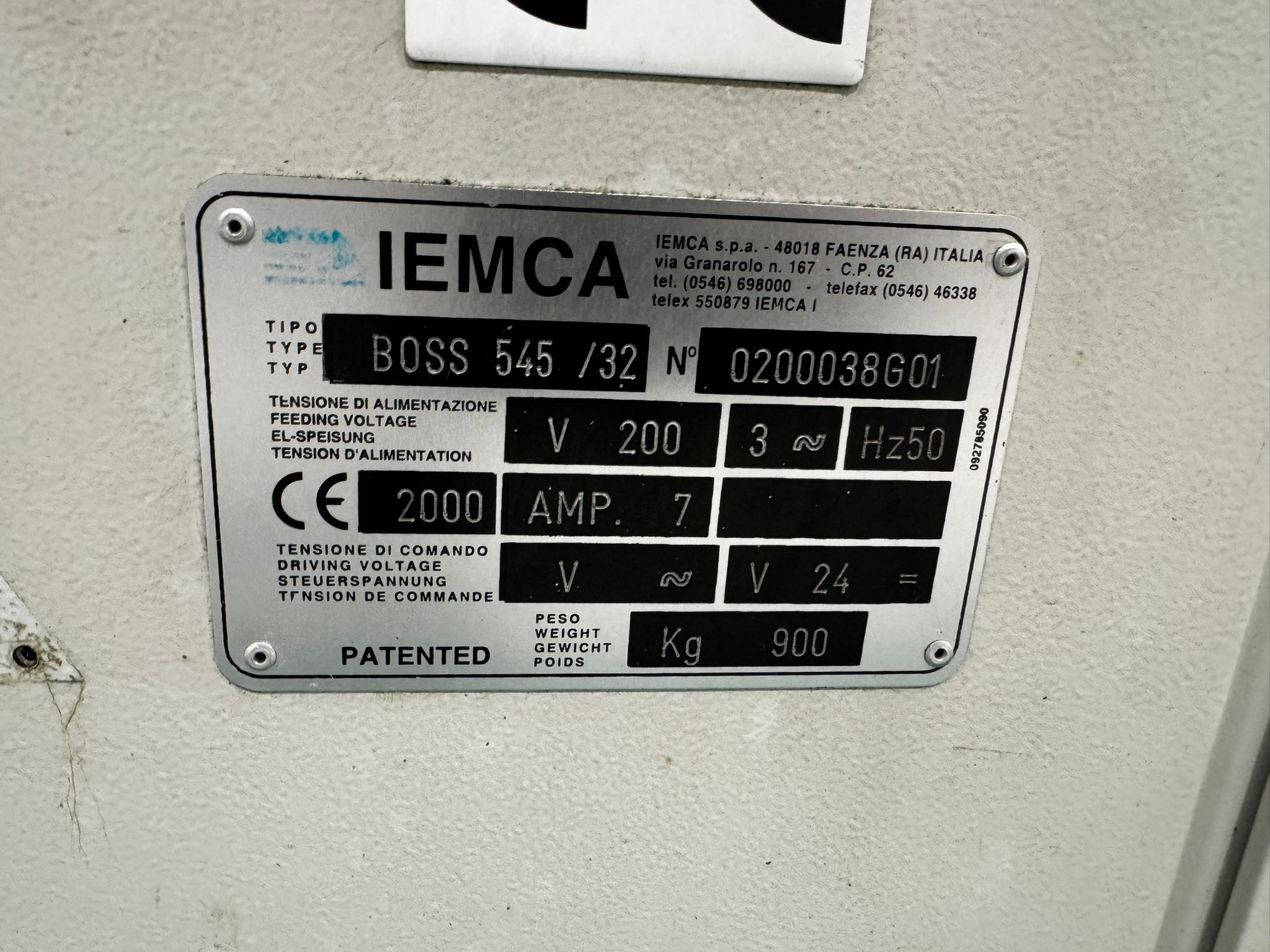

| Accessories | BAR FEEDER Make IEMCA model BOSS 545 - Chip conveyor - Coolant tank with pumps - Various fix tool holders - Piece collect arm - Manuals - Electric diagrams - EC CE Decleration |
