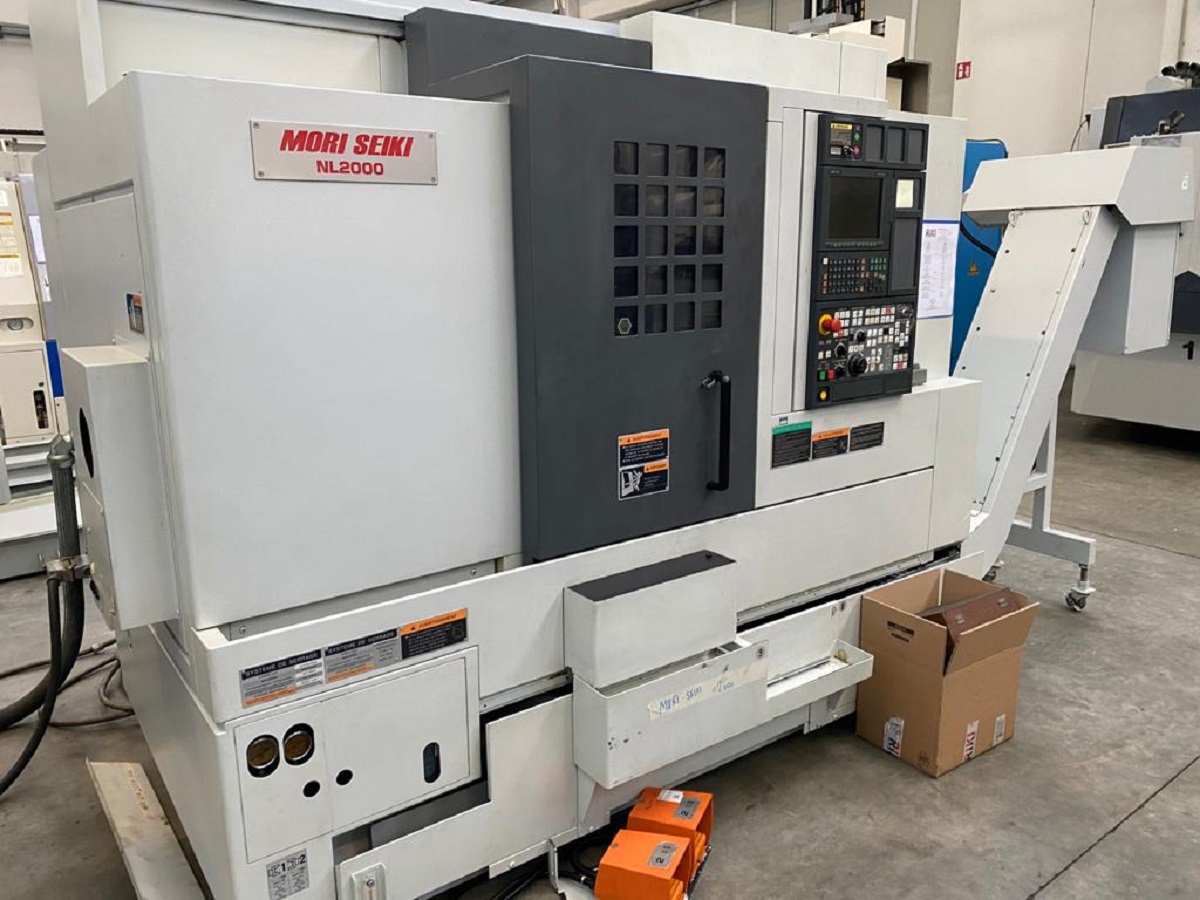

2008 MORI SEIKI NL-2000SY/500
Sold
2008 MORI SEIKI NL-2000SY/500
Specifications
| Manufacturer | MORI SEIKI |
| Model | NL-2000SY/500 |
| Year | 2008 |
| Condition | Used |

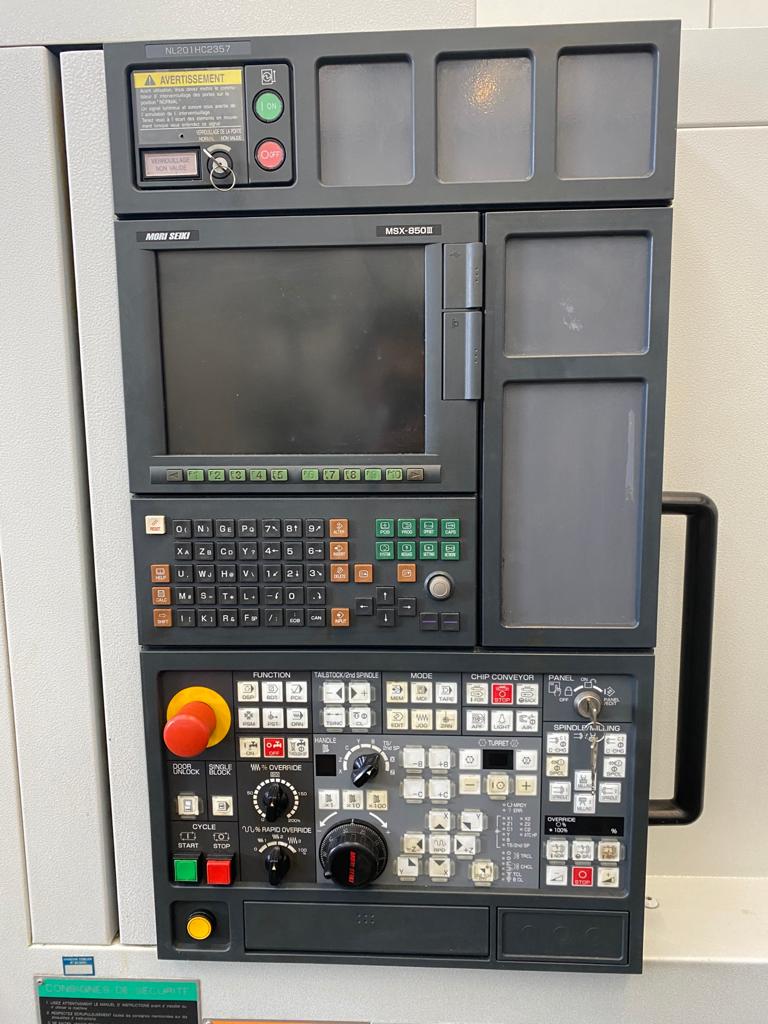

| CNC Control | Mori Seiki MSX-850 III |
| Max swing over the bench | 579,8 mm |
| Max swing over the carriage | 755 mm |
| Max turning diameter | 356 mm |
| Max turning lenght | 510 mm |
| Bar diameter capacity through the spindle | 65 mm |
| X axis travel | 260 mm |
| Y axis travel | +/- 50 mm (100 mm) |
| Z axis travel | 590 mm |
| C axis minimum controlled angle | 0.001° |
| B axis travel | 634 mm |
| Spindle speed | 5.000 RPM |
| Spindle nose size | ASA-6 |
| Spindle motor power (cont/30 min) | 11/15 kW |

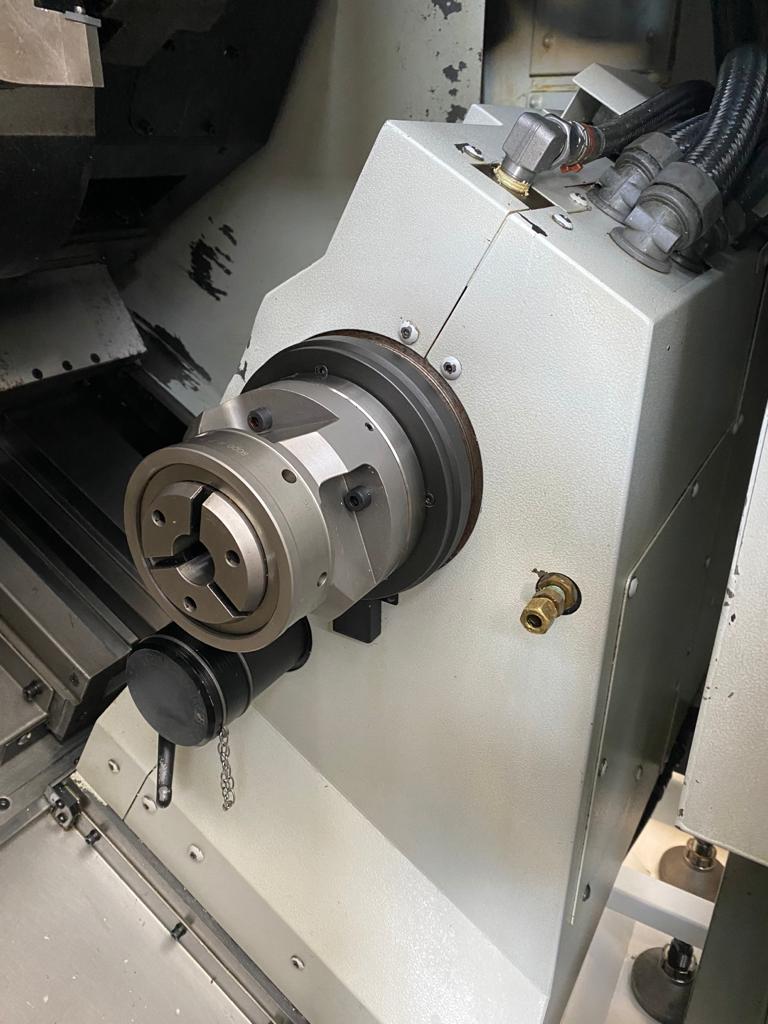

| Sub-spindle speed | 6.000 RPM |
| Sub-spindle nose | ASA-5 |
| Sub-spindle motor power (cont/30 min) | 7.5/11 kW |

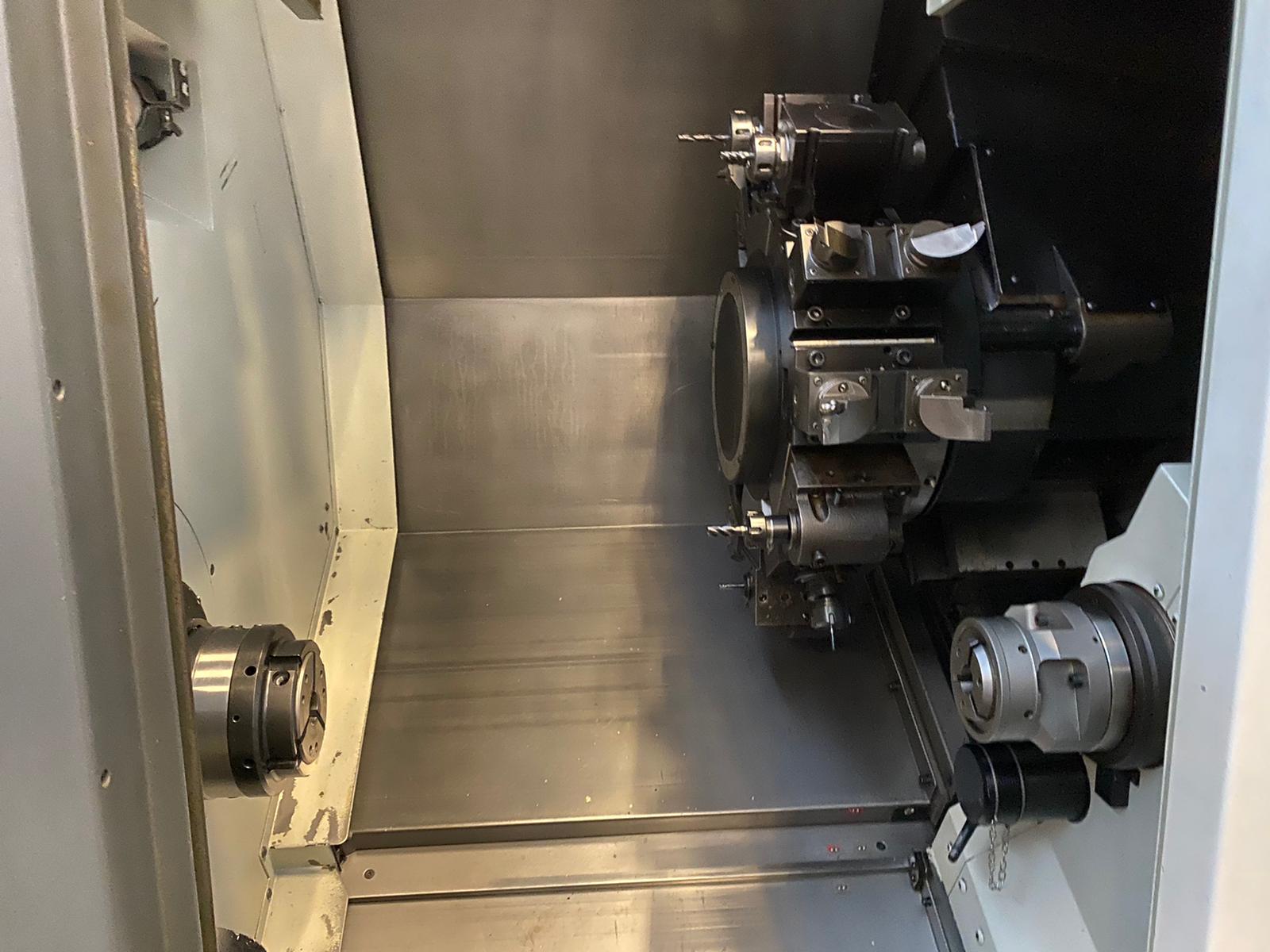

| Turret type | BMT Mori |
| Turret positions | 12 live-tools positions |
| Live-tools speed | 6.000 RPM |
| Live-tools motor power (cont/30 min) | 5,5 kW |
| Turning / boring tool dimensions | 25x25 mm / Ø 50 mm |
| X axis feedrate | 30.000 mm/min |
| Y axis feedrate | 10.000 mm/min |
| Z axis feedrates | 30.000 mm/min |
| B axis feedrate | 30.000 mm/min |
| C axis feedrate | 400 RPM |

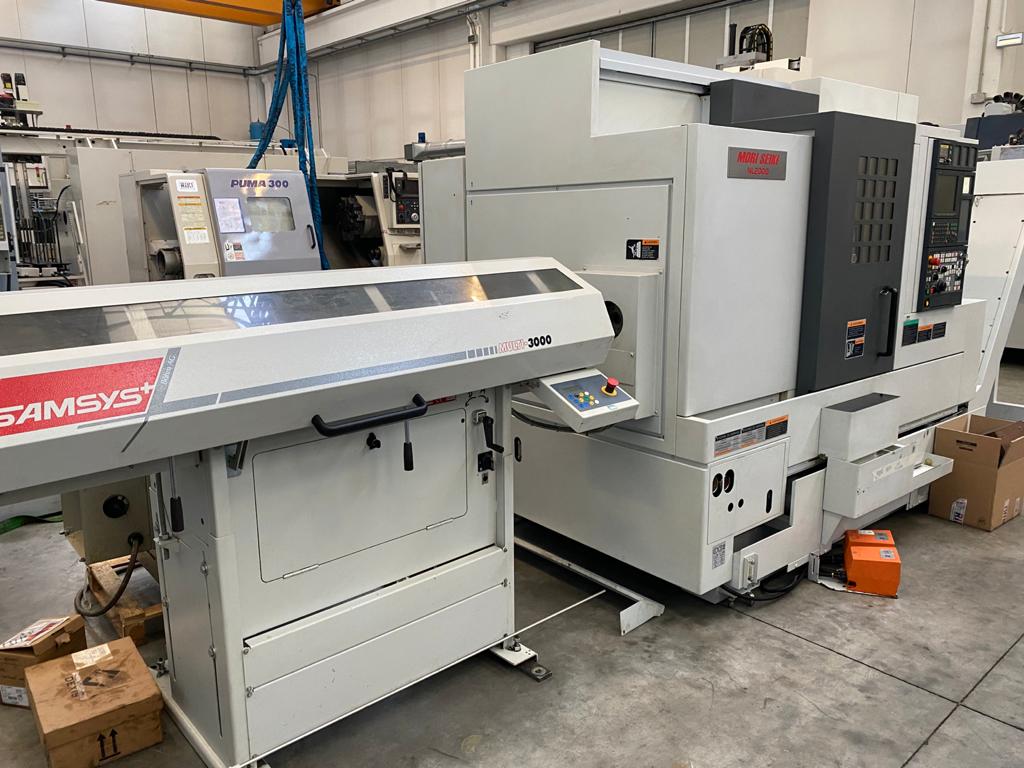

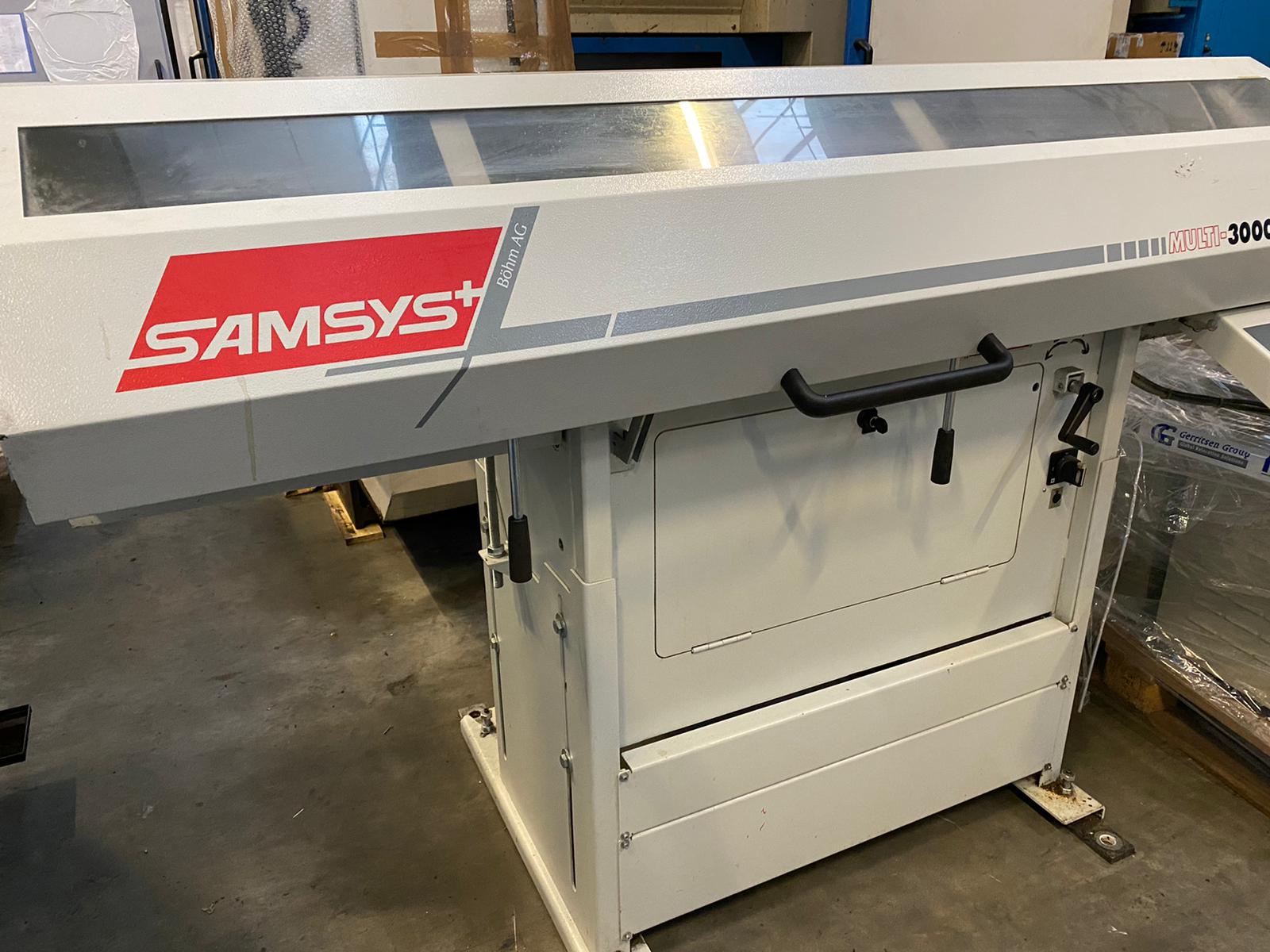

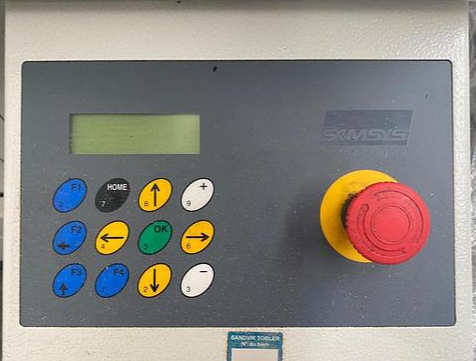

| Accessories | Bar-feeder SAMSYS mod. Multi-3000, various fix and live-tools, coolant tank, chip-conveyor, manuals, electrical diagrams and CE/EU Declaration |
