1999 Mori Seiki SH-500 (Horizontal Machining Center – 2 Pallets)


1999 Mori Seiki SH-500 (Horizontal Machining Center – 2 Pallets)


spindle Travels Table Feed rates ATC APC


ManufacturerMORI SEIKI
ModelSH-500 (2 pallet)
NoseMAS BT-40 (CAT 40)
OtherManuals and chip conveyor
Shank90 ° for Mori Seiki
Axis x630 mm
Axis y600 mm
Axis z650 mm
Feed rates1-16,000 mm / min
AttachmentsN ° 40

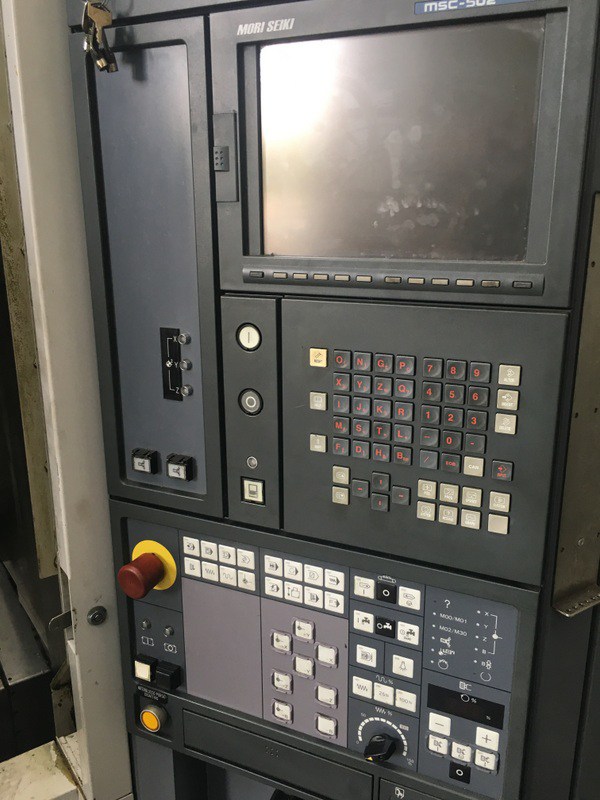

Cnc controlFANUC MSC-502

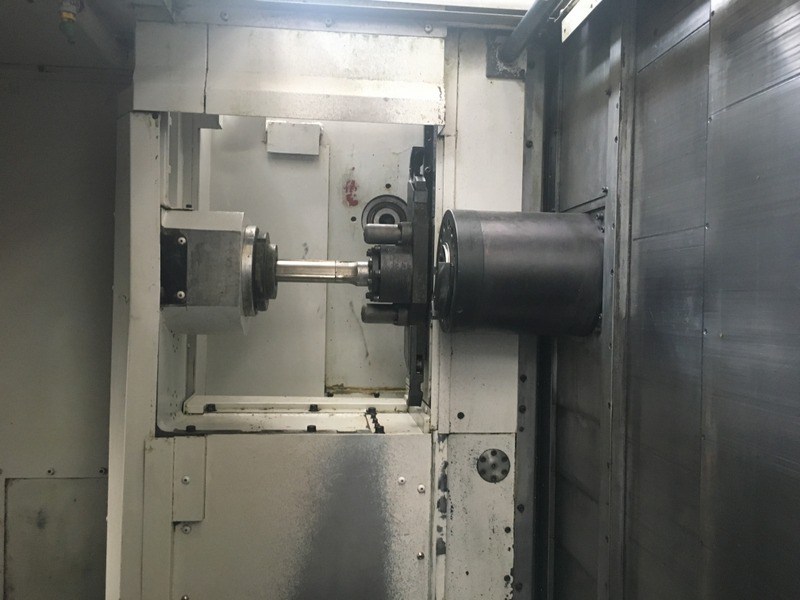

Spindle speed12,000 RPM
Machine weight14,000 Kg
Max tool length360 mm
Max piece weight700 Kg

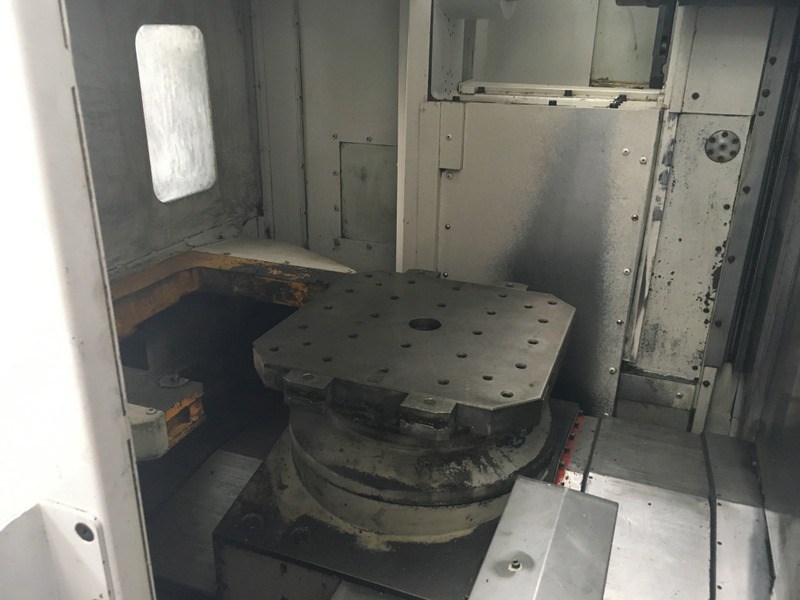

Table dimensions500 x 500 mm

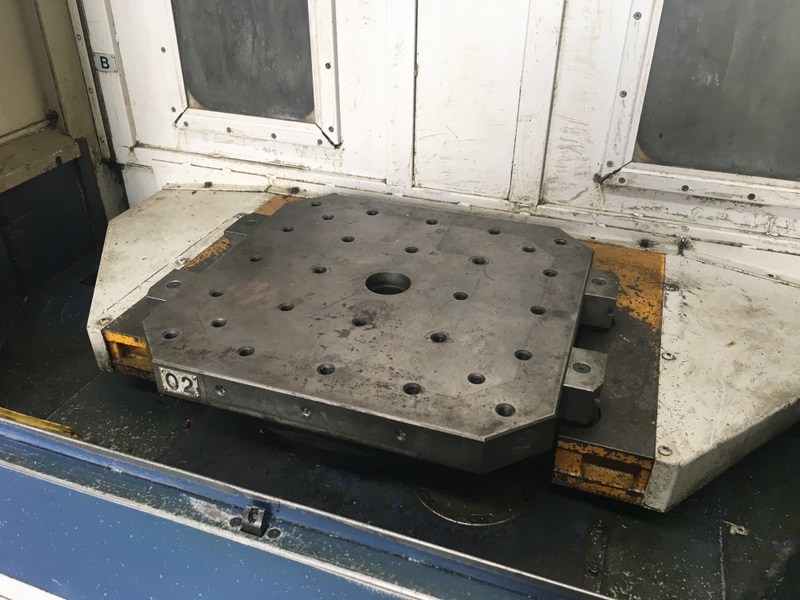

Number of pallets2
Maximum tool weight12 Kg
Table load capacity500 Kg
Feed rates in manual0-1,260 mm / min <15 steps>
Machine's dimensionsWidth 2,900 mm Depth 4,500 mm Height 3.430 mm
Tool storage capacityStation No. 60
Pallet changing methodSwivel type
Fast feed rates x, y, z32,000 mm / min
Front bearing's inner diameter85 mm
Configuration of the table surface24 - M16 // P = 100
Max tool diameter (with adjacent tools)100 mm
Table's center and spindle nose distance150 -800 mm
Max tool diameter (without adjacent tools)150 mm
Table's surface and spindle's center distance50 to 650 mm
