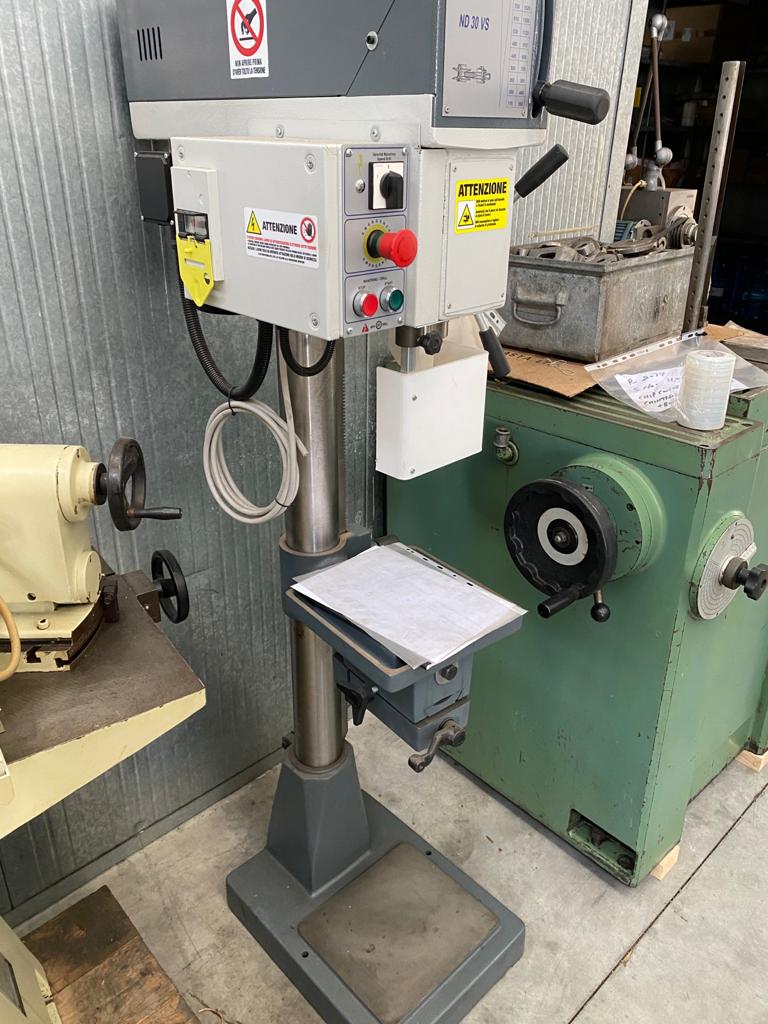

2018 NEW DRILL ND 30 VS
Sold
2018 NEW DRILL ND 30 VS
Specifications
| Manufacturer | NEW DRILL |
| Model | ND 30 VS |
| Year | 2018 |
| Condition | New |
| Clamp attachment | 3 vices |
| Quill diameter | Ø 62 mm |
| Dinghy race | 100 mm |
| Max drilling capacity on mild steel R = 40 kg / sqmm | 30 mm |
| Tapping capacity on mild steel | 18 mm |
| Motor power with two polarities | 0.5 / 1 kw |

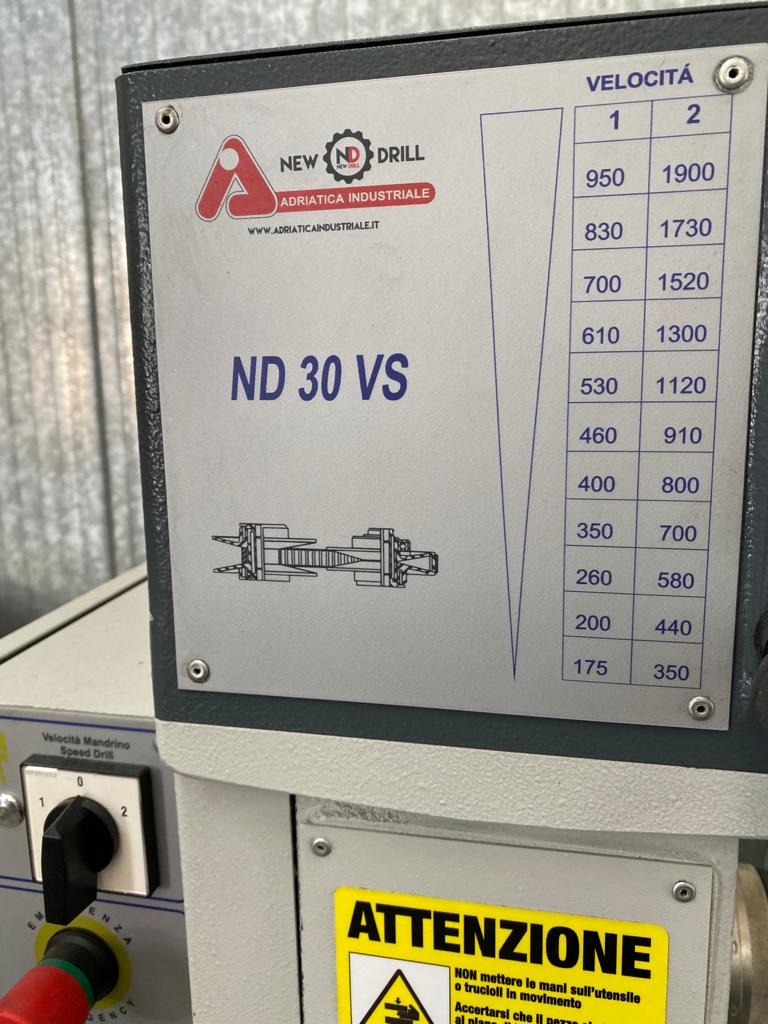

| Speed with simple variator | 175 / 1,900 rpm |
| Center column spindle distance | 215 mm |
| Max distance between table and spindle | 730 mm |

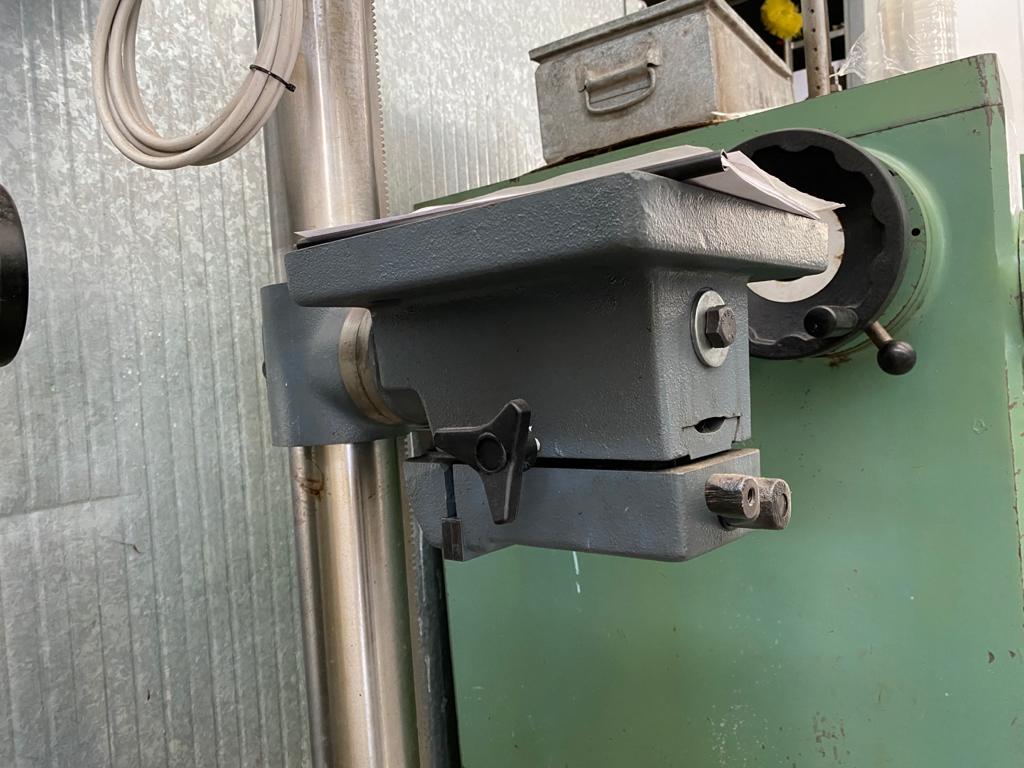

| PGM work table dimensions | 275x275 mm |
| Column diameter | Ø 98 mm |
| Useful vice opening | 85 mm |
| base | 530x400 mm |
| Dimensions (width x height x depth) | 400x1730x700 mm |
| Machine weight | 250 kg |
