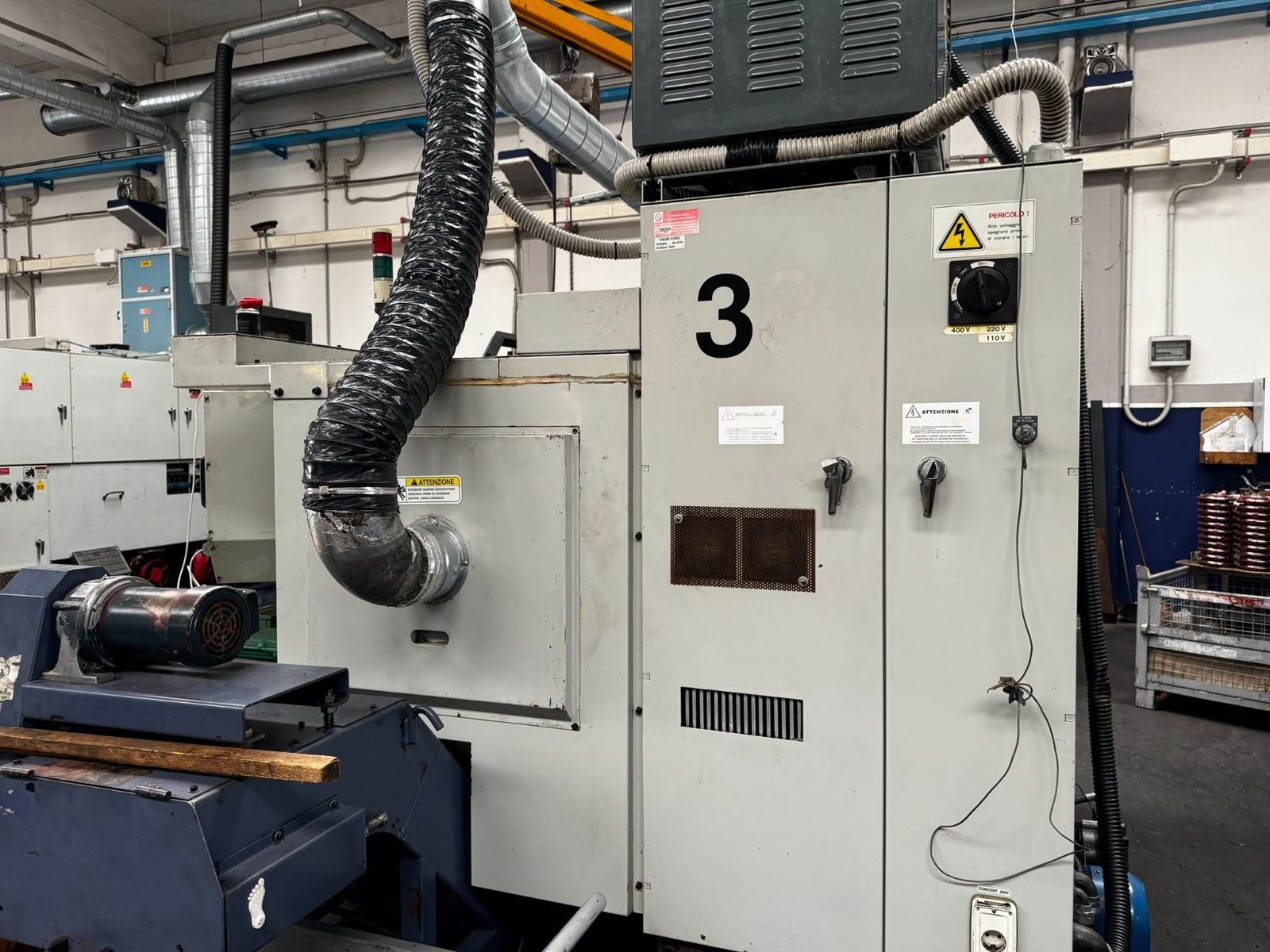

HWACHEON TTC-8
No longer available
HWACHEON TTC-8
Description
Retrofit 2024
Specifications
| Manufacturer | HWACHEON |
| Model | TTC-8 |
| Year | 2001 |
| Condition | Used |
| Make | HWACHEON |
| Model | TTC-8 |
| Y.O.M | 2001 |

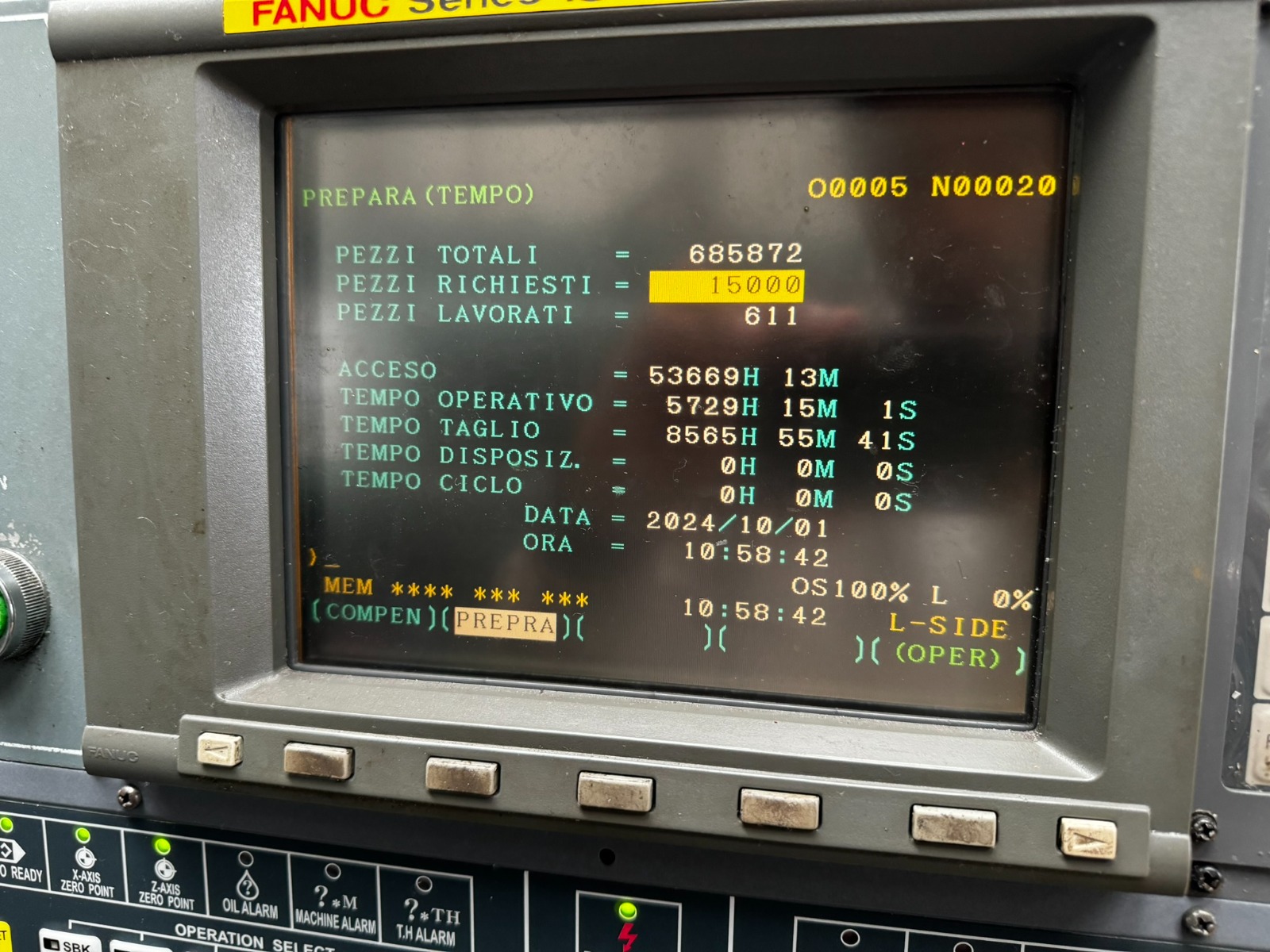

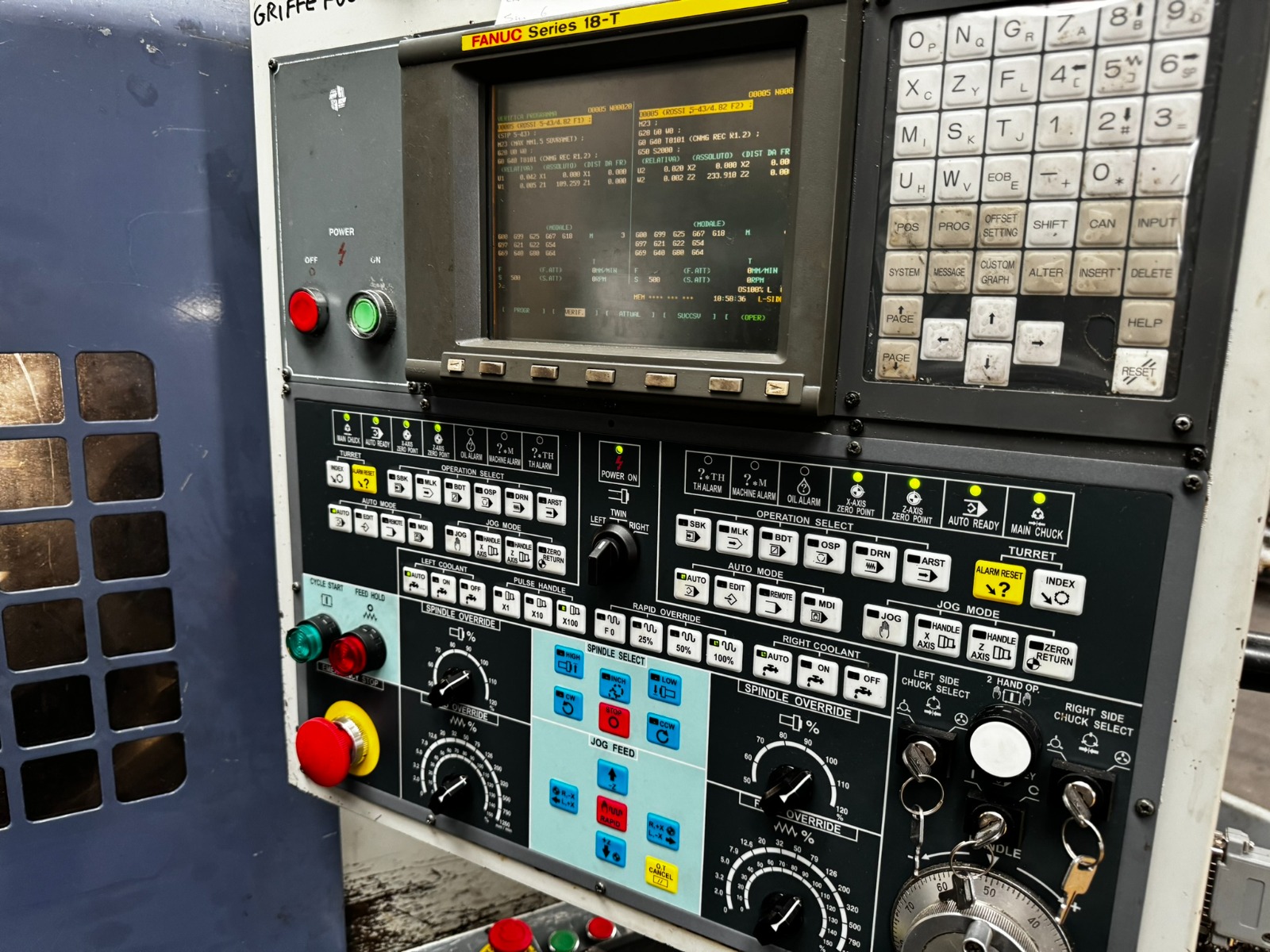

| CNC Control | FANUC 18-T |
| Max turning diameter | Ø 290 mm |
| Max turning lenght | Ø 200 mm |
| X axis travel | 160 mm |
| Z axis travel | 200 mm |
| Rapid feed axis X | 30.000 mm/min |
| Rapid feed axis Z | 30.000 mm/min |
| Chuck diameter | Ø 254 (STD210) mm |
| Spindle nose | ASA A2-6 |
| Spindle speed | 50 - 3.500 Rpm |
| Spindle motor power (cont / 30 min) | 15/11 Kw |

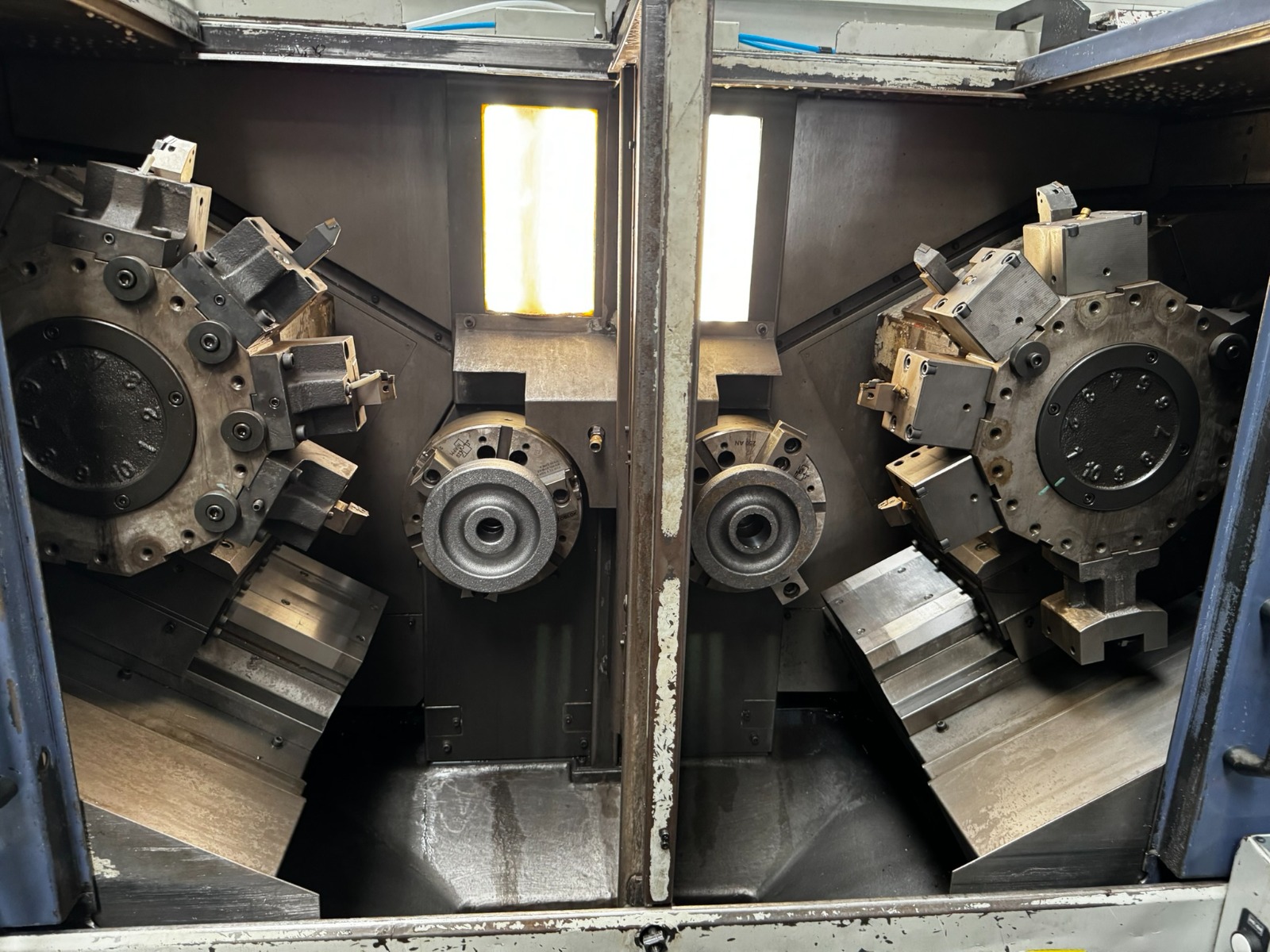

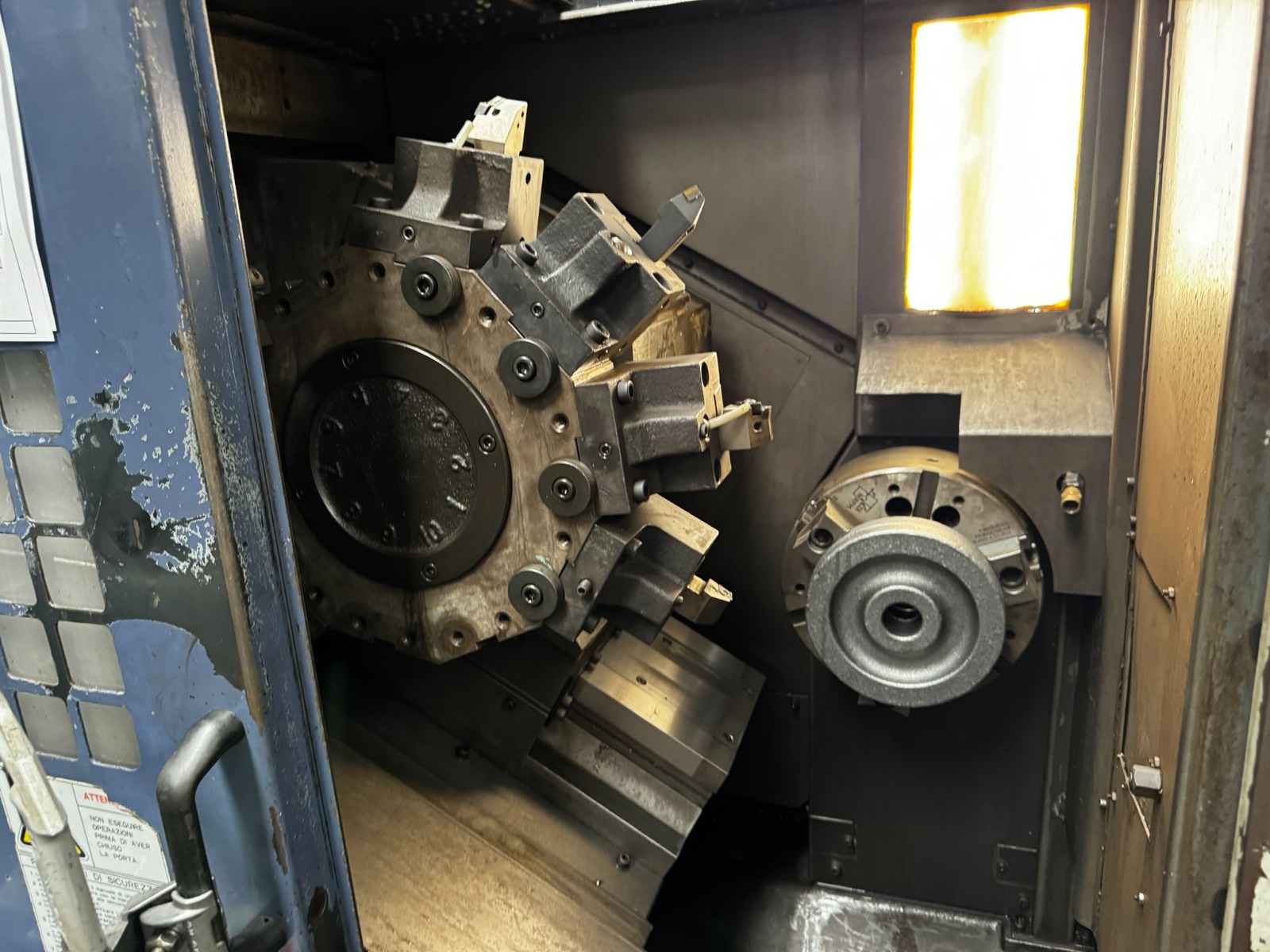

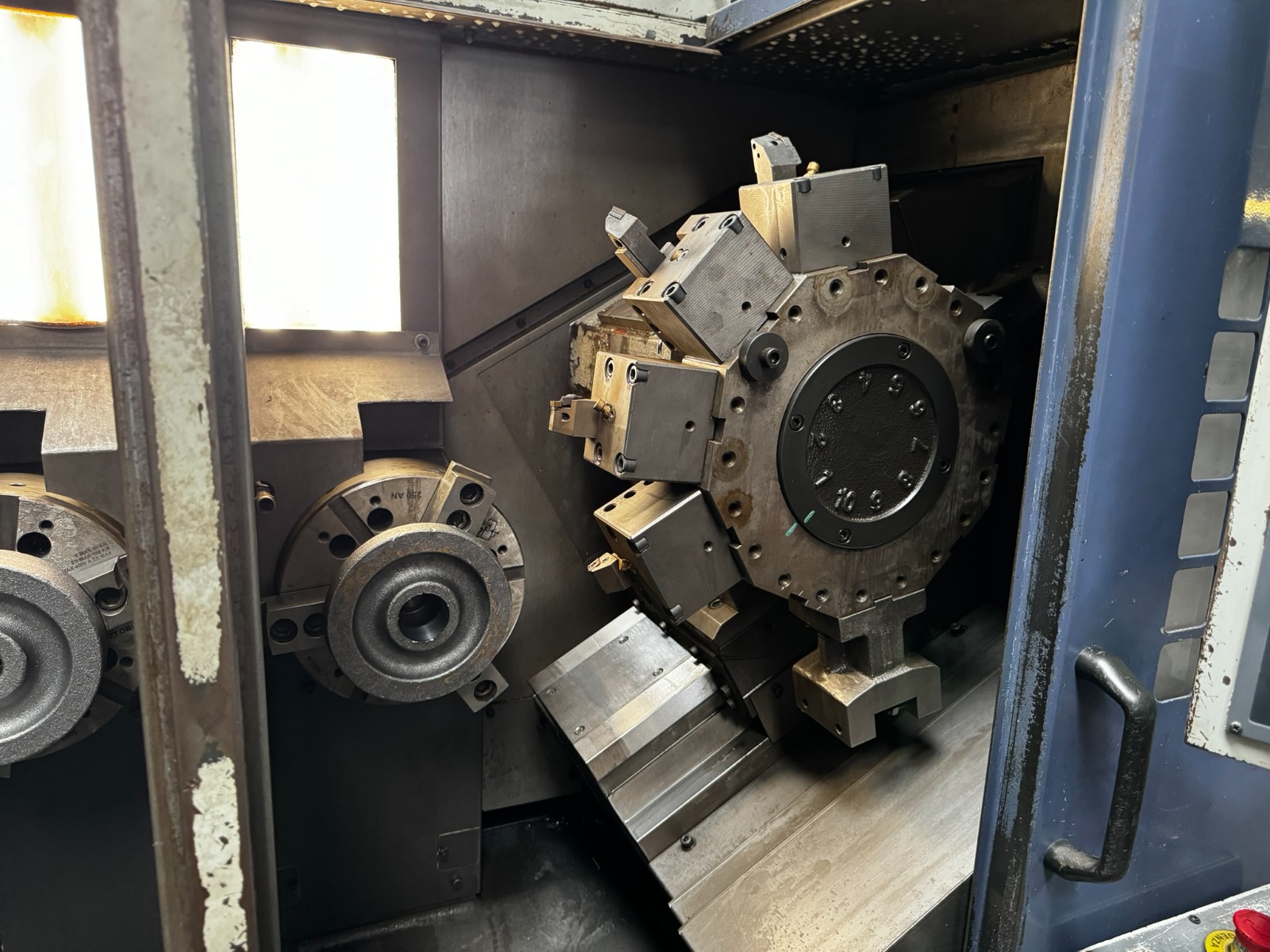

| Number turret | 2 |
| Station for each turret | 10 + 10 Stations |
| Tools dimensions / boring bar diameter | 25x25 / Ø32 mm |
| Dimensions machine | 2.830 x 1.900 mm |
| Machine Height | 3.010 mm |
| Machine weight | 6.000 kg |
| Accessories & Others | Chip conveyor - Coolant tank with pumps - High pressure external pump - Various live and fix tool holders - Manuals - Electrical diagrams - EC CE Declaration |
