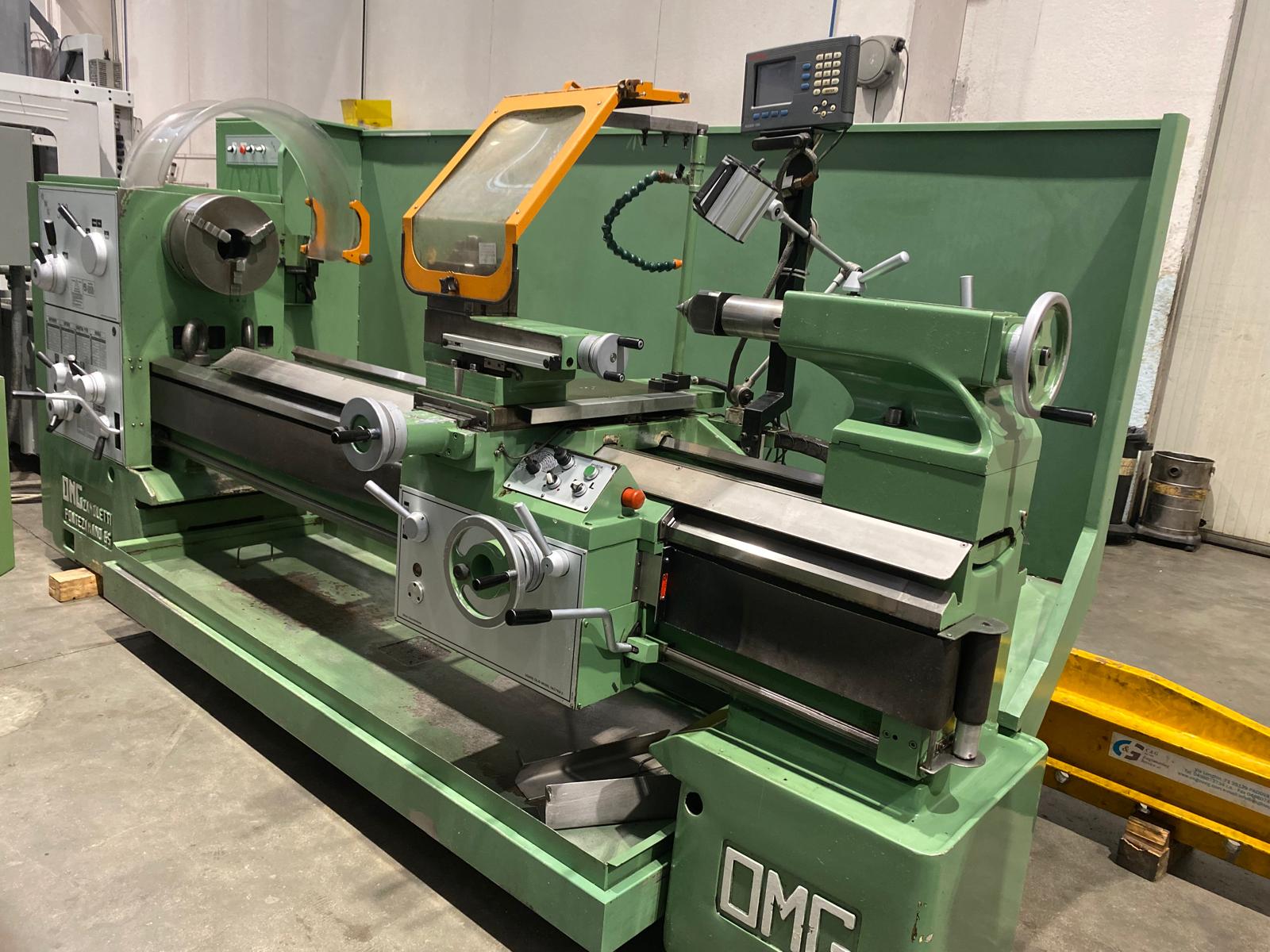

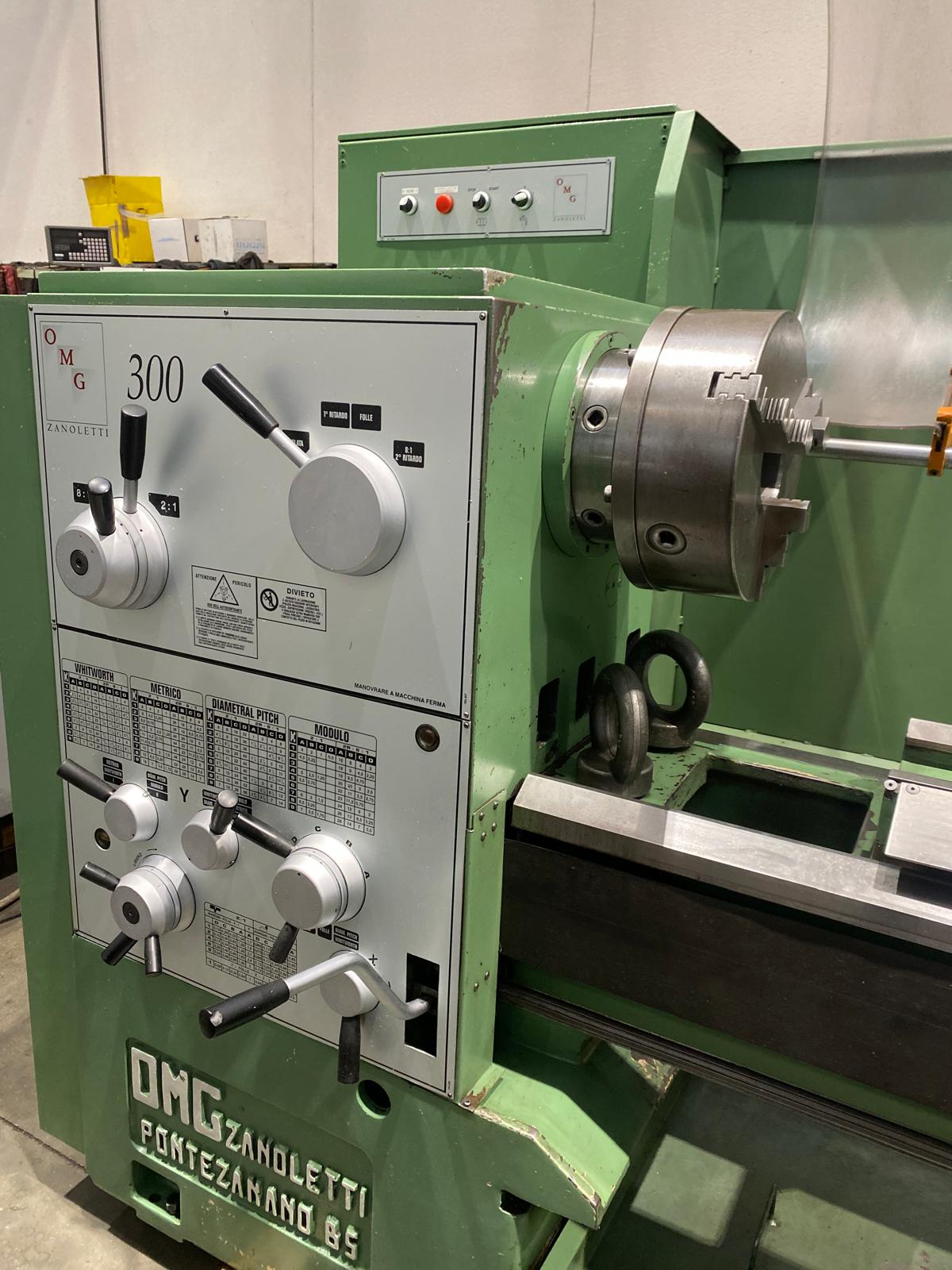

OMG TP-300x2000
Sold
OMG TP-300x2000
Specifications
| Manufacturer | OMG ZANOLETTI |
| Model | TP-300x2000 |
| Year | 2007 |
| Condition | Used |
| Distance between centers | 2.000 mm |
| Max swing diameter over bed | Ø 600 mm |
| Max swing Dia. over bed gap | Ø 800 mm |
| Max turning diameter over carriage | Ø 410 mm |
| Draw bar diameter (Spindle bore) | Ø 102 mm |
| Width of the bed | 380 mm |
| Gap length | 360 mm |
| Spindle nose Cam Lock | 8” |
| Chuck diameter | Ø 310 mm |

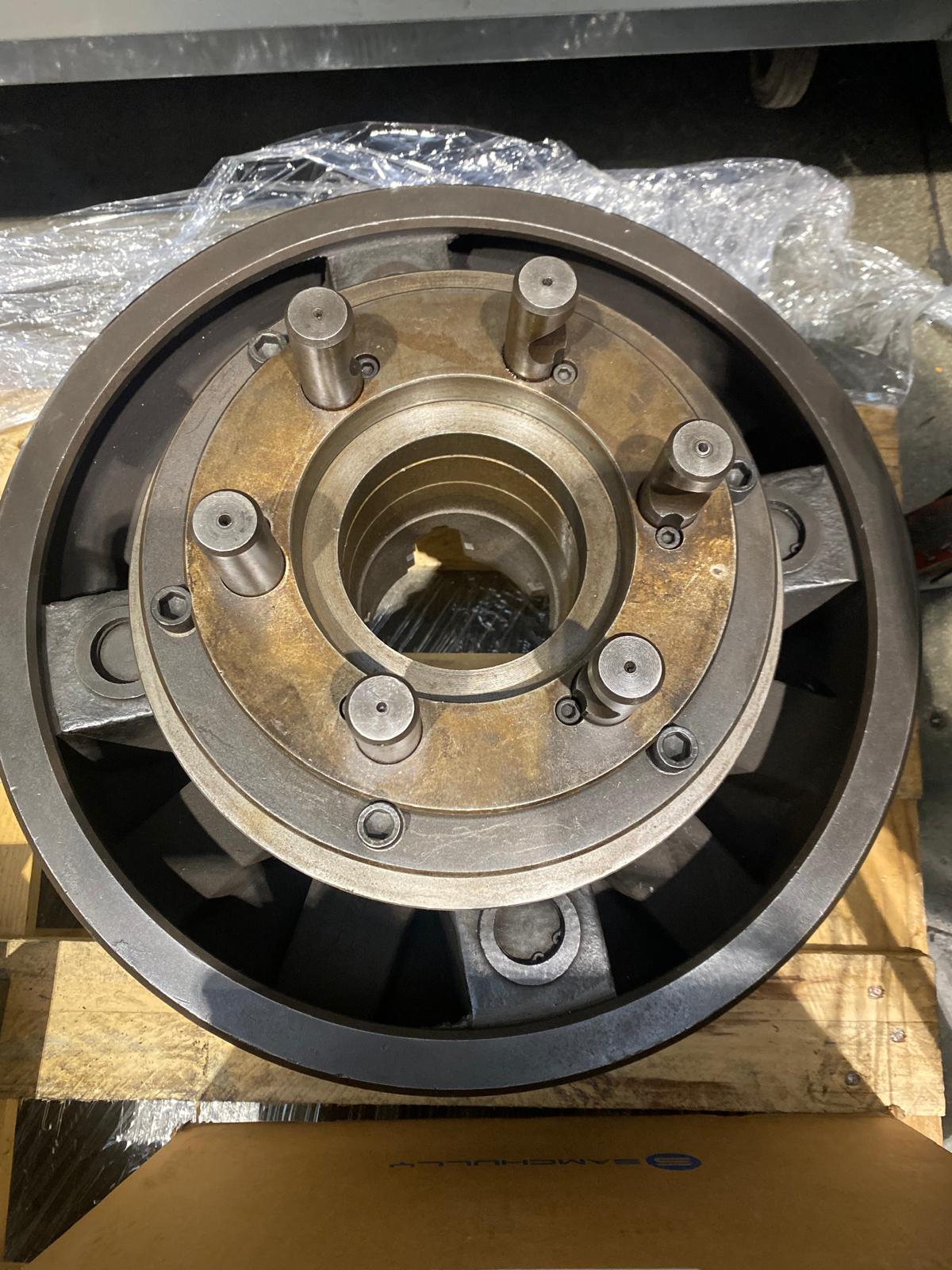

| Plateau diameter | Ø 400 mm |
| Spindle speed range | 28 ÷ 1.600 Rpm |
| Tailstock spindle diameter | Ø 80 mm |
| Tailstock quill travel | 220 mm |
| Tailstock quill length | 370 mm |
| Tailstock taper | 5 MT |
| Cross carriage stroke | 360 mm |
| Tool carriage stroke | 180 mm |
| Main motor power | 11 Kw |
| Machine Dimensions | 3.790 x 1.160 x 1.550 |
| Machine weight | 3.900 Kg |

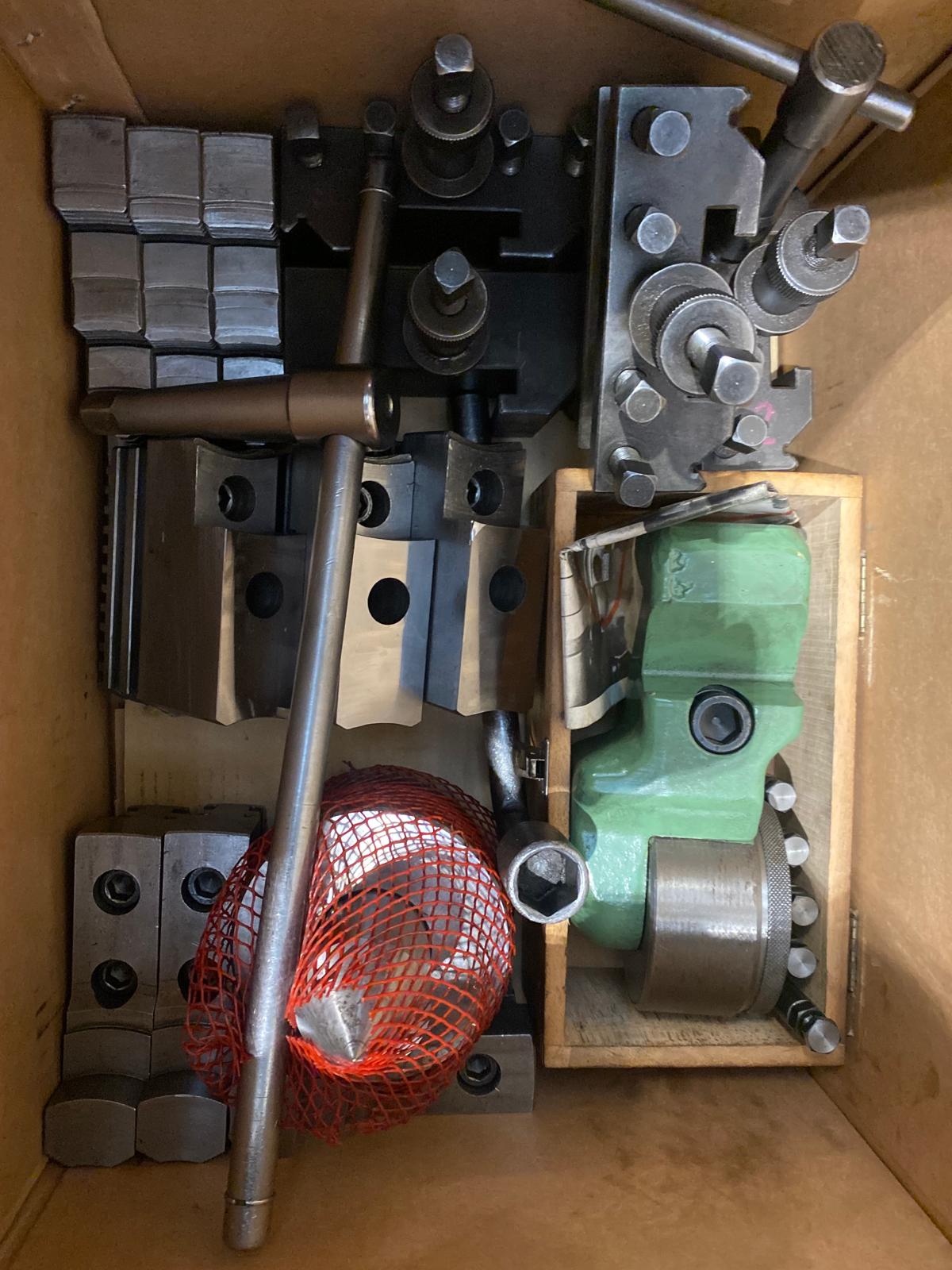

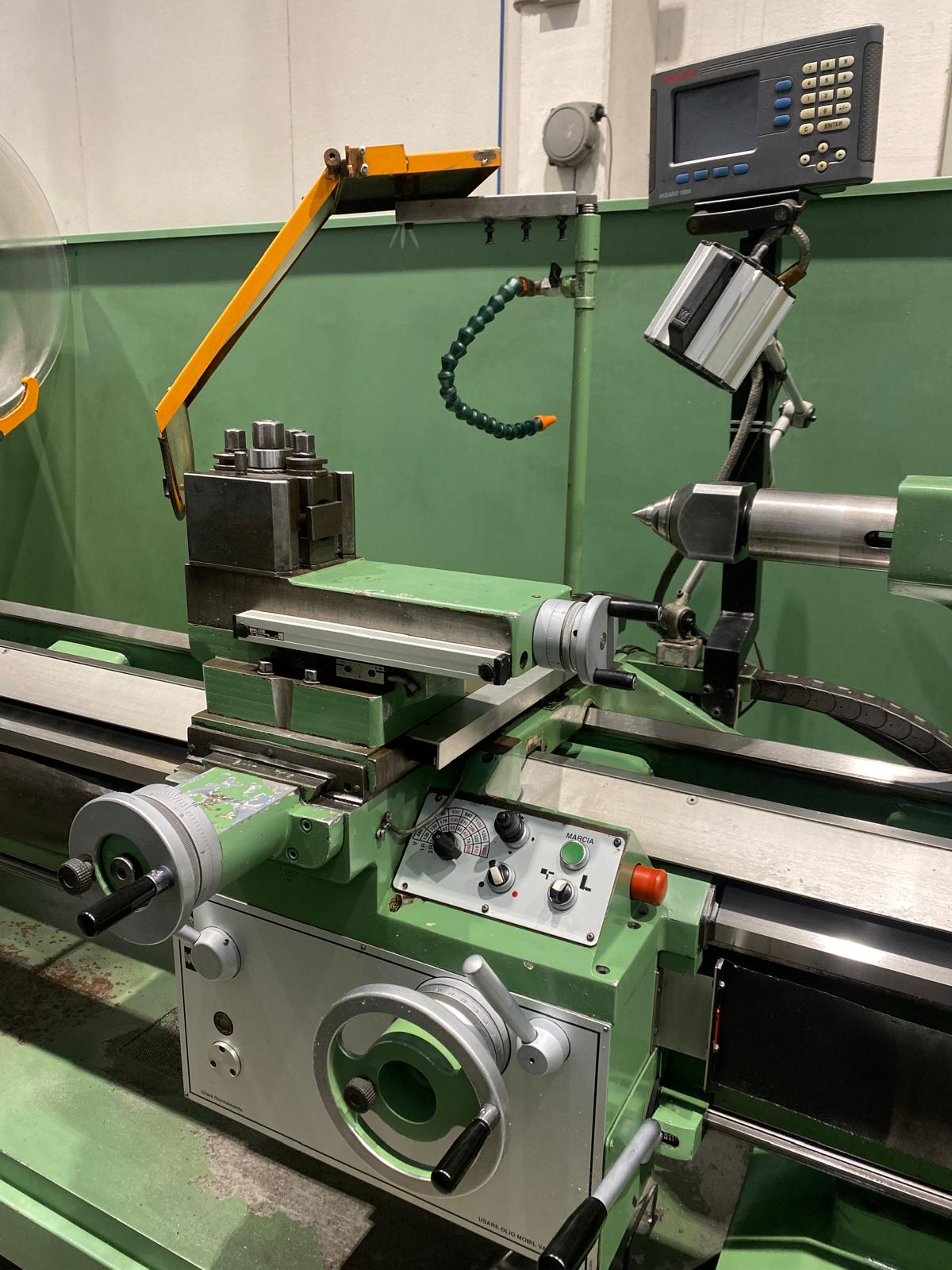

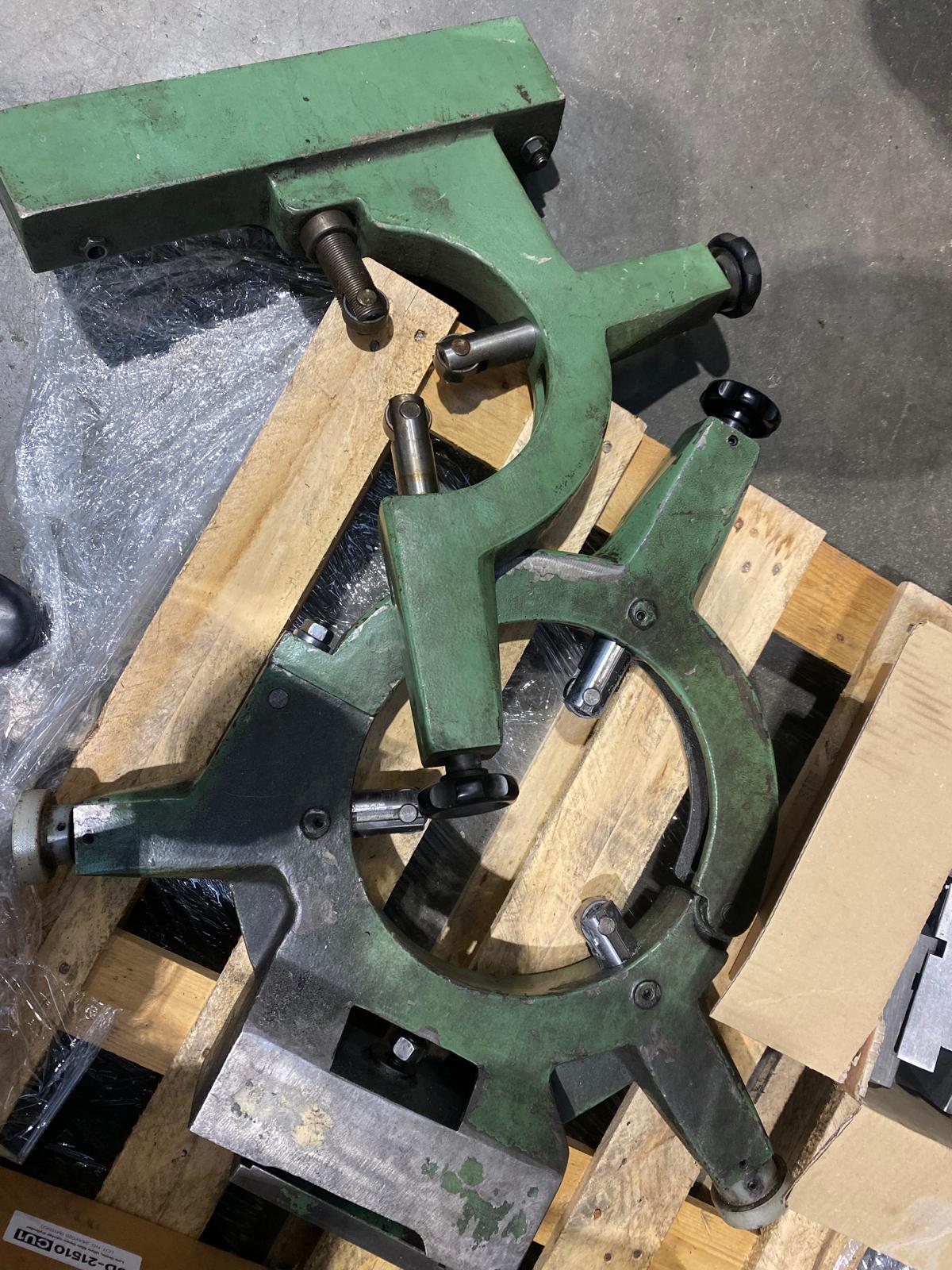

| Accessories & Others | Nr. 2 Steadies - Nr. 1 Chuck - Nr. 1 Plateau - Various Tool-Holders - Digital Read Out system (D.R.O.) ANILAM WIZARD 411 - EC CE Declaration |
