Hyundai WIA HS10000
Hyundai WIA HS10000
or
Call +39 0522 1536494
Specifications
| Manufacturer | Hyundai WIA |
| Model | HS10000 |
| Condition | New |
| CNC Control | FANUC 31i-B Plus |

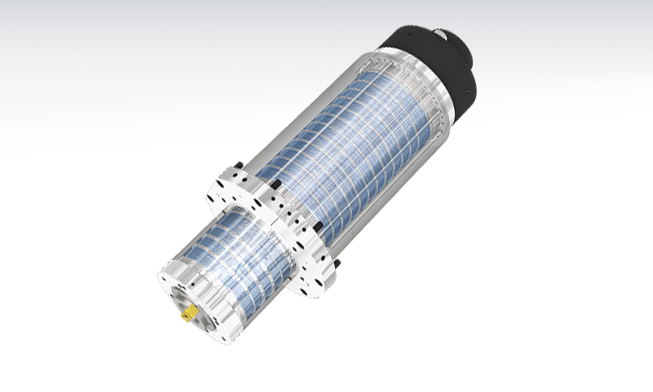

| Spindle size | ISO-50 |
| Spindle speed | 10.000 (opt. 14.000/6.000) RPM |
| Spindle motor power (cont/30 min | 45/25 (Opt. 37/30 55/30)kW |
| X axis | 1.700 mm |
| Y Axis | 1.400 mm |
| Z Axis | 1.550 mm |
| Table rotation | Indexata (opt. continuous) |
| Max workpiece dimensions | Ø 2.000 × H 1.600 mm |

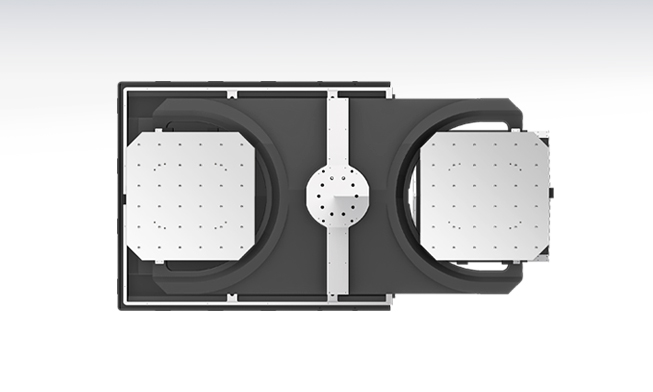

| Table dimensions | 2 - 1.000×1.000 mm |
| Nr. of table pallets | 2 standard |
| Max table capacity | 2 - 3.000 Kg |
| Rapid feedrates X / Y / Z | 50.000 mm/min |
| Tool type | BBT-50 |
| Pull stud type | BT-50 |

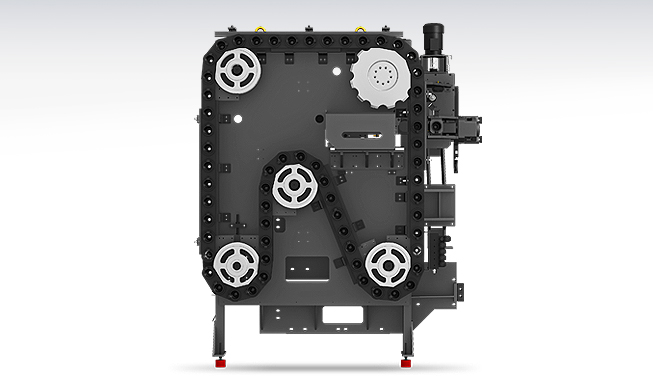

| ATC positions | Standard 60 (opt. 90/120/150) |
| Tools diameter | Ø 135 / 320 mm |
| Tools max lenght | 800 mm |
| Tools max weight | 30 Kg |
| Machine's net weight | 34.000 kg |
| Accessories & Others | Chip-conveyor, coolant tank with high pressure pump for CTS at 20 Bar, Manuals, Electrical Diagrams and CE Declaration |
