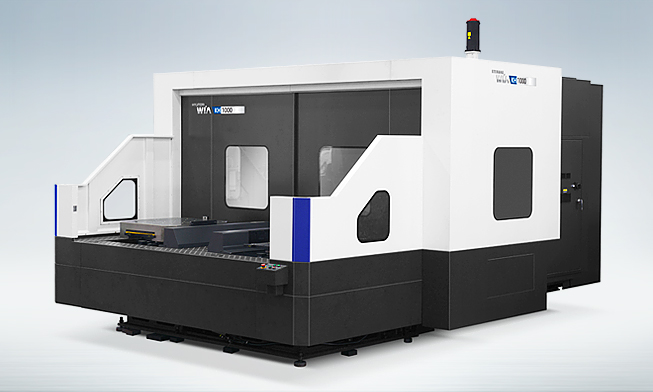

Hyundai WIA KH1000

Hyundai WIA KH1000

Specifications

ManufacturerHyundai WIA
ModelKH1000
ConditionNew
CNC ControlFANUC 31i-Model B PLUS

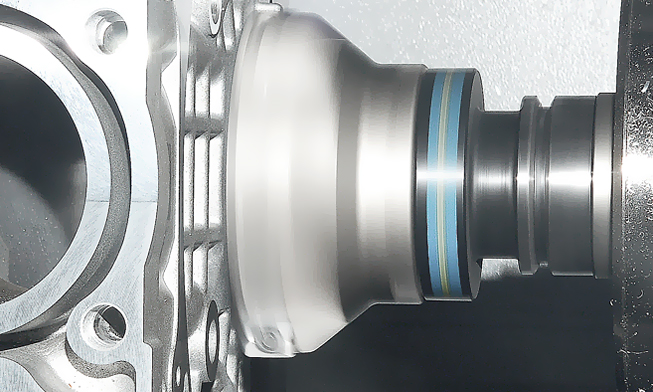

Spindle sizeISO-50
Spindle speed8.000 (opt. 4.500) RPM
Spindle motor power (cont/30 min26/22 (Opt. 26/22) kW
X axis2.100 mm
Y Axis1.350 mm
Z Axis1.400 mm
Table rotationIndexata (opt. continuous)
Max workpiece dimensionsØ 1.900 × H 1.500 mm

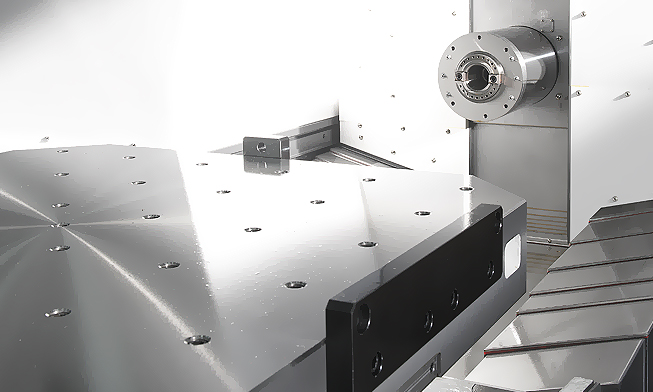

Table dimensions2 - 1.000 × 1.000 mm

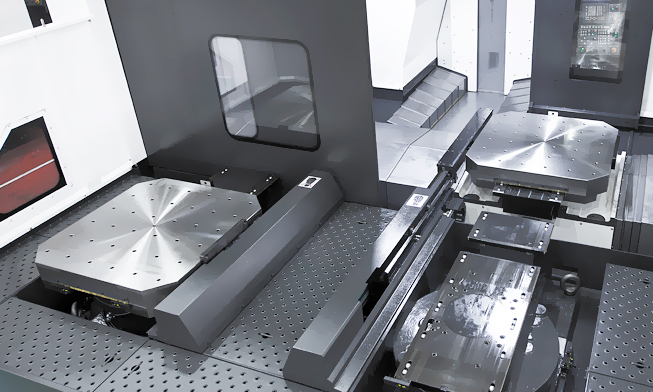

Nr. of table pallets2 standard (opt. 1)
Max table capacity2 - 3.000 Kg
Rapid feedrates X / Y / Z20.000 mm/min
Tool typeBBT-50 (opt. BCV50)
Pull stud typeBT-50

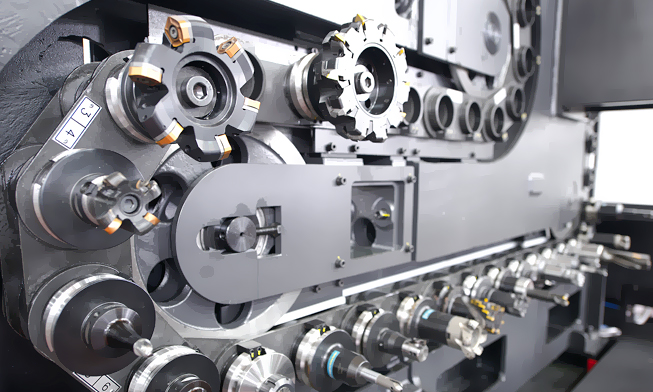

ATC positionsStandard 60 (opt. 90/20)
Tools diameterØ 110 / 245 mm
Tools max lenght600 mm
Tools max weight35 Kg
Machine's net weight30.000 kg
Accessories & OthersChip-conveyor, coolant tank with high pressure pump for CTS at 20 Bar, Manuals, Electrical Diagrams and CE Declaration
