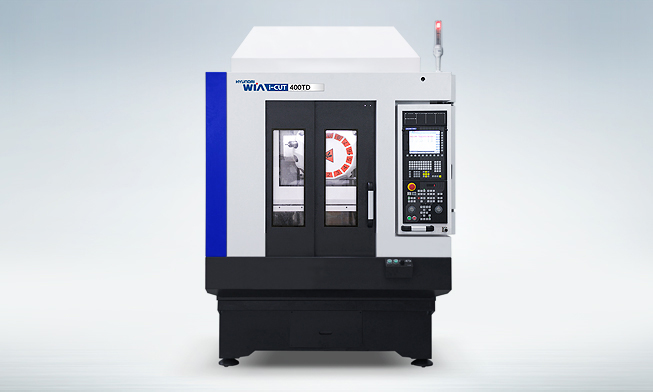

Hyundai WIA i-CUT400TD
Hyundai WIA i-CUT400TD
or
Call +39 0522 1536494
Specifications
| Manufacturer | Hyundai WIA |
| Model | i-CUT400TD |
| Condition | New |
| CNC Control | FANUC 0i-MF PLUS |

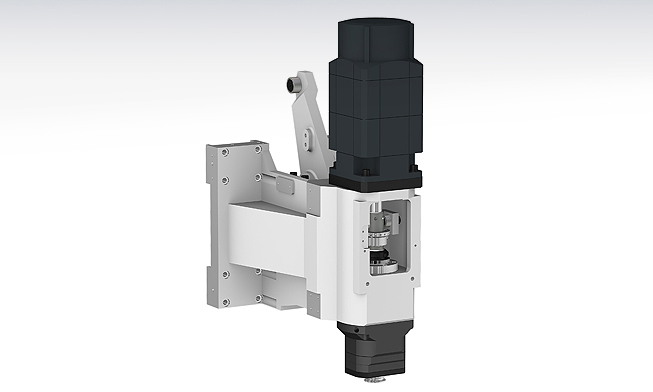

| Spindle tool size | ISO-30 |
| Spindle speed | 12.000 RPM |
| Spindle motor power (cont/30 min) | 13/3.7 (Opt. 17.4/5) Kw |
| X axis | 550 mm |
| Y axis | 400 mm |
| Z axis | 330 mm |

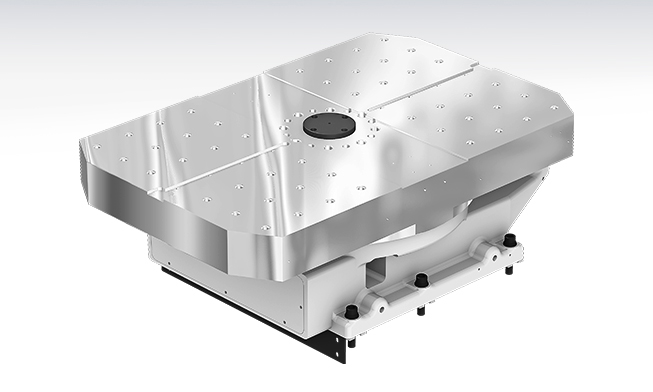

| Table dimensions | 2-650×400 mm |
| Max load allowed on table | 2 - 250 Kg |
| X / Y / Z axis rapid feedrates | 56.000 / 56.000 / 56.000 mm/min |

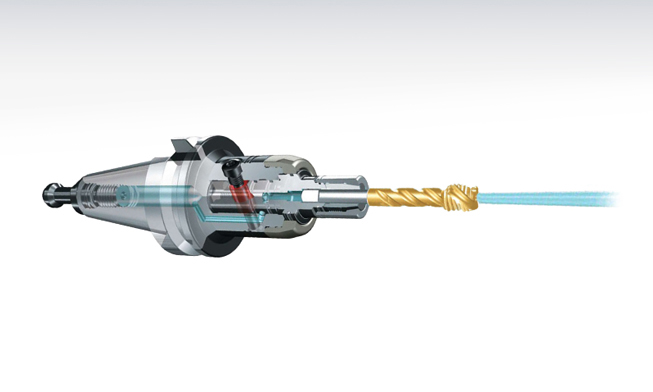

| Tool type | BBT-30 |
| Tool pull stud type | BT-30 |

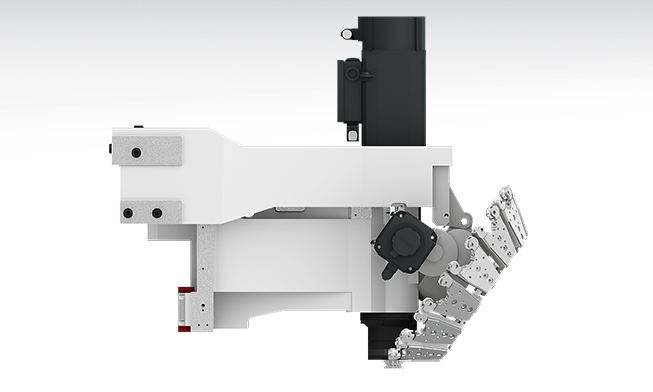

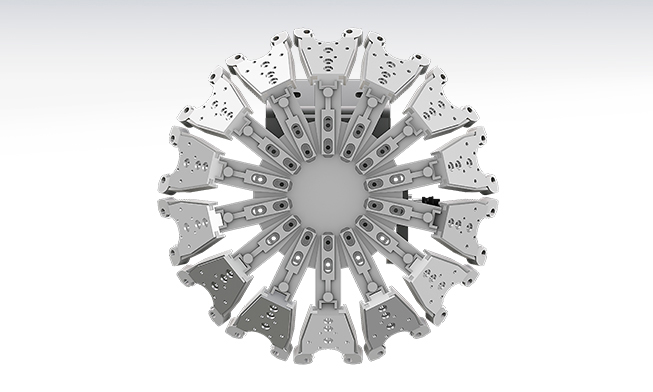

| ATC capicity | 14 (21, 20, 24) positions |
| Max tool diameter | Ø 80/80 (opt. Ø80/125 Ø67/125) mm |
| Max tool lenght | 200 mm |
| Max tool weight | 3 kg |
| Accessories | Chip-conveyor, coolant tank with 20 bar pressure pump for CTS, Manuals, Electrical diagrams and CE Declaration |
