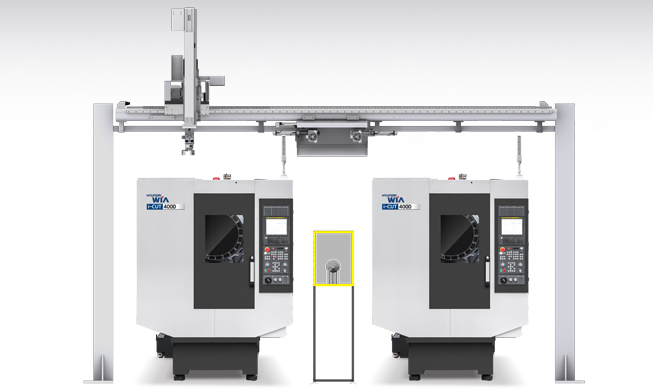

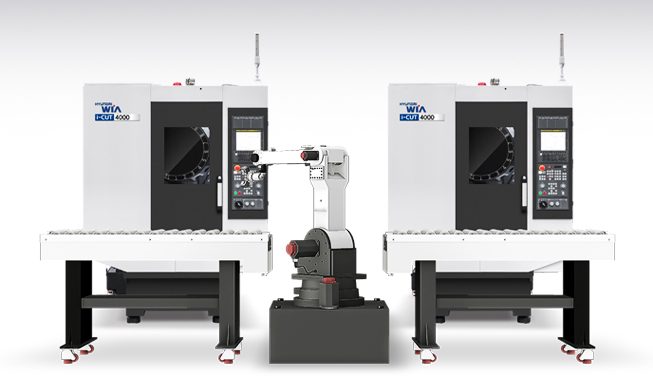

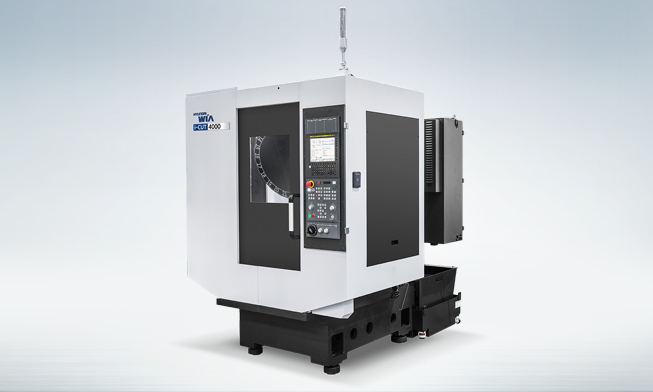

Hyundai WIA i-CUT4000
Hyundai WIA i-CUT4000
or
Call +39 0522 1536494
Specifications
| Manufacturer | Hyundai WIA |
| Model | i-CUT4000 |
| Condition | New |
| CNC Control | FANUC 0i-MF PLUS / FANUC 31i-B Plus |
| Spindle tool size | ISO-30 |
| Spindle speed | 12.000 (Opt. 15.000 24.000) RPM |
| Spindle motor power (cont/30 min) | 13/3.7 (Opt. 18/5.5 3.7/1.1) Kw |
| X axis | 550 mm |
| Y axis | 400 mm |
| Z axis | 300 mm |
| Table dimensions | 650×400 mm |
| Max load allowed on table | 300 kg |
| X / Y / Z axis rapid feedrates | 56.000 / 56.000 / 56.000 mm/min |
| Tool type | BBT-30 |
| Tool pull stud type | BT-40 |
| ATC capicity | 21 (Opt. 20, 24) positions |
| Max tool diameter | Ø 80/80 (Opt. Ø67/125) mm |
| Max tool lenght | 240 mm |
| Max tool weight | 3 kg |
| Machine's net weight | 2.600 kg |
| Accessories | Chip-conveyor, coolant tank with 20 bar pressure pump for CTS, Manuals, Electrical diagrams and CE Declaration |
