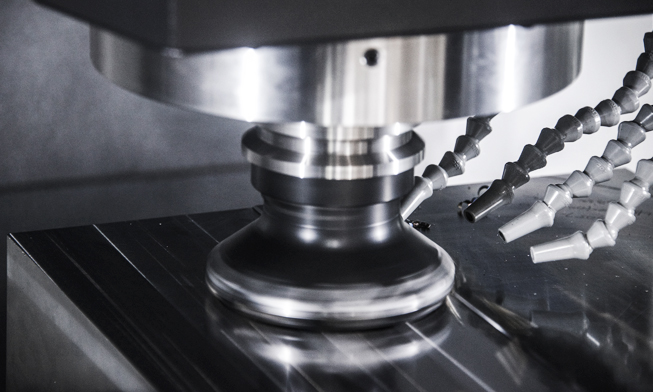

Hyundai WIA KF5700B II
Hyundai WIA KF5700B II
or
Call +39 0522 1536494
Specifications
| Manufacturer | Hyundai WIA |
| Model | KF5700B II |
| Condition | New |
| CNC Control | FANUC 0i-MF PLUS |
| Spindle tool size | ISO-40 |
| Spindle speed | 8.000 (opt. 12.000) RPM |
| Spindle motor power (cont/30 min) | 15/11 (opt. 18.5/11) Kw |
| X axis | 1.100 mm |
| Y axis | 570 mm |
| Z axis | 520 mm |
| Table dimensions | 1,300×570 mm |
| Max load allowed on table | 1.000 kg |
| X / Y / Z axis rapid feedrates | 30.000 / 30.000 / 24.000 mm/min |
| Tool type | BBT-40 |
| Tool pull stud type | BT-40 |
| ATC capicity | 27 (opt. 24) positions |
| Max tool diameter | Ø 80/125 (opt. 76/125) mm |
| Max tool lenght | 300 mm |
| Max tool weight | 8 Kg |
| Machine's net weight | 7.800 kg |
| Accessories | Chip conveyor, Tank with high pressure pump for the spindle (20 Bar), Manuals, wiring diagrams and CE Declaration |
