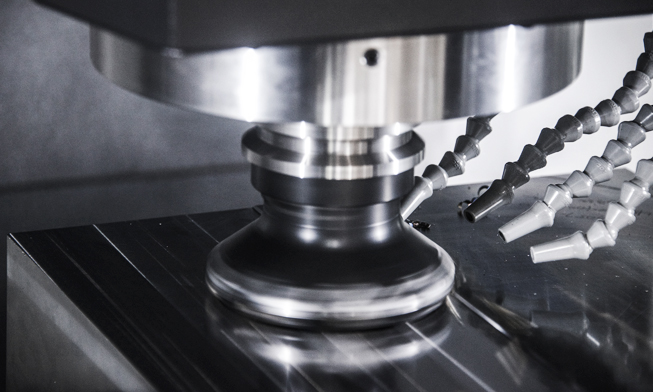

Hyundai WIA KF7700B
Hyundai WIA KF7700B
or
Call +39 0522 1536494
Specifications
| Manufacturer | Hyundai WIA |
| Model | KF7700B |
| Condition | New |
| CNC Control | HYUNDAI WIA FANUC i Series - Smart Plus |
| Spindle tool size | ISO-40 |
| Spindle speed | 8.000 (opt. 12.000) RPM |
| Spindle motor power (cont/30 min) | 15/11 (opt. 18.5/11) Kw |
| X axis | 1.500 mm |
| Y axis | 760 mm |
| Z axis | 635 mm |
| Table dimensions | 1,650×760 mm |
| Max load allowed on table | 1.500 kg |
| X / Y / Z axis rapid feedrates | 30.000 / 30.000 / 24.000 mm/min |
| Tool type | BBT-40 |
| Tool pull stud type | BT-40 |
| ATC capicity | 30 (opt. 40) positions |
| Max tool diameter | Ø 80/125 mm |
| Max tool lenght | 300 mm |
| Max tool weight | 8 Kg |
| Machine's net weight | 12.200 kg |
| Accessories | Chip-conveyor, coolant tank with 20 bar pressure pump for CTS, Manuals, Electrical diagrams and CE Declaration |
