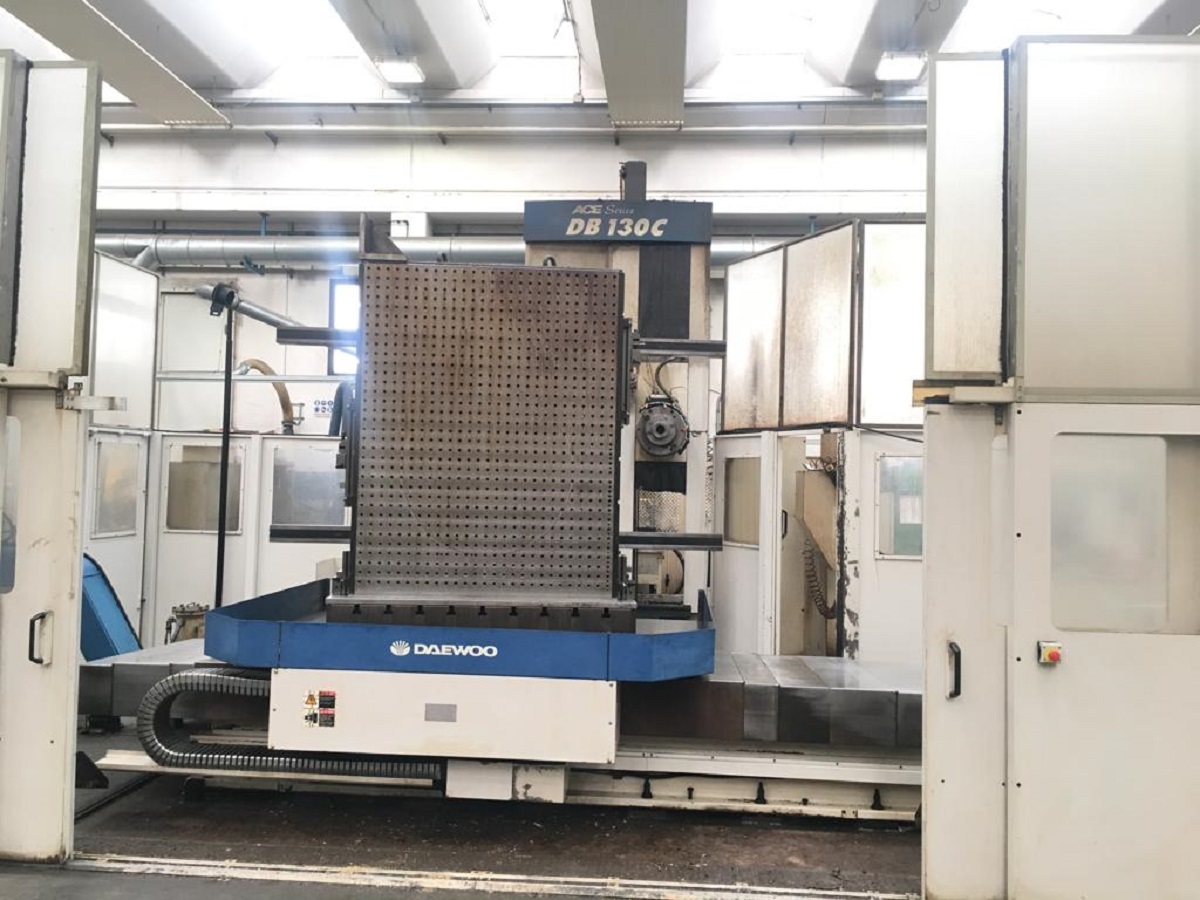

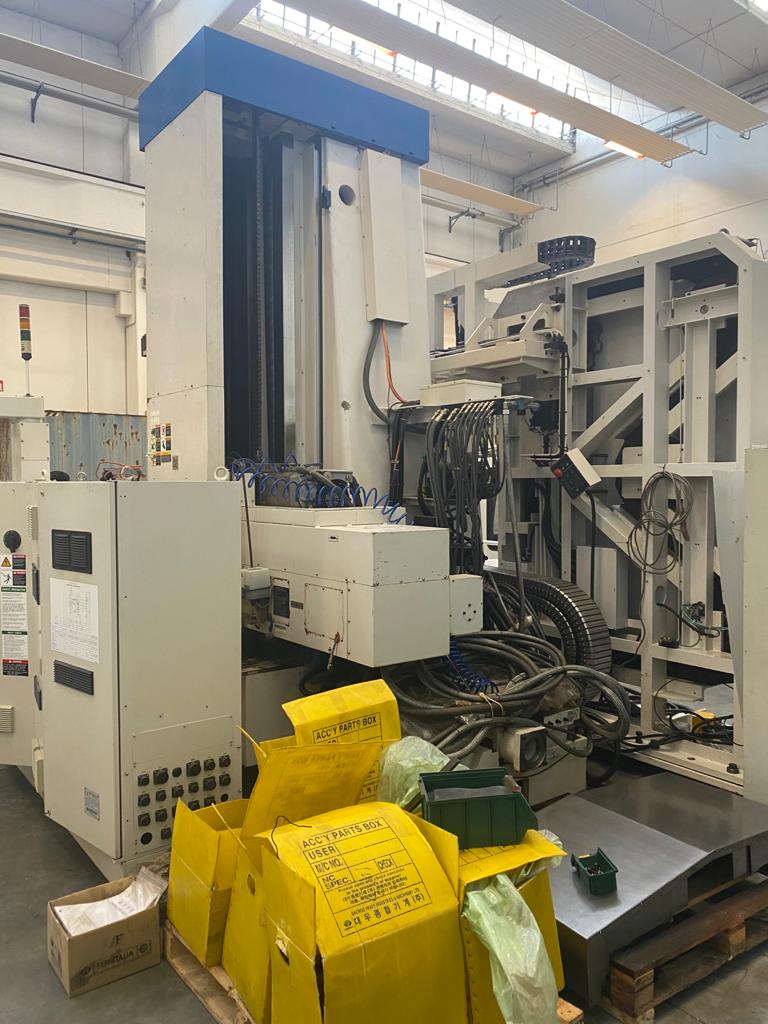

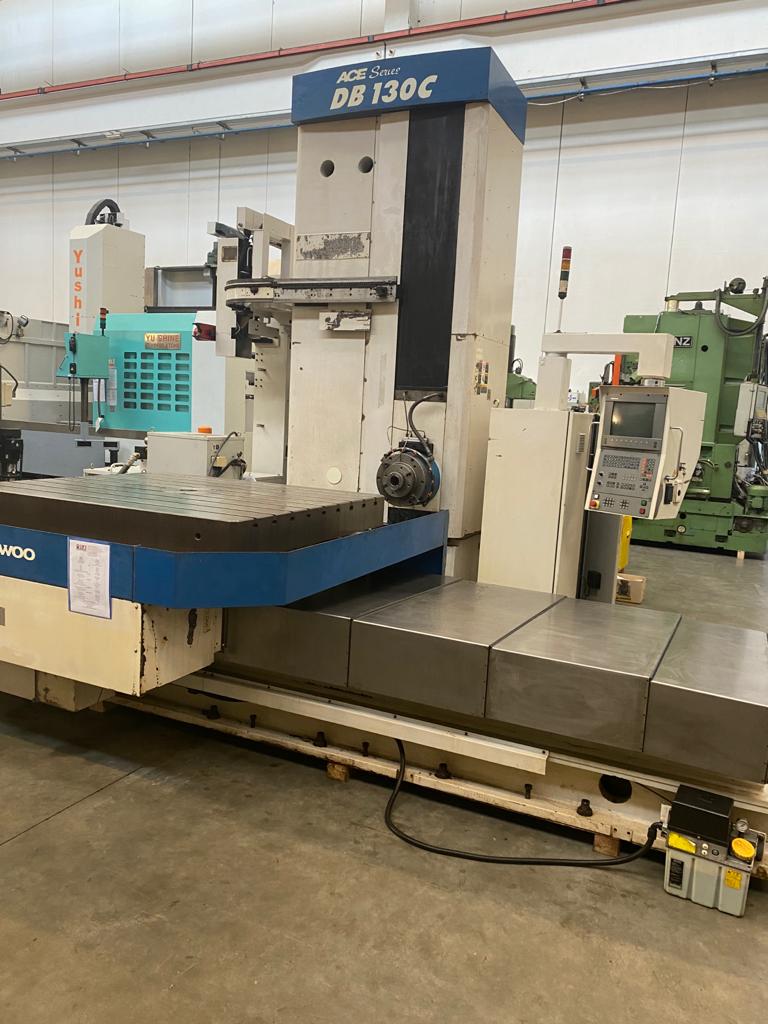

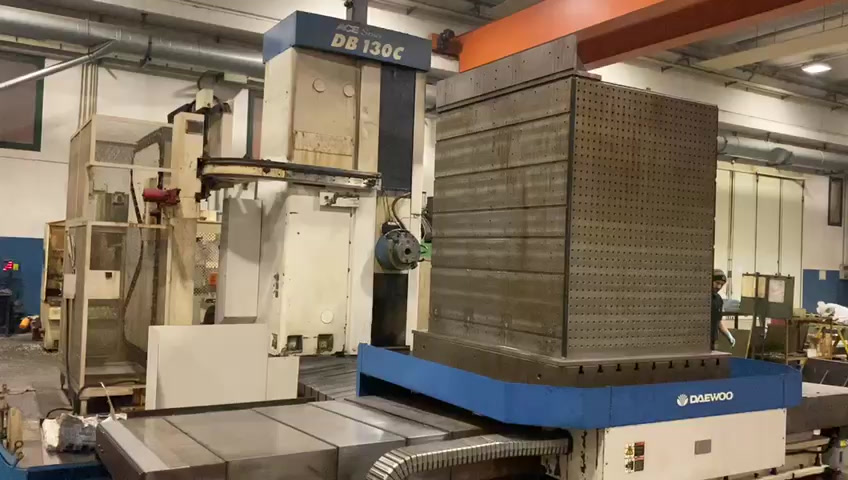

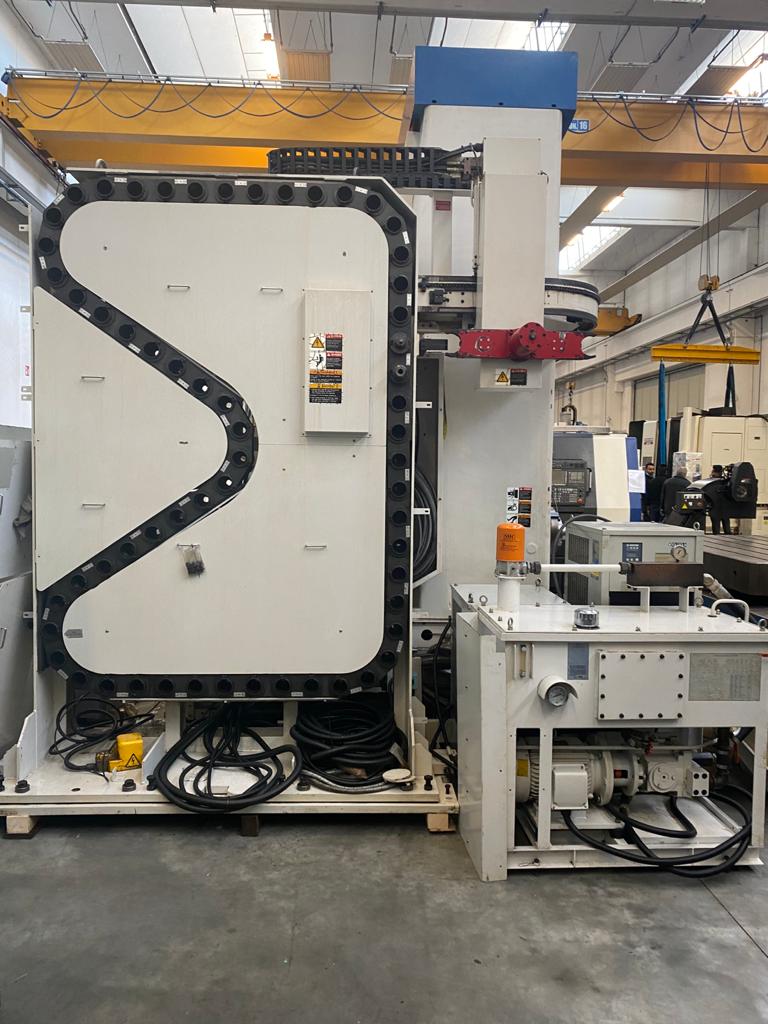

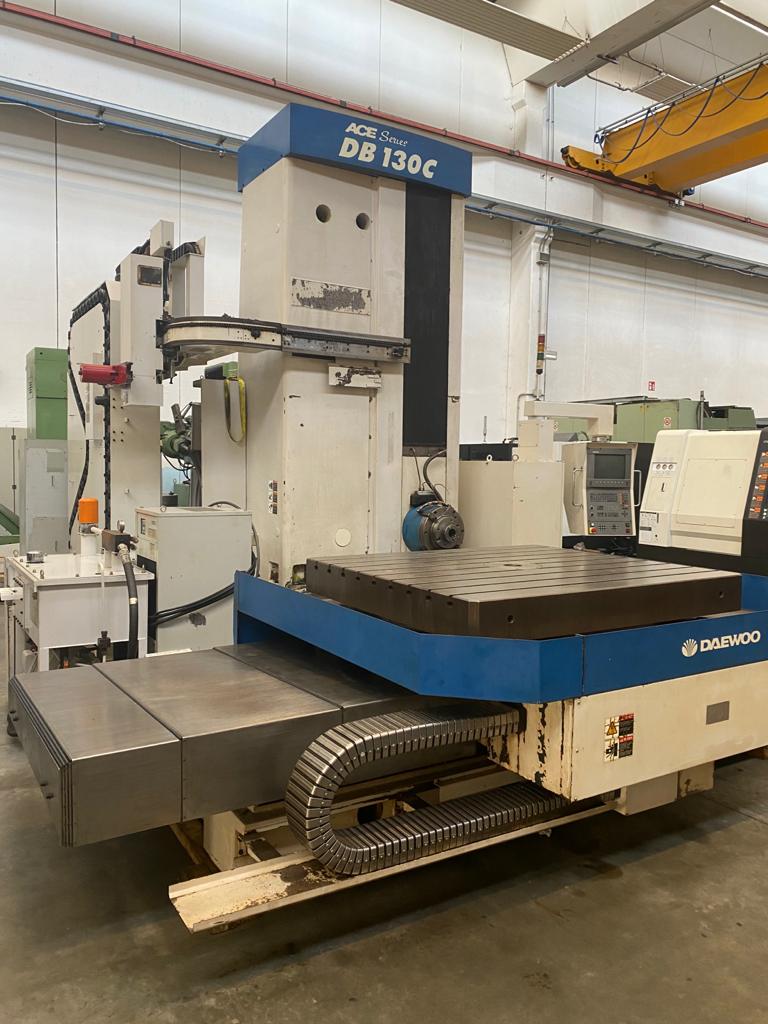

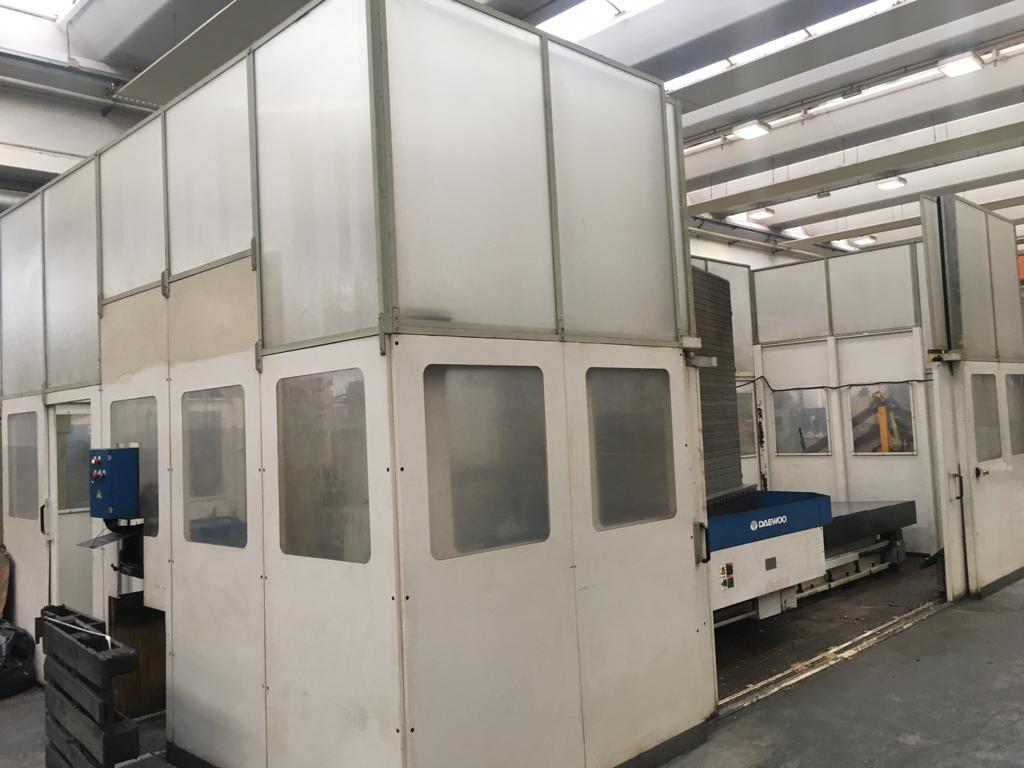

2002 Doosan Daewoo ACE DB-130C
Sold
2002 Doosan Daewoo ACE DB-130C
Specifications
| Manufacturer | Doosan Daewoo |
| Model | ACE DB-130C |
| Year | 2002 |
| Condition | Ricondizionati |

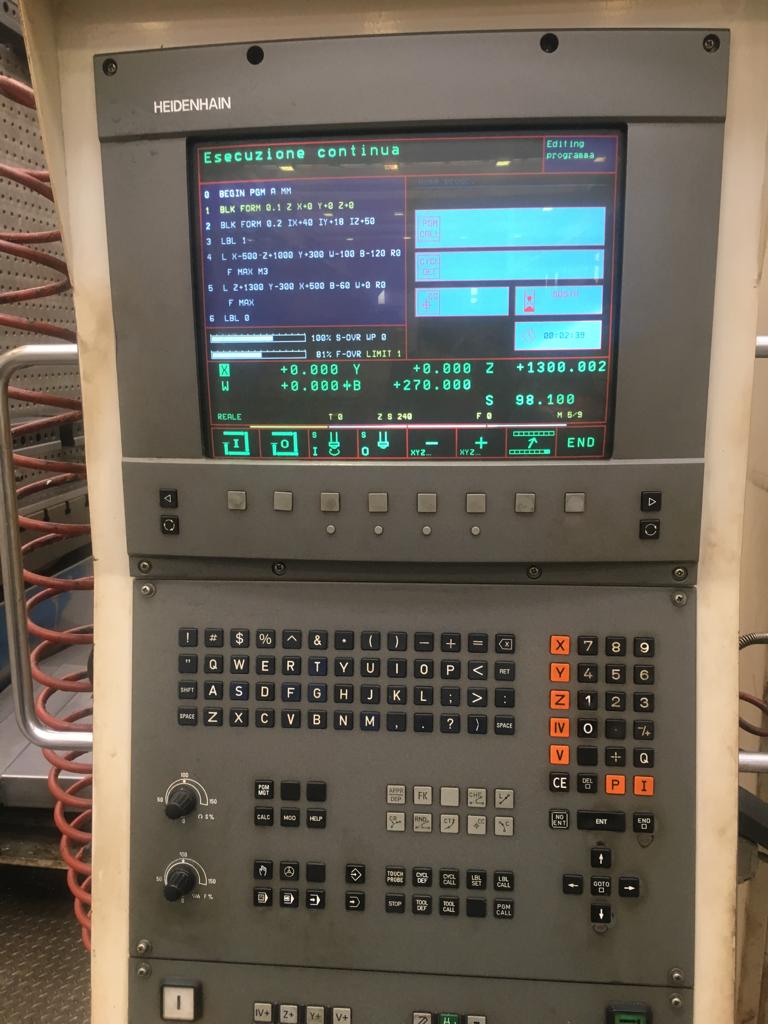

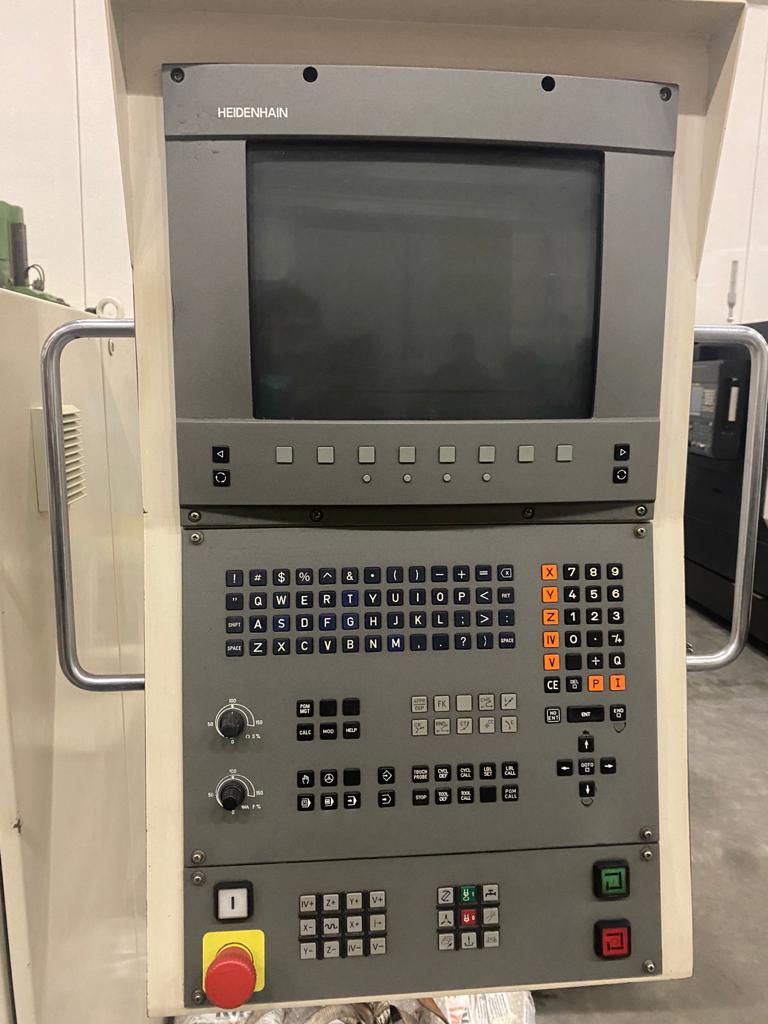

| CNC control | HEIDENHAIN iTNC-426PB |
| Length | 7.600 mm |
| Width | 6.500 mm |
| Axis z | 1.600 mm |
| Machine weight | 26 Ton |
| Axis w | 700 mm |
| X axis | 3.000 mm |
| Y axis | 2.000 mm |
| Z Axis | 1.600 mm |
| W Axis | 700 mm |
| Spindle turns | 10 - 2,500 rpm |
| Change range | 2 ranges (cars) |
| Distance between spindle center and table | 0 - 2.000 mm |
| Distance between spindle nose and center of table | 750 - 2.000 mm |
| Table dimensions | 1.600 x 1.800 mm |
| No. of positions | 60 |
| Maximum table capacity | 15.000 Kg |
| Spindle nose | ISO-50 |
| Spindle speed | 10 - 2.500 rpm |
| Spindle steps | 2 steps |
| Quill diameter (w axis) | Ø 130 mm |
| Spindle motor power (cont / 30 min) | 22/26 kW |
| Rapid feed x / y / z / w axes | 10.000 mm / min |
| Work progress x / y / z / w axes | 1 - 4.000 mm / min |
| Axis b cutting speed | 0.5 rev / min |
| ATC Positions | 60 positions |
| Type of cone | DIN 69871-A50 |
| Shank type | DIN 69872-A50 |
| Max tool diameter | 135/250 mm |
| Tool length atc / manual loading | 280/600 mm |
| Max tool weight | 25 Kg |
