2008 Doosan VM-960L

Sold

2008 Doosan VM-960L

Specifications

ManufacturerDoosan
ModelVM-960L
Year2008
ConditionUsed

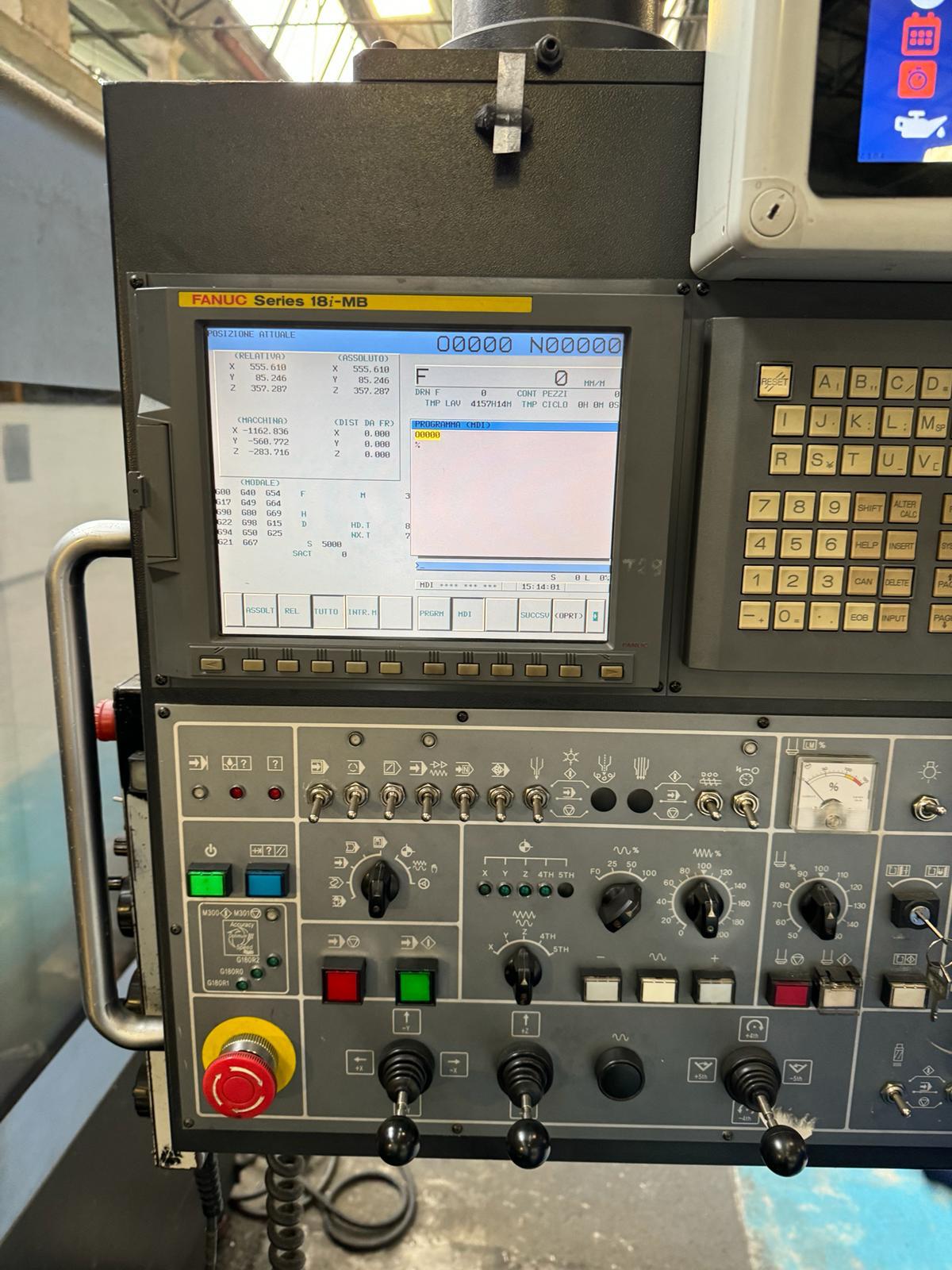

CNC ControlFANUC Series 18i-MB
Spindle tool sizeISO-50
Spindle speed6.000 Rpm
Spindle motor power (cont/30 min)18,5/22 kW
X axis2.400 mm
Y axis960 mm
Z axis800 mm
Distance between spindle nose - table surface200 ÷ 1.000 mm
Distance between spindle center - column1.005 mm

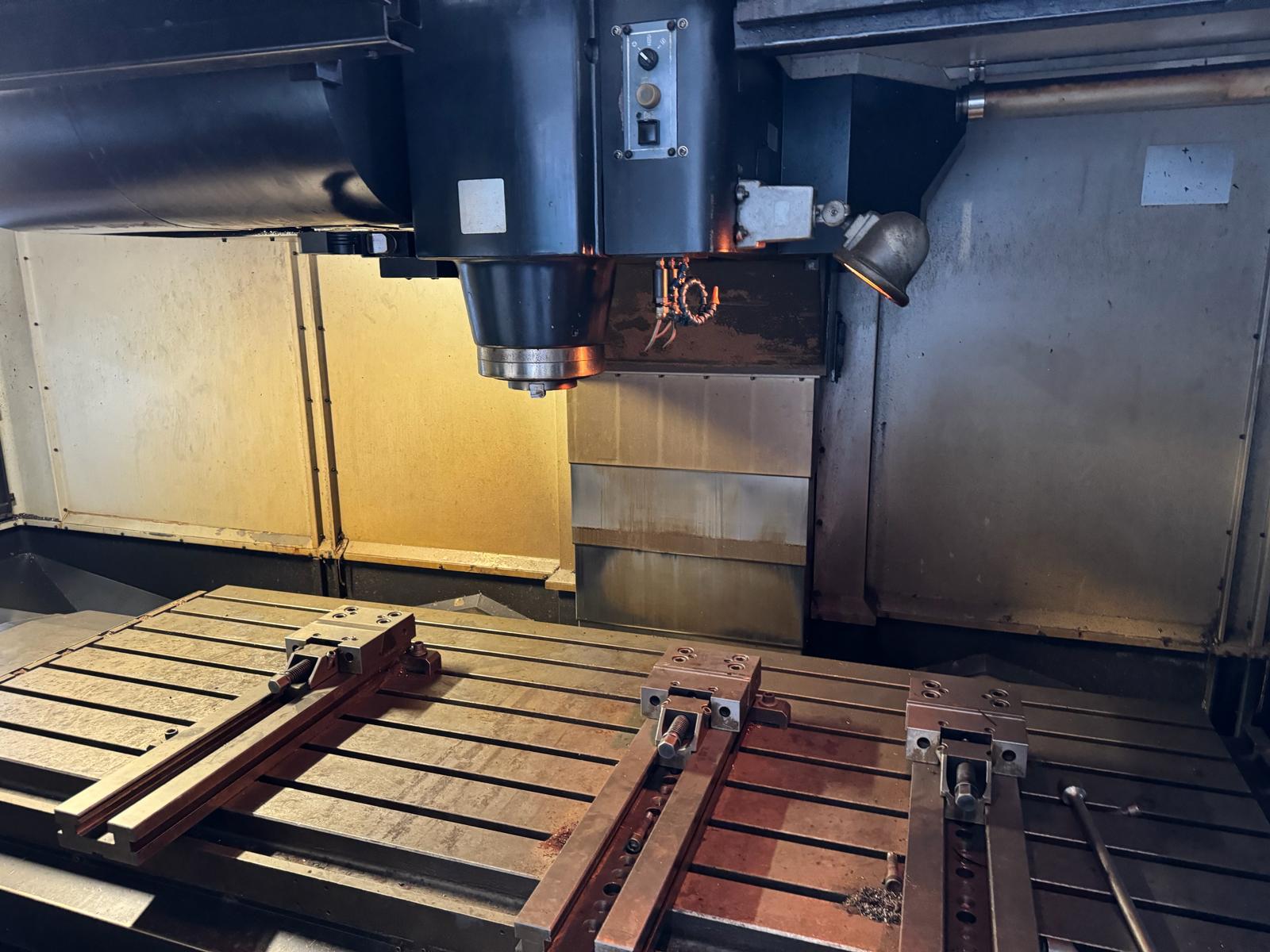

Table dimensions2.600 x 950 mm
Max load allowed on table4.500 Kg
X / Y / Z axis rapid feedrates16.000 mm/min
X / Y / Z axis working feedrates in linear interpolation (max)1 ÷ 8.000 mm/min
Tool typeBIG PLUS MAS403-BT50
ATC capicity30 Station
Max tool diameterØ125 / Ø230 mm
Max tool lenght350 mm
Max tool weight15 Kg
AccessoriesChip conveyor with backside exit - Coolant tank with pumps - High pressure pump for coolant through spindle - Chiller for spindle head - Transformer - Manuals - Electrical Diagrams - CE Declaration
