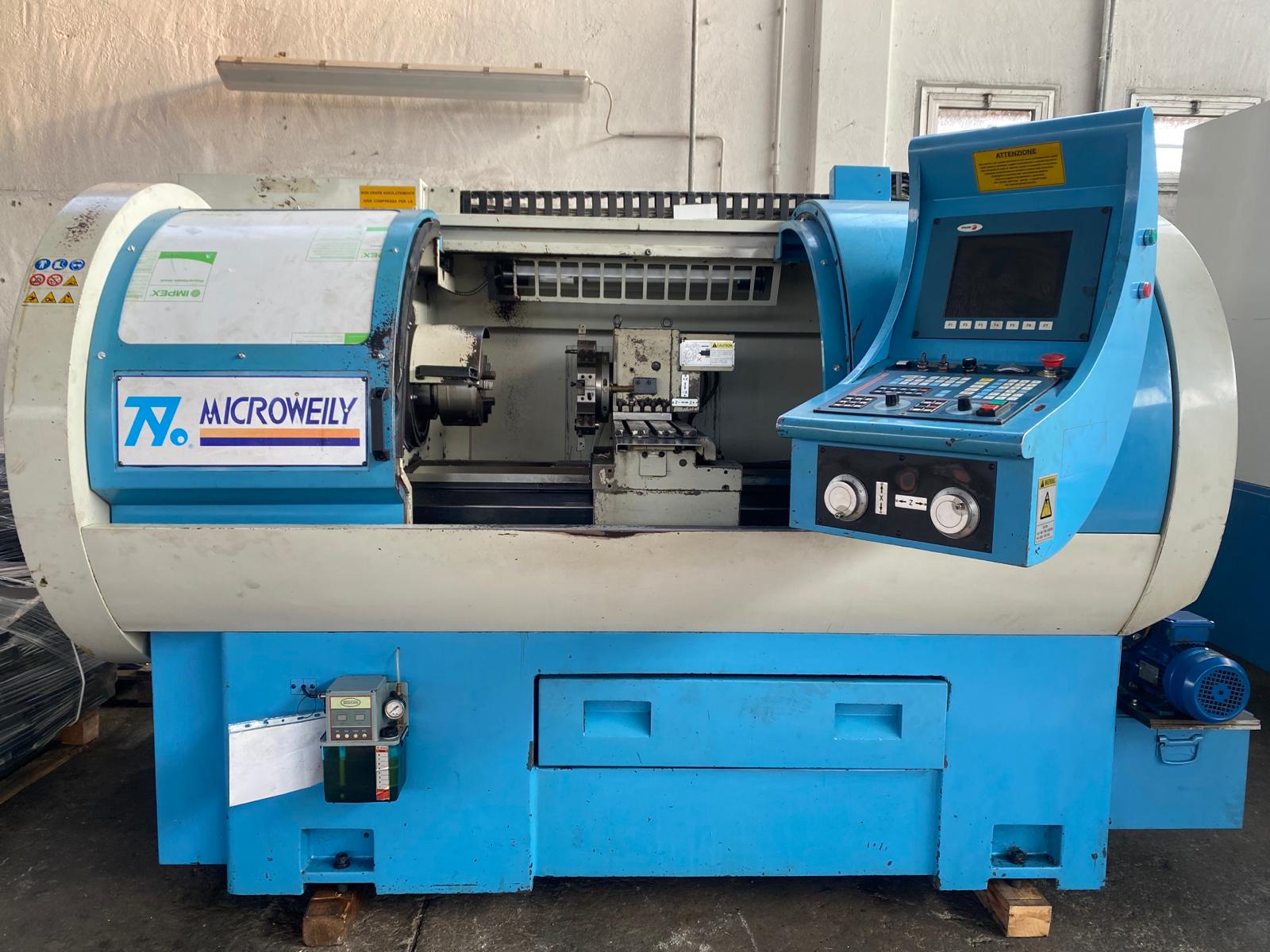

2005 MICROWEILY TY-15 CNC
2005 MICROWEILY TY-15 CNC
Description
SELF-LEARNING LATHE
Specifications
| Manufacturer | MICROWEILY |
| Model | TY-15 CNC |
| Year | 2005 |
| Condition | Used |

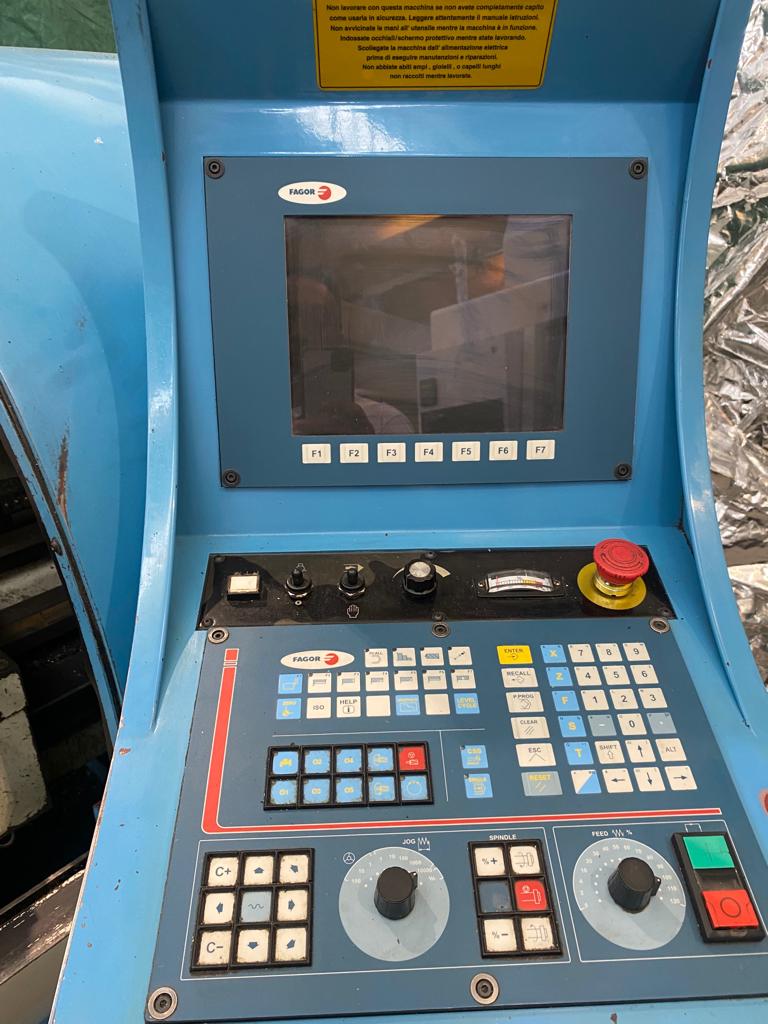

| CNC Control | FAGOR |
| Max swing over the bench | Ø 406 mm |
| Max swing over the carriage | Ø 168 mm |
| Max turning length | 1.000 mm |
| Bar diameter capacity through the spindle | Ø 54 mm |
| X axis travel | 270 mm |
| Z axis travel | 1.000 mm |
| Spindle chuck diameter | Ø 210 mm |
| Spindle speed | 40 ÷ 4.000 Rpm |
| Spindle nose size | ASA A2-5 |
| Spindle motor power | 7,5 kW |

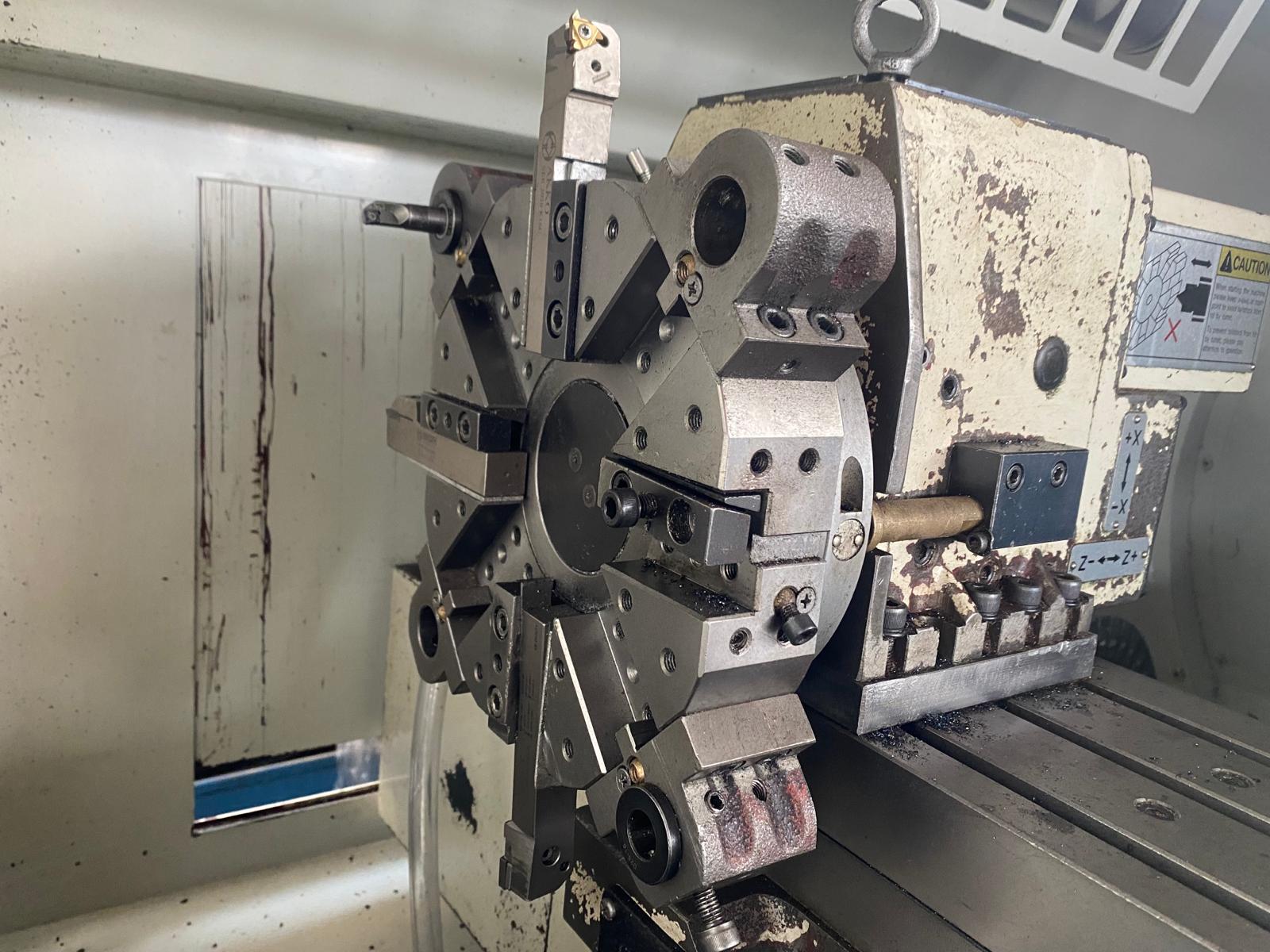

| Turret positions | 8 positions |
| Turning / boring tool dimensions | 20x20 mm / Ø25 mm |
| X axis feedrate | 5.000 mm/min |
| Z axis feedrates | 5.000 mm/min |
| Tailstock quill diameter | Ø 60 mm |
| Tailstock taper size | MT-4 |
| Tailstock quill travel | 150 mm |
| Accessories | Coolant tank with pump - Steady rest - Various fix tool holders - Manual - Electric diagrams - EC CE Declaration |
