KAFO VMC-1370
KAFO VMC-1370
Description

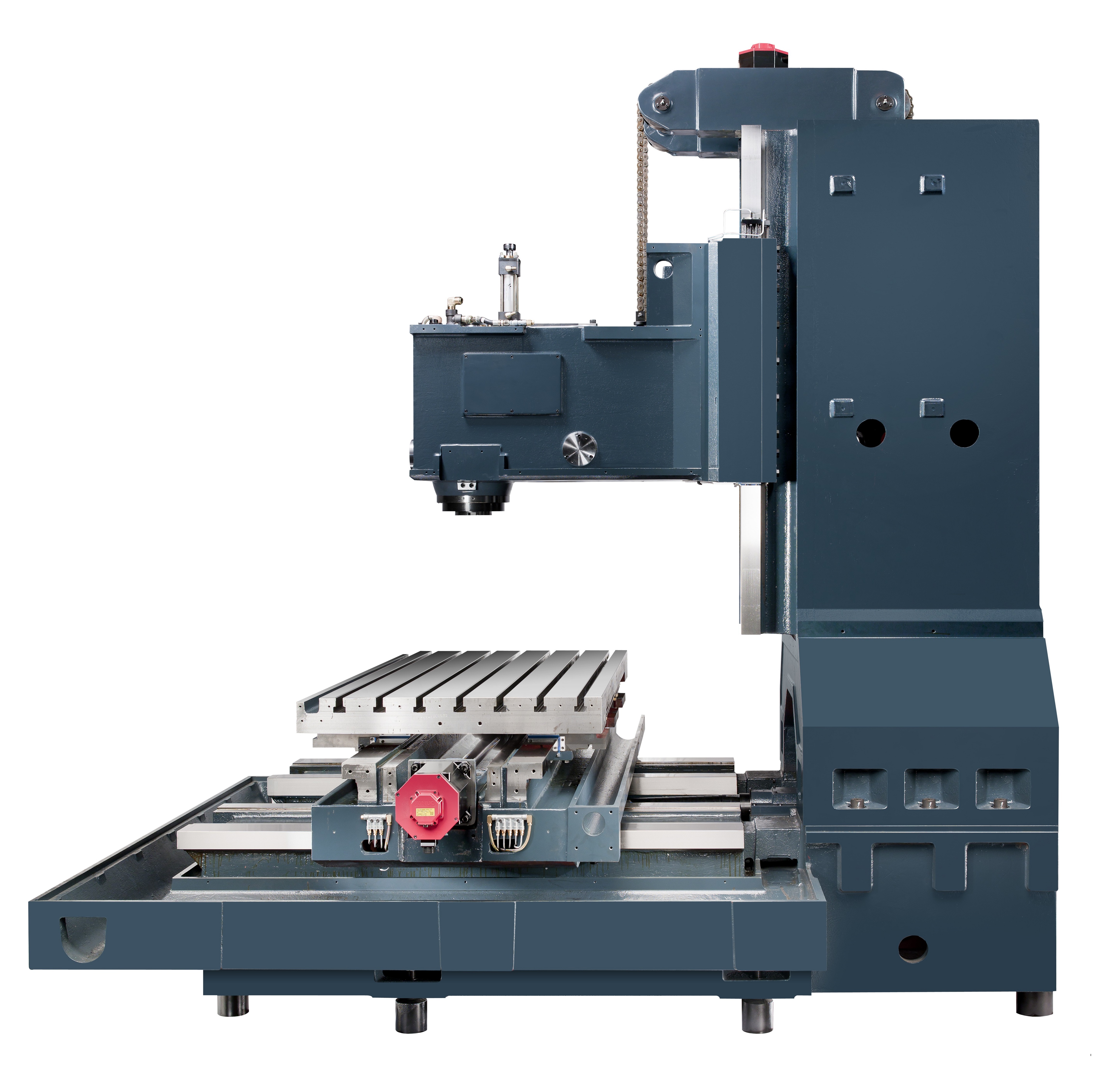

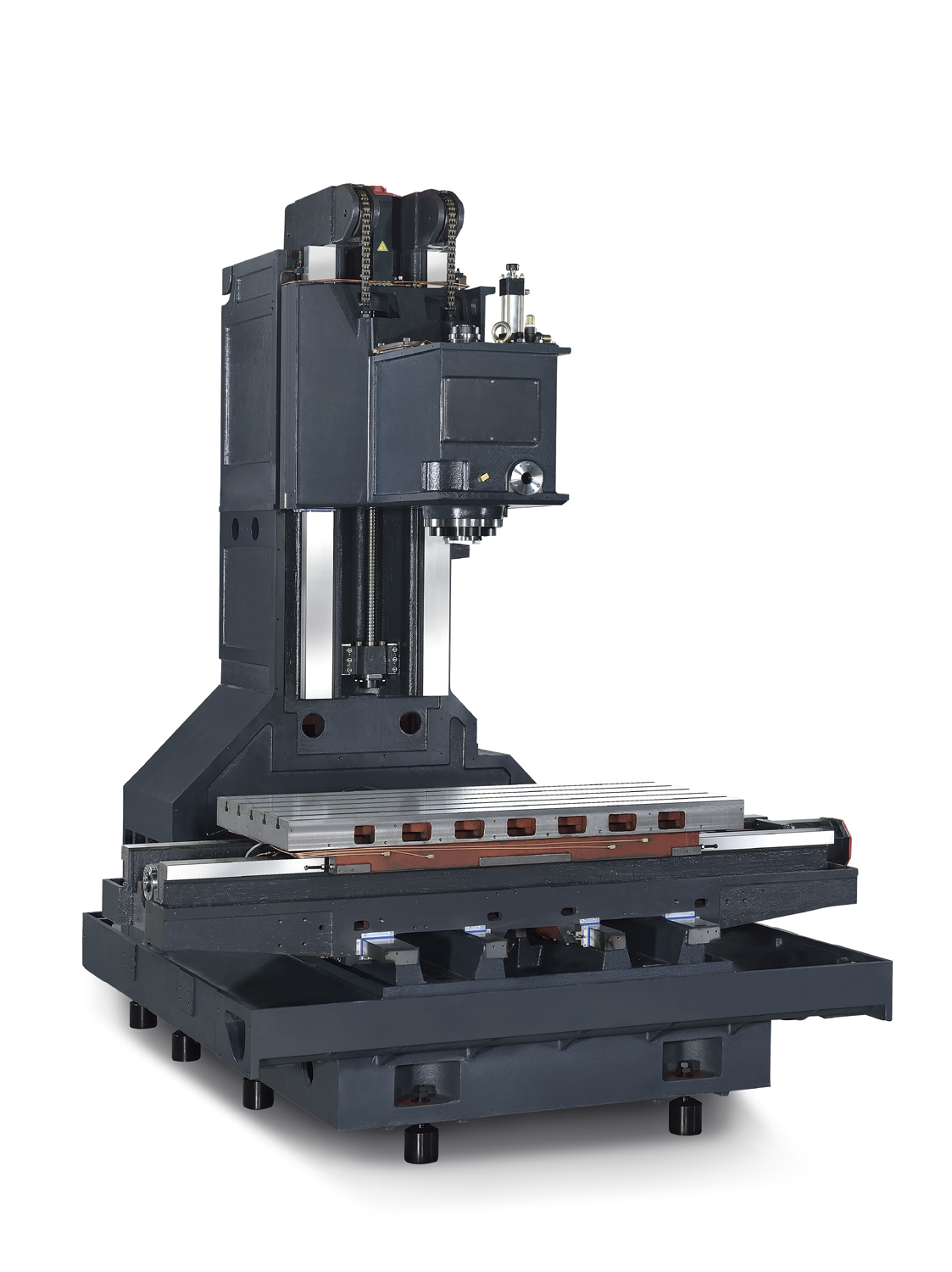

Vertical machining center on boxways guides
New machine arriving in February 2024 as follows:
- Spindle line with 2-range mechanical gear change (6,000 RPM
- FANUC motor with 22/26 kW
- Tool and pull stud type DIN-69871
- Tool changer ATC with 30 positions
- Fourth axis preparation
Specifications
| Manufacturer | KAFO |
| Model | VMC-1370 |
| Condition | New |

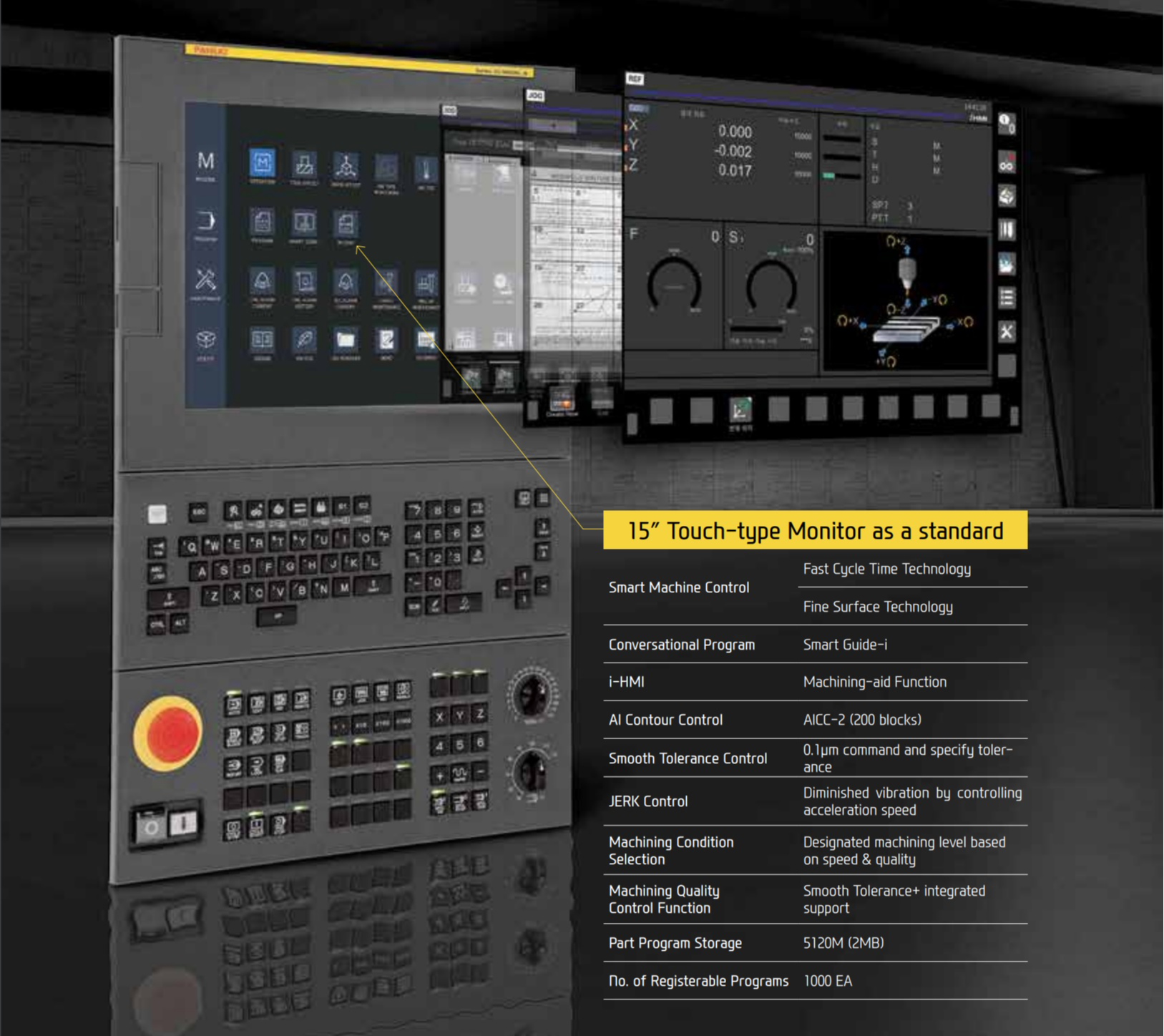

| CNC Control | FANUC 0i-MF PLUS |
| Spindle tool size | ISO-50 |
| Spindle speed | 6.000 RPM (opt. 10.000 rpm) |
| Spindle motor power (cont/30 min) | 15 / 18.5 kW (opt. 22 / 26 kW) |
| Spindle steps | 2 steps |
| X axis | 1.400 mm |
| Y axis | 700 mm |
| Z axis | 700 mm |
| Table dimensions | 1.500 x 700 mm |
| Max load allowed on table | 1.500 Kg |
| X / Y / Z axis rapid feedrates | 24.000 / 24.000 / 20.000 mm/min |
| X / Y / Z axis working feedrates in linear interpolation (max) | 10.000 mm/min |
| Tool type | BBT-50 (opt. DIN-69871-A50) |
| Tool pull stud type | BT-50 (opt. DIN-69872-A50) |
| ATC capicity | 24 positions (opt. 30 / 40) |
| Max tool diameter | Ø 105 / 210 mm |
| Max tool lenght | 300 mm |
| Max tool weight | 15 Kg |
| Accessories | Chip-conveyor, coolant tank with 20 bar pressure pump for CTS, double screw type chip-conveyors, extra pump coolant gun, Manuals, Electrical diagrams and CE Declaration |
