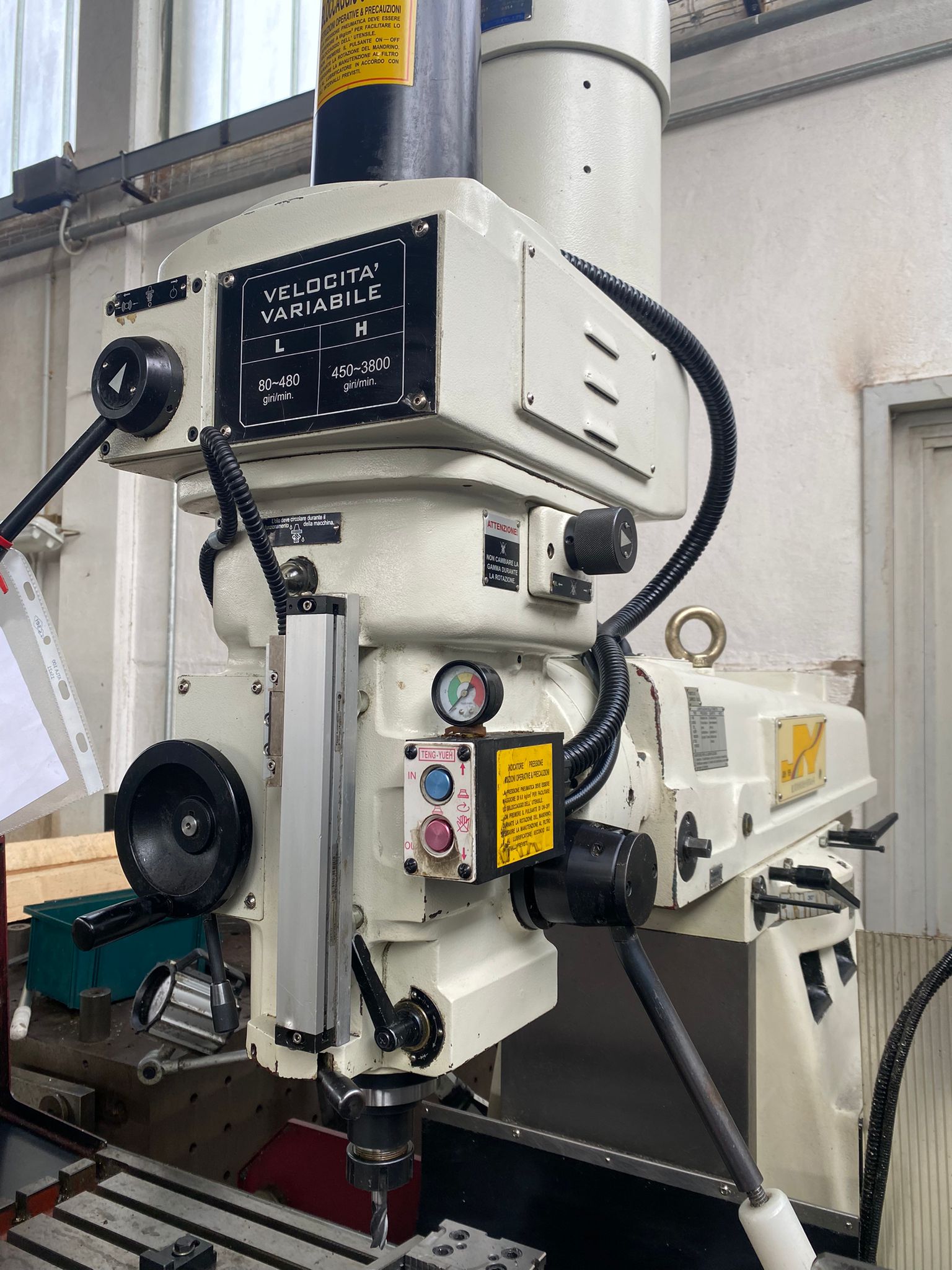

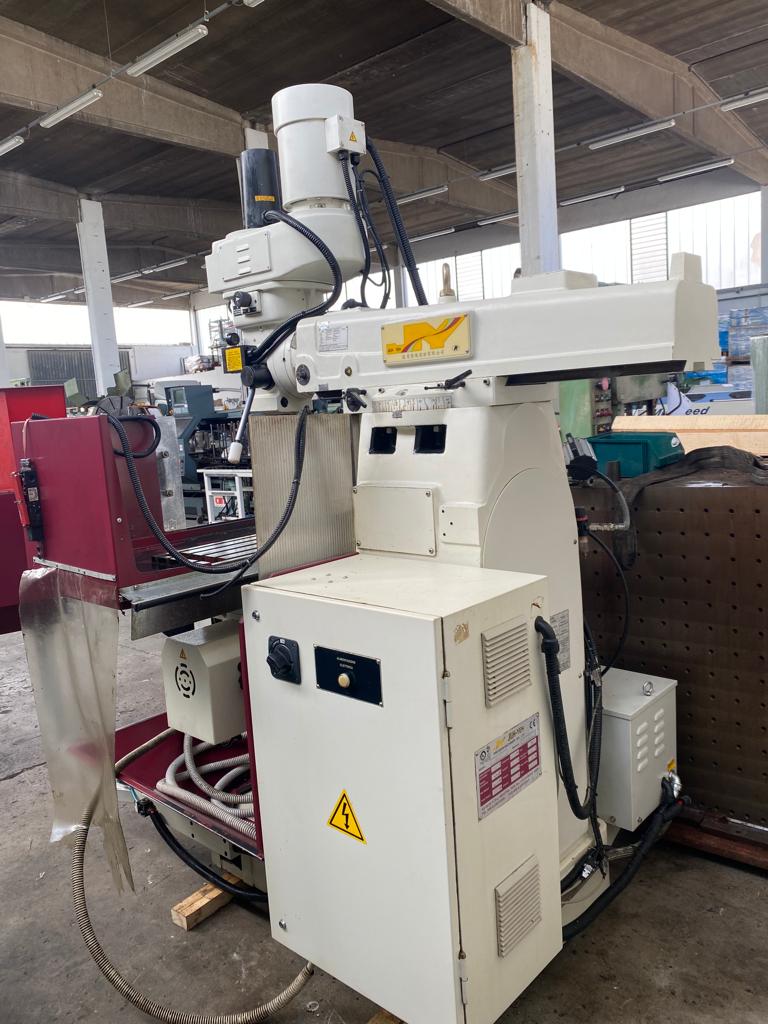

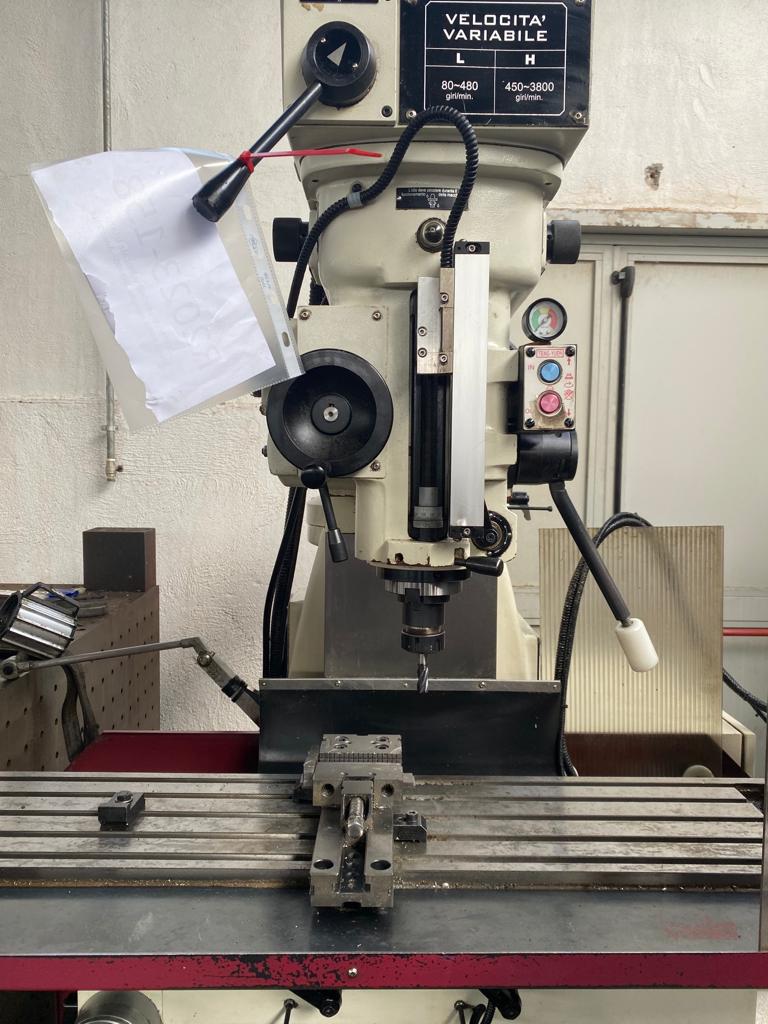

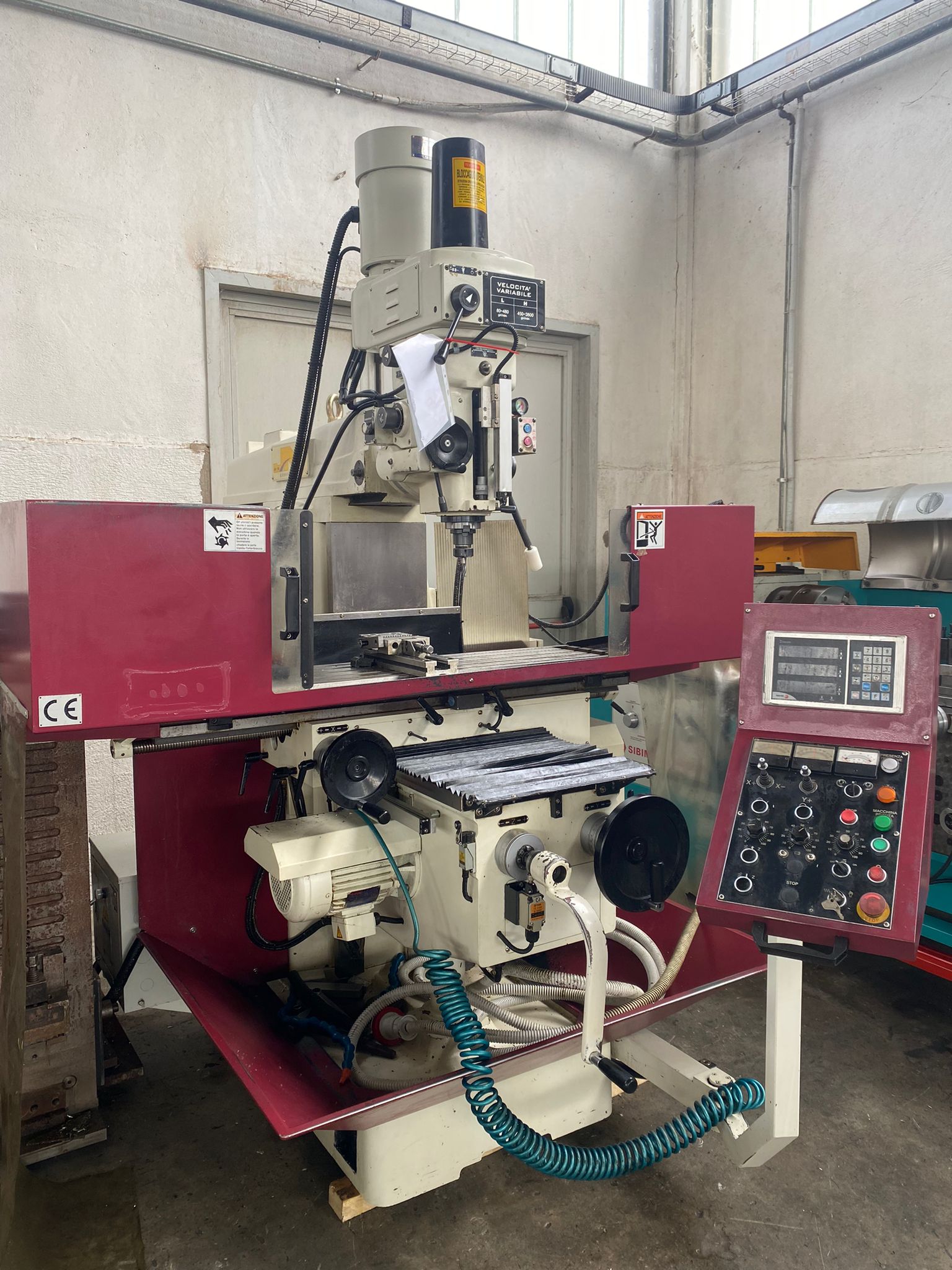

2014 Jiuh-Yeh JY-2T
2014 Jiuh-Yeh JY-2T
or
Call +39 0522 1536494
Specifications

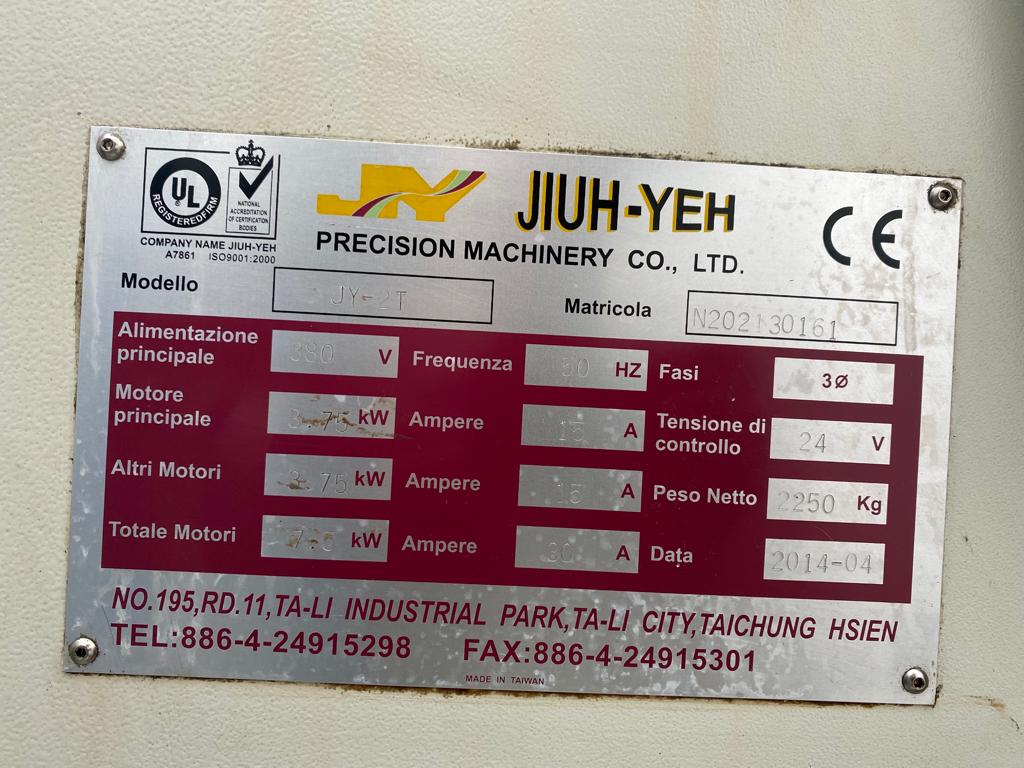

| Manufacturer | Jiuh-Yeh |
| Model | JY-2T |
| Year | 2014 |
| Condition | Used |
| Cone dimensions | ISO-40 |
| Spindle speed | 75 ÷ 3.600 Rpm |
| Spindle motor power | 3,75 kW |
| Travel Axis X (Longitudinal) | 1.000 mm |
| Travel Axis Y (Cross) | 360 mm |
| Travel Axis Z (Vertical) | 450 mm |
| RAM Travel | 600 mm |
| Quill vertical travel | 140 mm |
| Distance between spindle nose – table surface (Vertical head) | 0 ÷ 386 mm |
| Distance between spindle center - column (Vertical head) | 369 mm |
| Distance between spindle nose – table surface (Horizontal head) | 0 ÷ 450 mm |
| Distance between spindle center - column (Horizontal head) | 369 mm |
| Table dimensions | 1.300 x 300 mm |
| "T" Slot dimensions (Width - Number - Depth) | 16 mm - 3 - 63 mm |
| Rapid feed axes X/Y | 2.500 mm/min |
| Rapid feed axis Z | 750 mm/min |

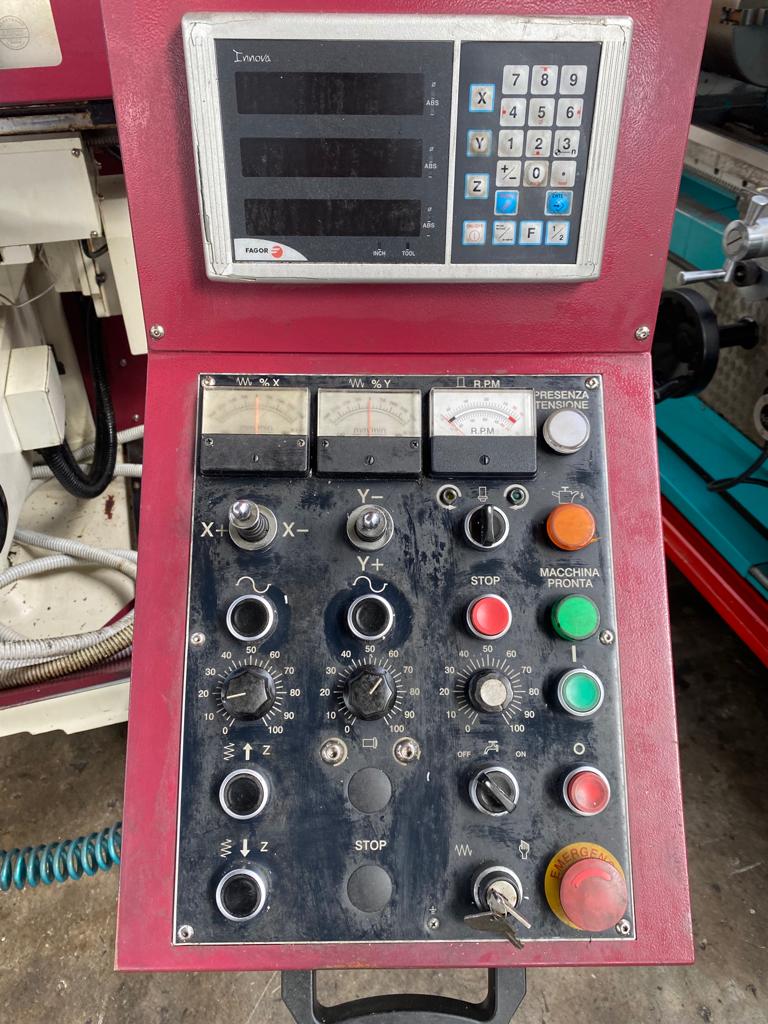

| Accessories & Others | Digital Read Out (D.R.O.) for the 3 axes (X/Y/Z) make FAGOR with Control Panel - Various Manuals |
