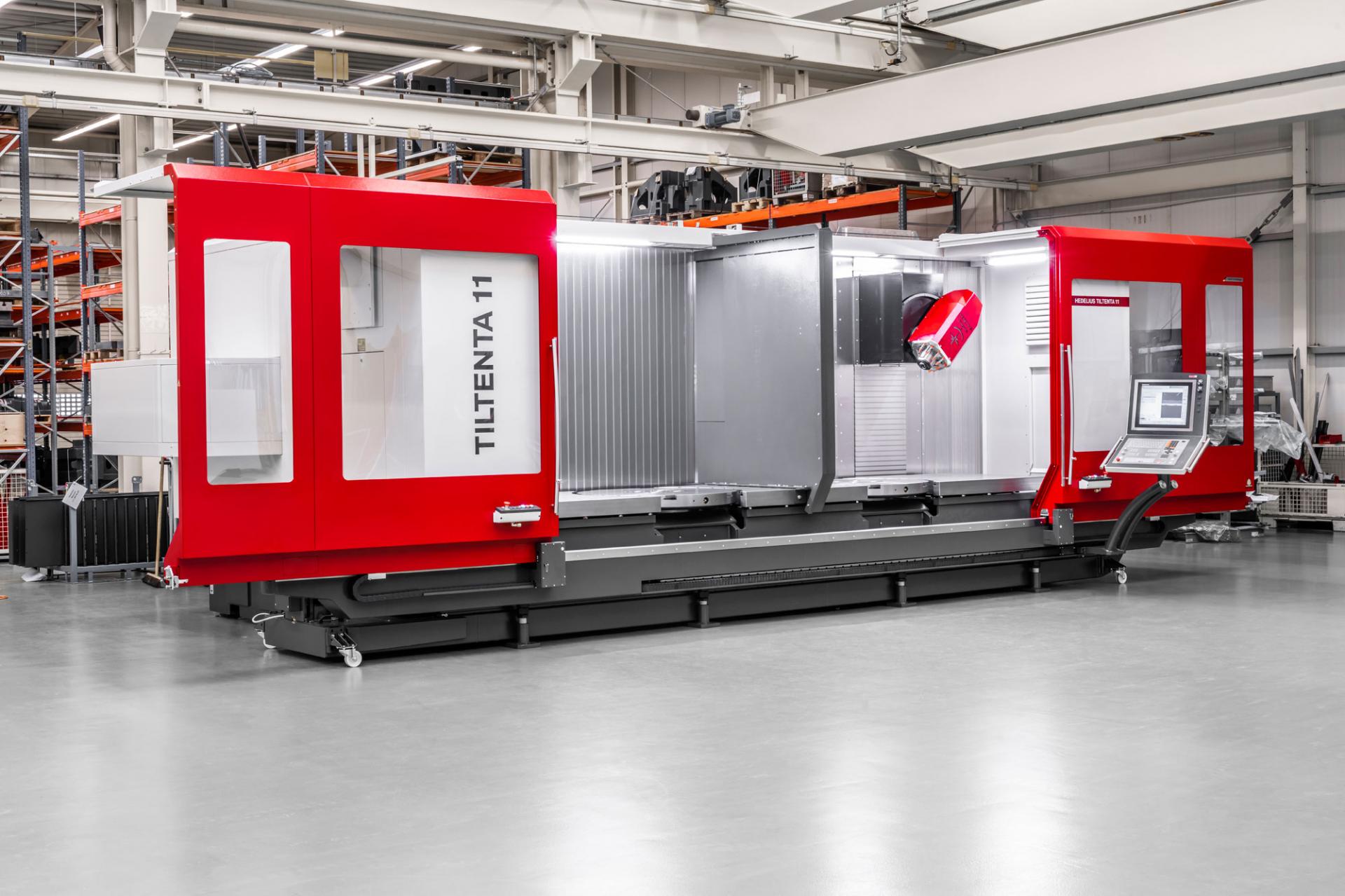

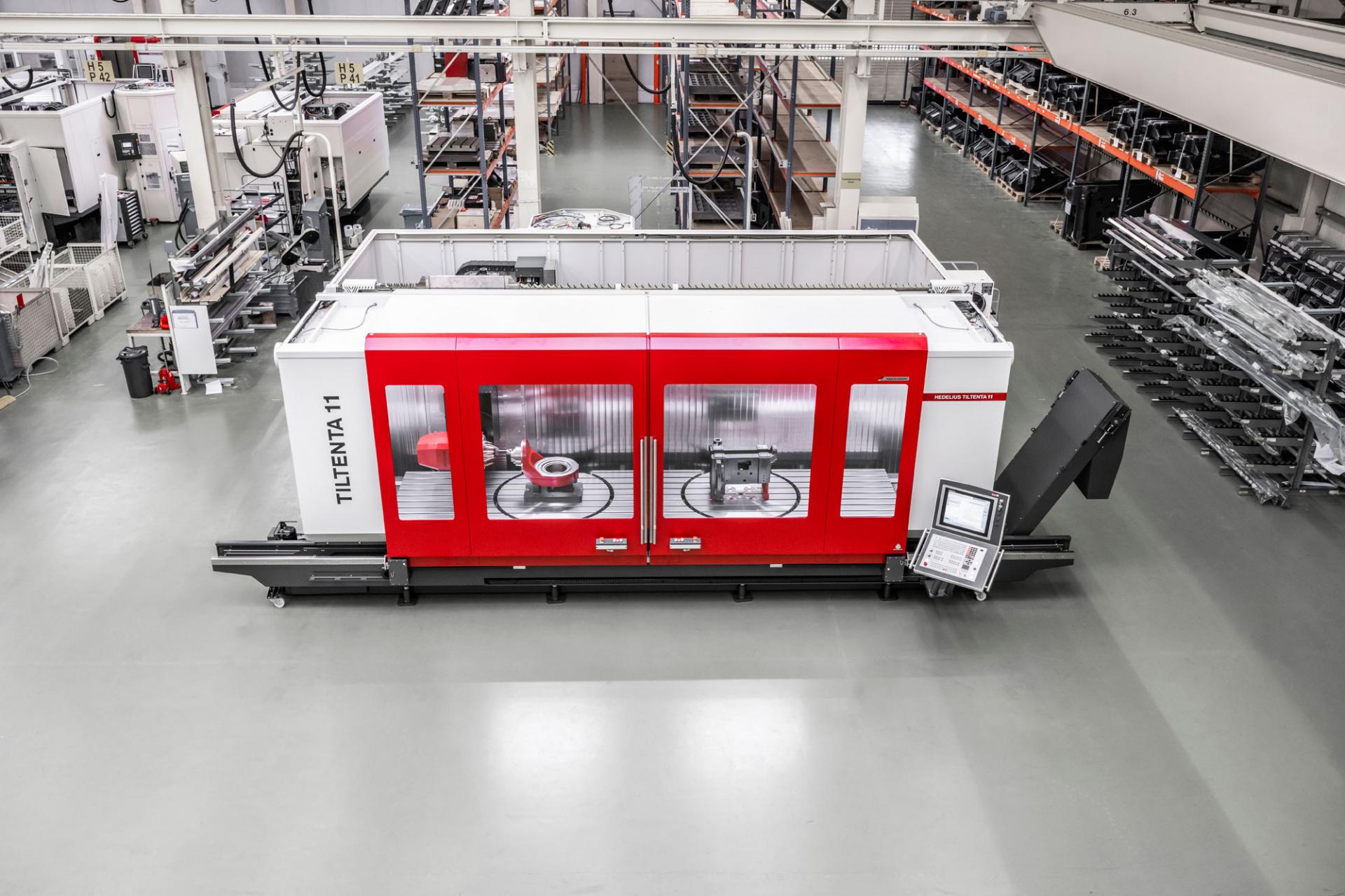

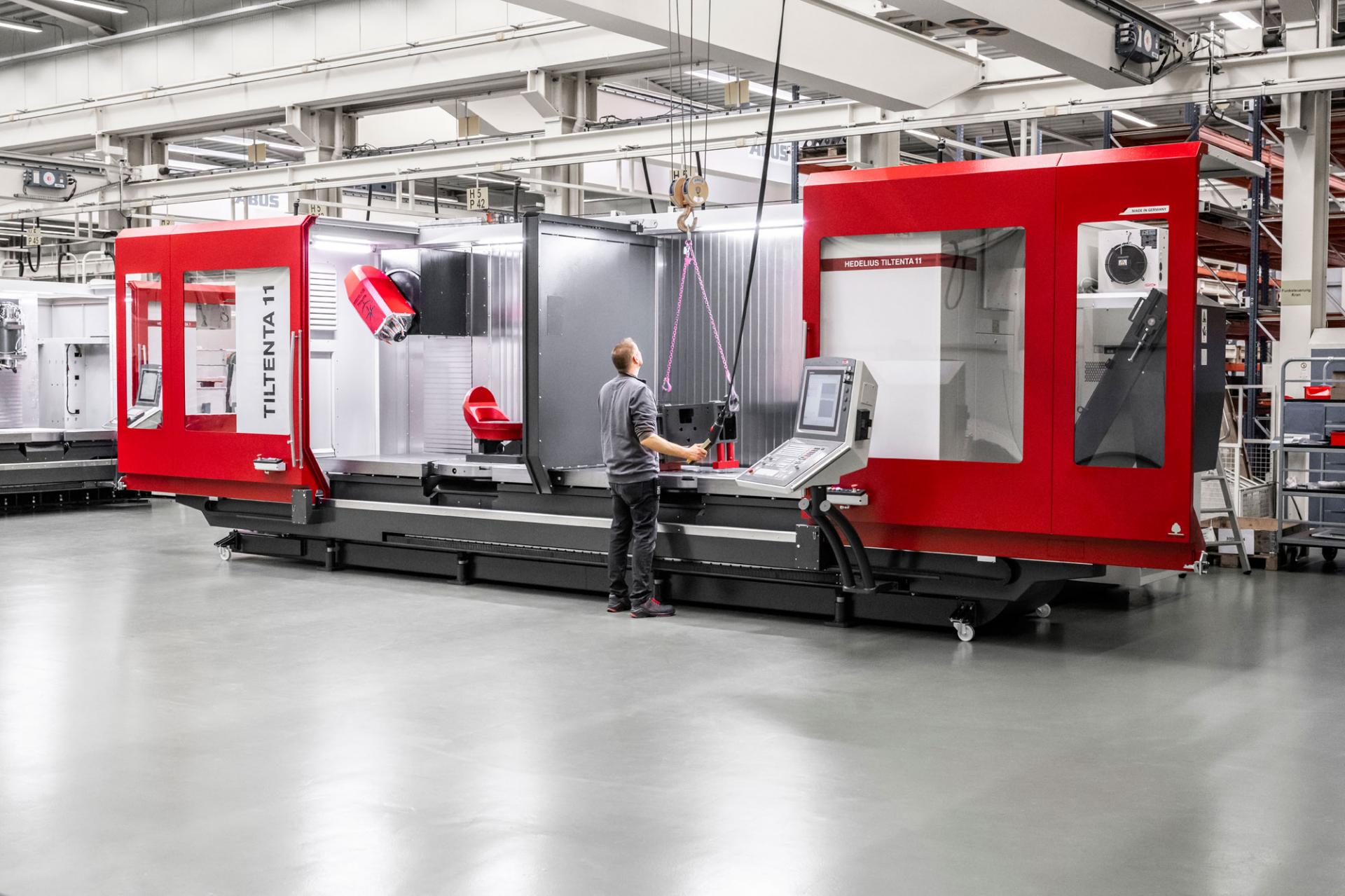

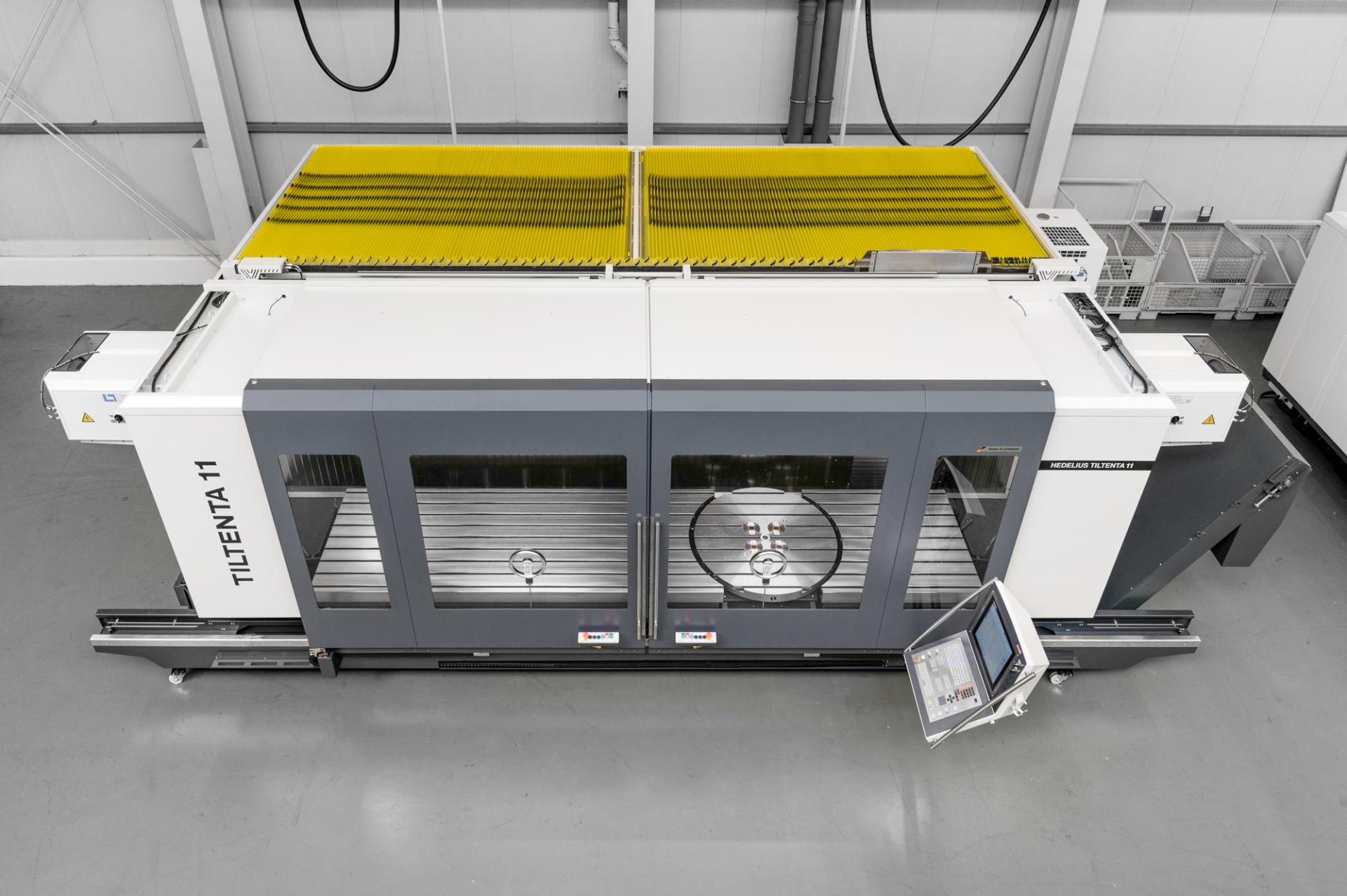

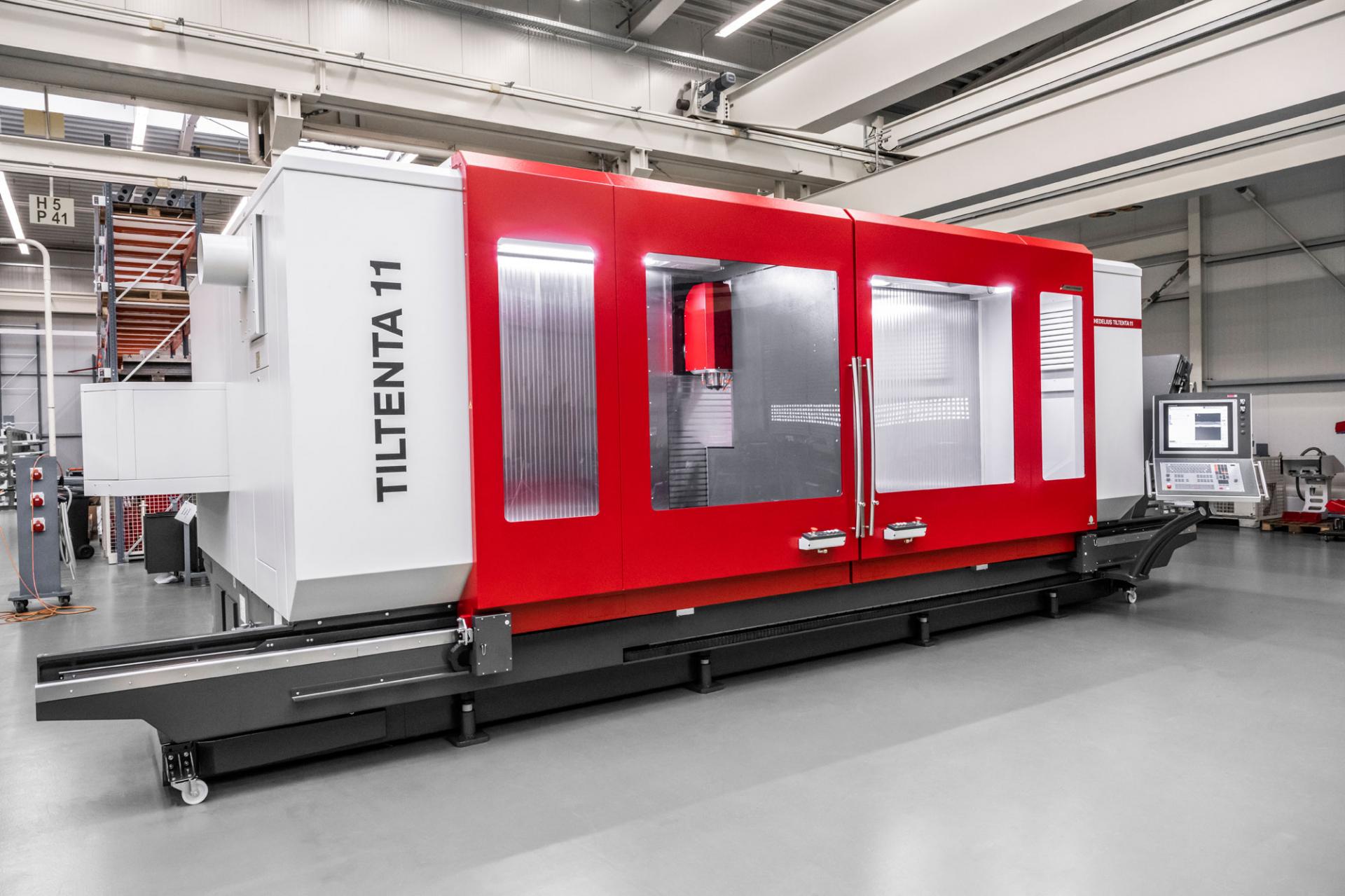

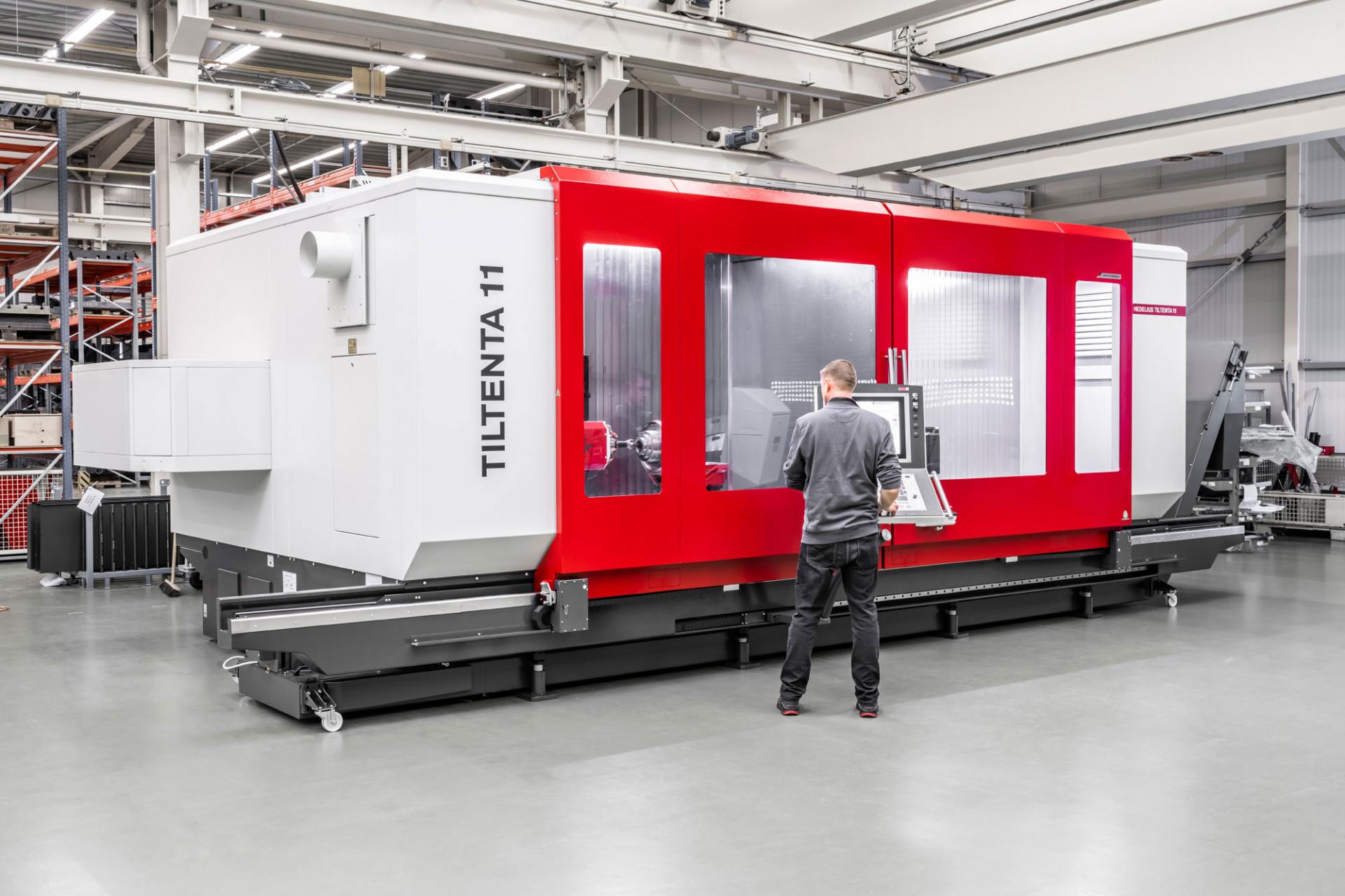

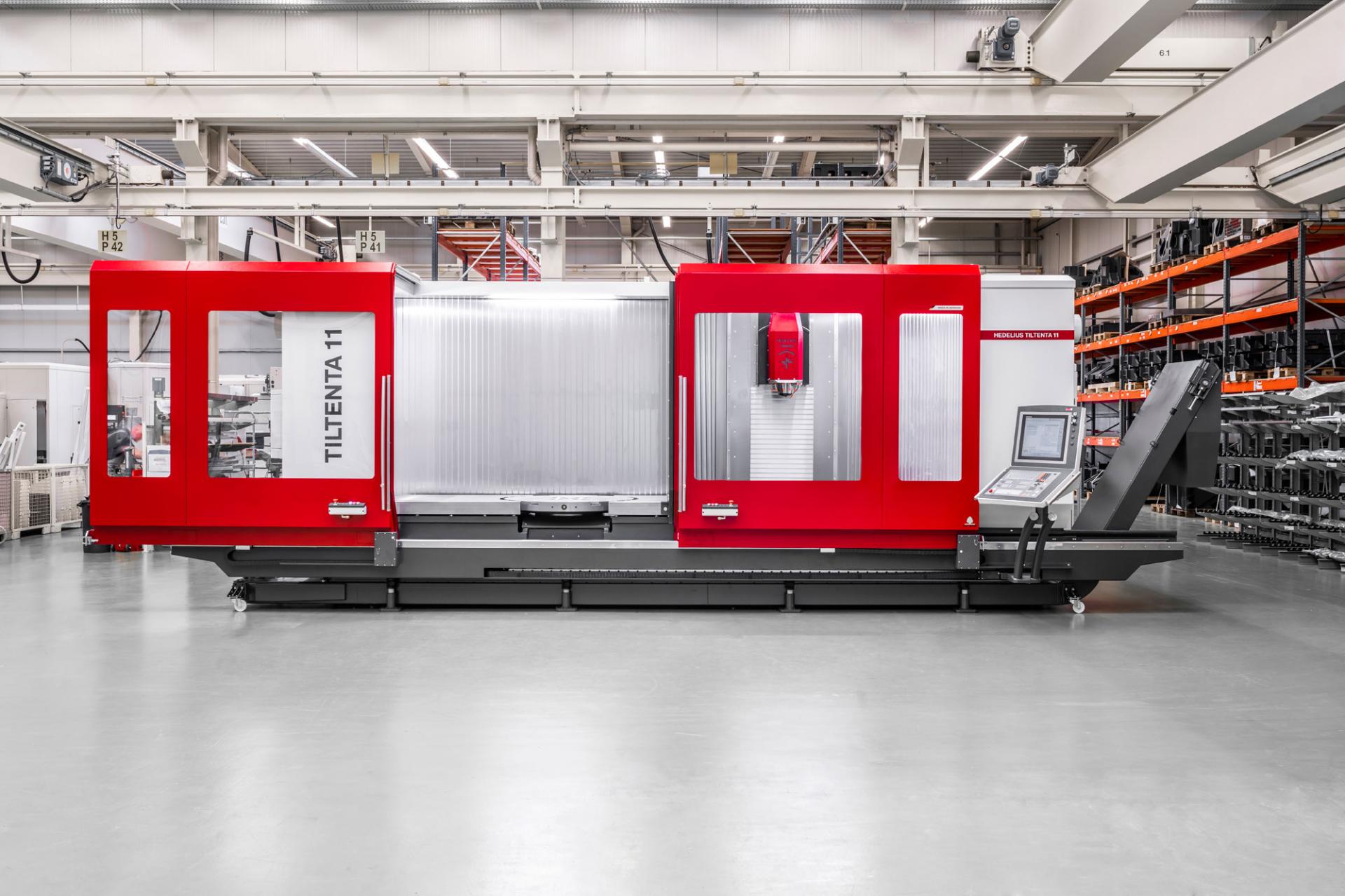

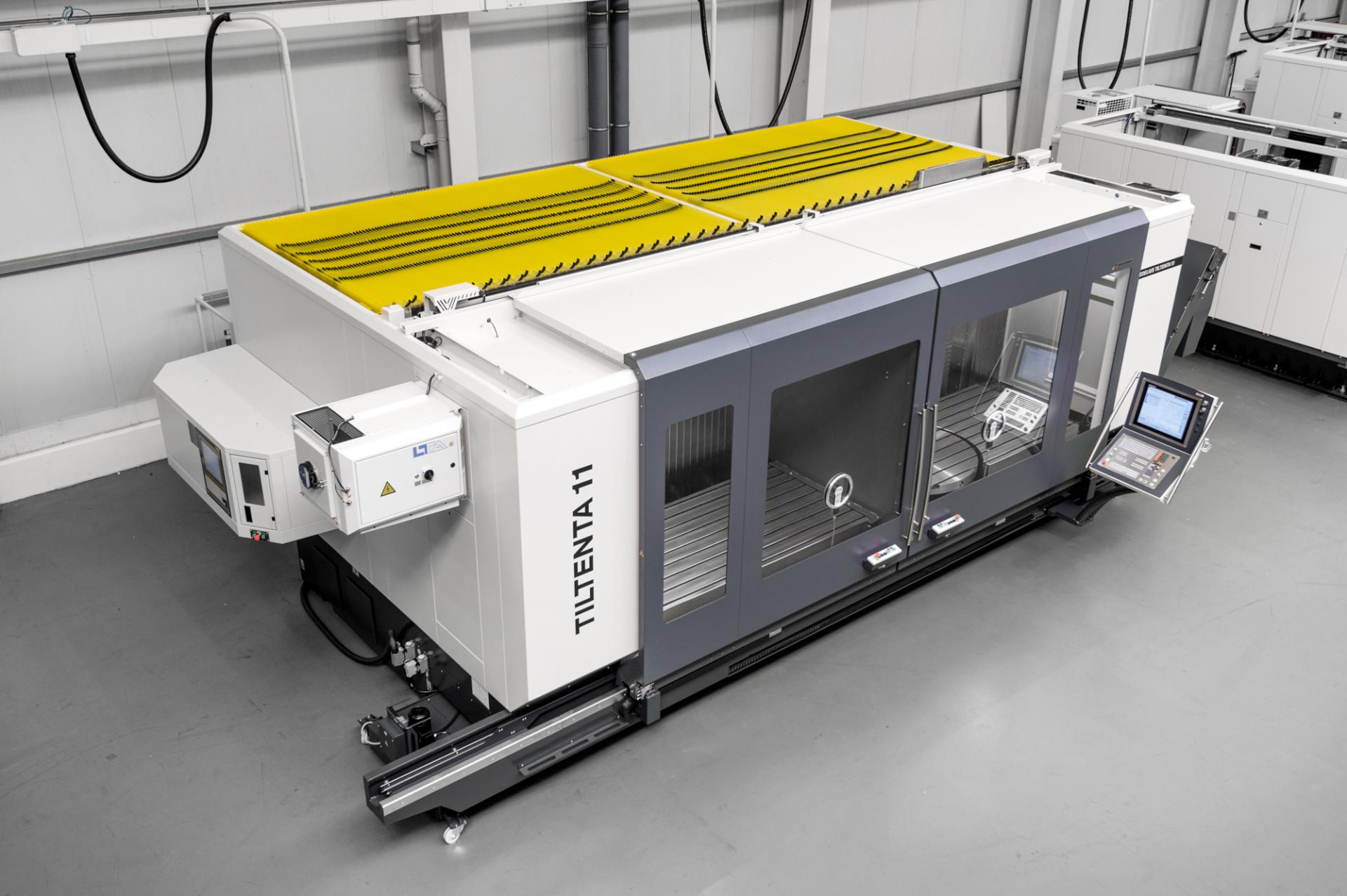

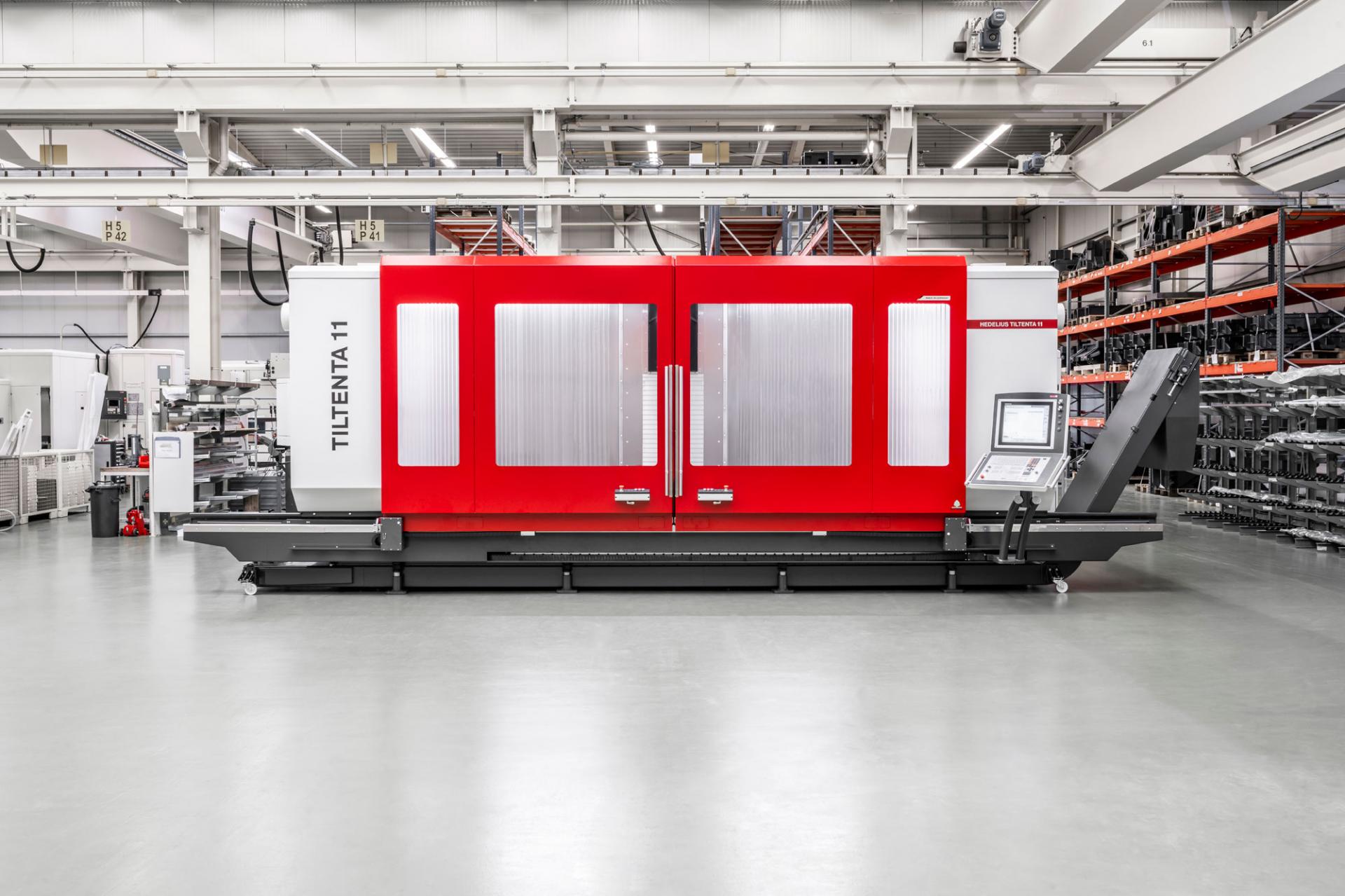

Manufacturer | HEDELIUS |
Model | TILTENTA 11 4600 |
Condition | New |
CNC Control | Heidenhain TNC 640 / Sinumerik 840 D |
Spindle tool size | ISO-40 |
Spindle speed | 14.000 RPM std. (opt. 15.000 / 18.000) |
Spindle motor power (cont/30 min) | 22,00/35,00/37,00/50,00 kW |
X axis | 4600 / 4030 mm |
Y axis | 1.100 mm |
Z axis | 900 / 1005 mm |

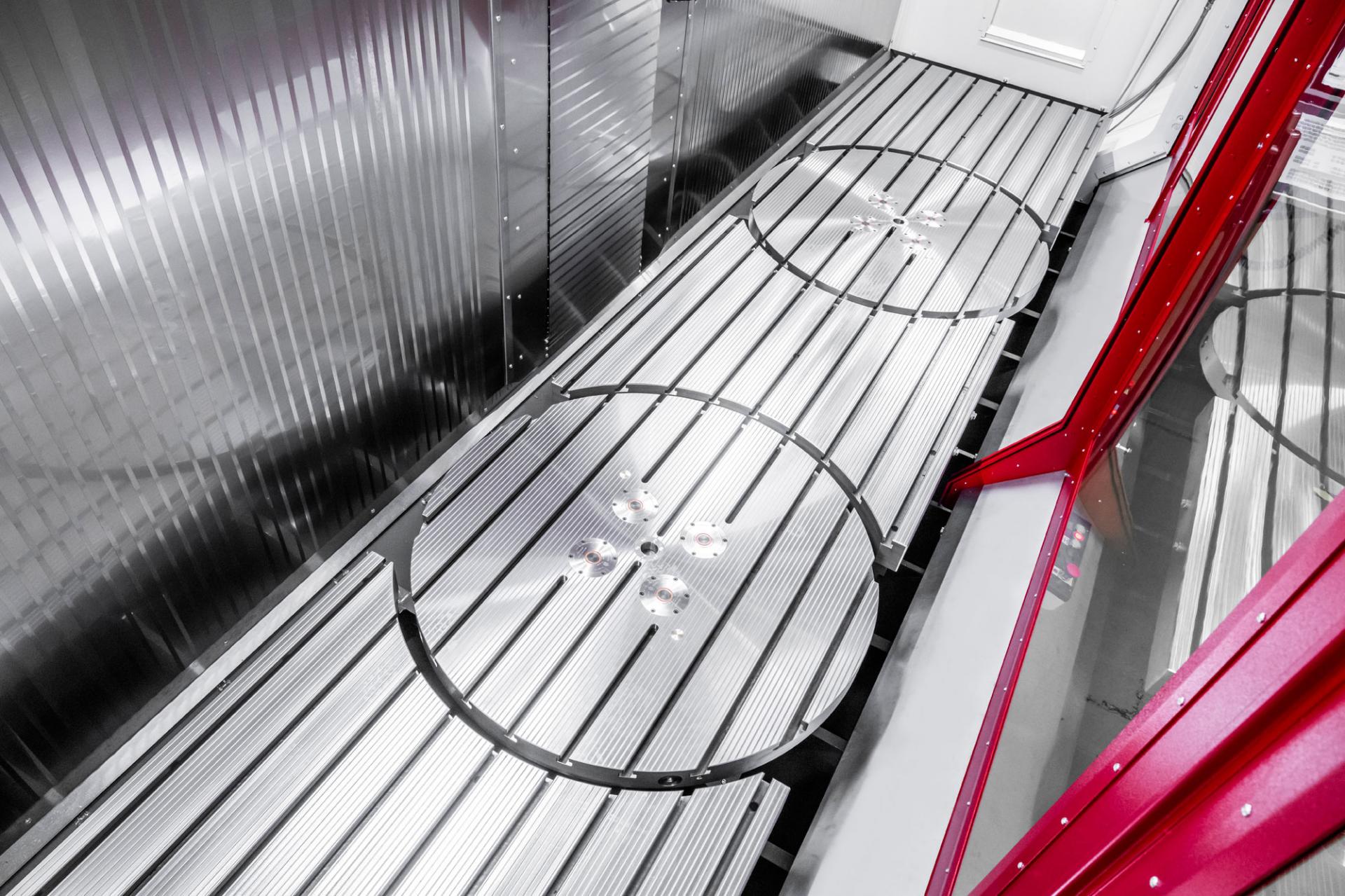

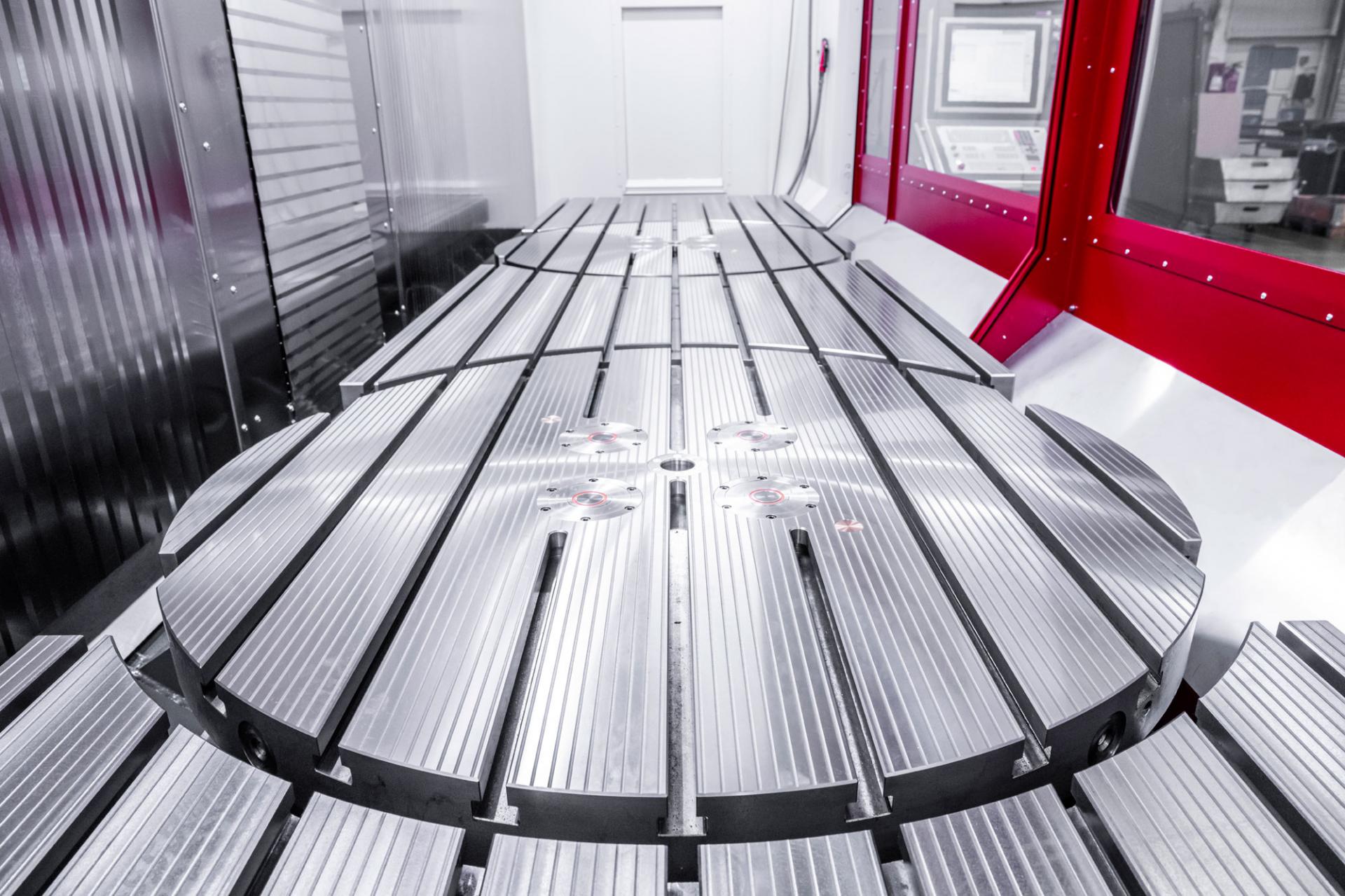

Table dimensions | 5.080 x 1.100 mm |
Max load allowed on table | 6.000 Kg |

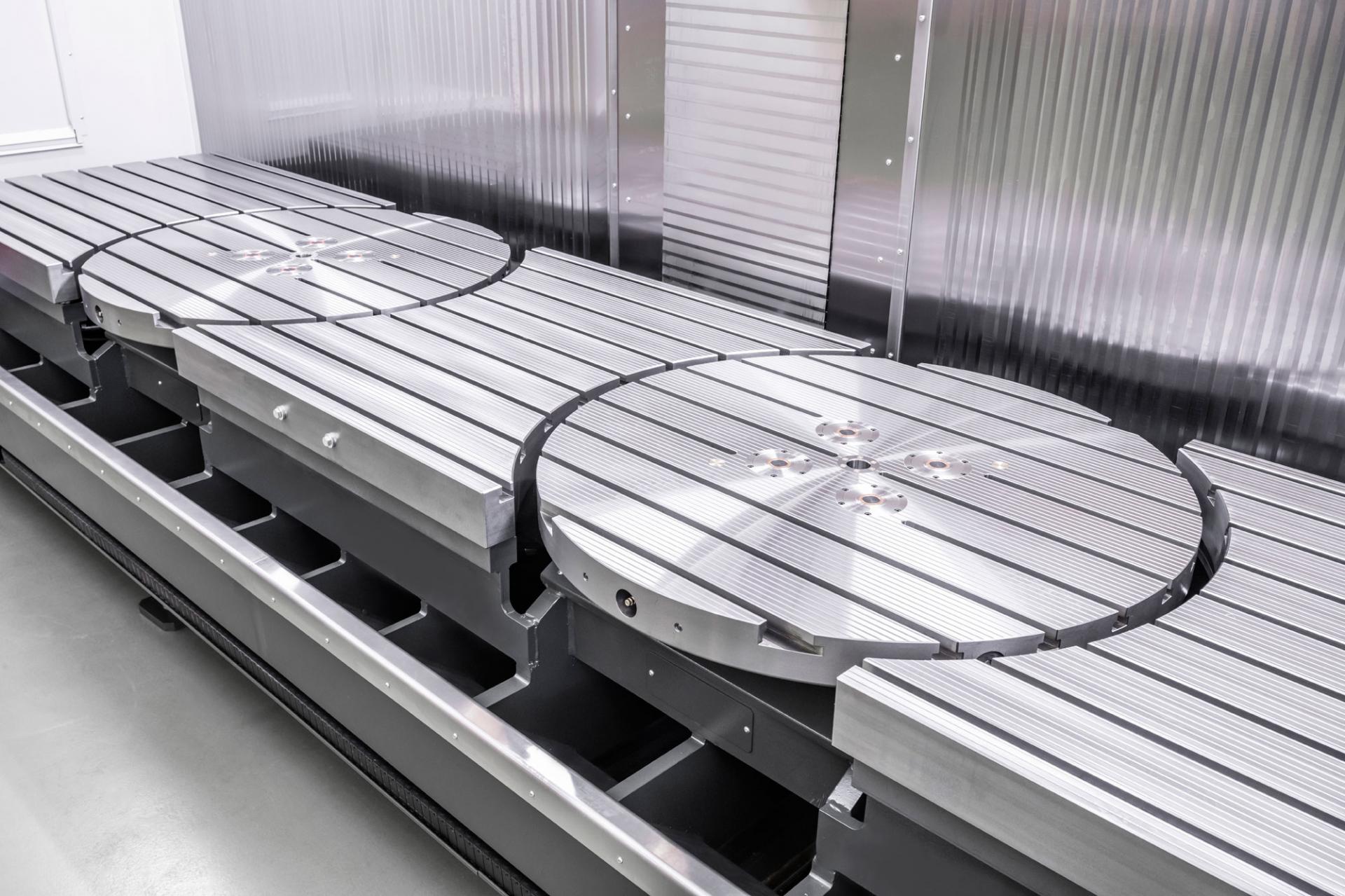

Rotary table diameter (1R opt) | Ø 1.140 mm |
Max weight on rotary table | 1.800 Kg |
Max diameter of the workpiece on rotary table | Ø 1.450 mm |

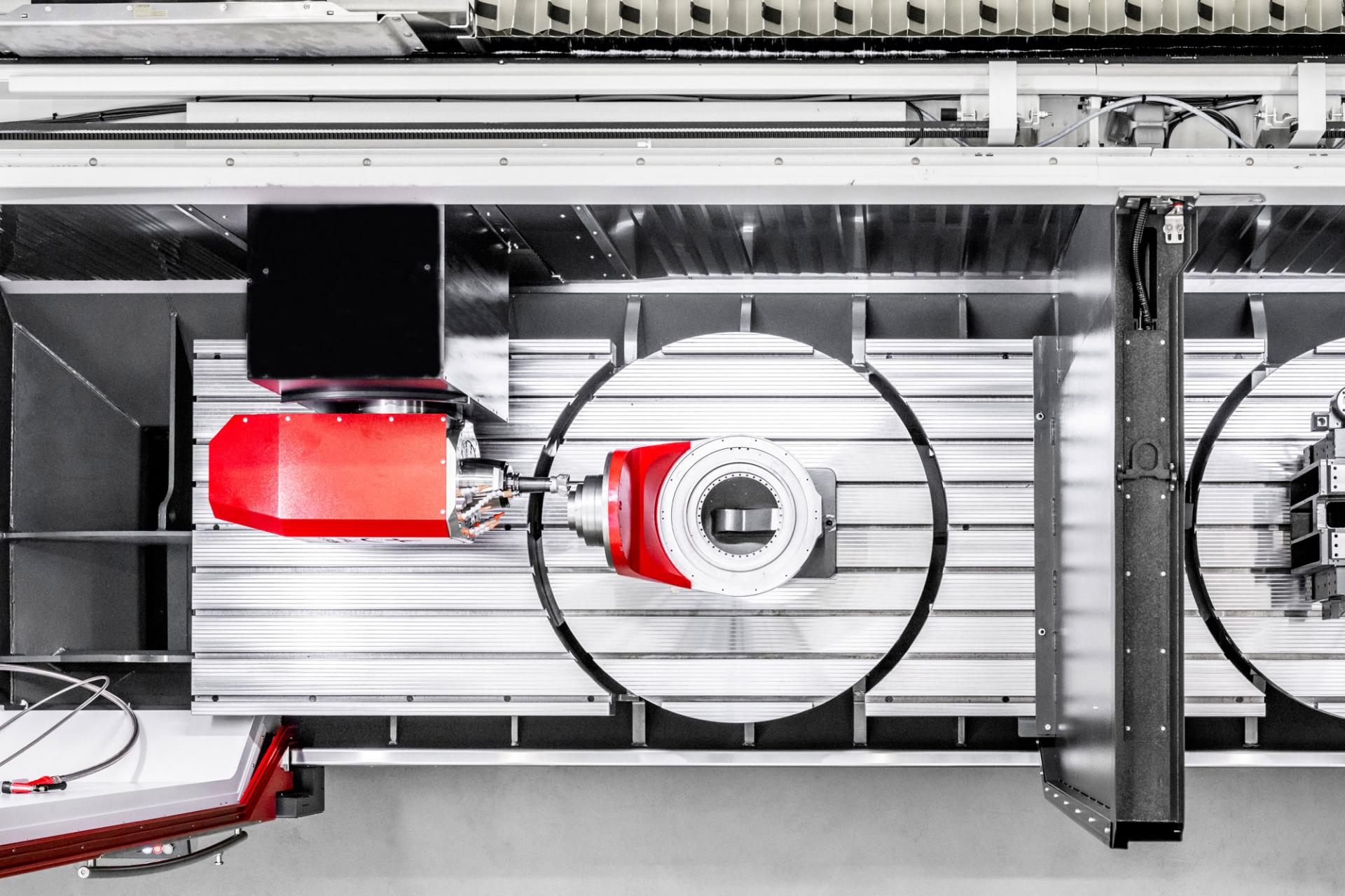

Tilting angle of the spindle head | -5° – +98°/-98° – +98° |
X / Y / Z axis rapid feedrates | 40/40/40 m/min |
Tool type | SK40 / BT40 / HSK A63 |
ATC capicity | 65 positions st. (opt. 245 / 329) |
Accessories | Chip-conveyor, coolant tank with washing pumps, Manuals, Electrical diagrams and CE Declaration |
