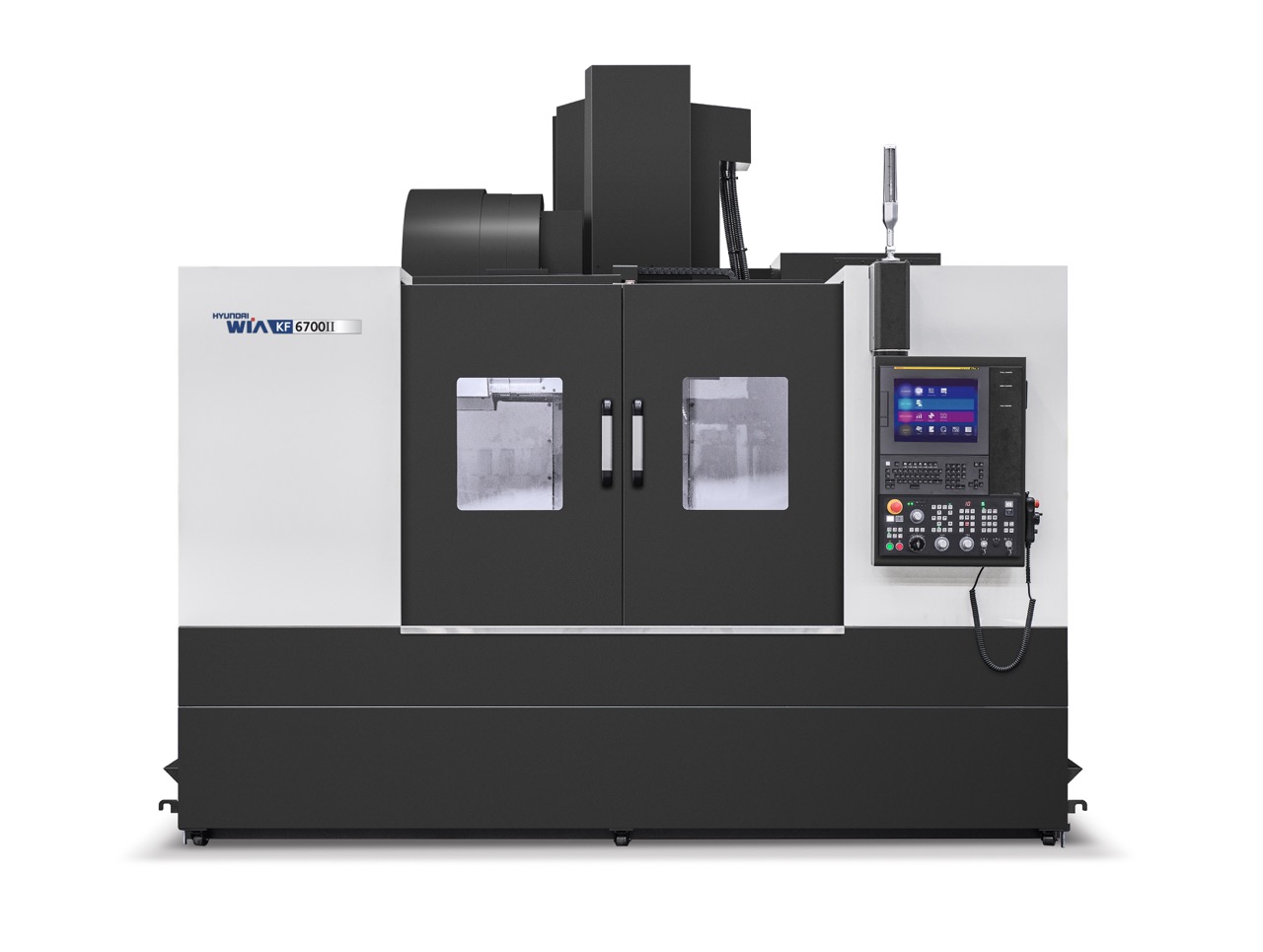

Hyundai WIA KF-6700II

Hyundai WIA KF-6700II

orCall +39 0522 1536494

Specifications

ManufacturerHyundai WIA
ModelKF-6700II
ConditionNew

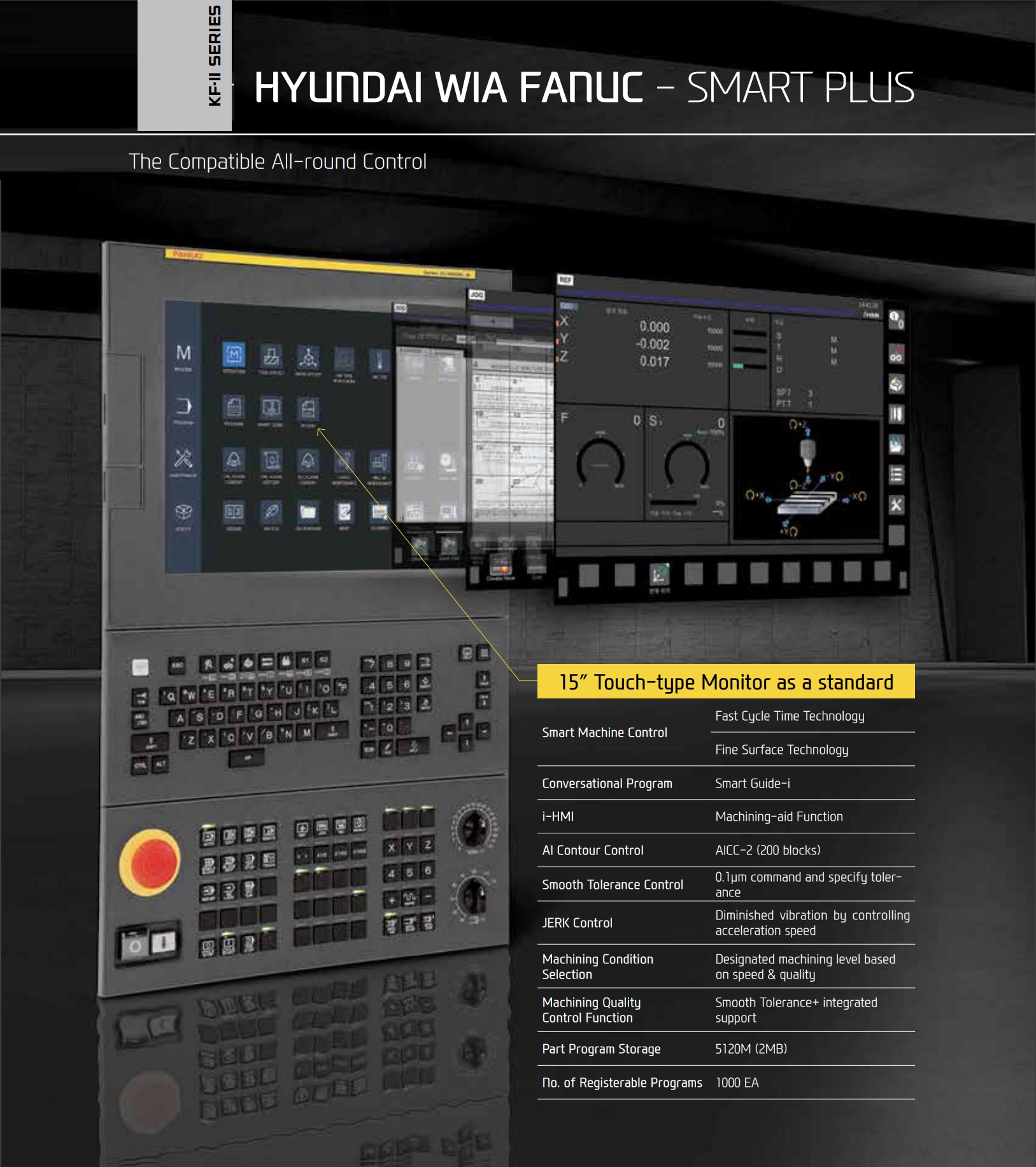

CNC ControlFANUC 0i-MF PLUS
Spindle tool sizeISO-40
Spindle speed8.000 High-torque RPM (opt. 10.000/12.000 / 15.000)
Spindle motor power (cont/30 min)15/11 (opt. 18.5/11) kW
X axis1.300 mm
Y axis670 mm
Z axis635 mm
Table dimensions1.500 x 670 mm
Max load allowed on table1.300 Kg
X / Y / Z axis rapid feedrates36.000 / 36.000 / 30.000 mm/min
Tool typeBBT-40 (opt. HSK-A63)
Tool pull stud typeBT-40

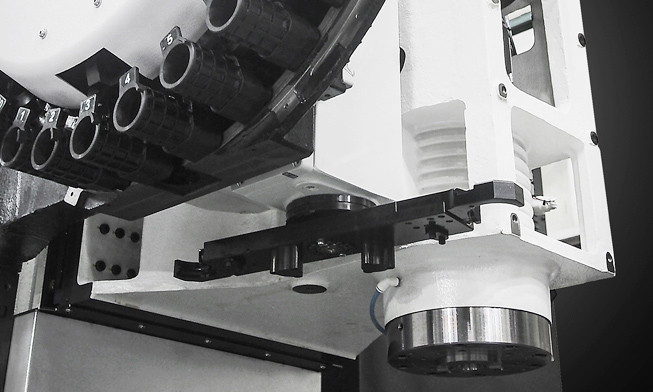

ATC capicity30 positions (opt. 40 / 60)
Max tool diameterØ 80 / 125 (opt. Ø76/Ø125) mm
Max tool lenght300 mm
Max tool weight8 Kg
Machine's net weight3.196 Kg

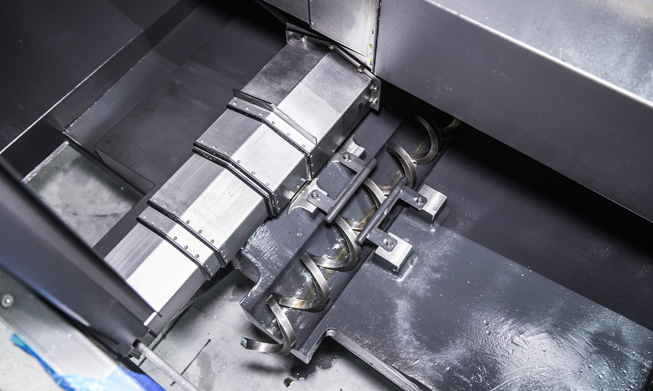

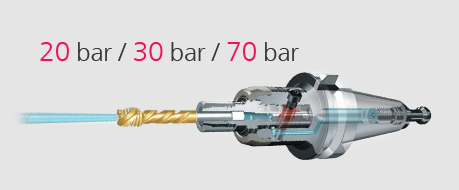

AccessoriesChip-conveyor, coolant tank with 20 bar pressure pump for CTS, Manuals, Electrical diagrams and CE Declaration
