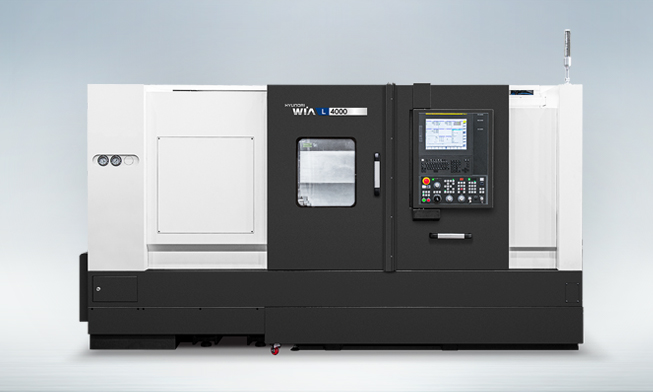

Hyundai WIA L4000M
Featured
Hyundai WIA L4000M
or
Call +39 0522 1536494
Description
New machine in stock
Specifications
| Manufacturer | Hyundai WIA |
| Model | L4000M |
| Condition | New |

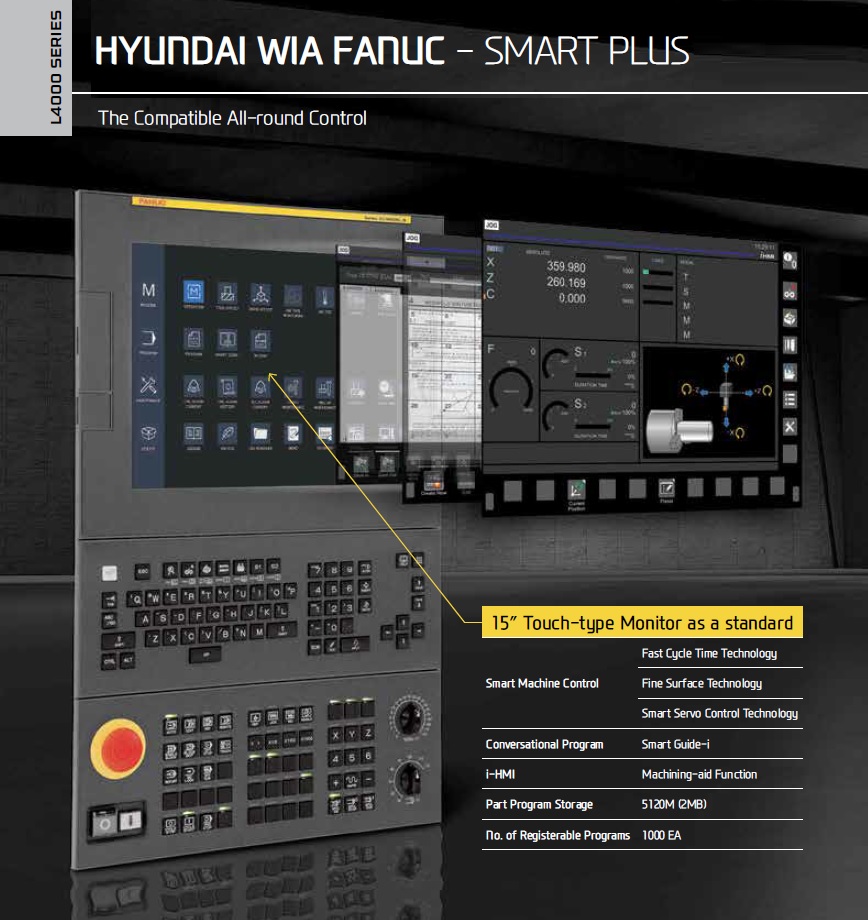

| CNC Control | FANUC 0i-MF PLUS |
| Max swing over the bench | Ø 800 mm |
| Max swing over the carriage | Ø 590 mm |
| Max turning diameter | Ø 570 mm |
| Max turning length | 958 mm |
| Bar diameter capacity through the spindle | Ø 117 mm |
| X axis travel | 330 mm |
| Z axis travel | 1.105 mm |
| C axis minimum controlled angle | 0.001° |

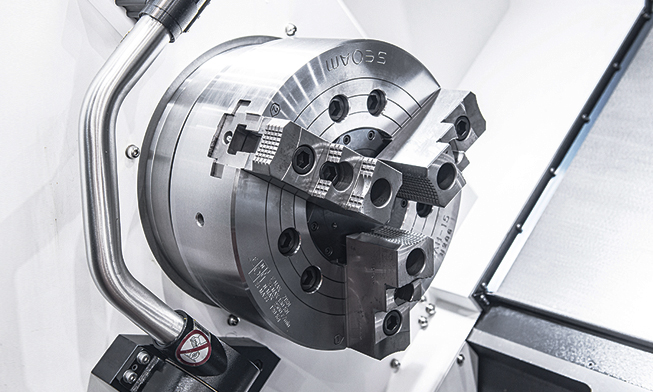

| Spindle chuck diameter | Ø 381 mm |

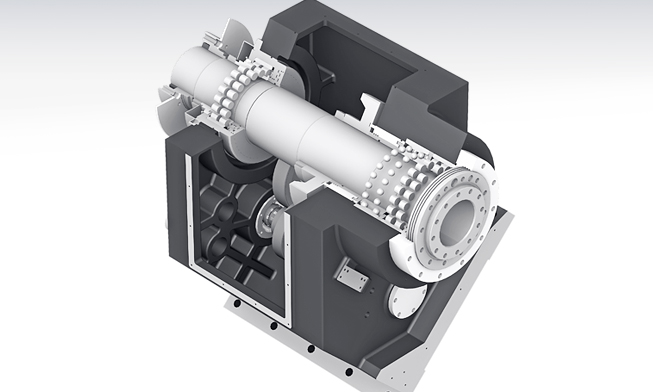

| Spindle speed | 2.000 RPM |
| Spindle nose size | ASA-11 |
| Spindle with gear box | 2 steps mechanical |
| Spindle motor power (cont/30 min) | 30 / 37 kW |

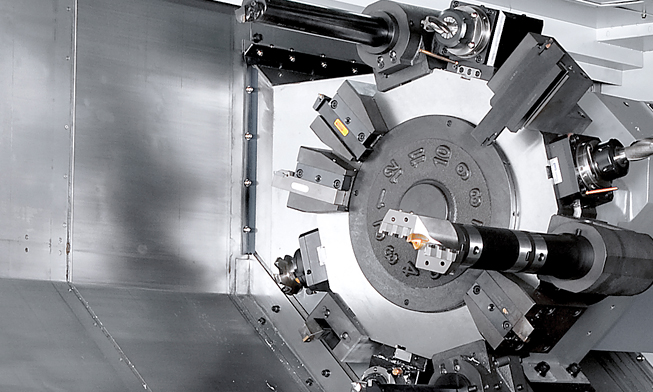

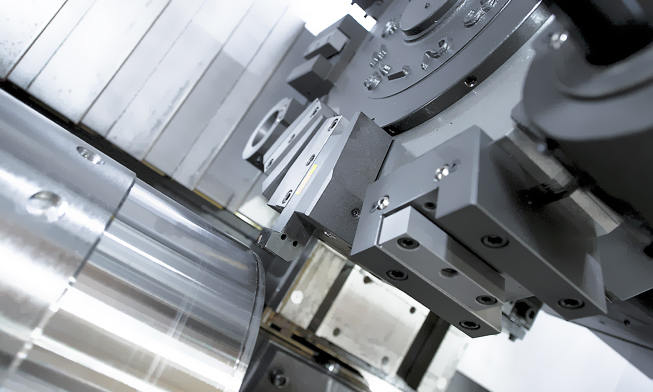

| Turret type | BMT-75 with livetools |
| Turret positions | 12 positions |
| Live-tools speed | 4.000 RPM |
| Turning / boring tool dimensions | 32x32 / Ø 60 mm |
| X axis feedrate | 16.000 mm/min |
| Z axis feedrates | 20.000 mm/min |

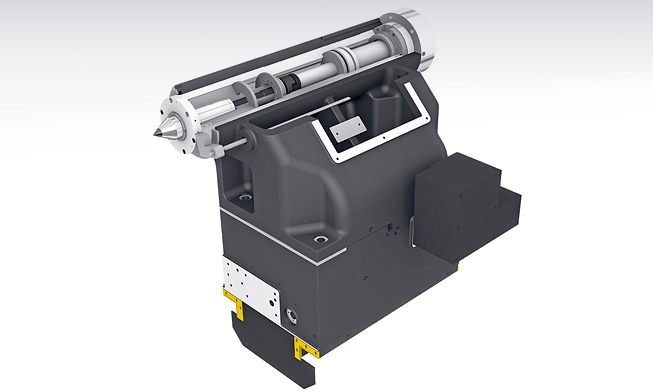

| Tailstock quill diameter | Ø 120 mm |
| Tailstock taper size | MT-6 |
| Tailstock body travel | 1.000 mm |
| Tailstock quill travel | 120 mm |
| Accessories | Chip-conveyor, coolant tank with pump, automatic tool presetter RENISHAW, tailstock body movement automatic (in cycle), Manuals, Electrical Diagrams and CE Declaration |
