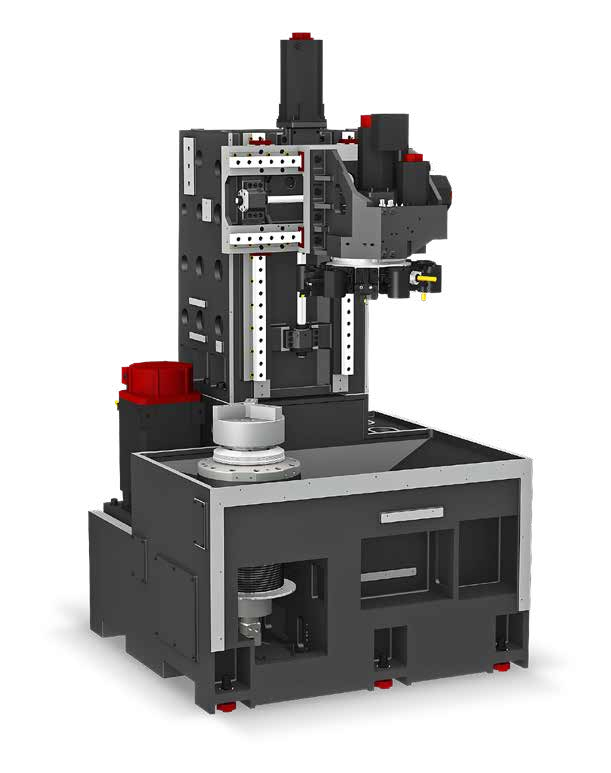

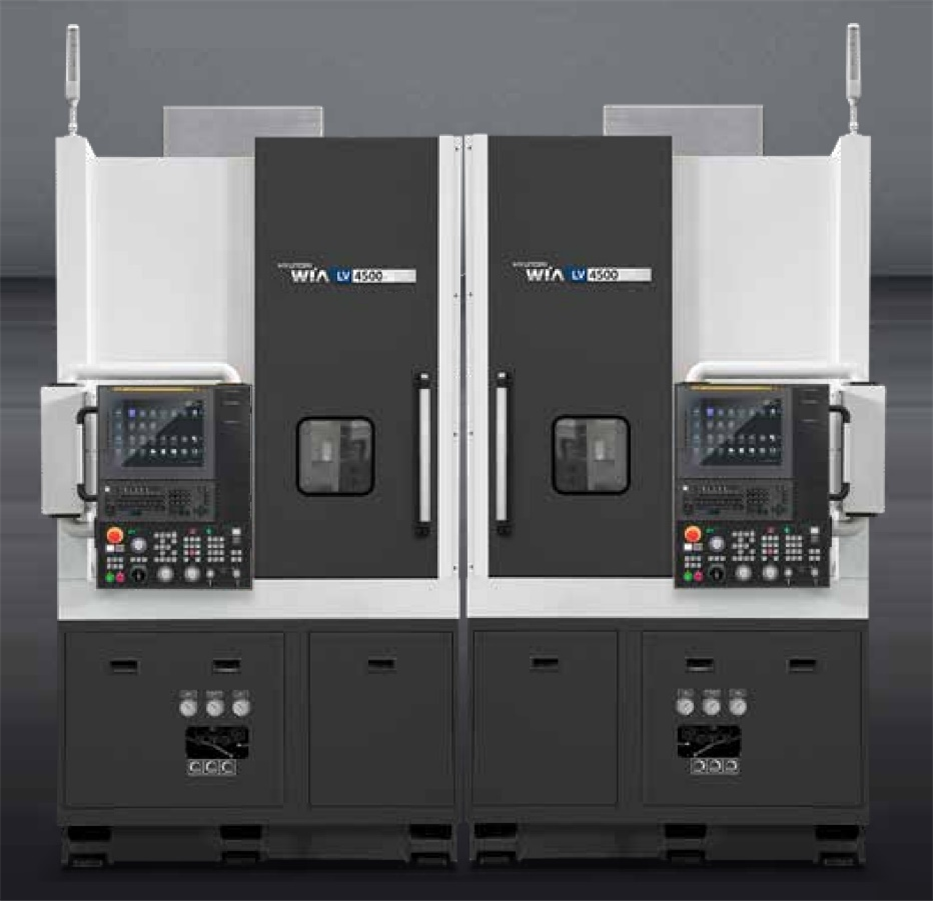

Hyundai WIA LV-4500RM
Featured
Hyundai WIA LV-4500RM
or
Call +39 0522 1536494
Specifications
| Manufacturer | Hyundai WIA |
| Model | LV-4500RM |
| Condition | New |
| CNC Control | FANUC 0i-MF PLUS |
| Max diameter swing over bed | Ø 620 mm |
| Max diameter swing over saddle | Ø 420 mm |
| Max turning diameter | Ø 495 mm |
| Max turning height | 465 mm |
| X axis travel | 320 mm |
| Z axis travel | 495 mm |
| Chuck diameter | Ø 305 mm |
| Spindle speed | 3.000 RPM |
| Spindle nose | ASA-8 |
| Spindle motor power (cont/30 min) | 26 / 22 kW |
| C axis angular positioning | 0.001° |
| Live-tool BMT-65 turret positions | 12 positions |
| Live-tools speed | 5.000 RPM |
| Indexing time | 0.2 sec. |
| Tools dimensions / boring bar diameter | 25x25 / Ø 50 mm |
| Rapid feedrates X Axis | 24.000 mm/min |
| Rapid feedrates Z Axis | 24.000 mm/min |
| Accessories | Chip-conveyor backside exit, coolant tank with 300 Lt capacity and pump, removable tool Presetter RENISHAW, Manuals, Electrical Diagrams, CE Declaration |
