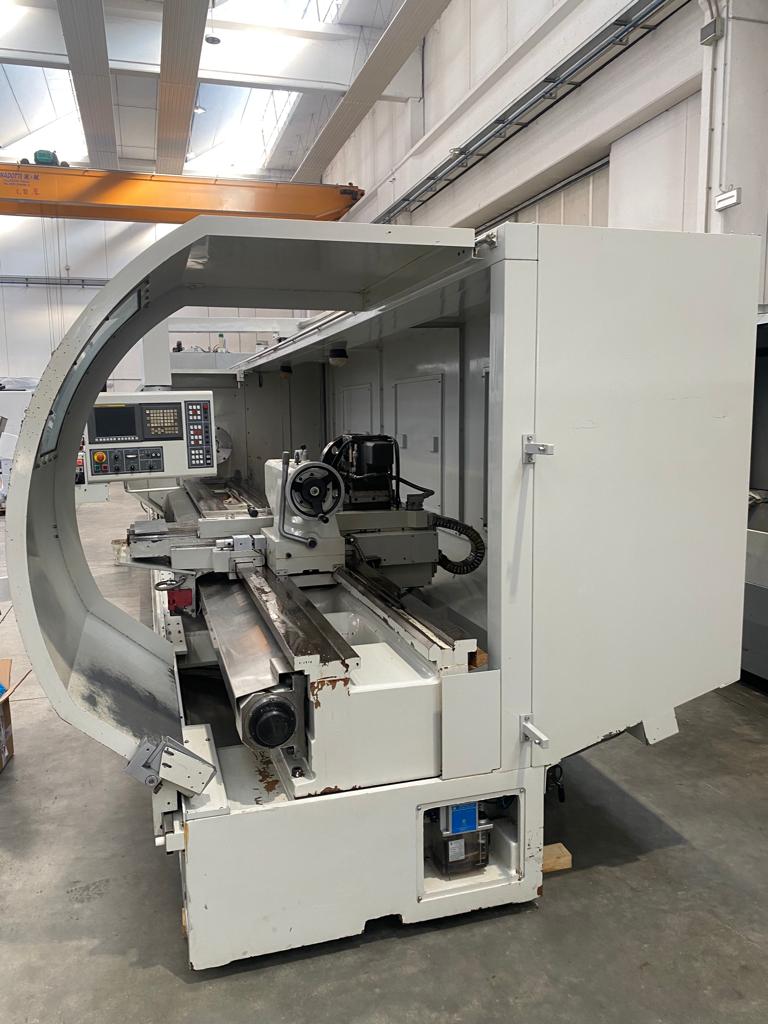

2008 Microcut Challenger BNC-28200A
Sold
2008 Microcut Challenger BNC-28200A
Specifications
| Manufacturer | Microcut |
| Model | Challenger BNC-28200A |
| Year | 2008 |
| Condition | Used |

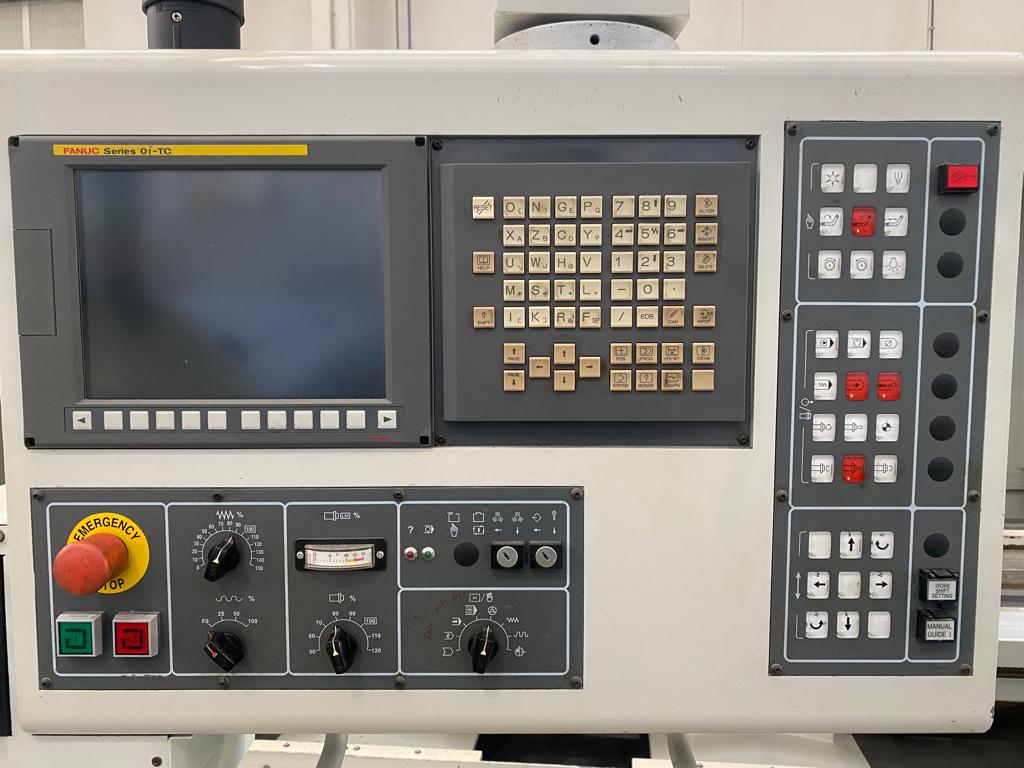

| CNC Control | FANUC Series 0i-TC |
| Max swing over the bench | Ø 710 mm |
| Max swing diameter over the gap | Ø 970 mm |
| Max swing over the carriage | Ø 370 mm |
| Max turning length | 5.000 mm |
| Gap length from spindle nose | 372 mm |
| Bar diameter capacity through the spindle | Ø 117 mm |
| X axis travel | 425 mm |
| Z axis travel | 5.050 mm |

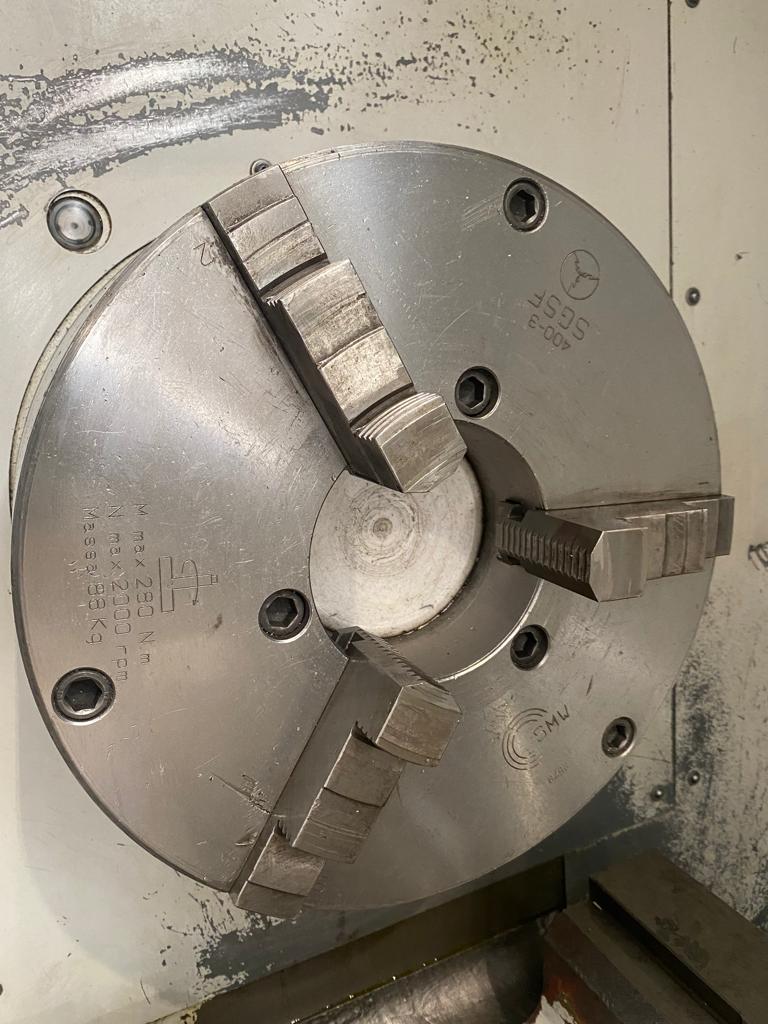

| Spindle chuck diameter | Ø 400 mm |
| Spindle nose size | ASA A2-11 |
| Spindle speed | 125 ÷ 1.480 Rpm |
| Spindle motor power (cont/30 min) | 15/22 kW |

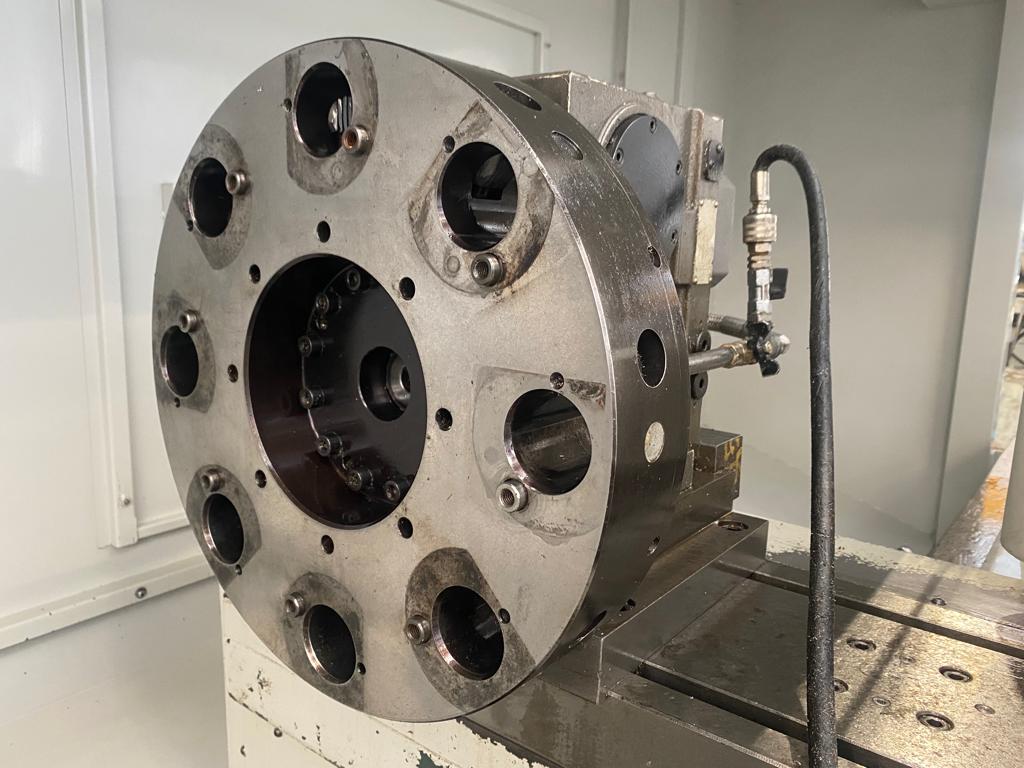

| Turret positions | 8 Positions |
| Turning / boring tool dimensions | 32x32 / Ø50 mm |
| X axis feedrate | 10.000 mm/min |
| Z axis feedrates | 12.000 mm/min |
| Tailstock quill diameter | 125 mm |
| Tailstock taper size | MT 6 |
| Tailstock quill travel | 250 mm |

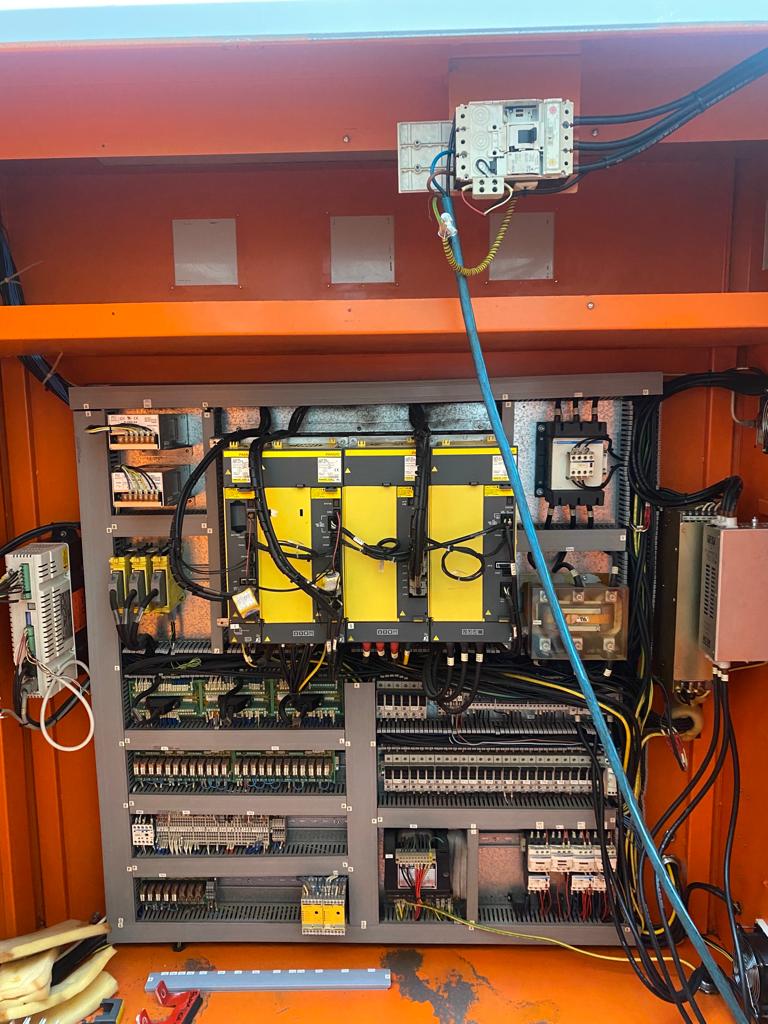

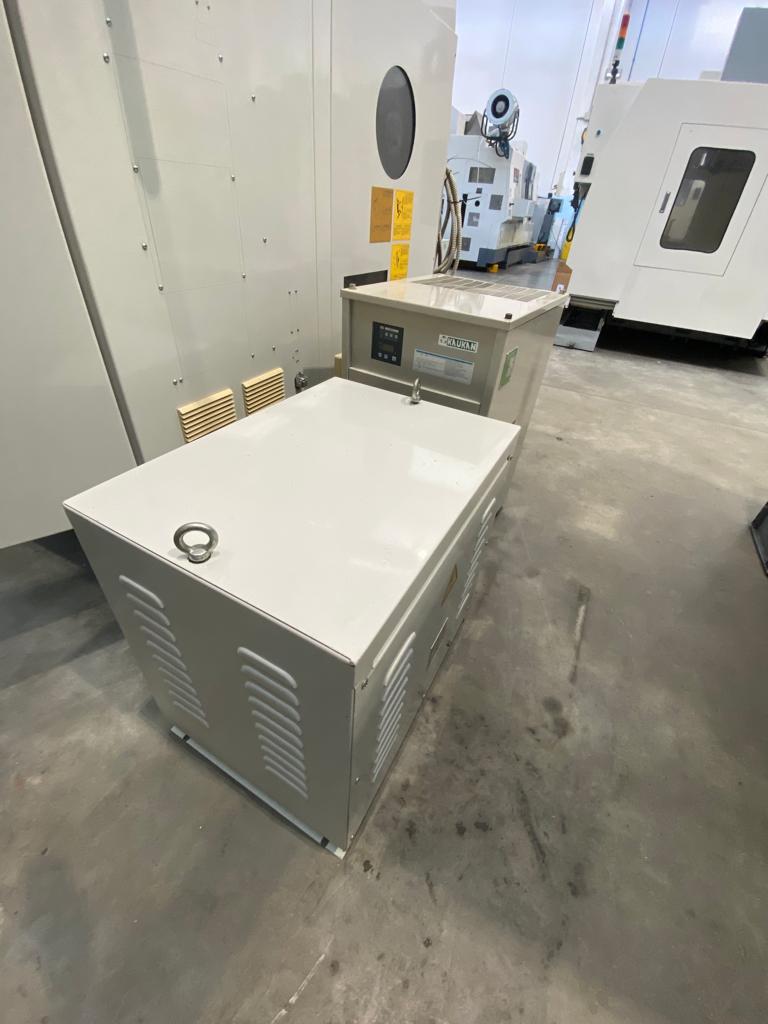

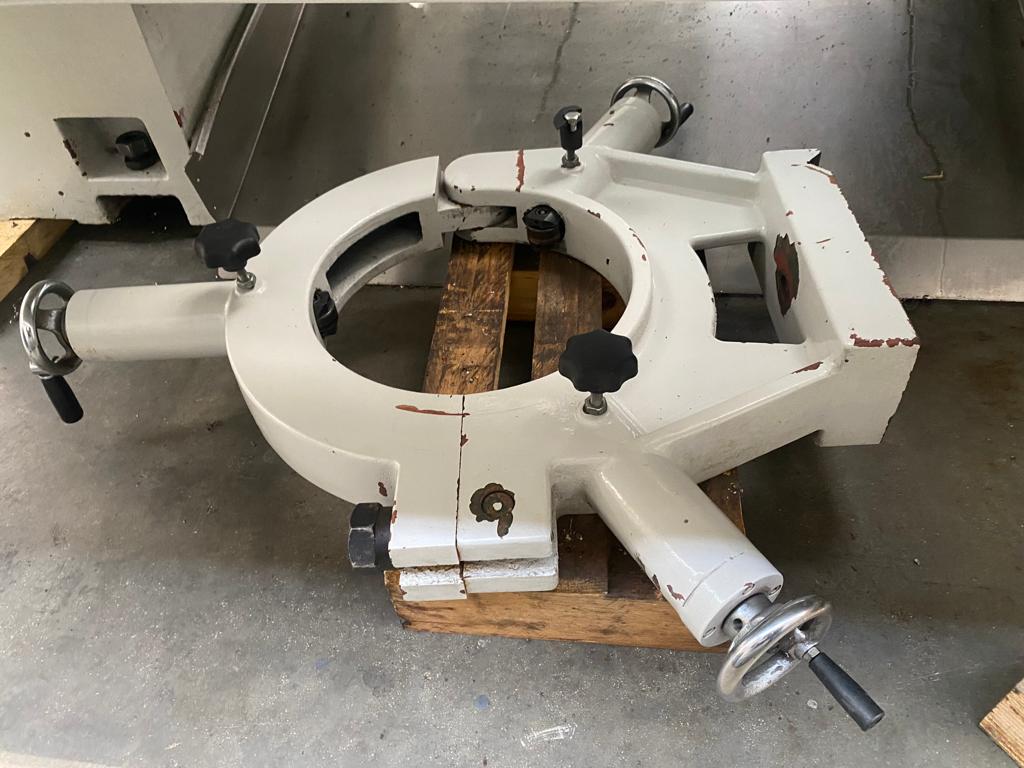

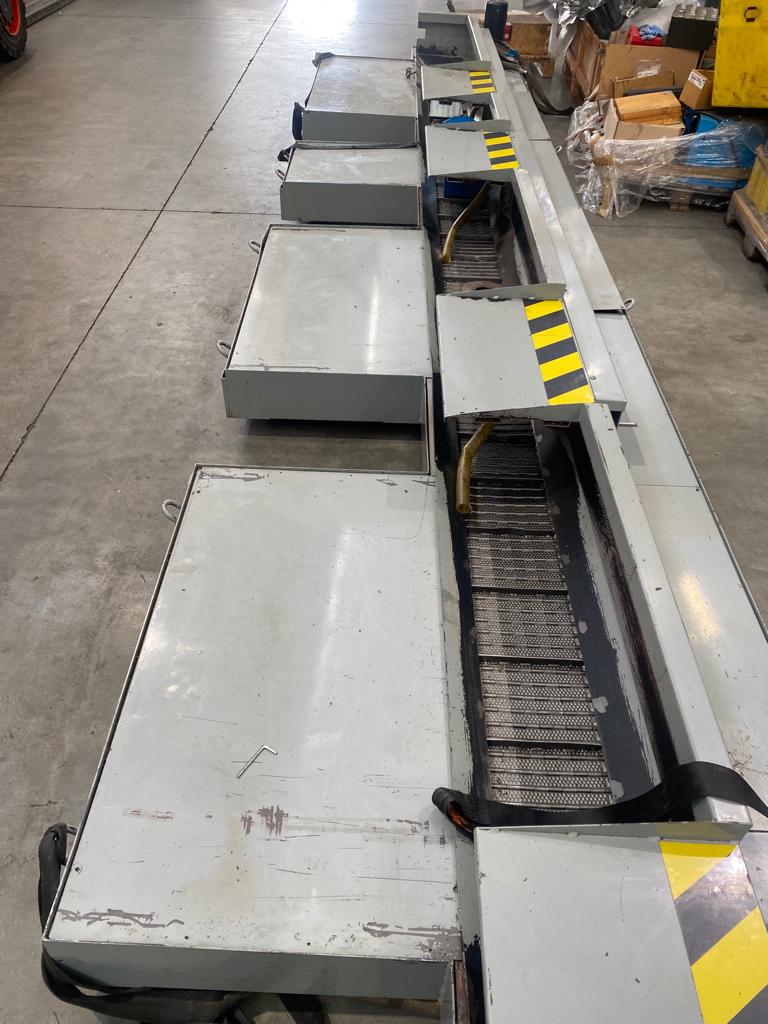

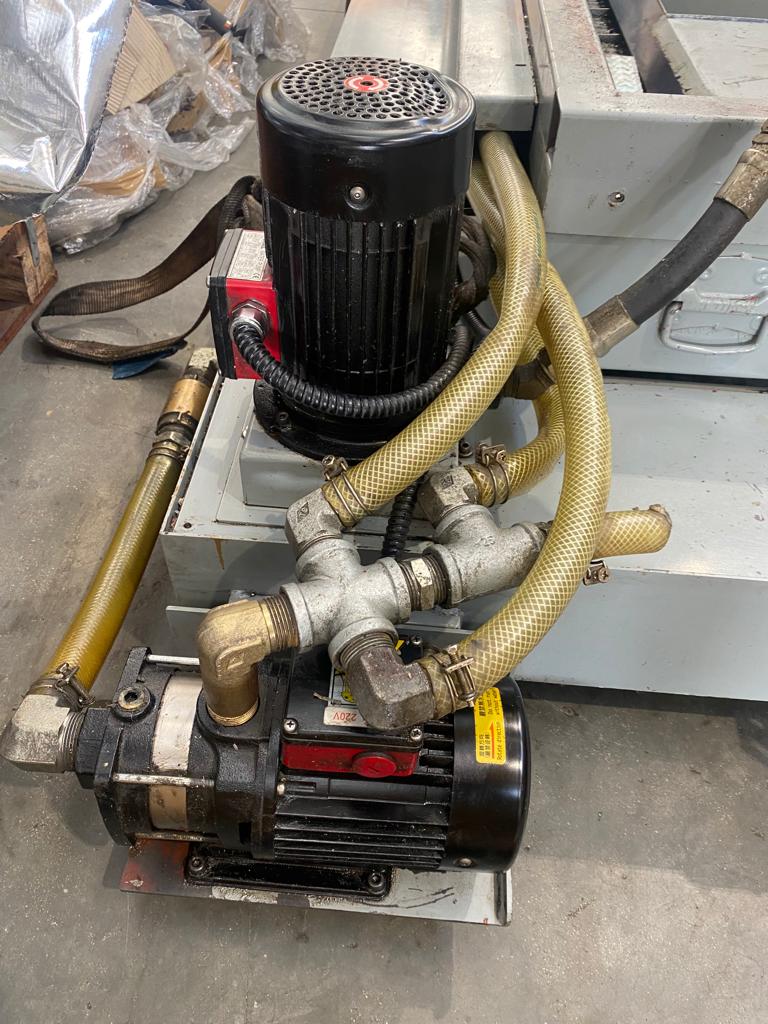

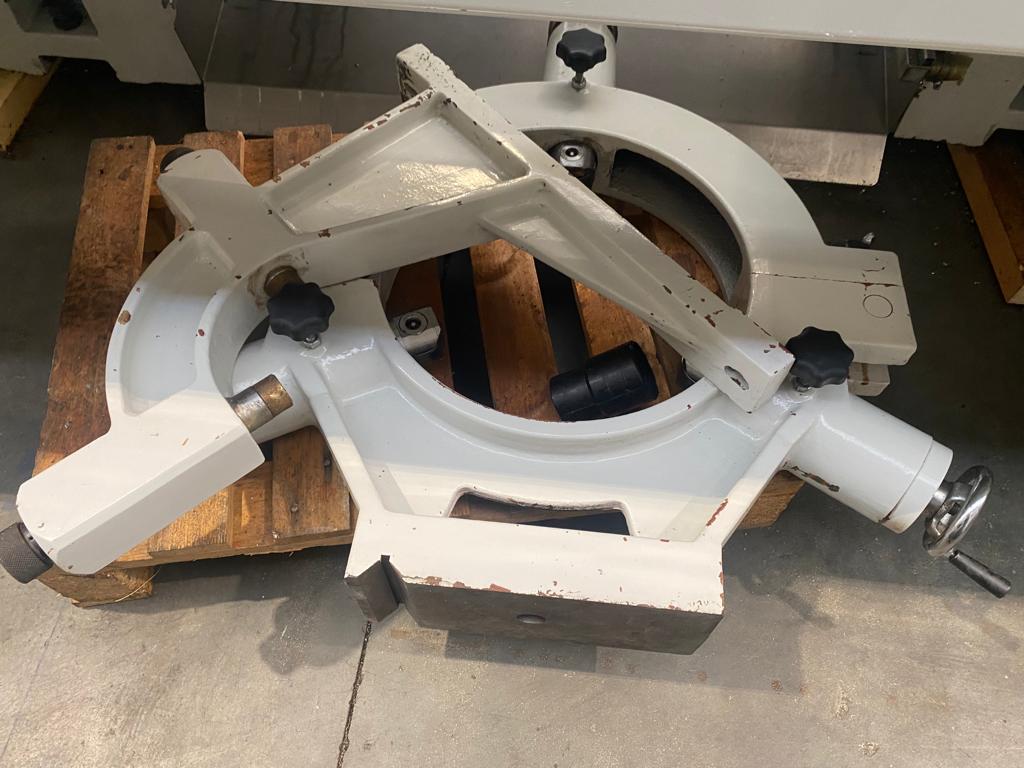

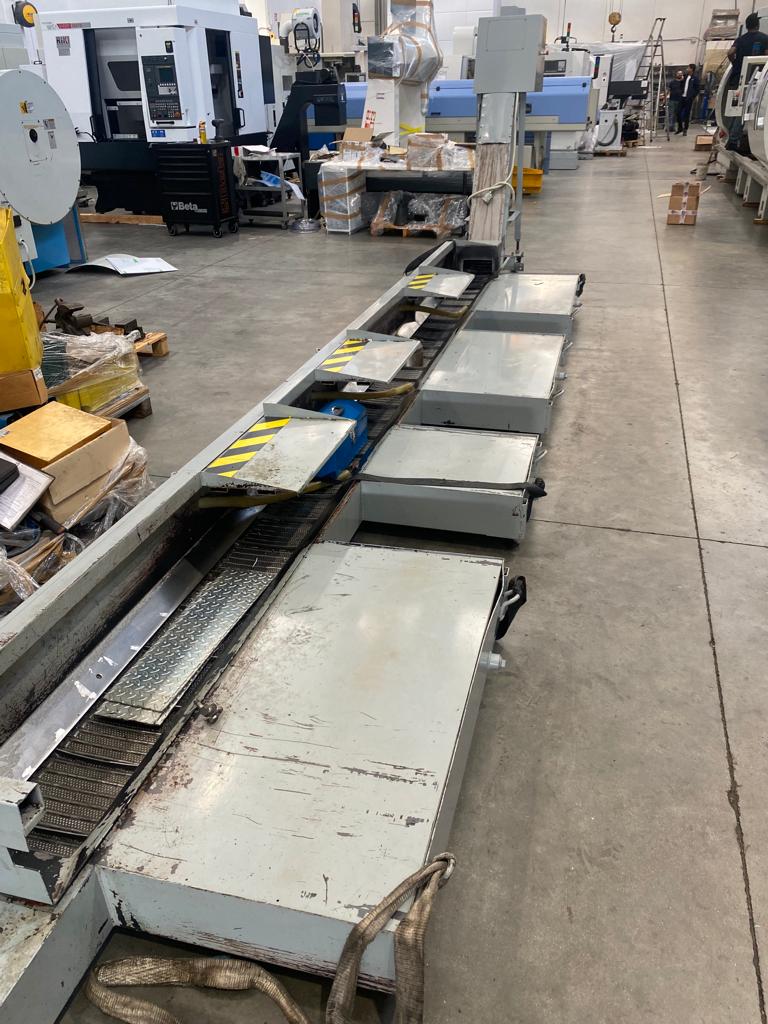

| Accessories | Chip conveyor - Chiller for spindle head - Nr. 2 Steadies with capacity (50 ÷ 300 mm / 250 ÷ 380 mm) - Various fix tool holders Manuals - Electrical diagrams - EC CE Decleration |
