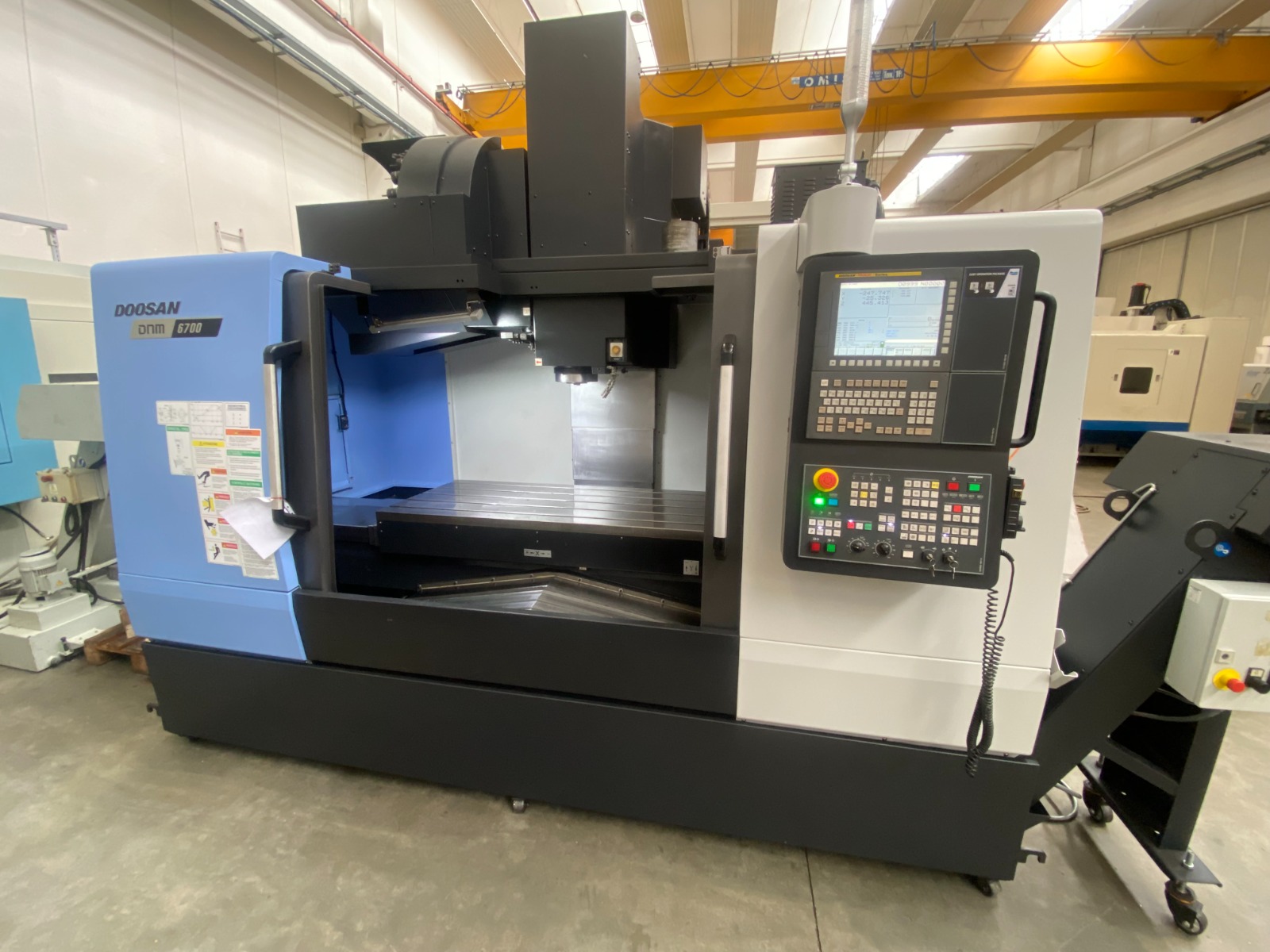

2017 Doosan DNM 6700II

Sold

2017 Doosan DNM 6700II

Specifications

ManufacturerDoosan
ModelDNM 6700II
Year2017
ConditionUsed

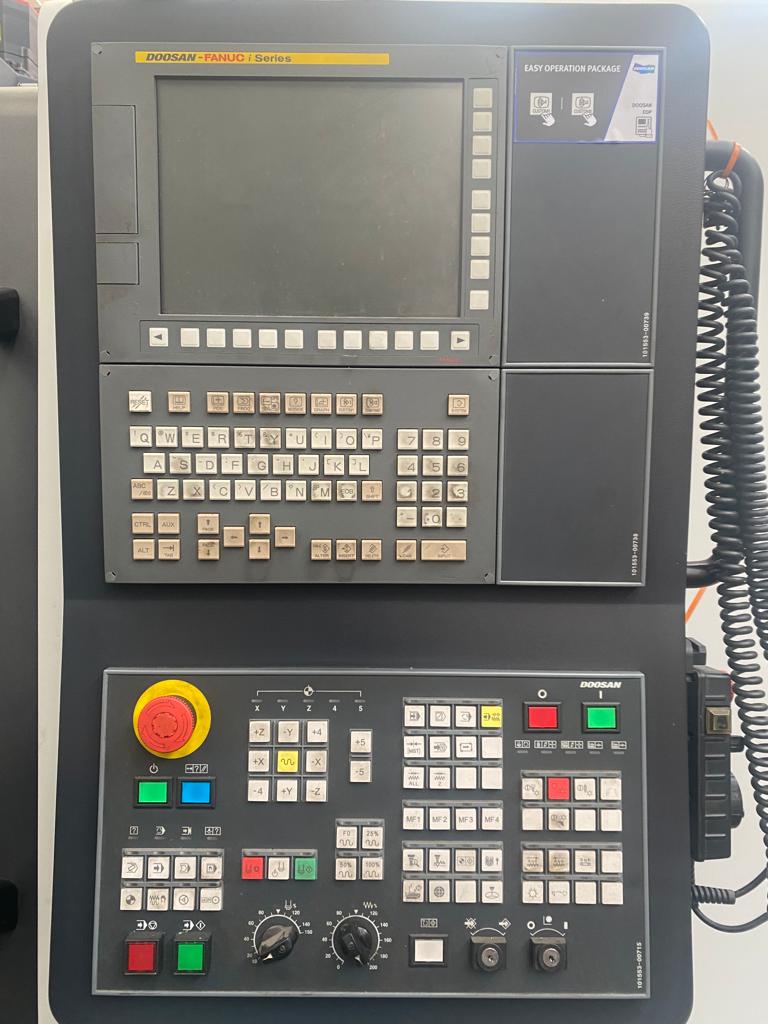

CNC ControlFANUC i-Series
Spindle tool sizeISO 40
Spindle speed12.000 Rpm
Spindle motor power (cont/30 min)11/18,5 kW
X axis1.300 mm
Y axis670 mm
Z axis625 mm
Distance between spindle nose - table surface150 ÷ 775 mm

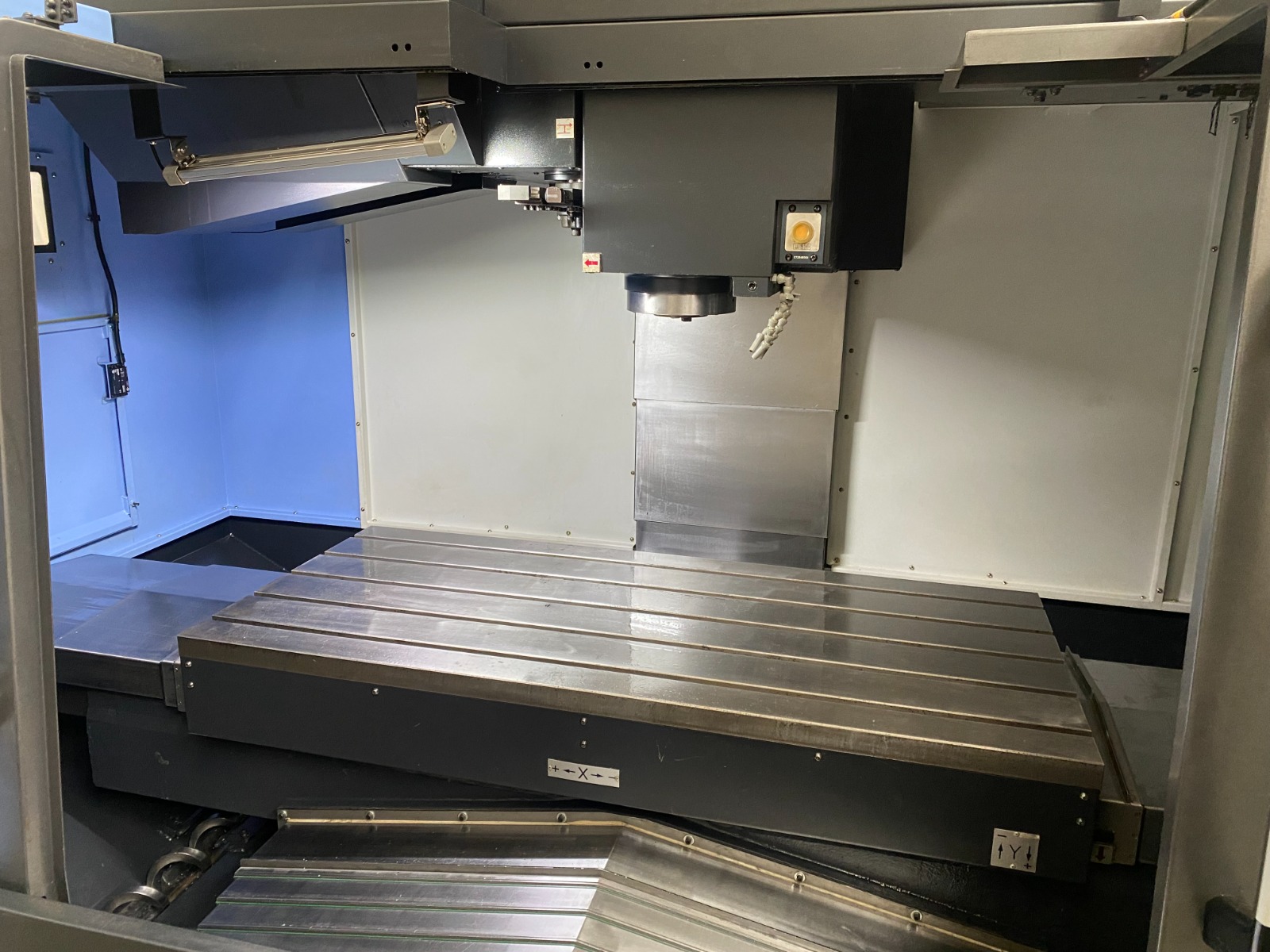

Table dimensions1.500 x 670 mm
Max load allowed on table1.300 Kg
X / Y / Z axis rapid feedrates36.000 mm/min
X / Y / Z axis working feedrates in linear interpolation (max)1 ÷ 15.000 mm/min
Tool typeDIN 69871-A40
Tool pull stud typeDIN 69872-A40

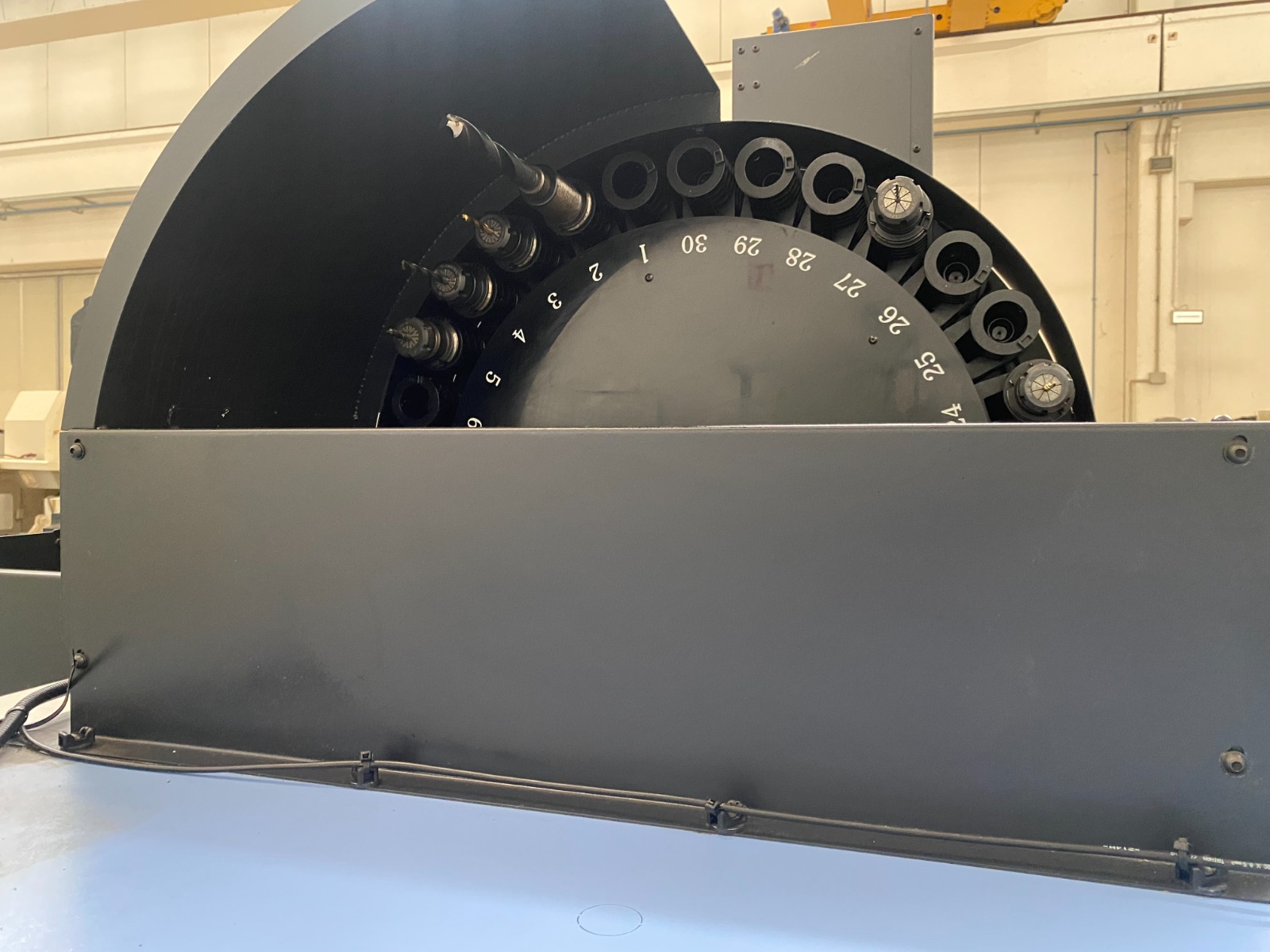

ATC capicity30 Stations
Max tool diameter (full/empty)Ø80 / Ø125 mm
Max tool lenght300 mm
Max tool weight8 Kg

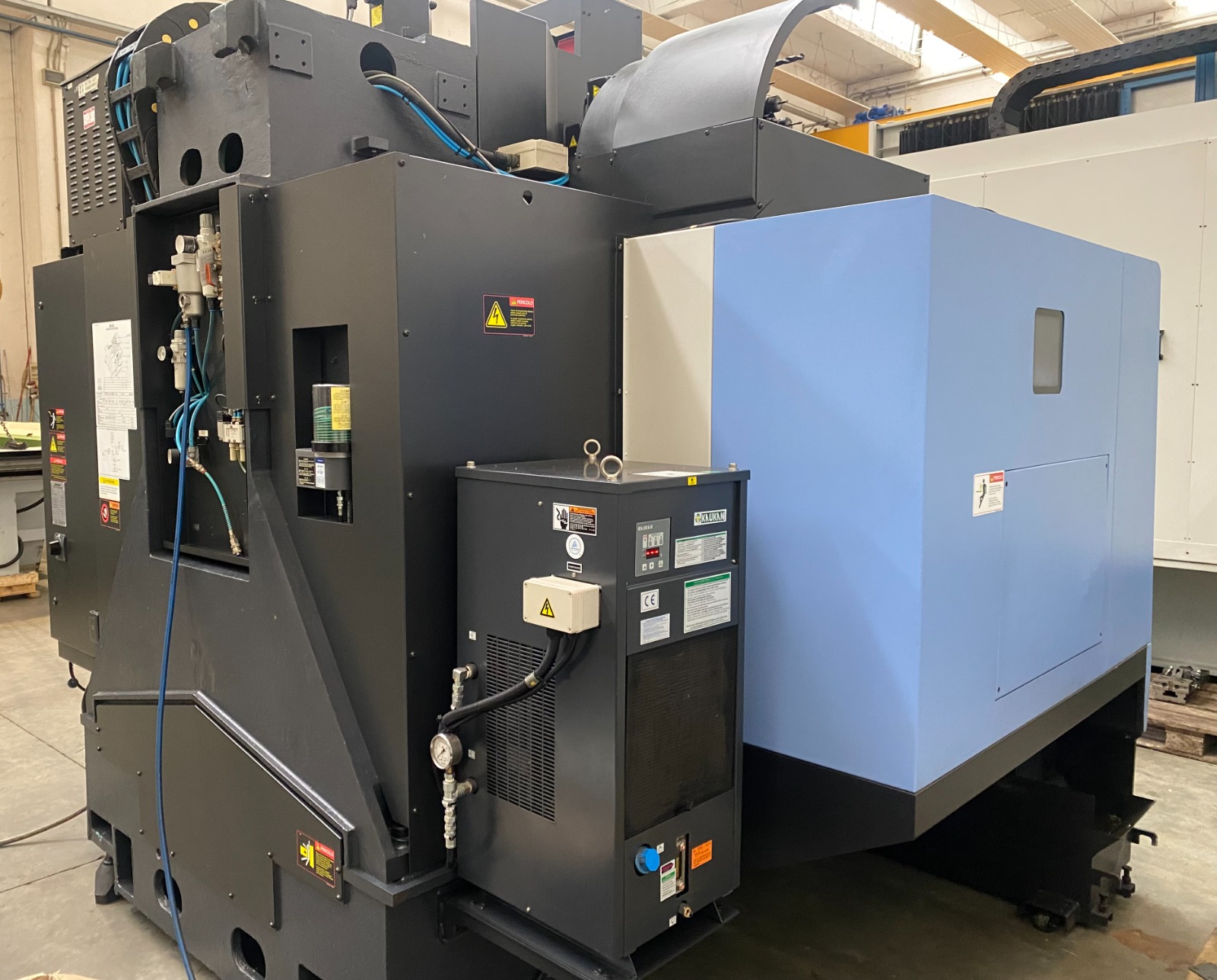

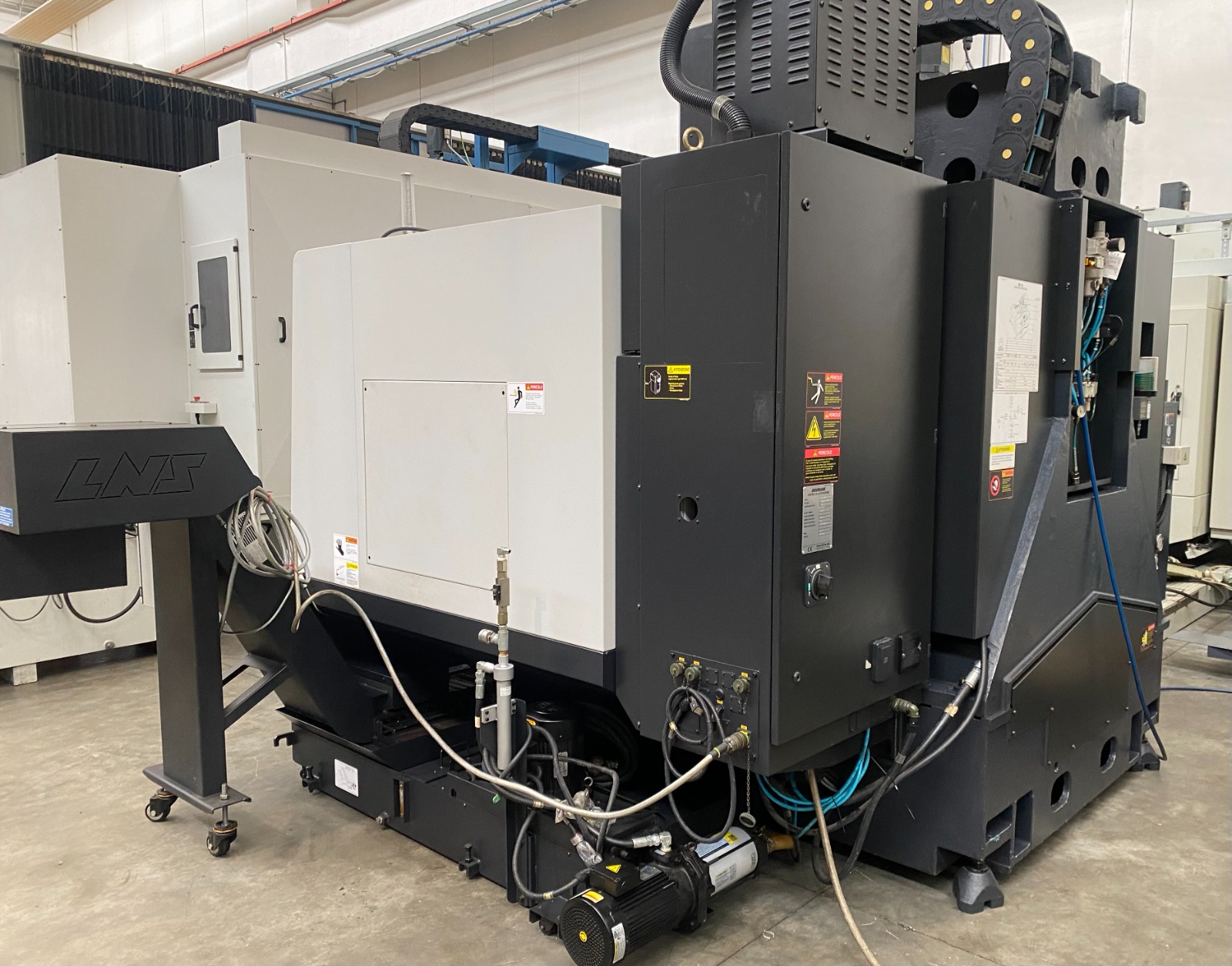

AccessoriesCoolant tank - High pressure pump for collant through spindle - Chips conveyor - Chiller for spindle head - Transformer - Manuals - Electrical Diagrams - CE Declaration
