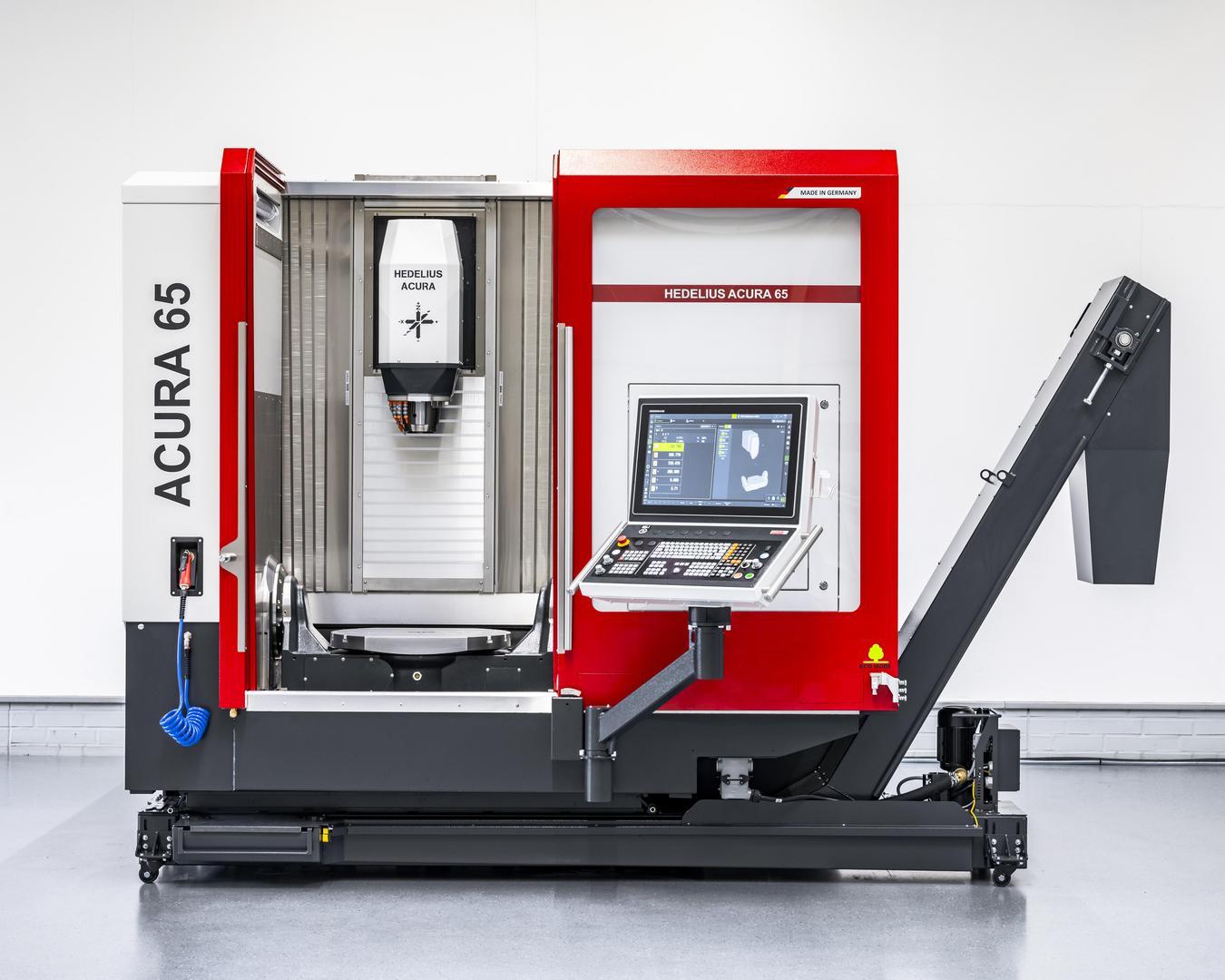

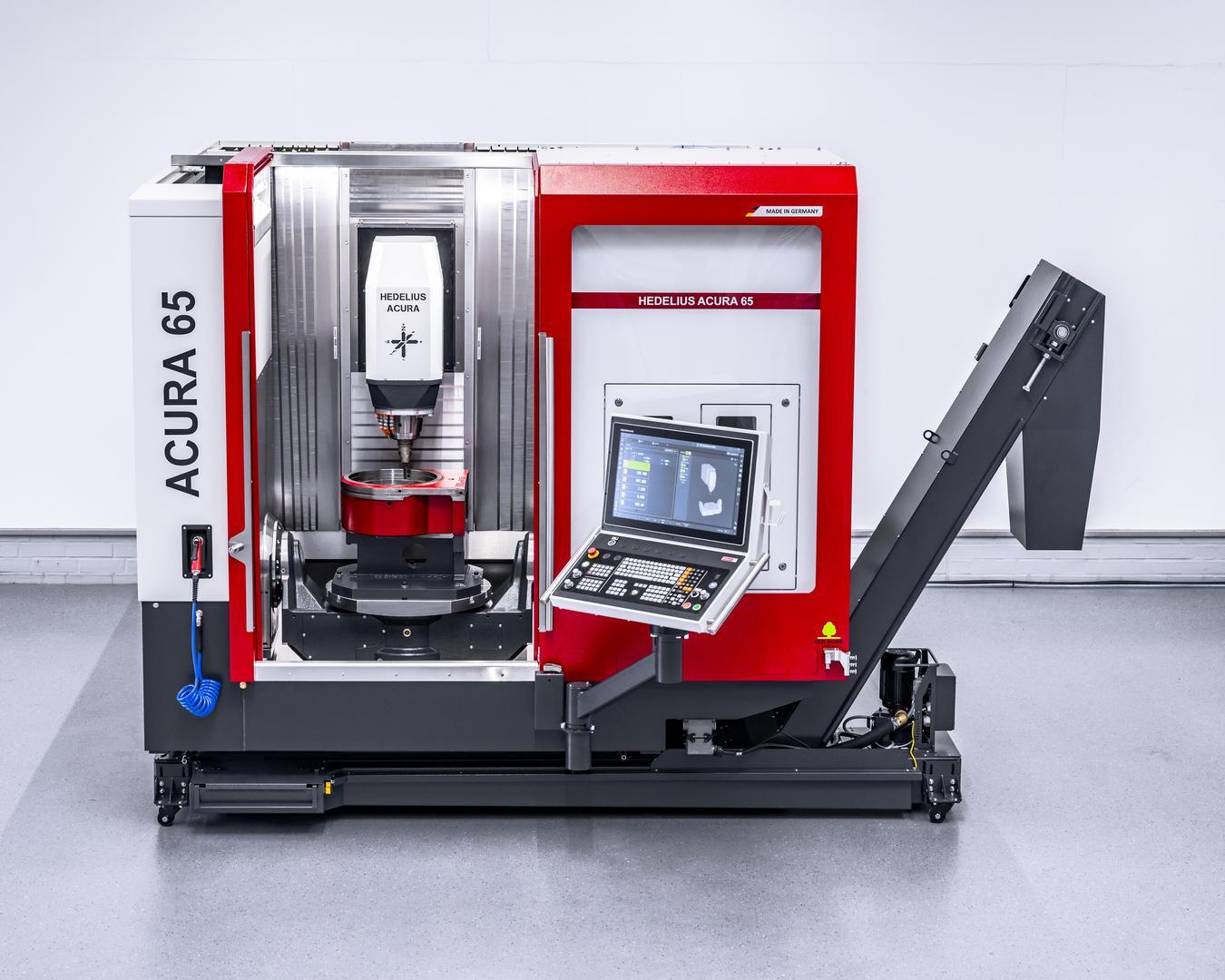

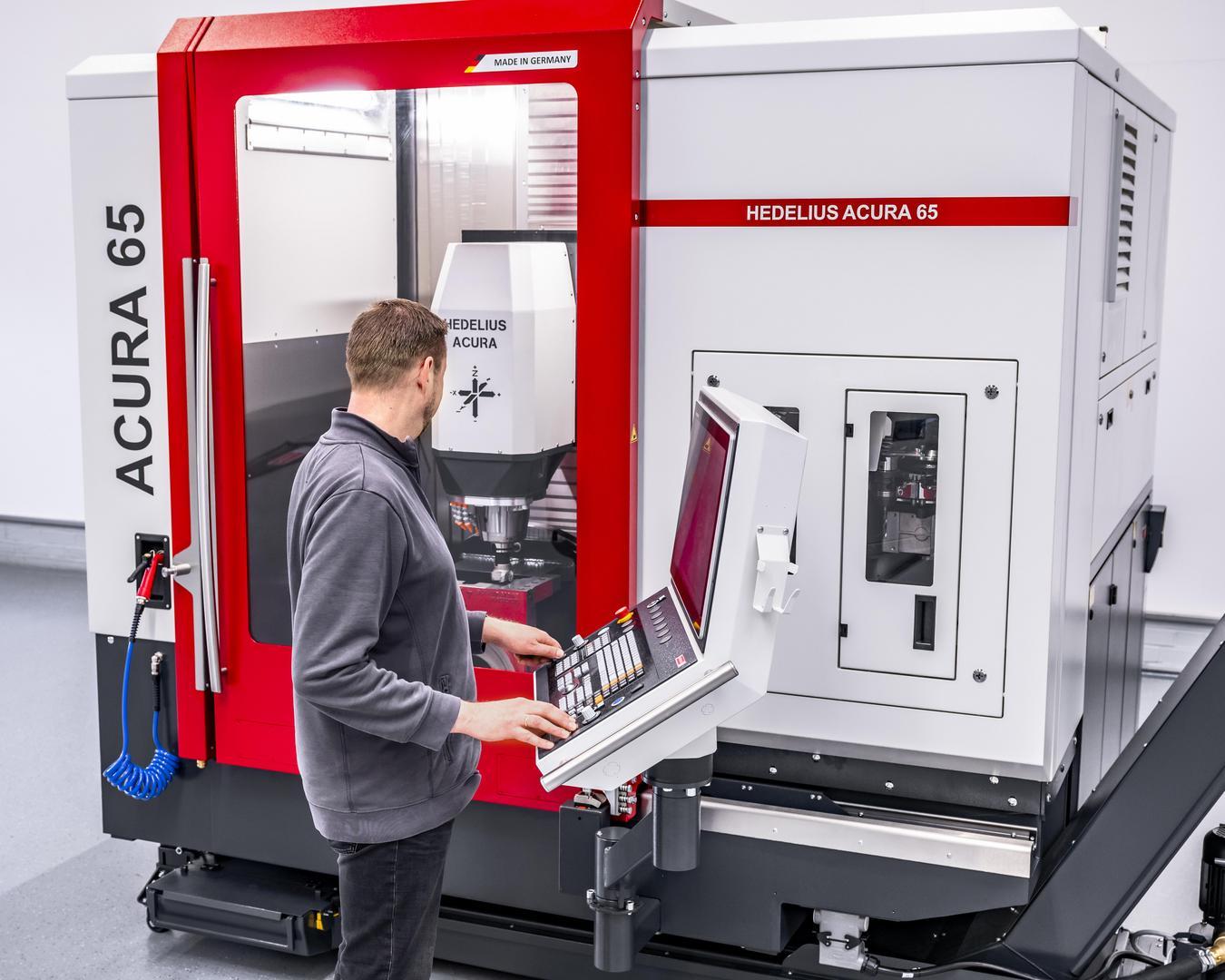

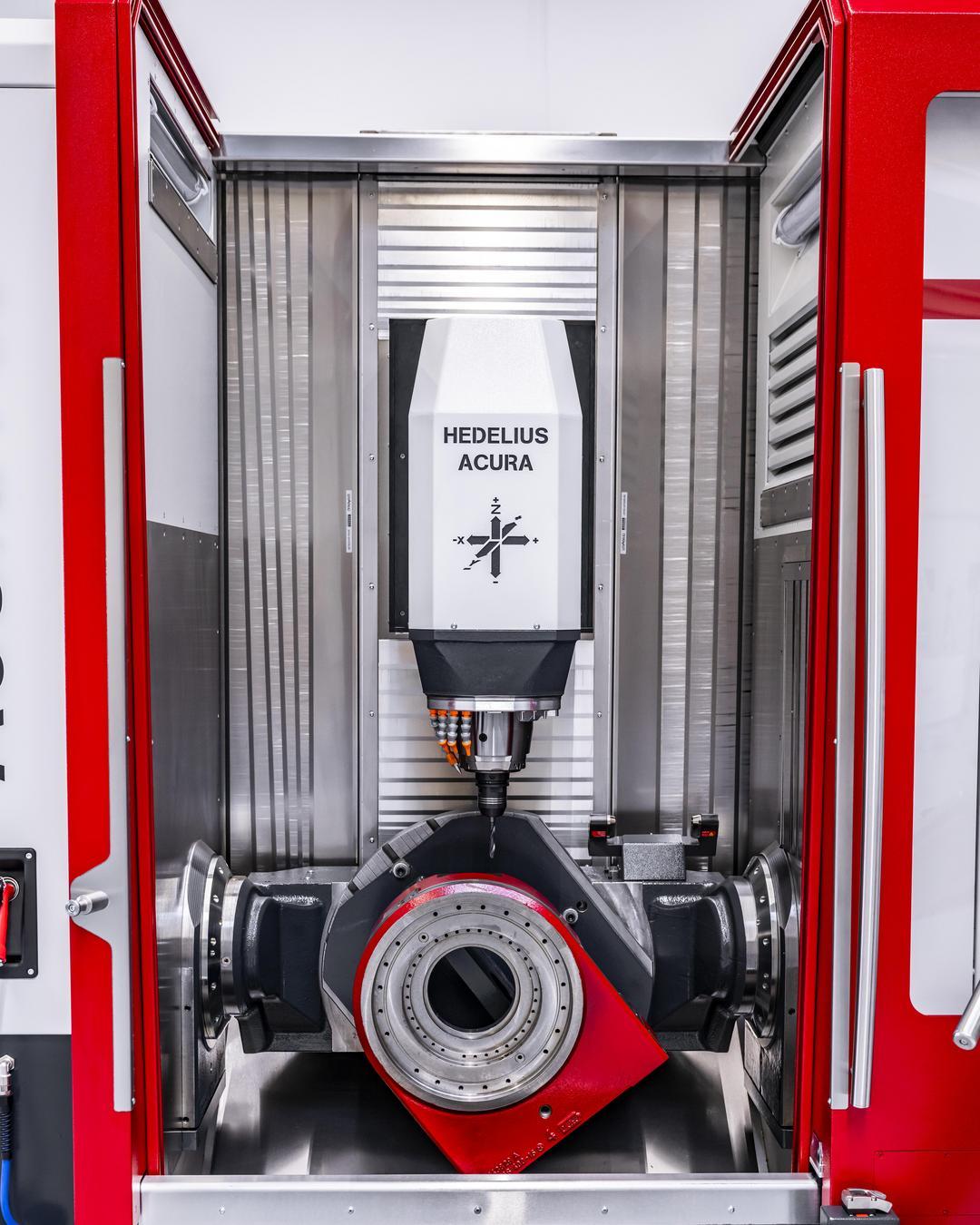

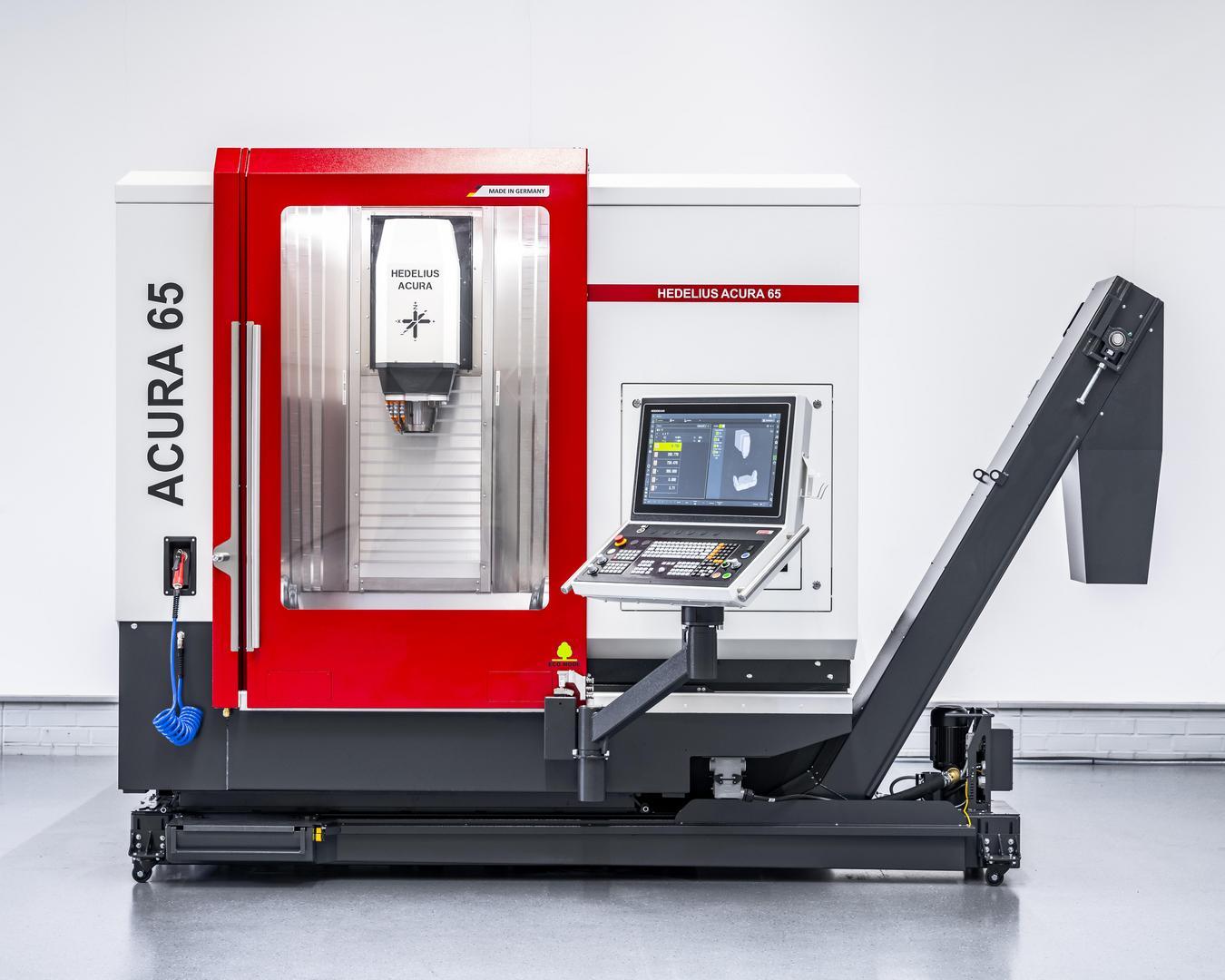

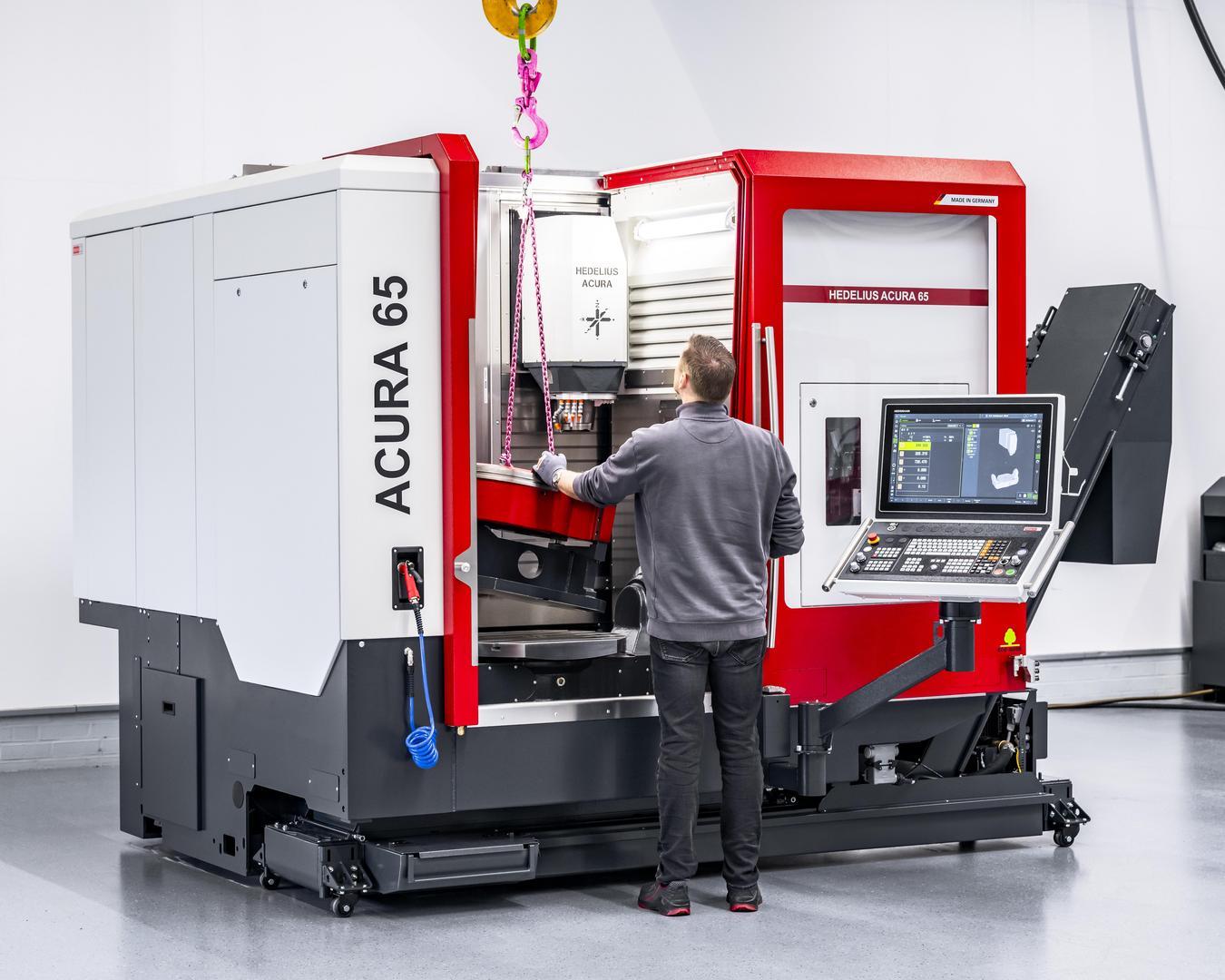

HEDELIUS ACURA 65
HEDELIUS ACURA 65
Description

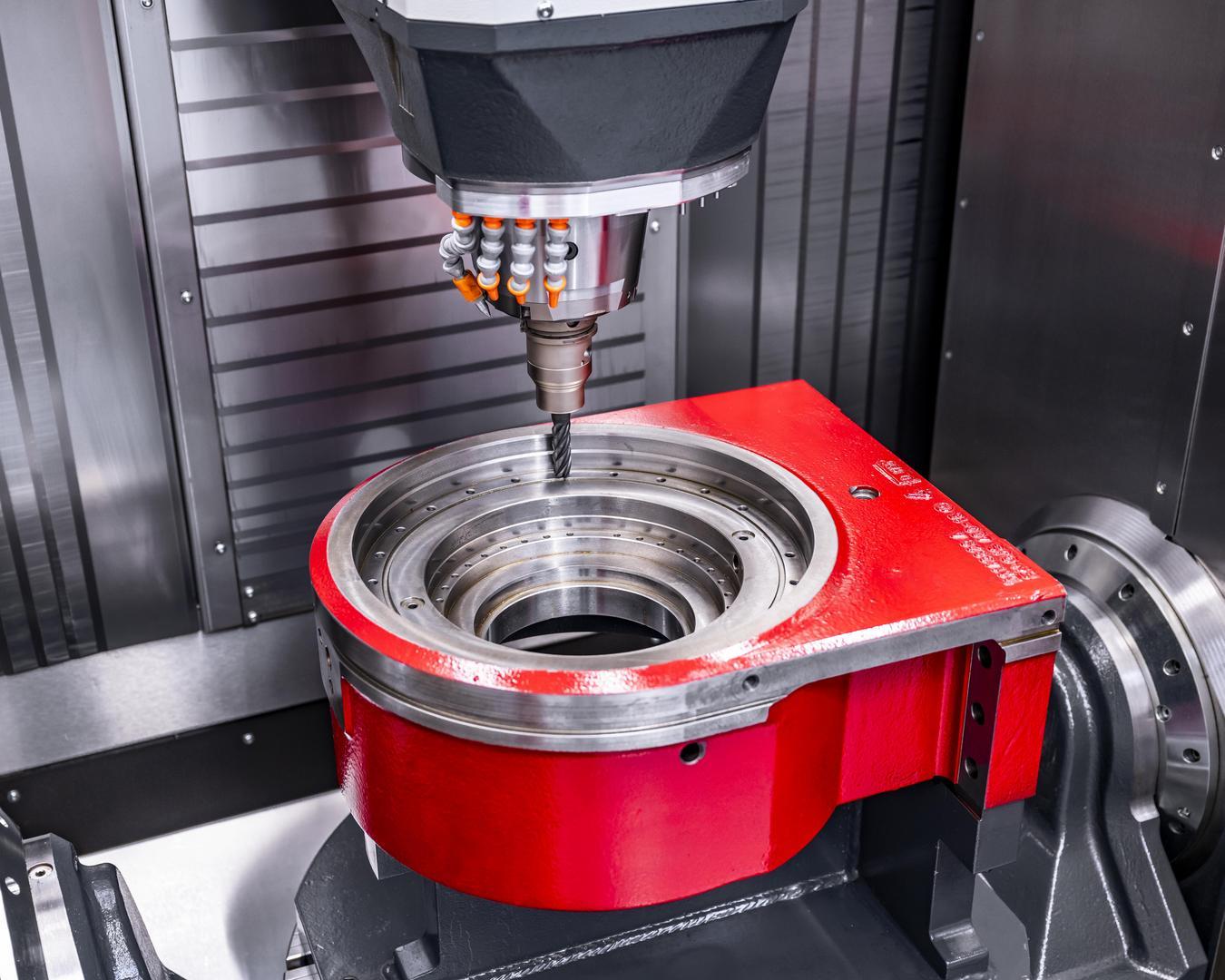

5 axis machining center
Specifications
| Manufacturer | HEDELIUS |
| Model | ACURA 65 |
| Condition | New |

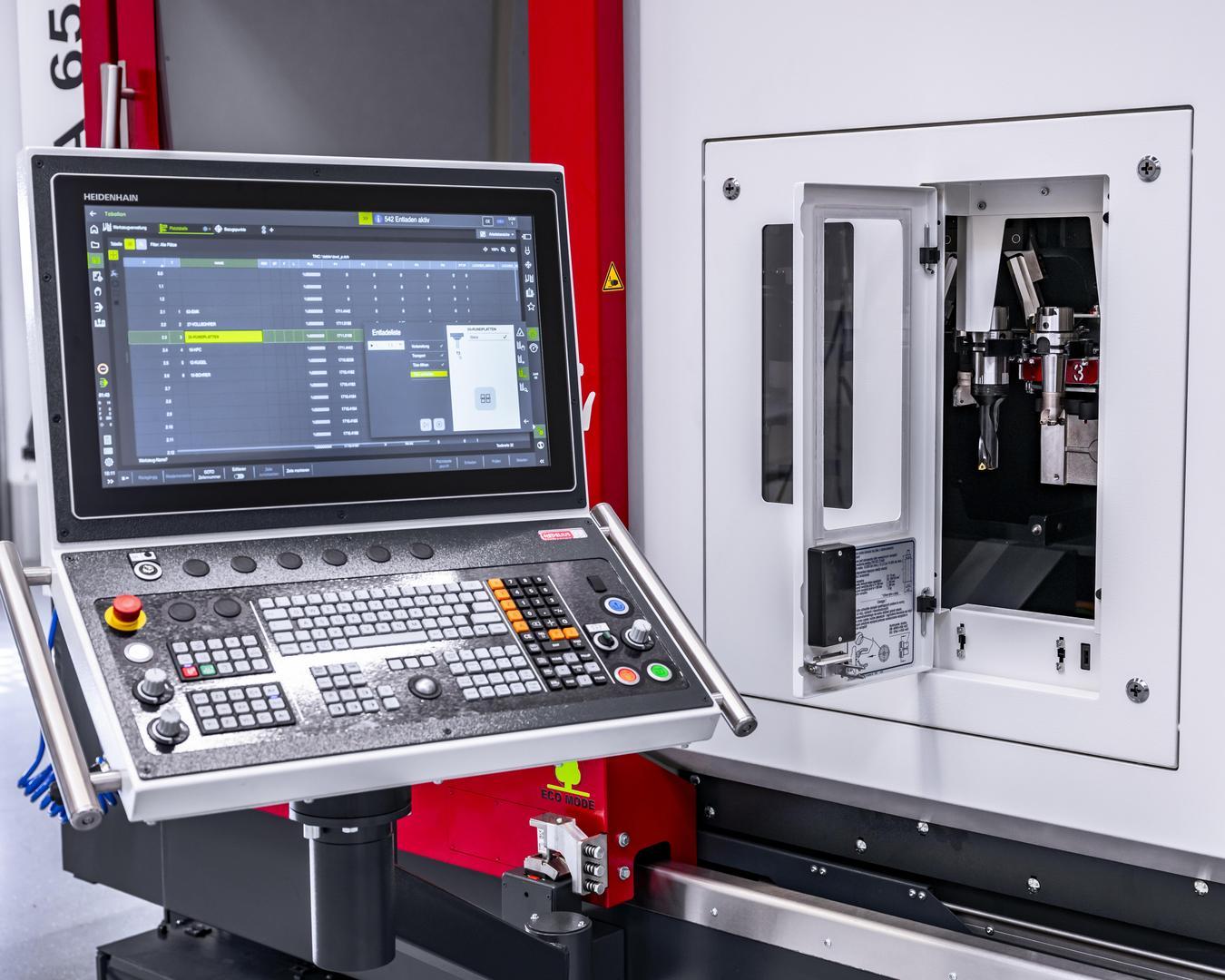

| CNC Control | Heidenhain TNC 640 / Sinumerik 840 D |
| Spindle tool size | ISO-40 |
| Spindle speed | 14.000 RPM (opt. 15.000/18.000/24.000) |
| Spindle motor power (cont/30 min) | 22 kW |
| X axis | 700 mm |
| Y axis | 650 mm |
| Z axis | 600 mm |

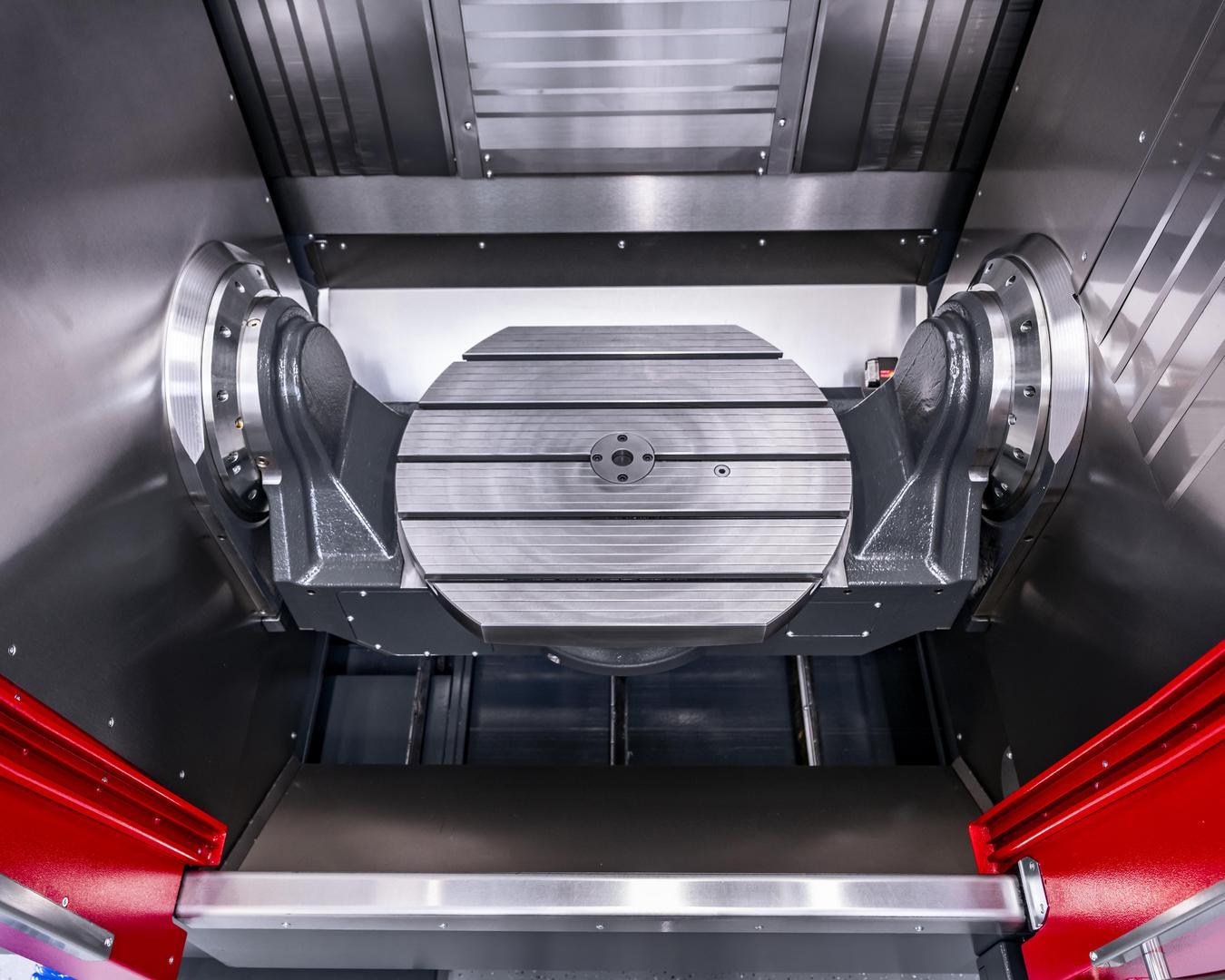

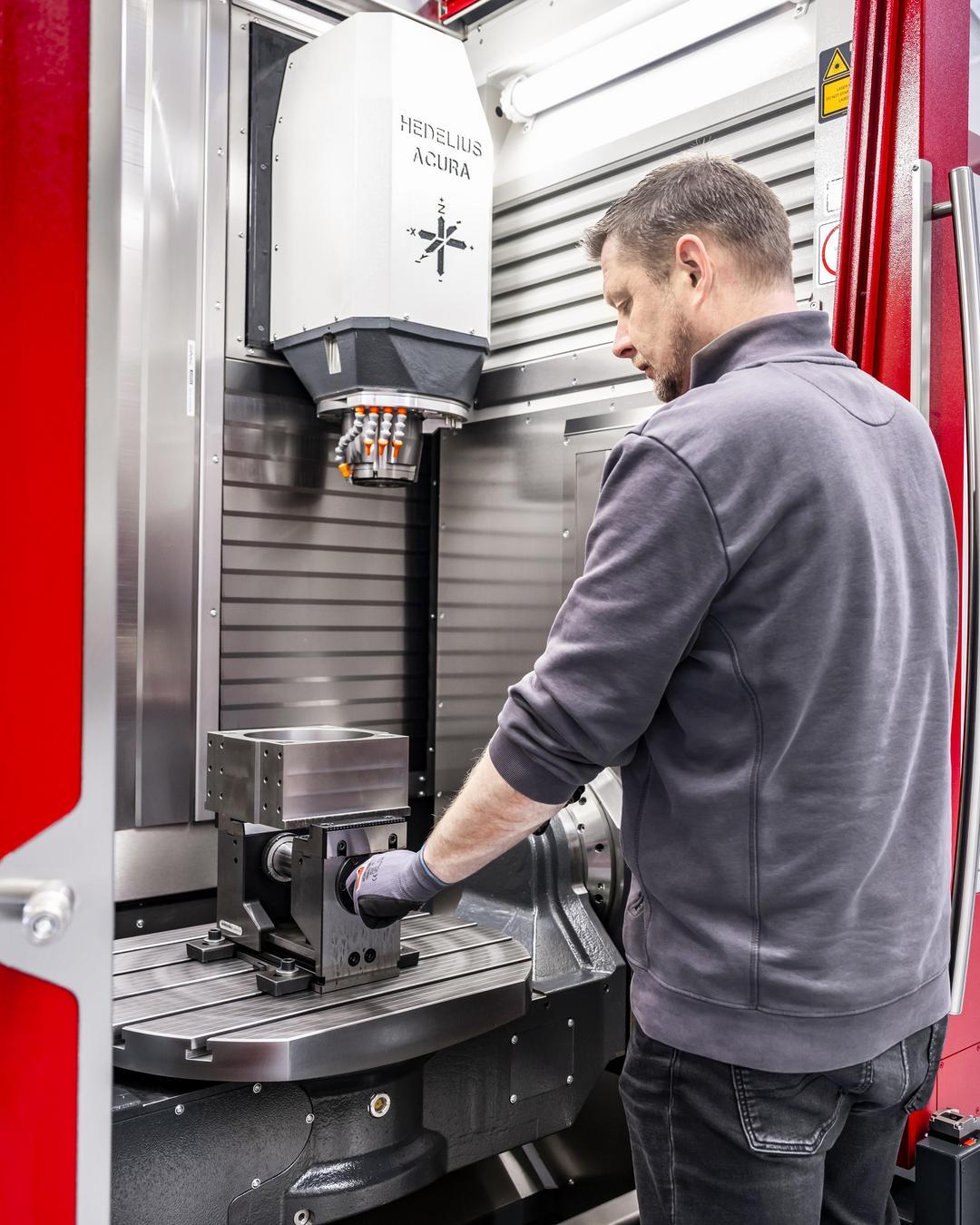

| Table dimensions | Ø650 x 540 mm |
| Max load allowed on table | 500 Kg |
| Max diameter of the workpiece | Ø 700 mm |

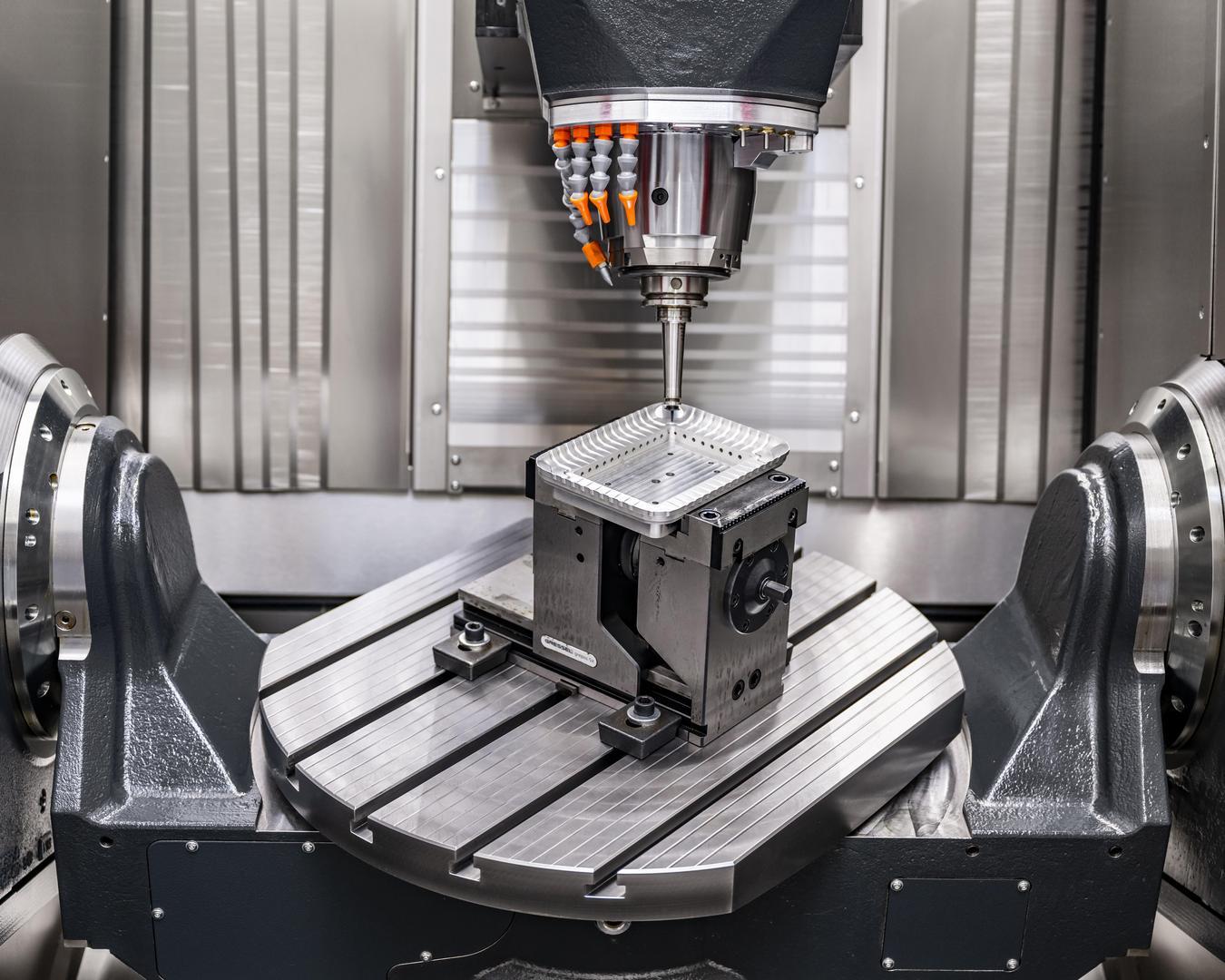

| Tilting angle of the table | +30/-115 degrees |
| X / Y / Z axis rapid feedrates | 40/40/40 m/min |

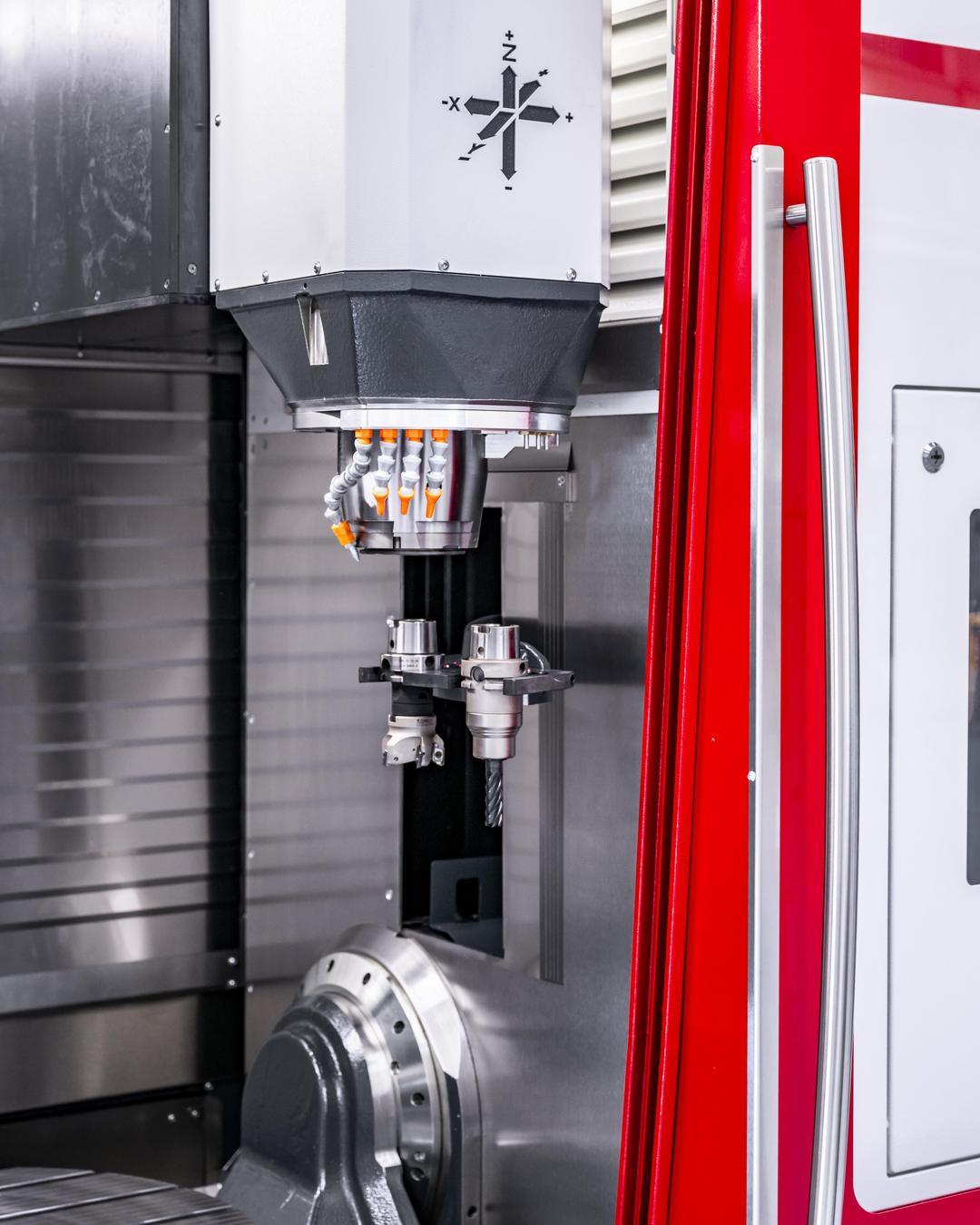

| Tool type | SK40 / BT40 / HSK A63 |

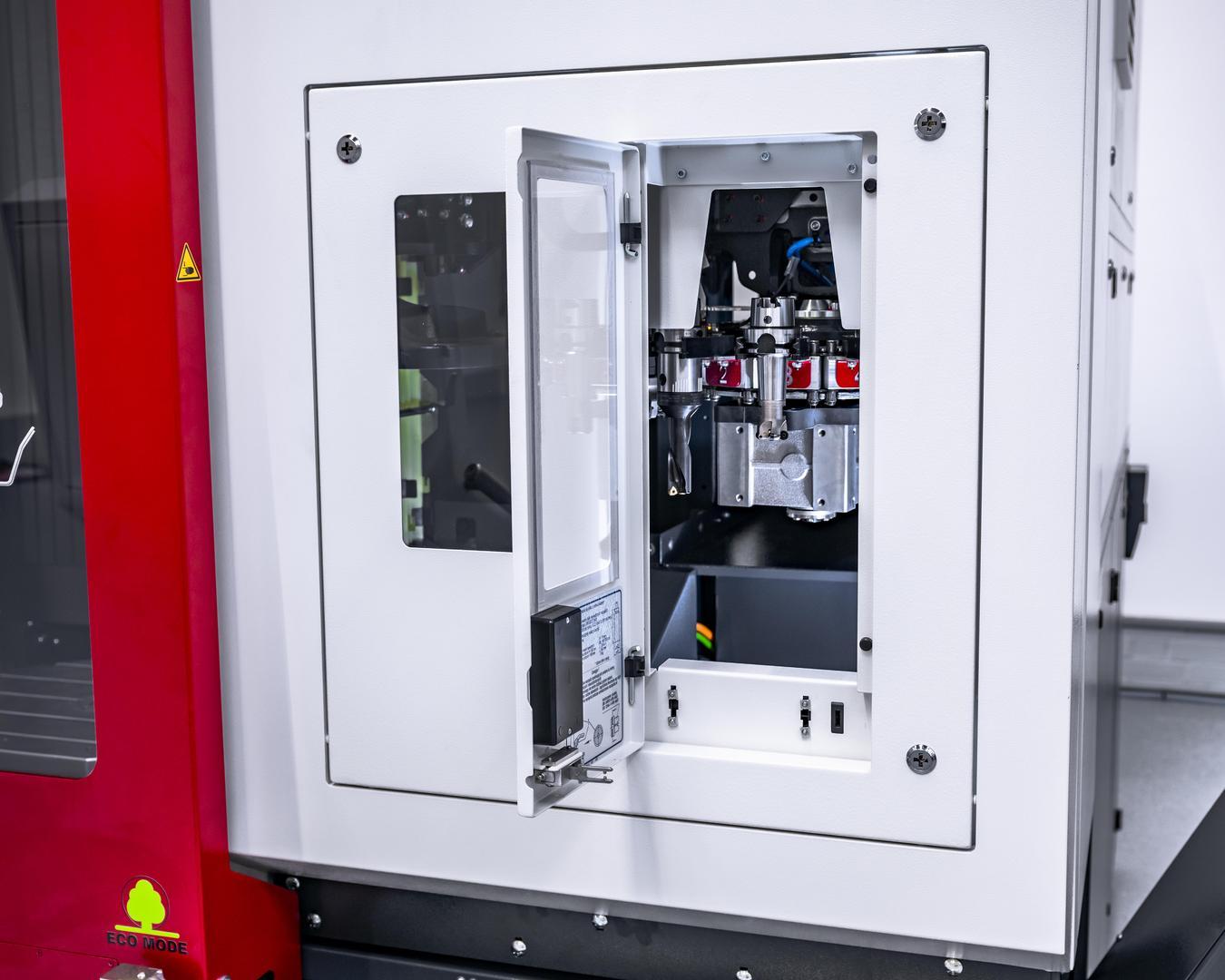

| ATC capicity | 65 positions (opt. 90/245/329) |
| Accessories | Chip-conveyor, coolant tank with washing pumps, Manuals, Electrical diagrams and CE Declaration |
