Hyundai WIA L300MC
Featured
Hyundai WIA L300MC
or
Call +39 0522 1536494
Description
New machine ready in stock
Specifications
| Manufacturer | Hyundai WIA |
| Model | L300MC |
| Condition | New |

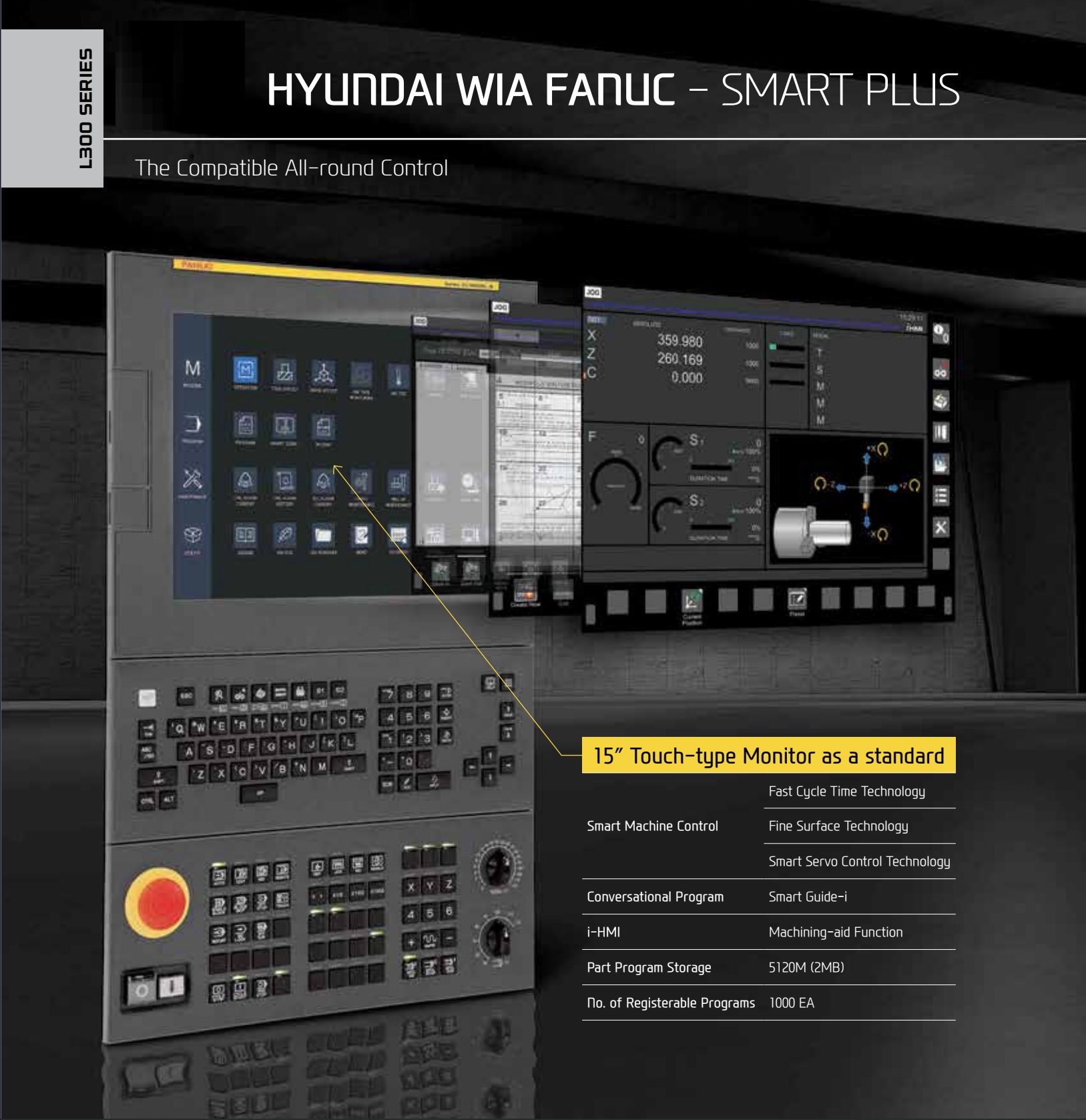

| CNC Control | FANUC 0i-MF PLUS |
| Max swing over the bench | Ø 750 mm |
| Max swing over the carriage | Ø 480 mm |
| Max turning diameter | Ø 500 mm |
| Max turning length | 600 mm |
| Bar diameter capacity through the spindle | Ø 90 mm |
| X axis travel | 335 mm |
| Z axis travel | 750 mm |
| C axis minimum controlled angle | 0.001° |
| Spindle chuck diameter | Ø 305 mm |
| Spindle speed | 3.000 RPM |
| Spindle nose size | ASA-8 |
| Spindle motor power (cont/30 min) | 18.5 / 22 kW |

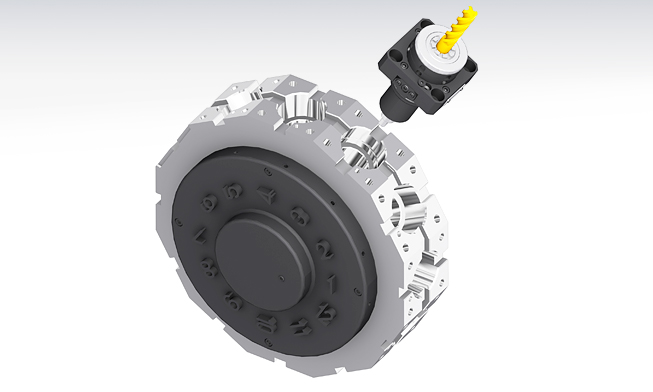

| Turret type | BMT-65 turret with livetools |
| Turret positions | 12 positions |
| Live-tools speed | 4.000 RPM |
| Turning / boring tool dimensions | 25x25 / Ø 50 mm |
| X axis feedrate | 20.000 mm/min |
| Z axis feedrates | 24.000 giri/min |
| Tailstock quill diameter | Ø 100 mm |
| Tailstock taper size | MT-4 |
| Tailstock body travel | 750 mm |
| Tailstock quill travel | 120 mm |
| Accessories | Chip-conveyor, coolant tank with 20 bar pressure pump, automatic tool presetter RENISHAW, automatic parts catcher hand, bar-feeder interface, Manuals, Electrical Diagrams and CE Declaration |
