Hyundai WIA HS-4000II

Hyundai WIA HS-4000II

Specifications

ManufacturerHyundai WIA
ModelHS-4000II
ConditionNew

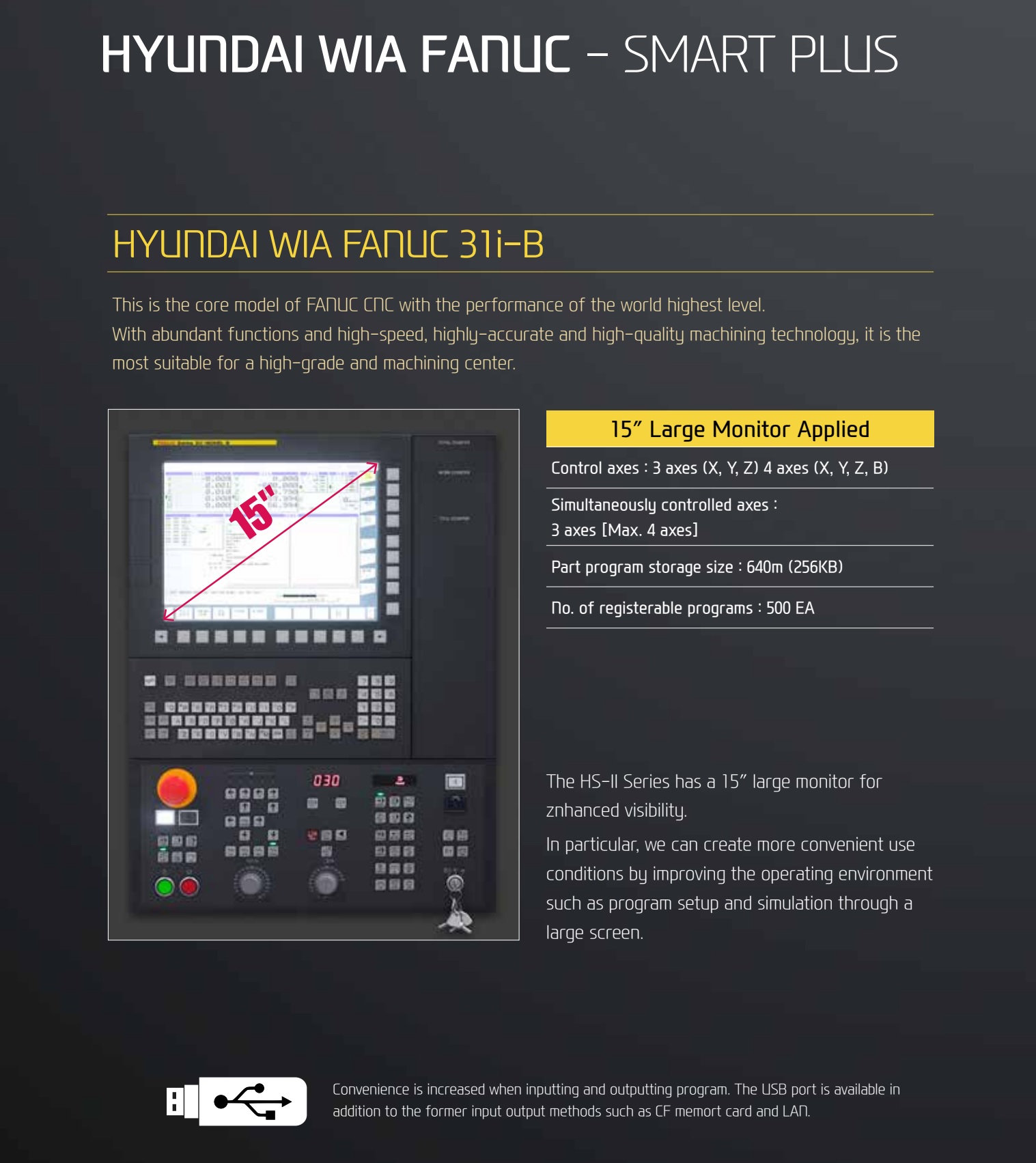

CNC ControlFANUC 31i-Model B PLUS

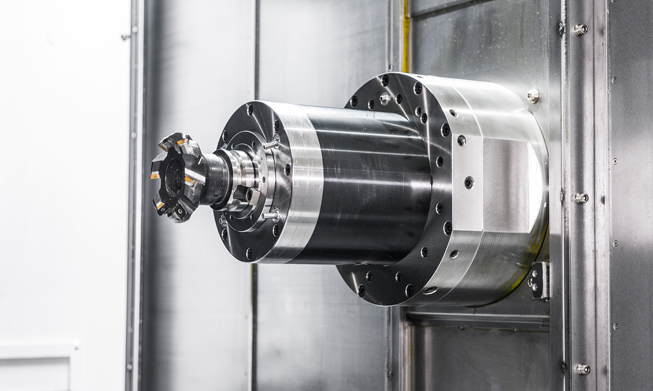

Spindle sizeISO-40
Spindle speed15.000 RPM (opt. 20.000 RPM)
Spindle motor power (cont/30 min30/18.5 (Opt. 37/22 - 37/18.5) Kw
X axis560 mm
Y Axis640 mm
Z Axis660 mm
Table rotationIndexata (opt. continuous)
Max workpiece dimensionsØ 630 × H 900 mm

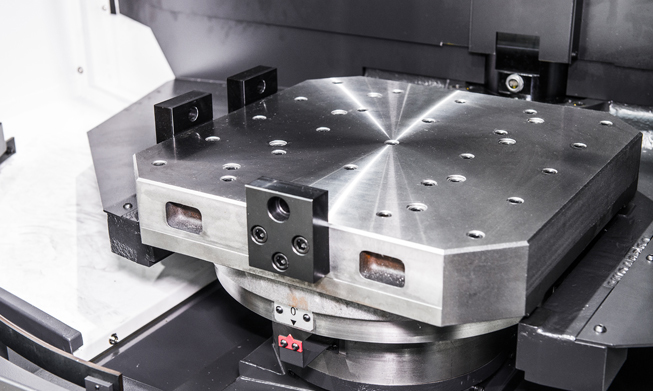

Table dimensions2 - 400 × 400 mm
Nr. of table pallets2 standard (opt. multipallet)
Max table capacity400 Kg/each pallet
Rapid feedrates X / Y / Z60.000 mm/min
Tool typeBBT-40 (opt. HSK-A63)
Pull stud typeBT-40

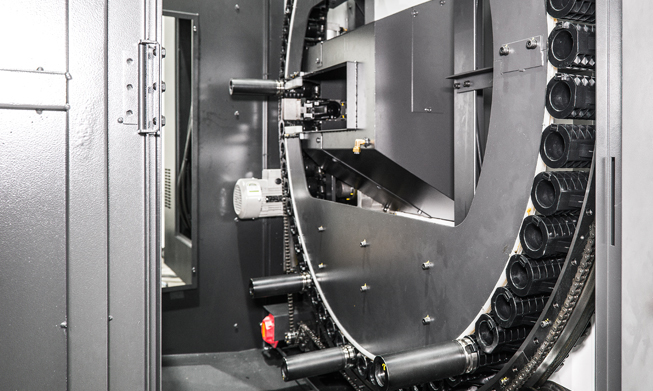

ATC positionsStandard 40 (opt. 60/90/120/240)
Tools diameterØ 75 / 170 mm
Tools max lenght450 mm
Tools max weight12 Kg
Machine's net weight9.500 Kg
Accessories & OthersChip-conveyor, coolant tank with high pressure pump for CTS at 20 Bar, Manuals, Electrical Diagrams and CE Declaration
