2011 Doosan PUMA 480XLM

Sold

2011 Doosan PUMA 480XLM

Specifications

ManufacturerDoosan
ModelPUMA 480XLM
Year2011
ConditionRefurbished

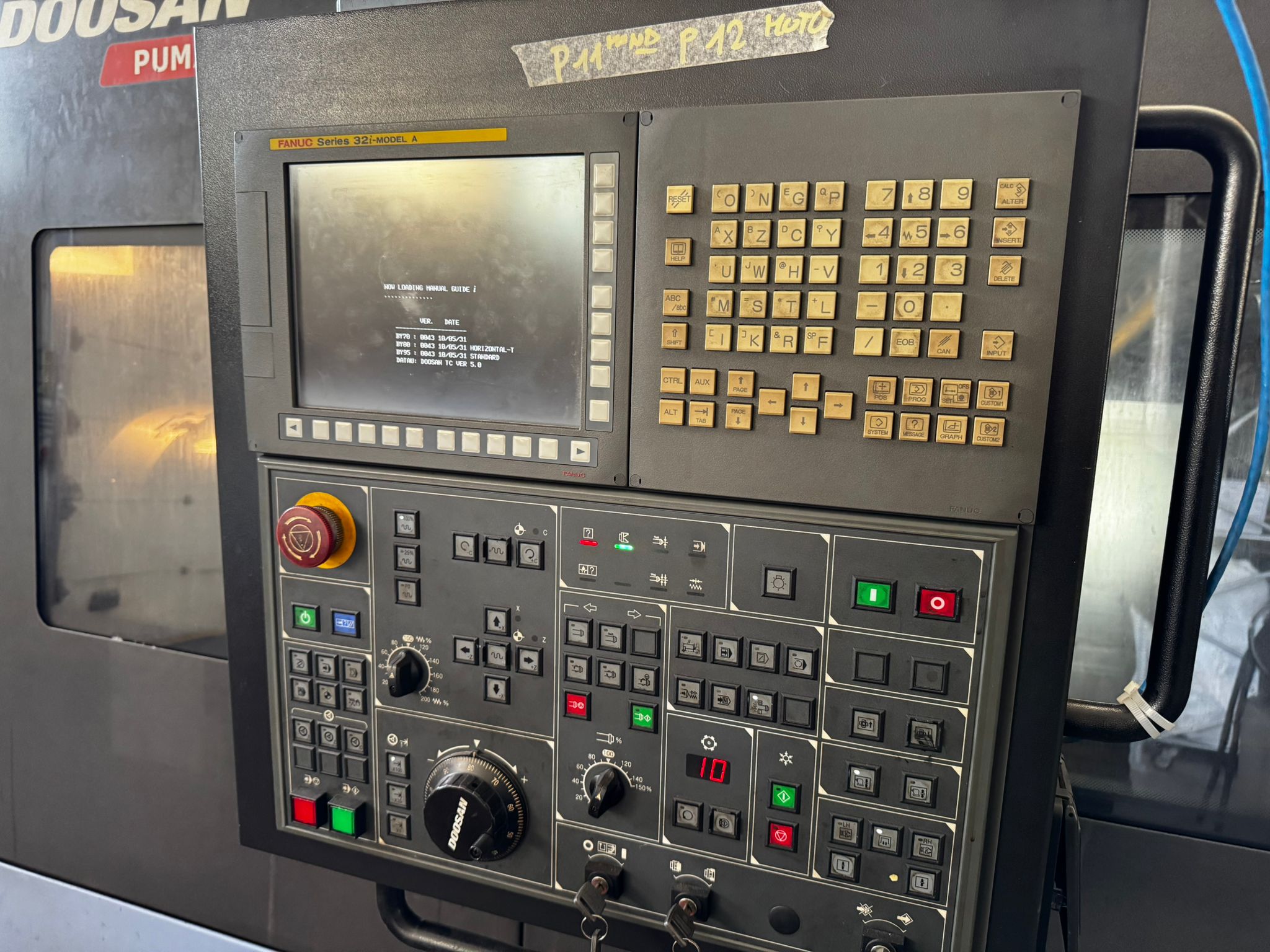

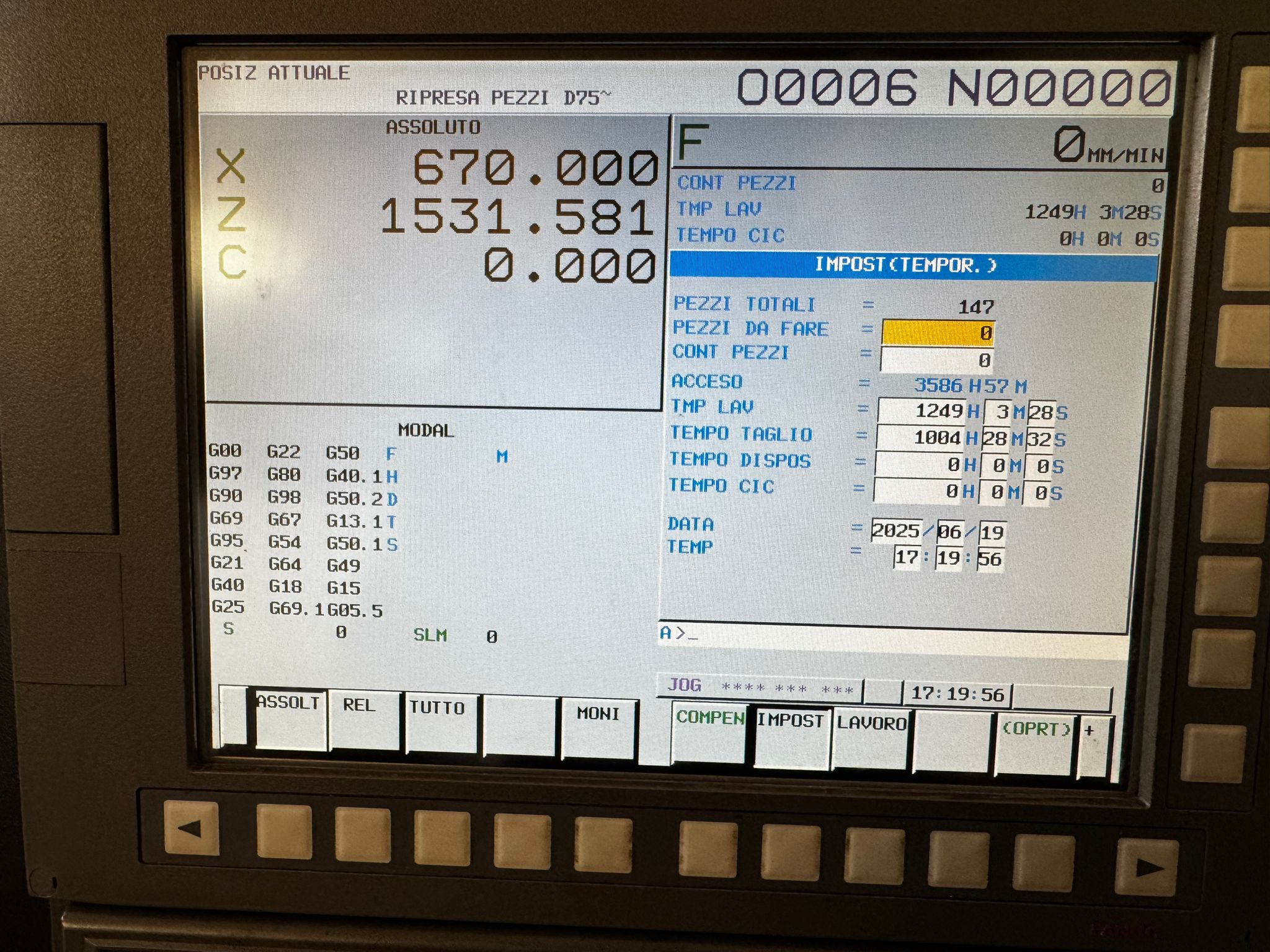

CNC ControlFANUC Series 32i-A
Max swing over the benchØ 900 mm
Max swing over the carriageØ 720 mm
Max turning diameterØ 650 mm
Max turning length3.065 mm
Bar diameter capacity through the spindleØ 165,5 mm
X axis travel362 mm
Z axis travel3.100 mm
C axis minimum controlled angle0.001° (+/- 360°)

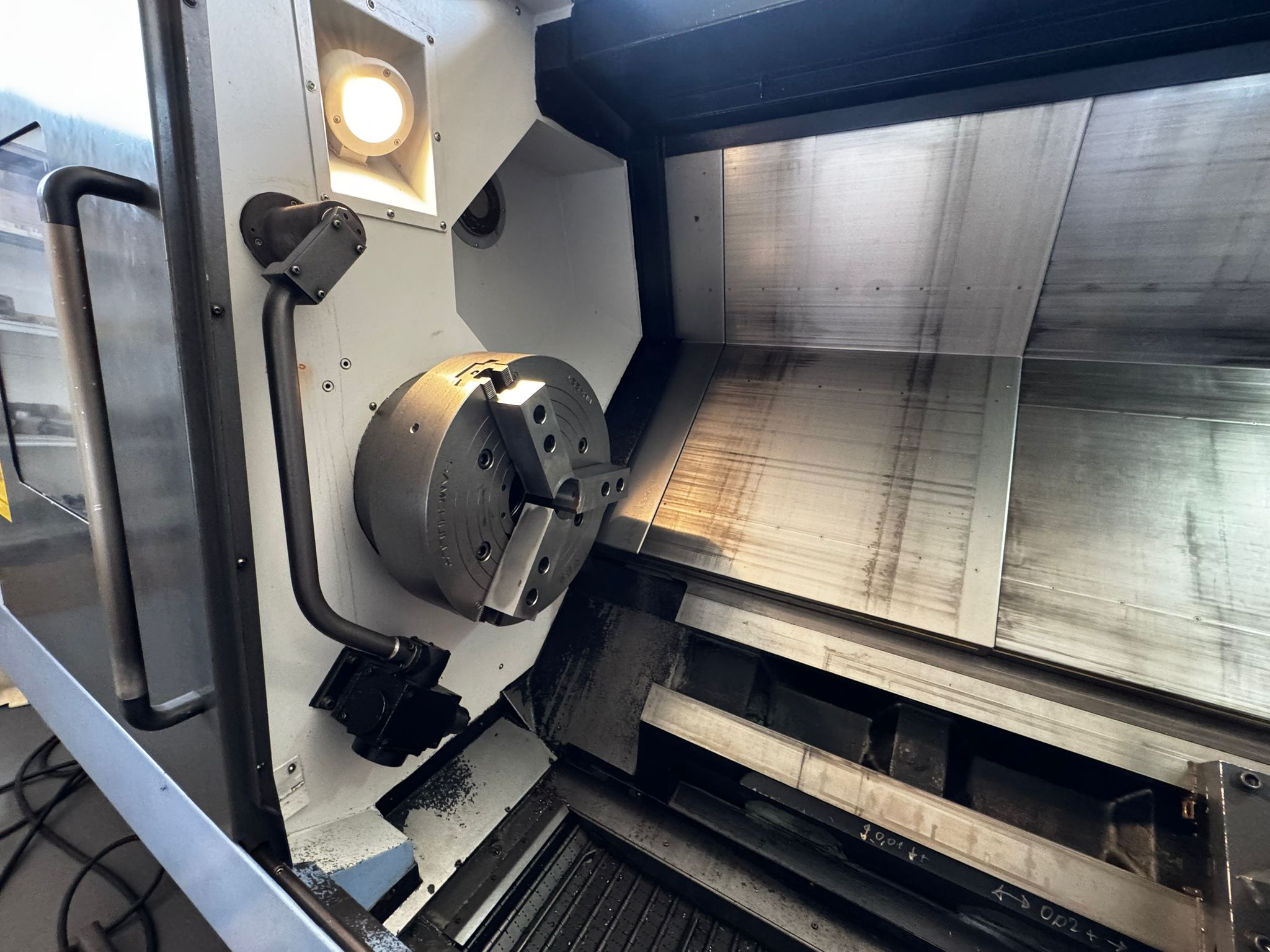

Spindle chuck diameterØ 533 mm
Spindle speed15 ÷ 1.500 Rpm
Spindle speed steps2 steps
Spindle nose sizeASA A2-15
Spindle motor power (cont/30 min)37/45 kW

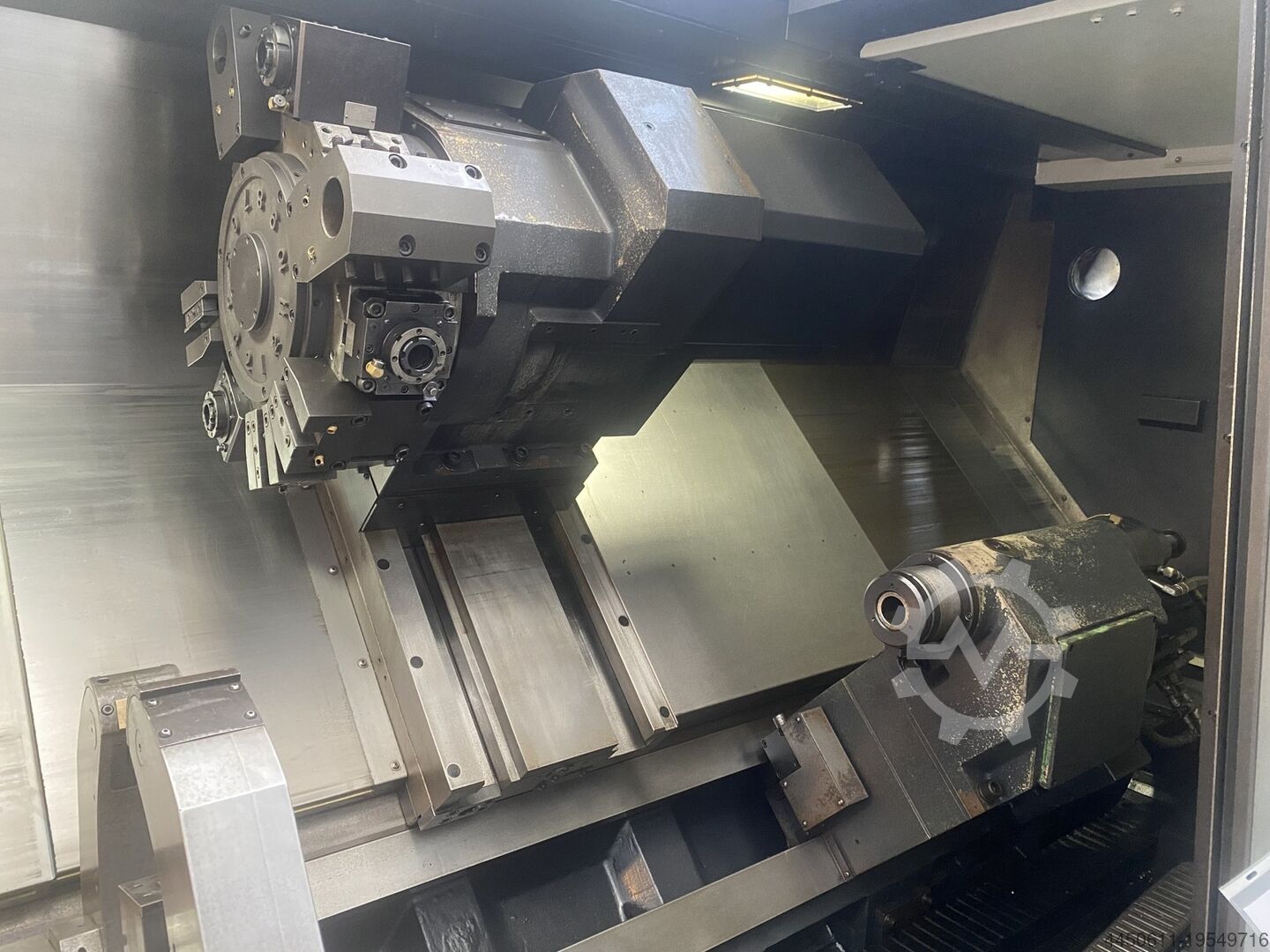

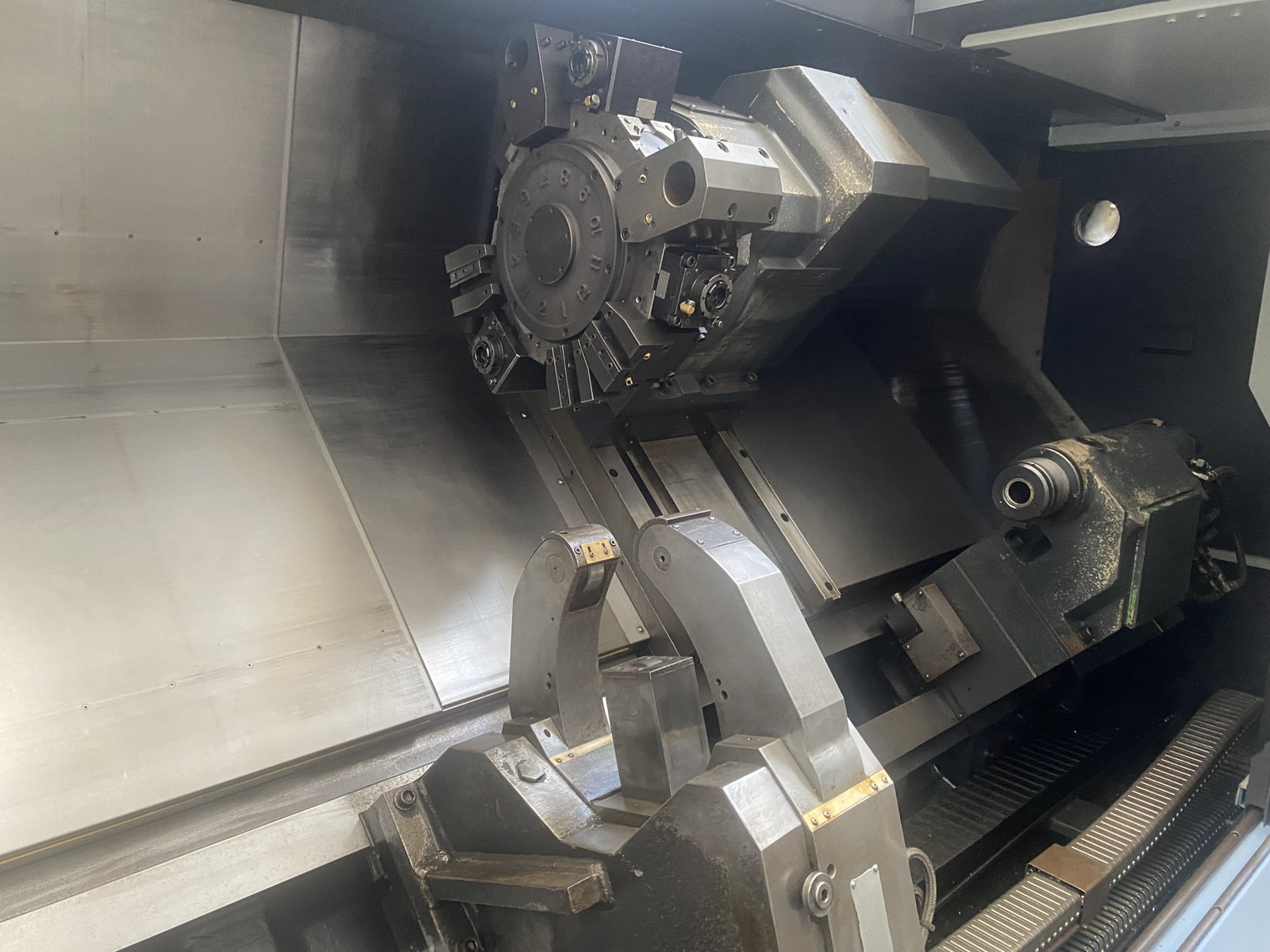

Turret typeBMT 75
Turret positions12 stations (Also with Live-tools)
Live-tools speed30 ÷ 3.000 Rpm
Turning / boring tool dimensions25 x 25 / Ø 60 mm
X axis feedrate16.000 mm/min
Z axis feedrates10.000 mm/min
Tailstock quill diameterØ 120 mm
Tailstock taper sizeMT 6
Tailstock quill travel120 mm

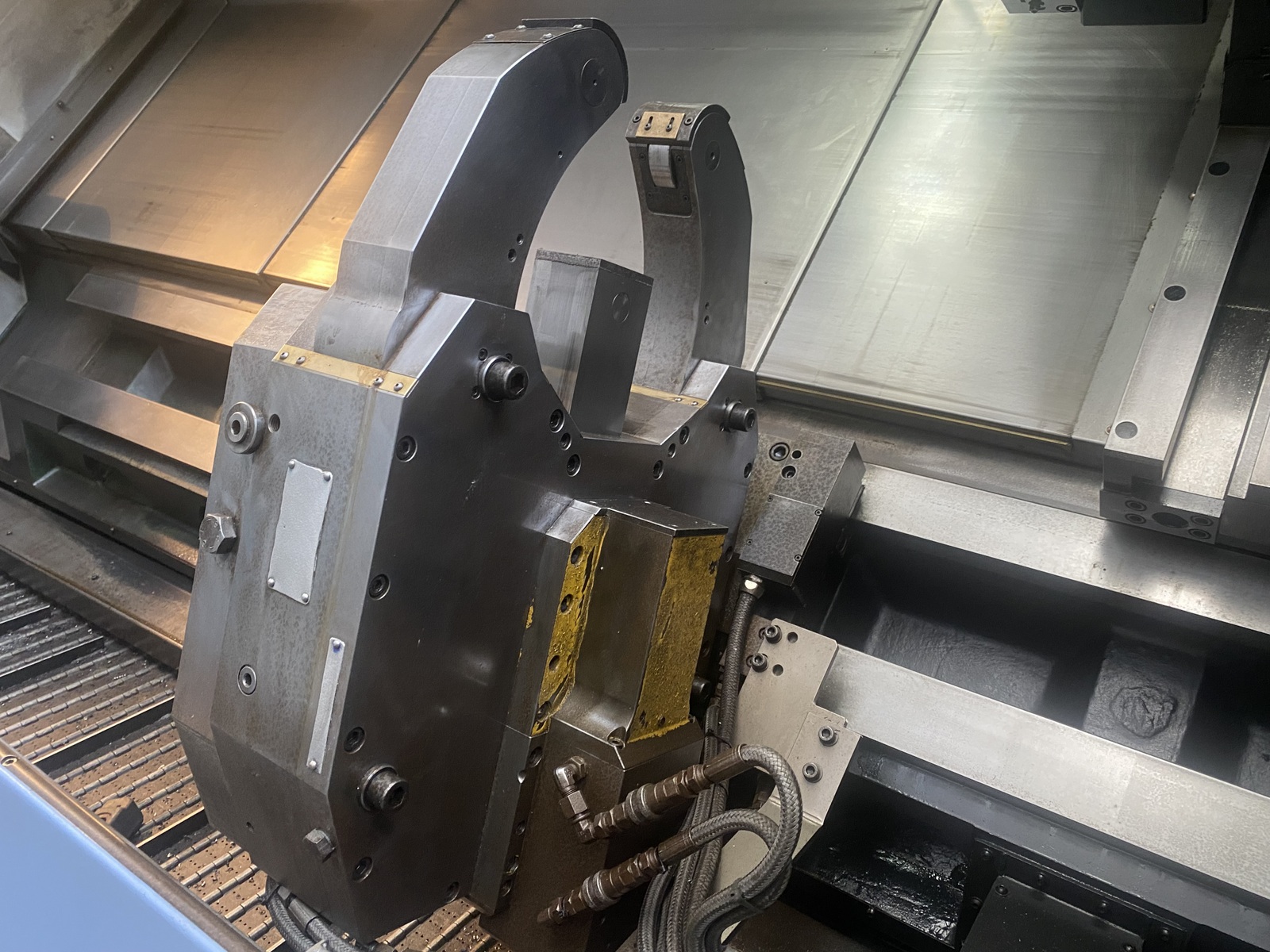

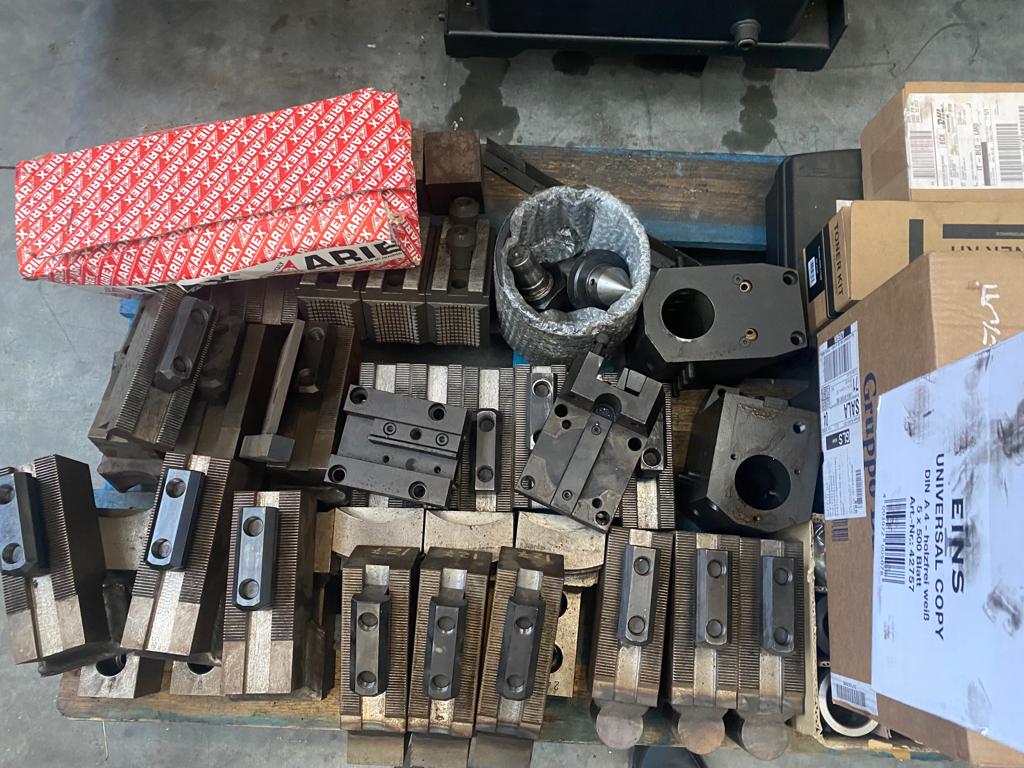

AccessoriesChip conveyor, Coolant tank with high pressure pump, Various live-tool holders, Various fix tool holders, Various jaw sets, Automatic Hydraulic steady-rest make MORARI (150-420 mm), Mauals, Electric diagrams and EC CE Decleration
