2017 Focaseiki PM-1160
Sold
2017 Focaseiki PM-1160
Specifications
| Manufacturer | Focaseiki |
| Model | PM-1160 |
| Year | 2017 |
| Condition | Used |
| CNC Control | Fanuc 0i-MF |
| Spindle tool size | ISO-40 |
| Spindle speed | 10.000 RPM |
| Spindle motor power (cont/30 min) | 11/15 kW |
| X axis | 1.100 mm |
| Y axis | 600 mm |
| Z axis | 600 mm |
| Table dimensions | 1.160 x 600 mm |
| Max load allowed on table | 1.000 Kg |
| X / Y / Z axis rapid feedrates | 36.000 / 36.000 / 24.000 mm/min |
| Tool type | DIN 69871-A40 |
| ATC capicity | 40 positions |
| Max tool diameter | 75 mm |
| Max tool lenght | 300 mm |
| Max tool weight | 7 Kg |

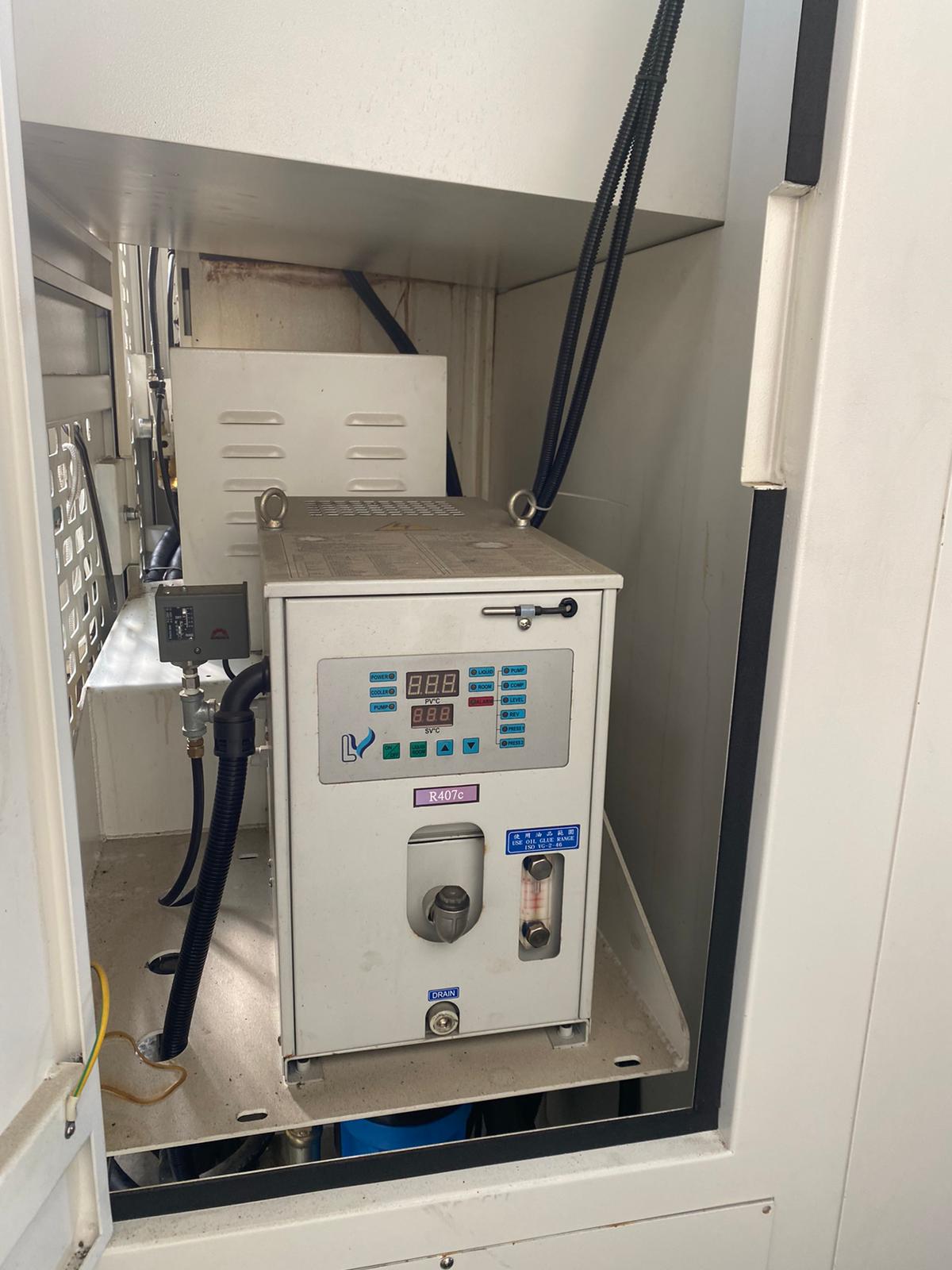

| Accessories | Coolant tank and chip-conveyor and chips bucket, chiller for spindle head and transformer, Manuals, Electrical Diagrams e EC CE Declaration |
