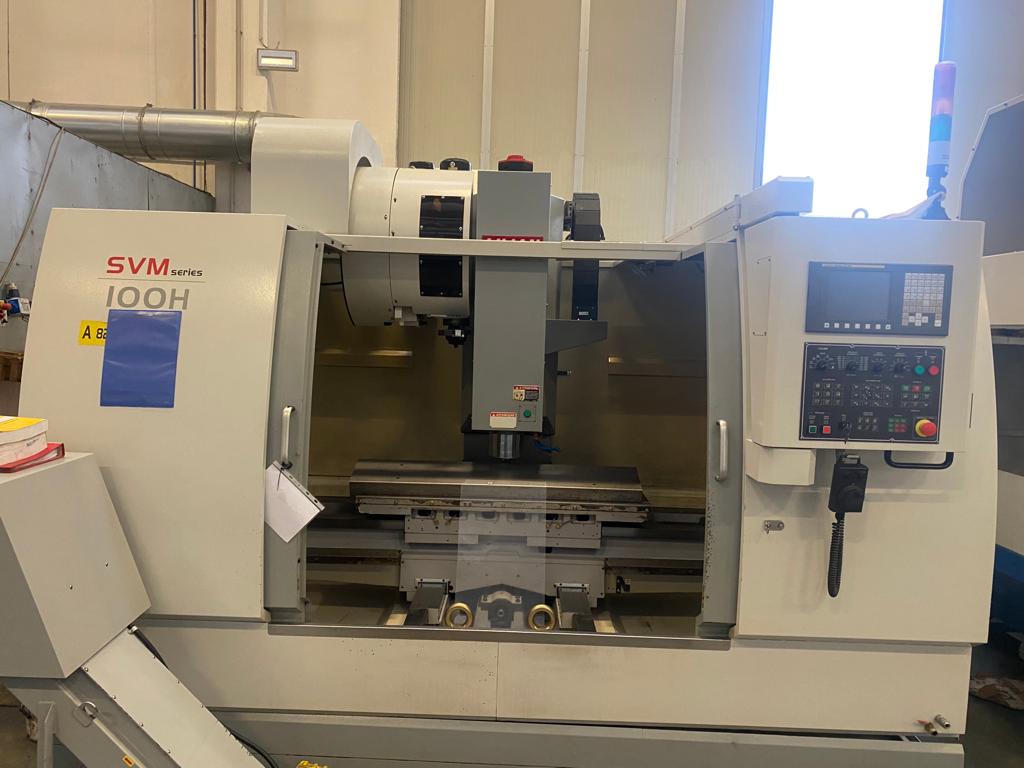

2012 Lilian SVM-100H
2012 Lilian SVM-100H
Specifications
| Manufacturer | Lilian |
| Model | SVM-100H |
| Year | 2012 |
| Condition | Used |

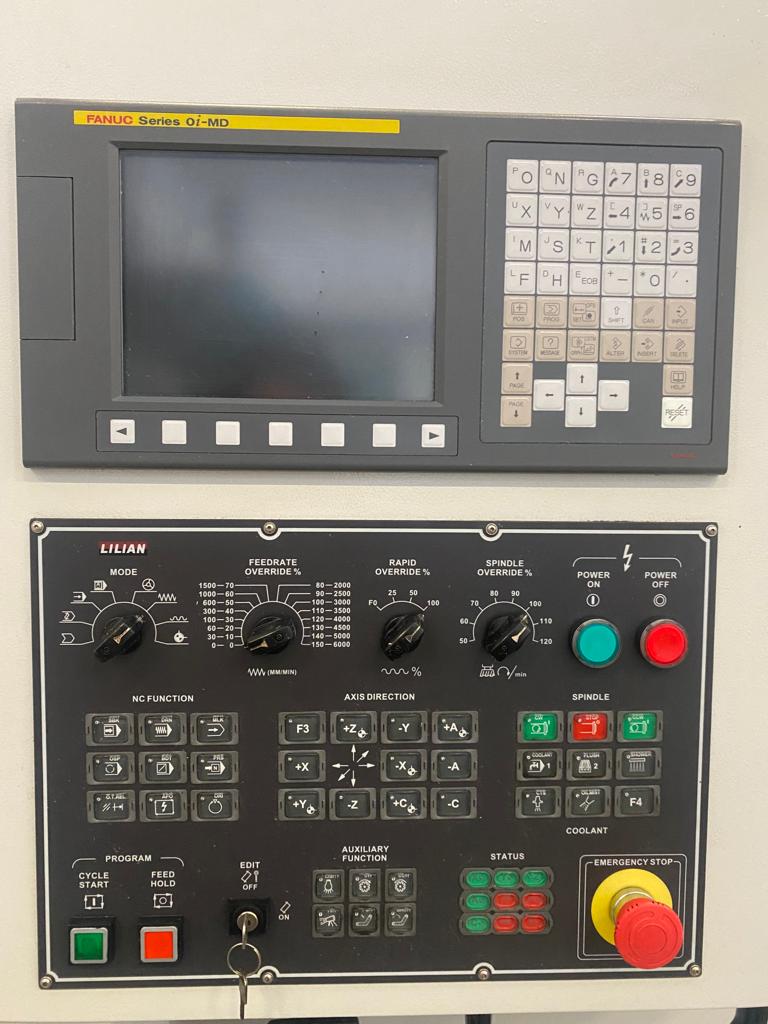

| CNC Control | FANUC Series 0i-MD |
| Spindle tool size | ISO 40 |

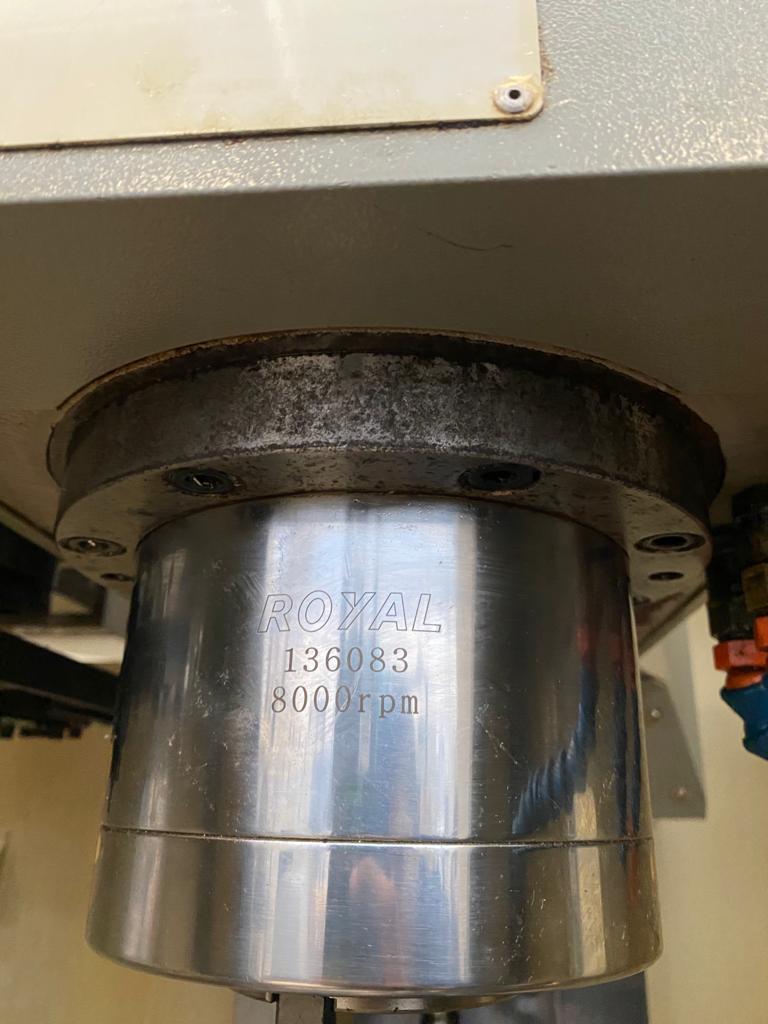

| Spindle speed | 8.000 Rpm |
| Spindle motor power (cont/30 min) | 7,5/11 kW |
| X axis | 1.020 mm |
| Y axis | 510 mm |
| Z axis | 560 mm |
| Table dimensions | 1.200 x 500 mm |
| Max load allowed on table | 650 Kg |
| X / Y / Z axis rapid feedrates | 15.000 mm/min |
| X / Y / Z axis working feedrates in linear interpolation (max) | 1 - 8.000 mm/min |
| Tool type | BT-40 |
| ATC capicity | 24 Stations |
| Max tool diameter | Ø 80 mm |
| Max tool weight | 6 Kg |

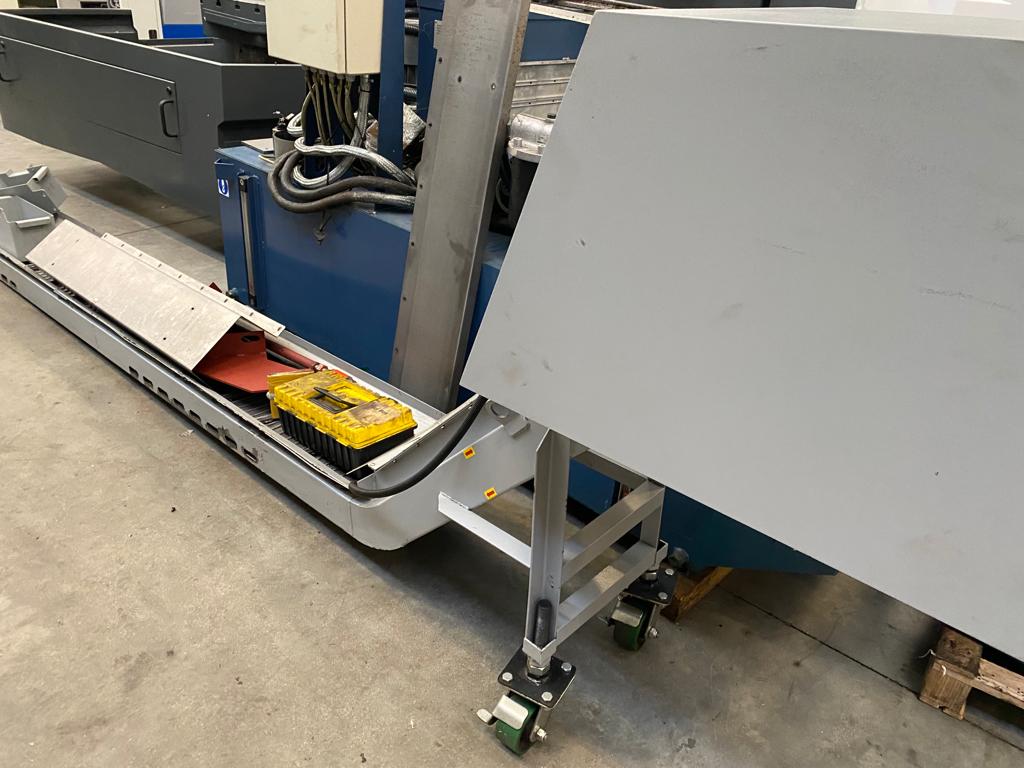

| Accessories | Chip conveyor - Coolant tank with pumps - Manuals - Electrical diagrams - EC CE Decleration |
