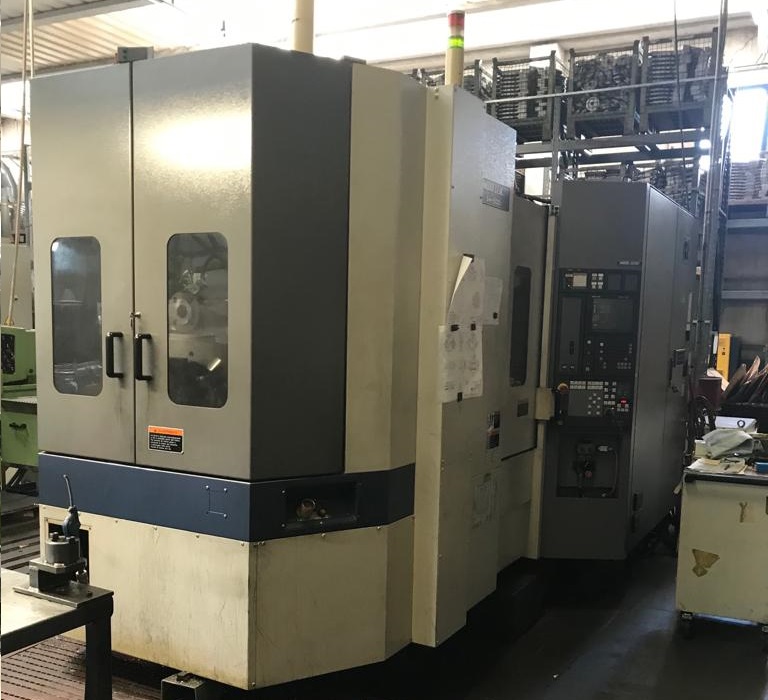

1999 Mori Seiki SH-500
Sold
1999 Mori Seiki SH-500
Description
Length 4,500 mm
Width 2,900 mm
Height 3.430 mm
Spindle
Work Capacity
Table
Advancements
Tool change
Other
Chip bowl and conveyor

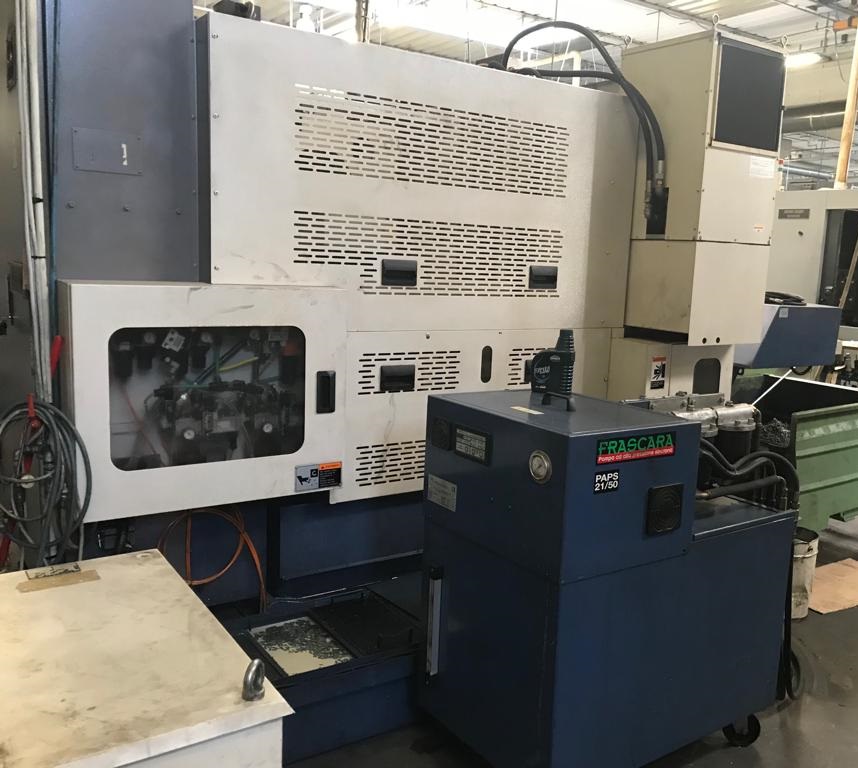

External high pressure pump interface with paper filter
Probe for tool breakage control
Conditioner for spindle head and transformer
Manuals, Wiring Diagrams and EC Declaration
Specifications
| Manufacturer | Mori Seiki |
| Model | SH-500 |
| Year | 1999 |
| Condition | Used |

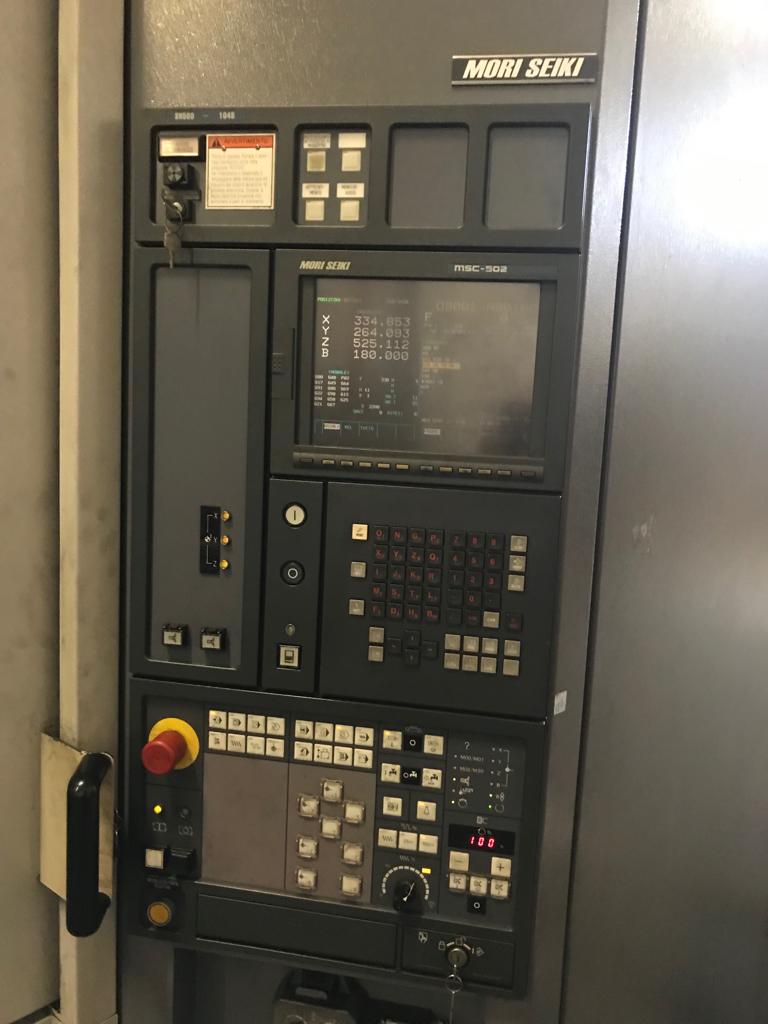

| Cnc control | FANUC MSC-502 |
| Machine weight | 14 Ton |
| Size cone | ISO-40 |
| Spindle speed | 12,000 rpm |
| X axis | 630 mm |
| Y axis | 600 mm |
| Z axis | 650 mm |
| Table dimensions | 500 x 500 mm |
| Number of stations | 2 stations with 1 pallet each |
| Load capacity of the table | 500 Kg |
| Table rotation | 360 positions (indexed) |
| X / y / z axis rapid advances | 32,000 mm / min |
| Advances in machining axes x / y / z | 16,000 mm / min |
| Tool cone | MAS BT-40 |
| Tool shank | 90th died |
| Tool storage capacity | 60 stations |
| Maximum tool diameter (with adjacent full stations) | 150/100 mm |
| Maximum tool length | 360 mm |
| Maximum tool weight | 12 Kg |
