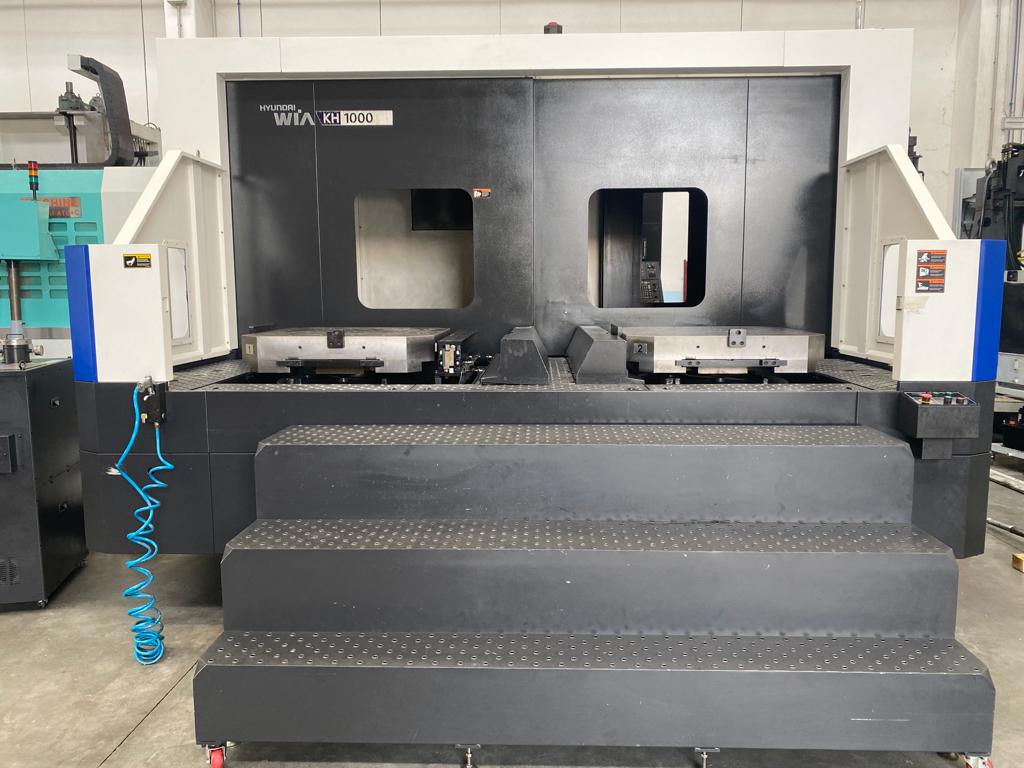

2012 Hyundai WIA KH-1000
Sold
2012 Hyundai WIA KH-1000
Specifications
| Manufacturer | Hyundai WIA |
| Model | KH-1000 |
| Year | 2012 |
| Condition | Used |

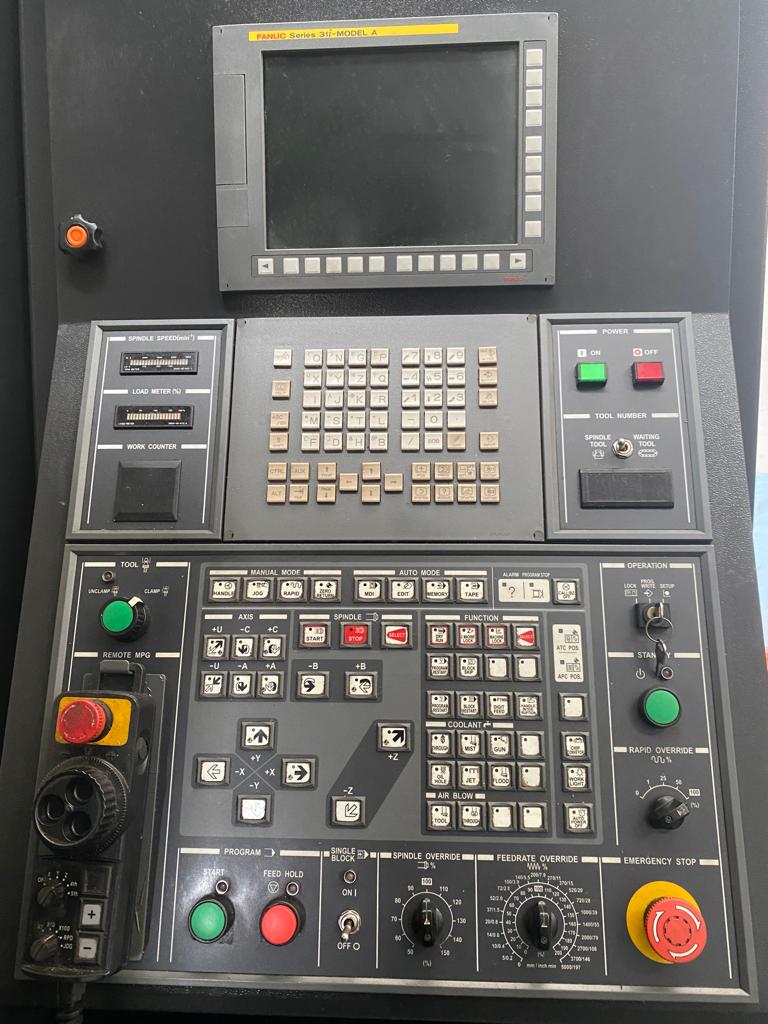

| CNC Control | FANUC Series 31i-A |

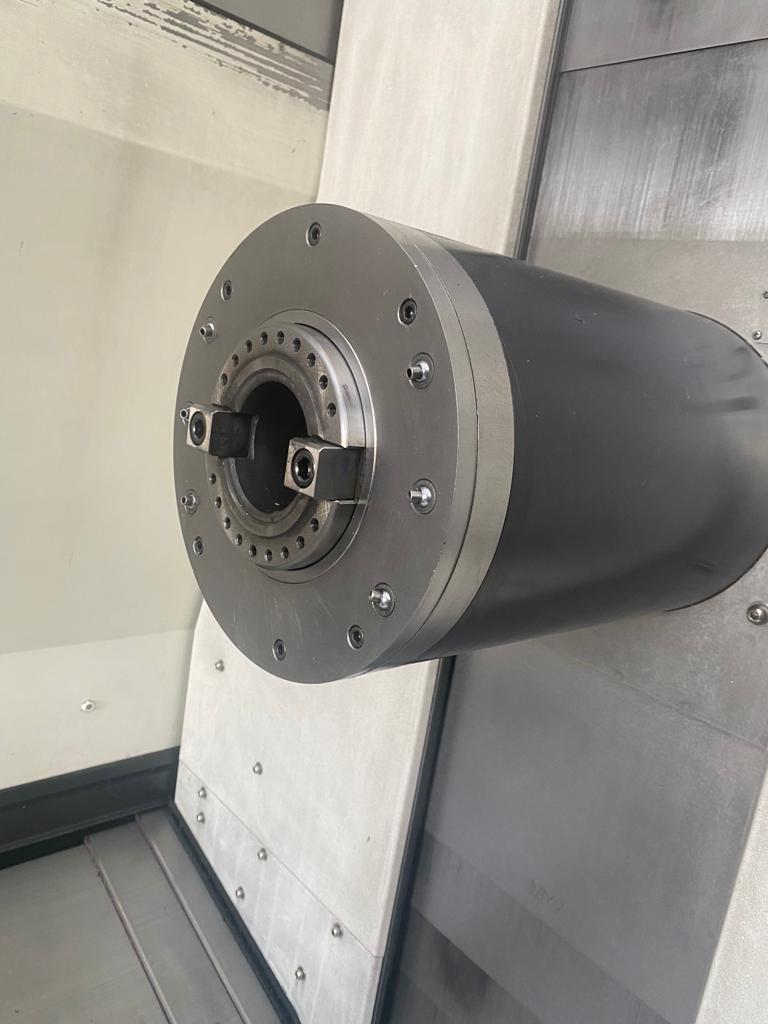

| Spindle size | ISO 50 (Big Plus) |
| Spindle speed | 8.000 Rpm |
| Spindle Speed Steps | 2 Steps |
| Spindle motor power (cont/30 min | 22 / 26 kW |
| X axis | 2.100 mm |
| Y Axis | 1.350 mm |
| Z Axis | 1.400 mm |
| Distance between spindle nose - table center | 300 ÷ 1.700 mm |
| Distance between spindle center - table end | 1.350 mm |
| Max workpiece dimensions | Ø 1.900 x 1.500 mm |
| Table rotation | 360 (1° min. angle) |

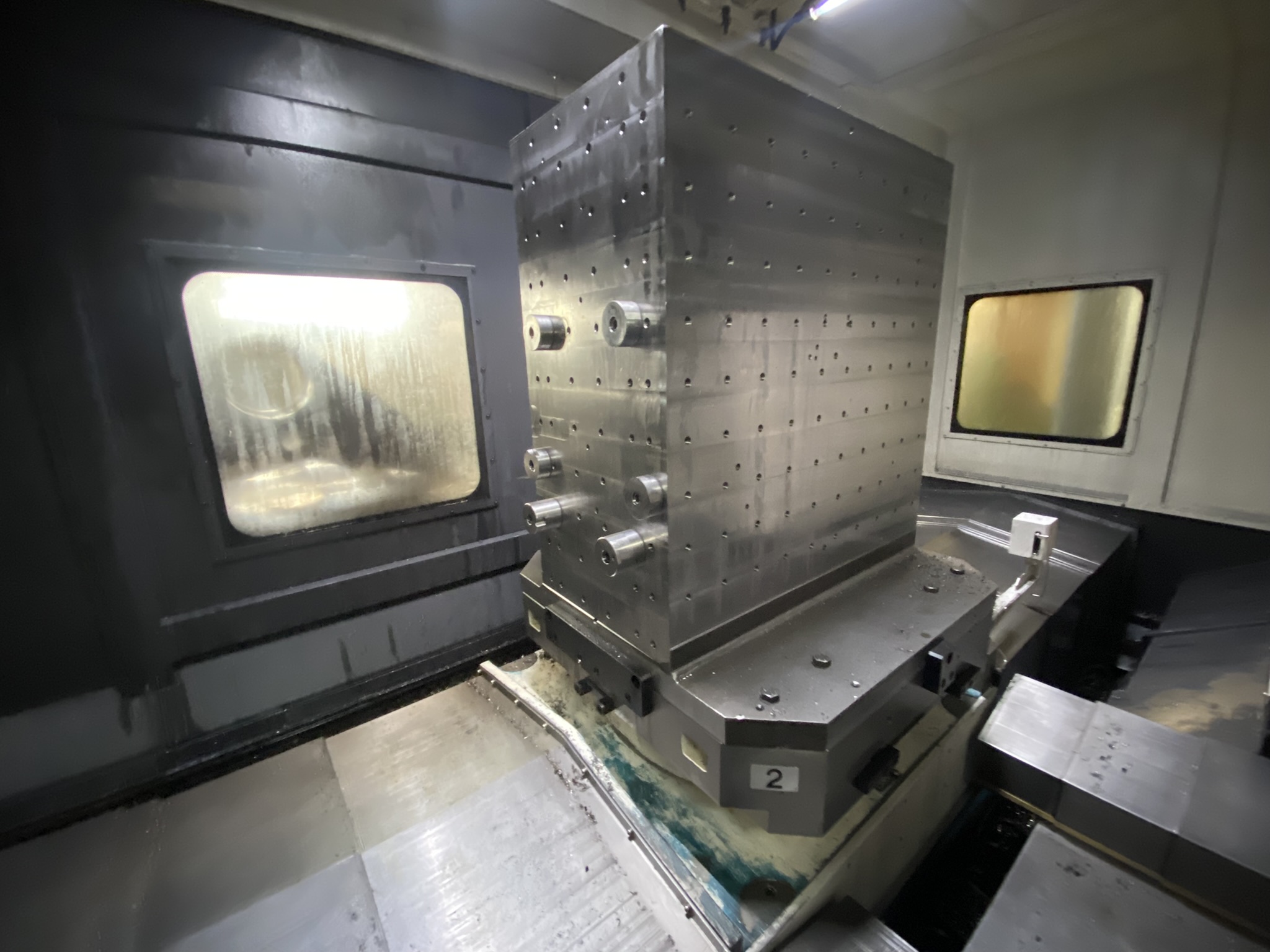

| Table dimensions | 1.000 x 1.000 mm |

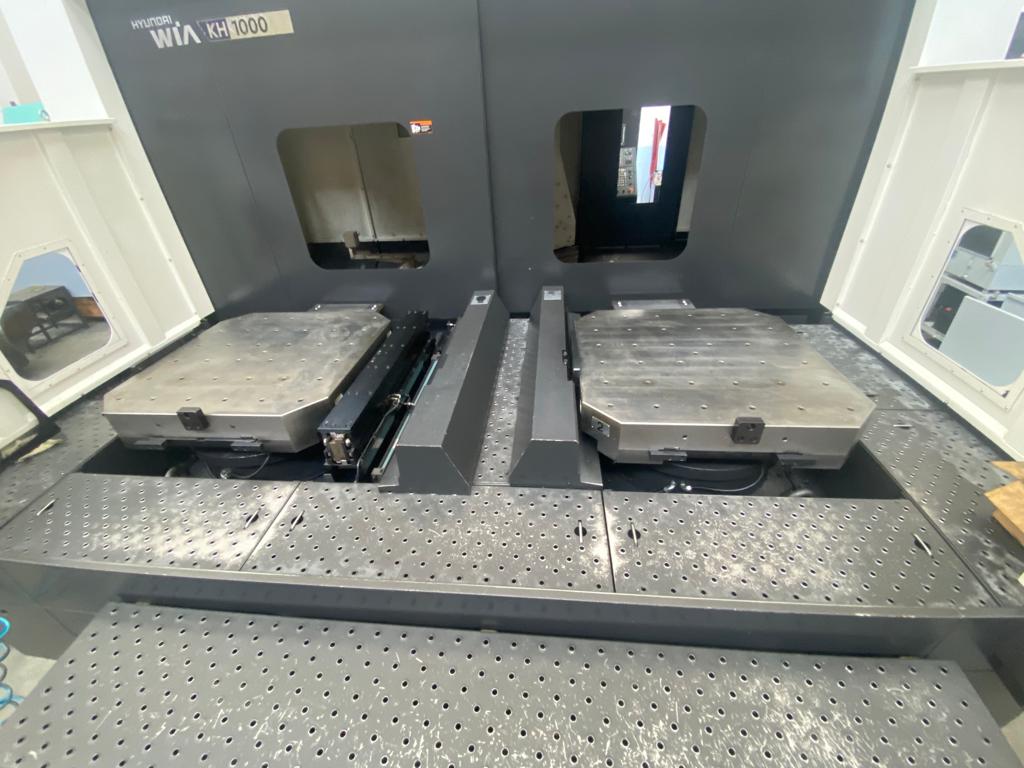

| Nr. of table pallets | 2 Pallets |
| Max table capacity | 3.000 Kg |
| Rapid feedrates X / Y / Z | 20.000 mm/min |
| Working feedrates axes X / Y / Z | 1 ÷ 5.000 mm/min |
| Tool type | BT-50 |

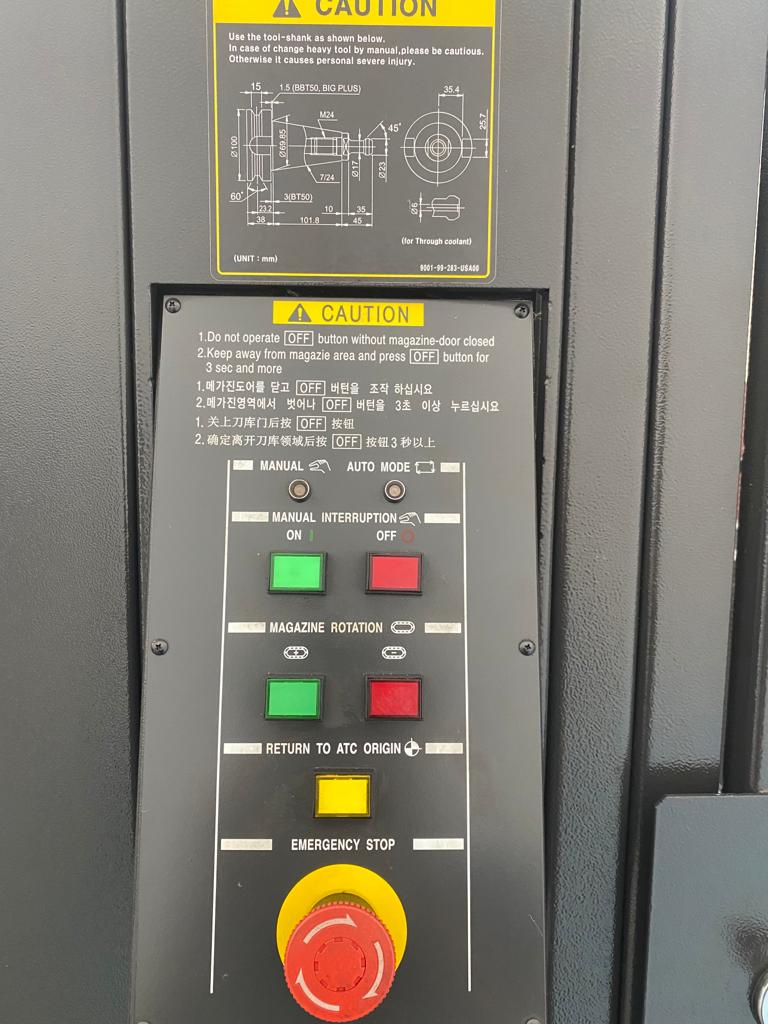

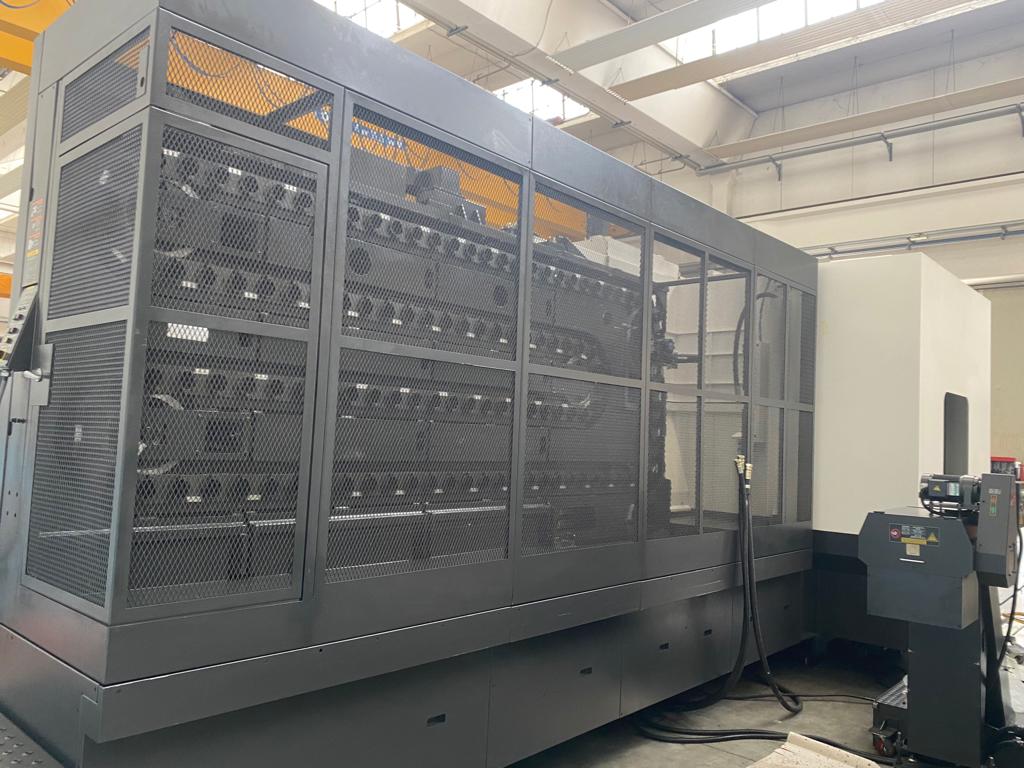

| ATC positions | 120 positions |
| Max tool diameter with adjacent (full/empty) | Ø110 / Ø245 mm |
| Tools max lenght | 600 mm |
| Tools max weight | 20 Kg |

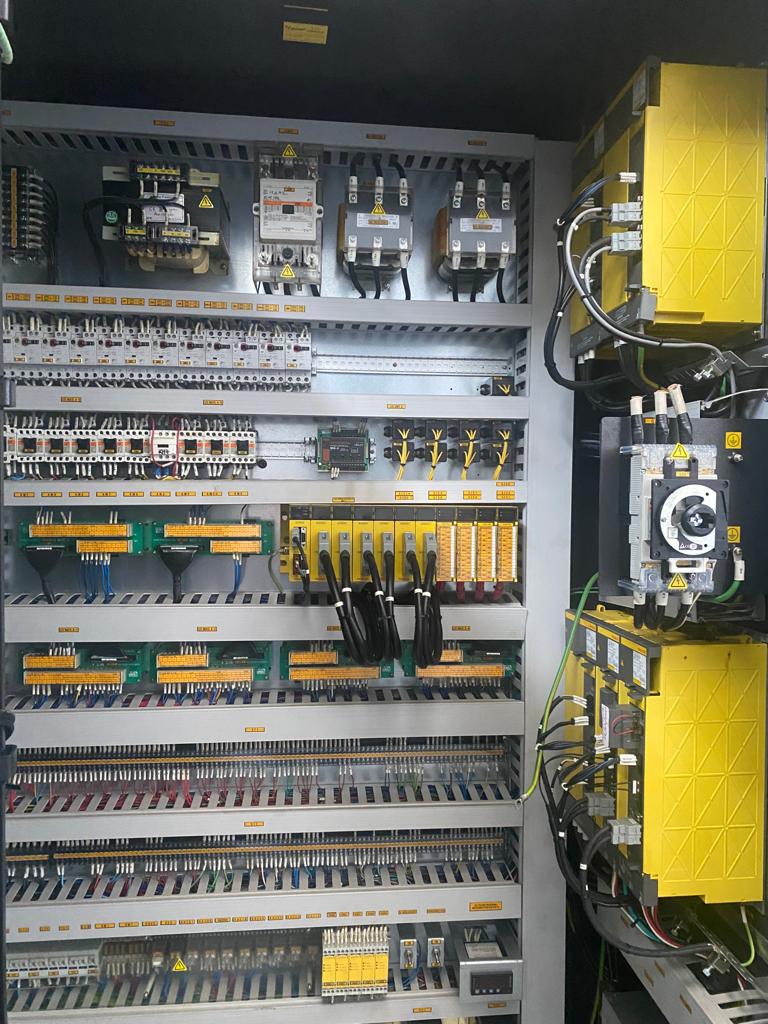

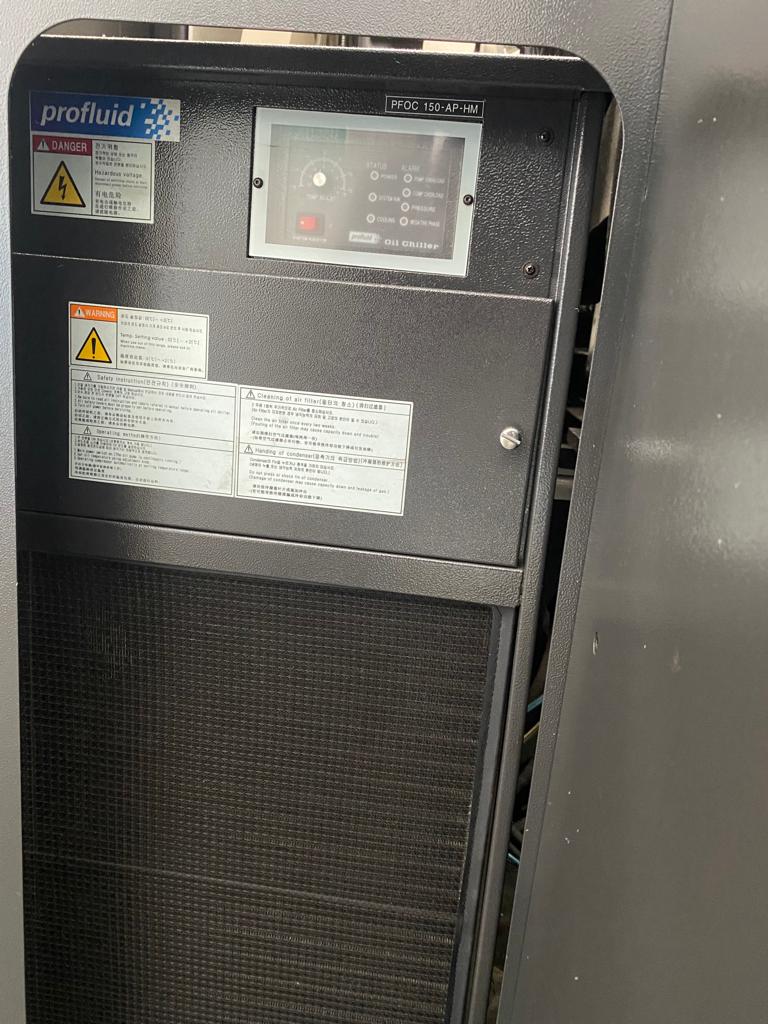

| Accessories & Others | Chip conveyor - Coolant tank with high pressure pump - Chiller for spindle head - Manuals - Electrical diagrams - EC CE Decleration |
