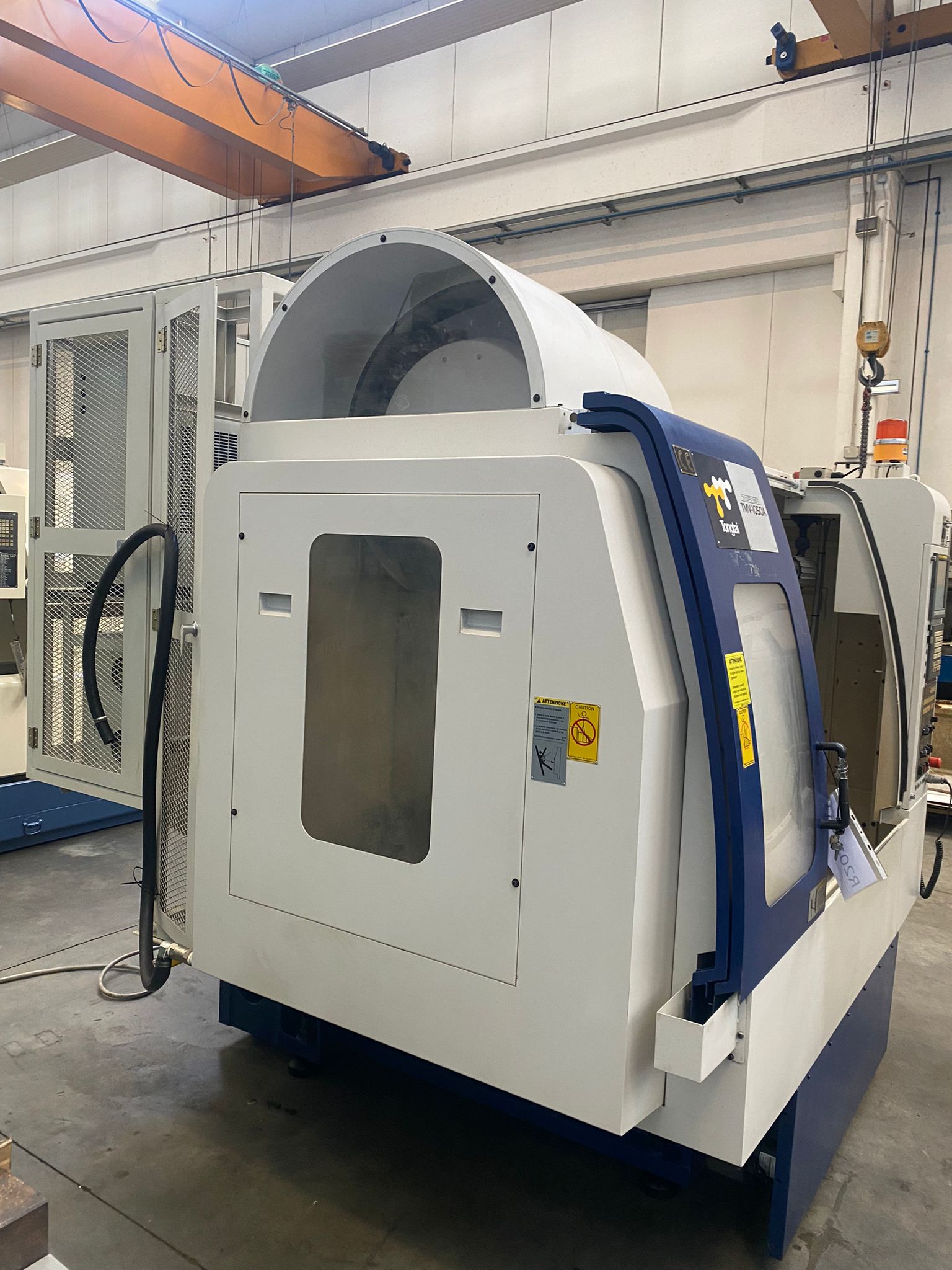

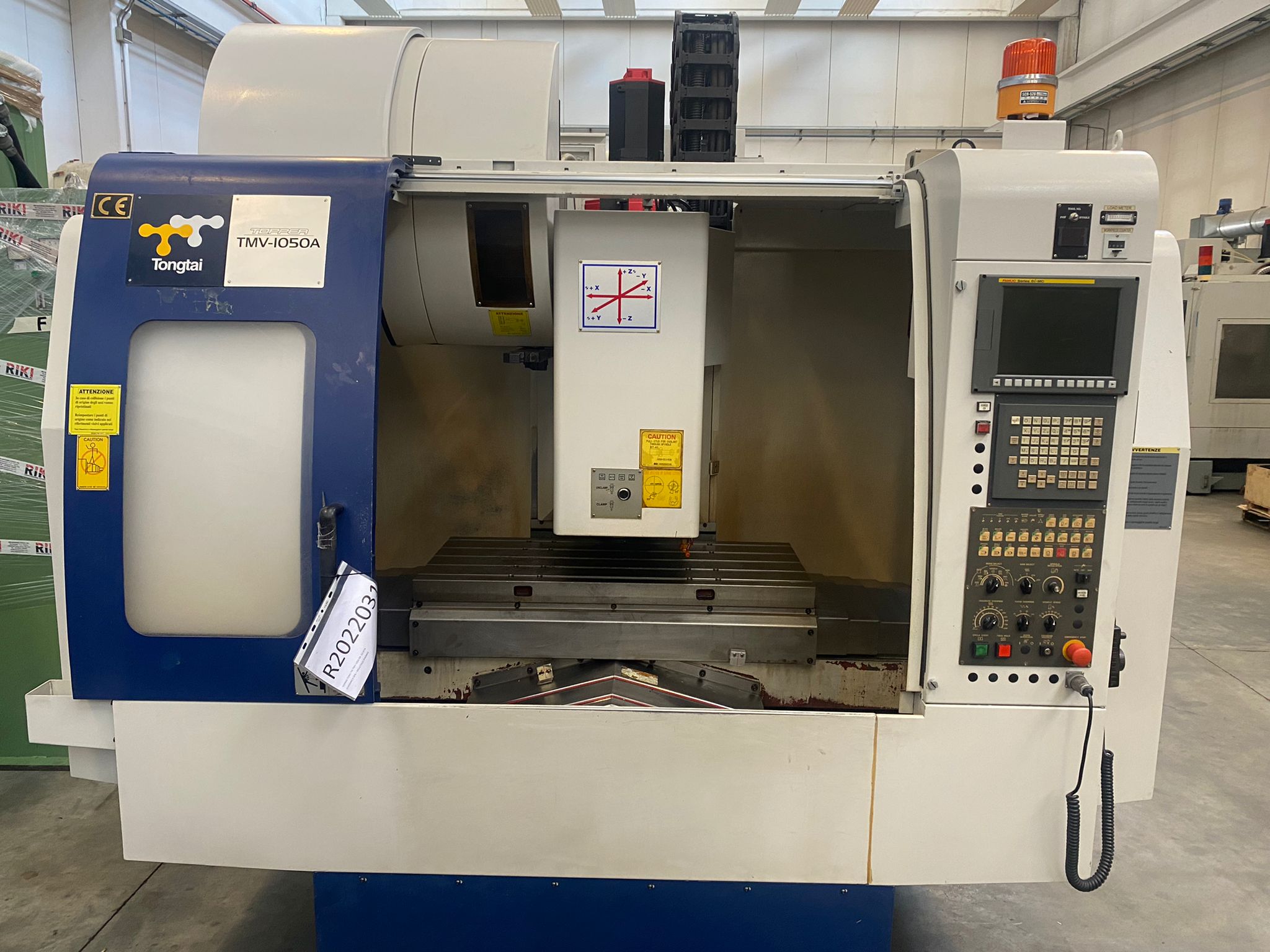

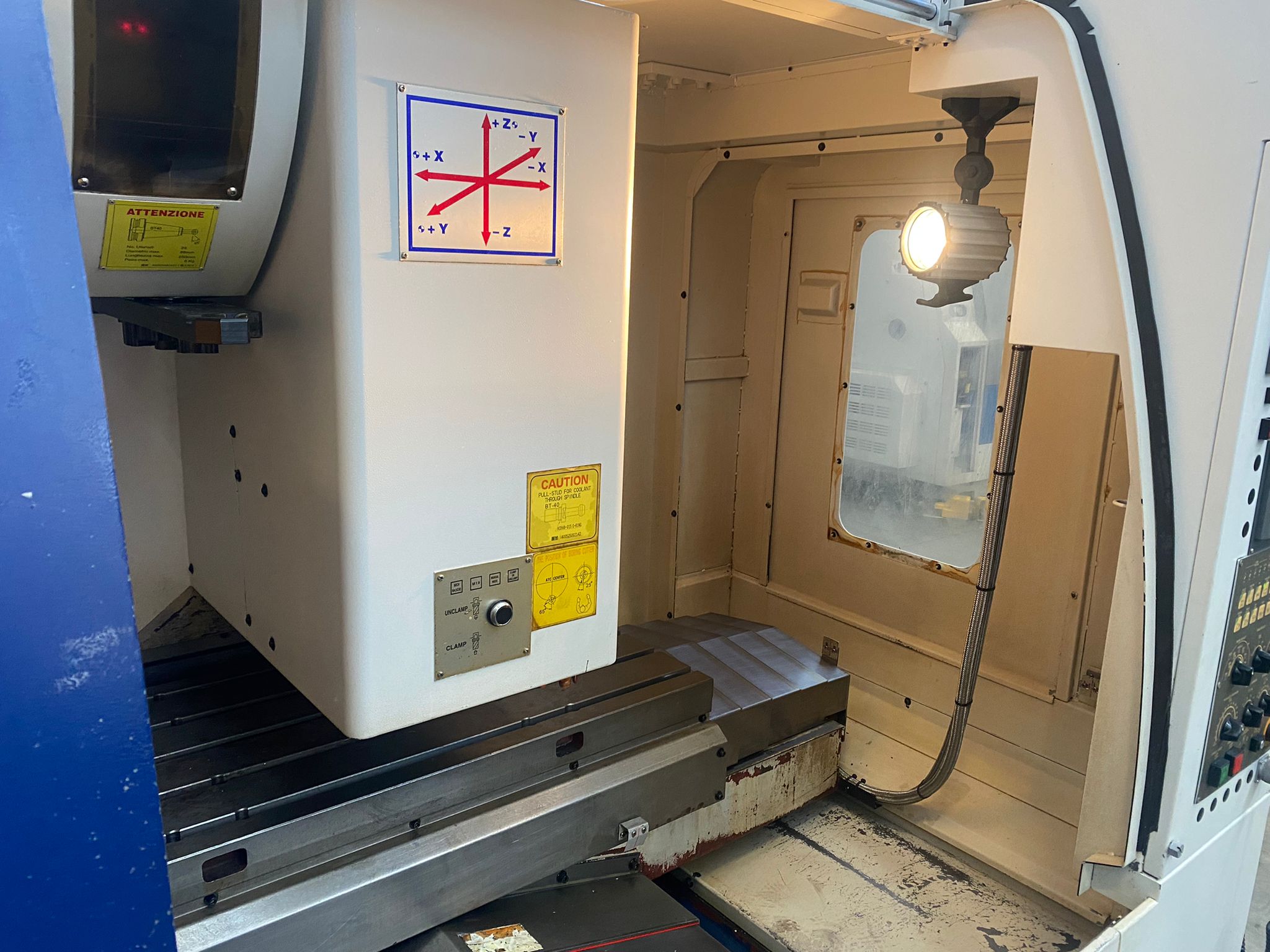

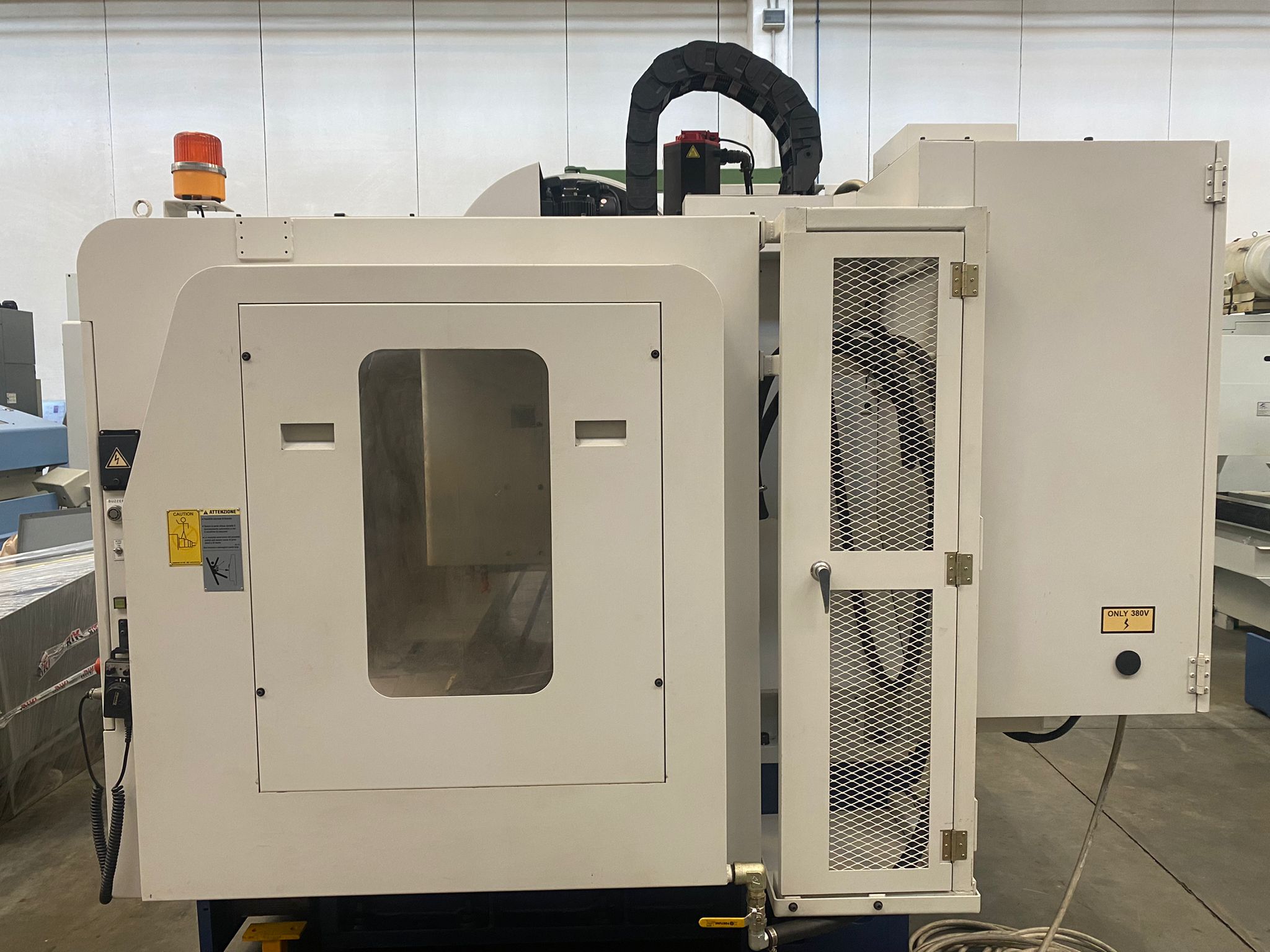

2008 Tongtai TMV-1050A

Sold

2008 Tongtai TMV-1050A

Specifications

ManufacturerTongtai
ModelTMV-1050A
Year2008
ConditionUsed

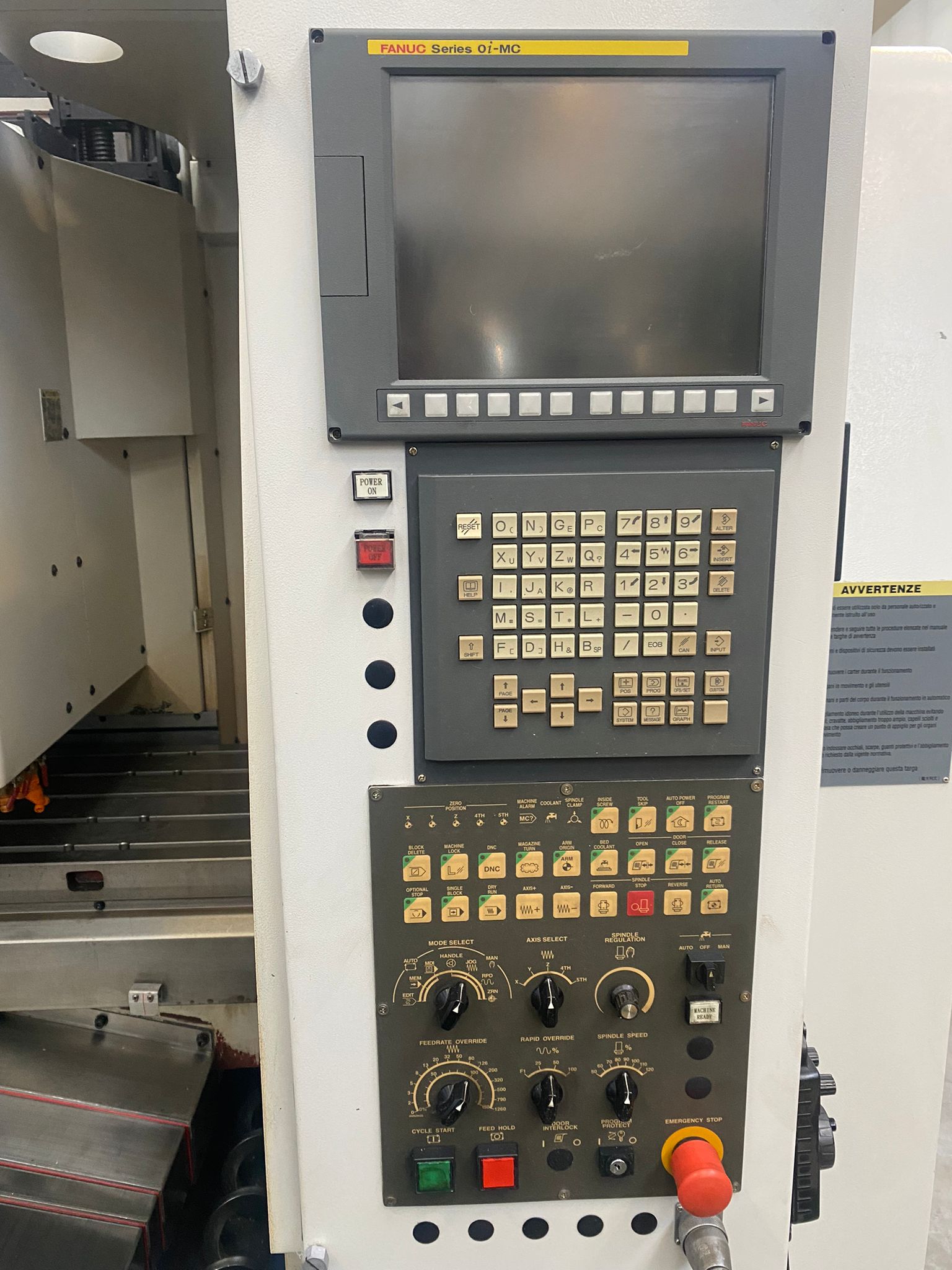

CNC ControlFANUC Series 0i-MC

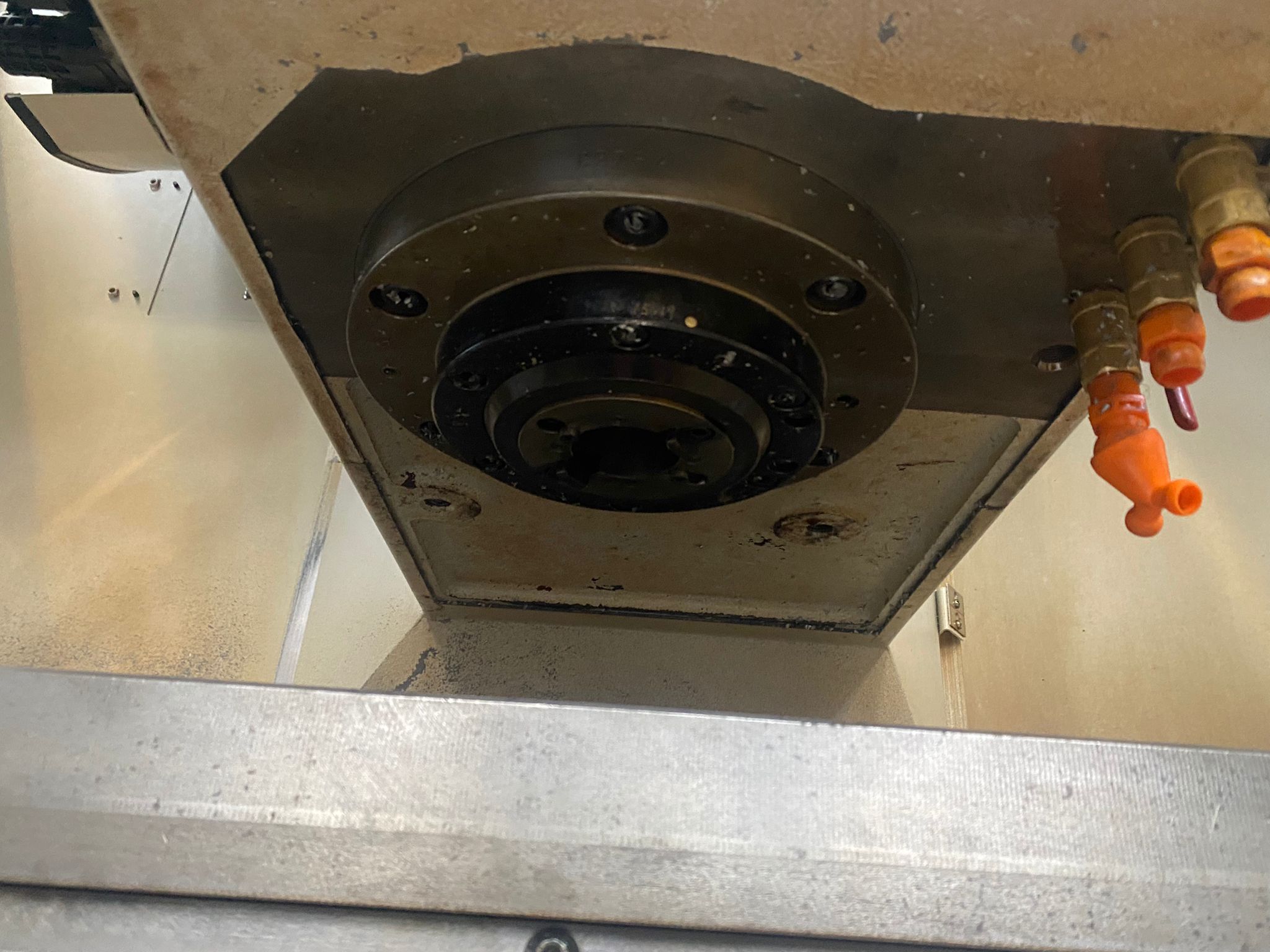

Spindle tool sizeISO 40
Spindle speed10.000 Rpm
Spindle motor power (cont/30 min)11/ 15 kW
X axis1.050 mm
Y axis500 mm
Z axis530 mm
Distanca between spindle nose - table surface100 ÷ 630 mm

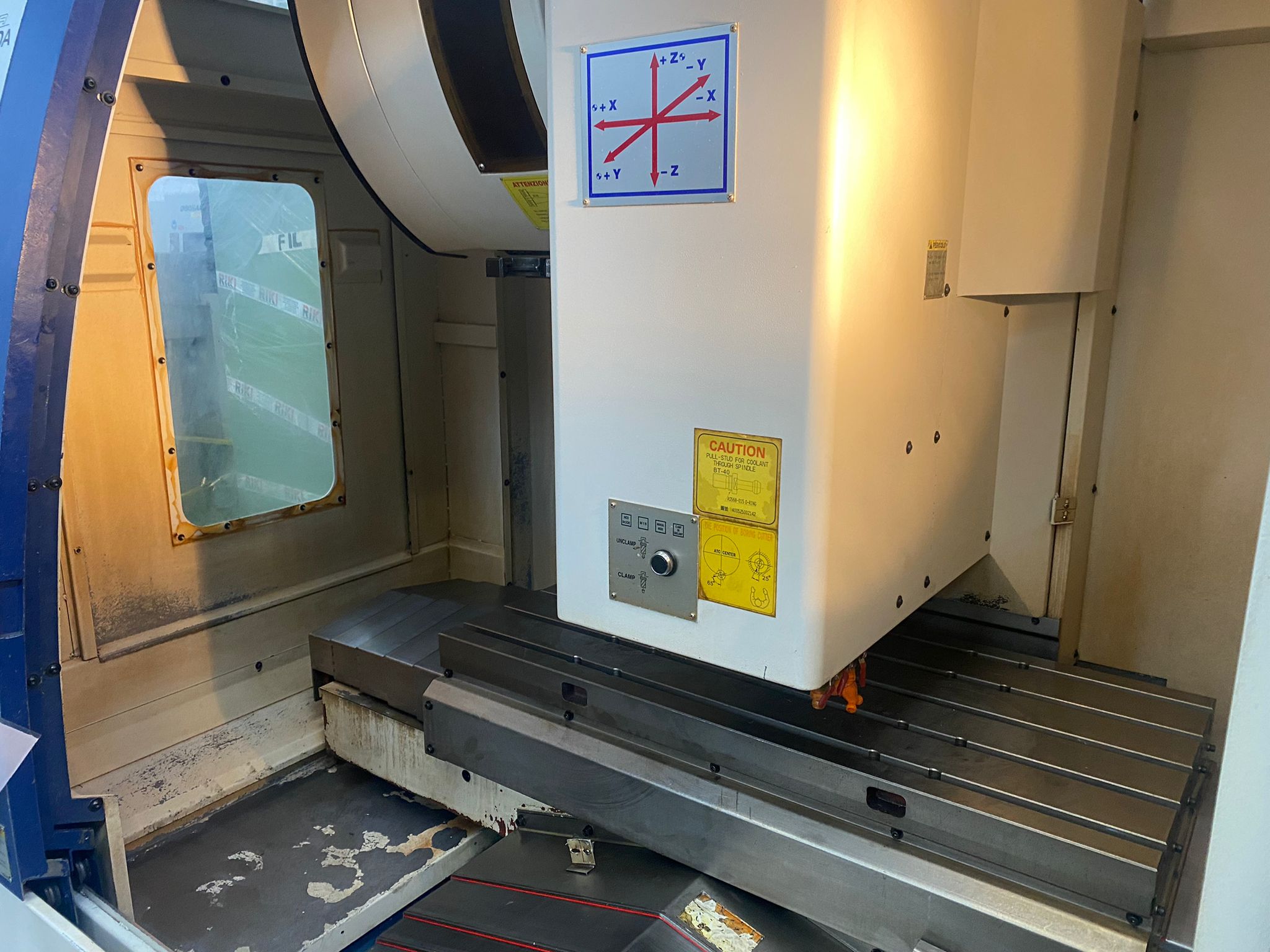

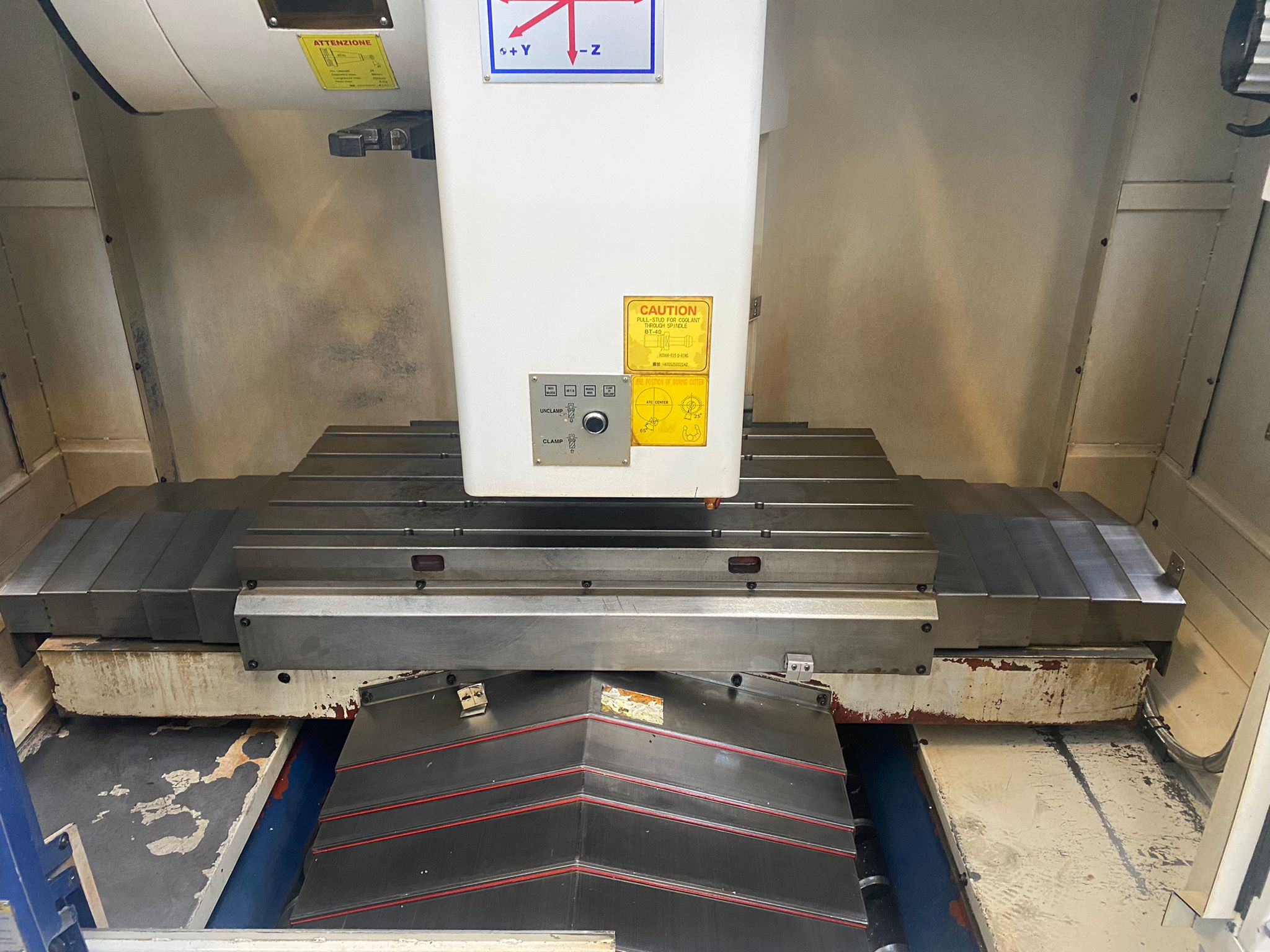

Table dimensions1.100 x 500 mm
Max load allowed on table500 kg
X / Y / Z axis rapid feedrates30.000 / 30.000 / 24.000 mm/min
X / Y / Z axis working feedrates in linear interpolation (max)1 ÷ 12.000 mm/min
Tool typeBT-40
Tool pull stud type45°

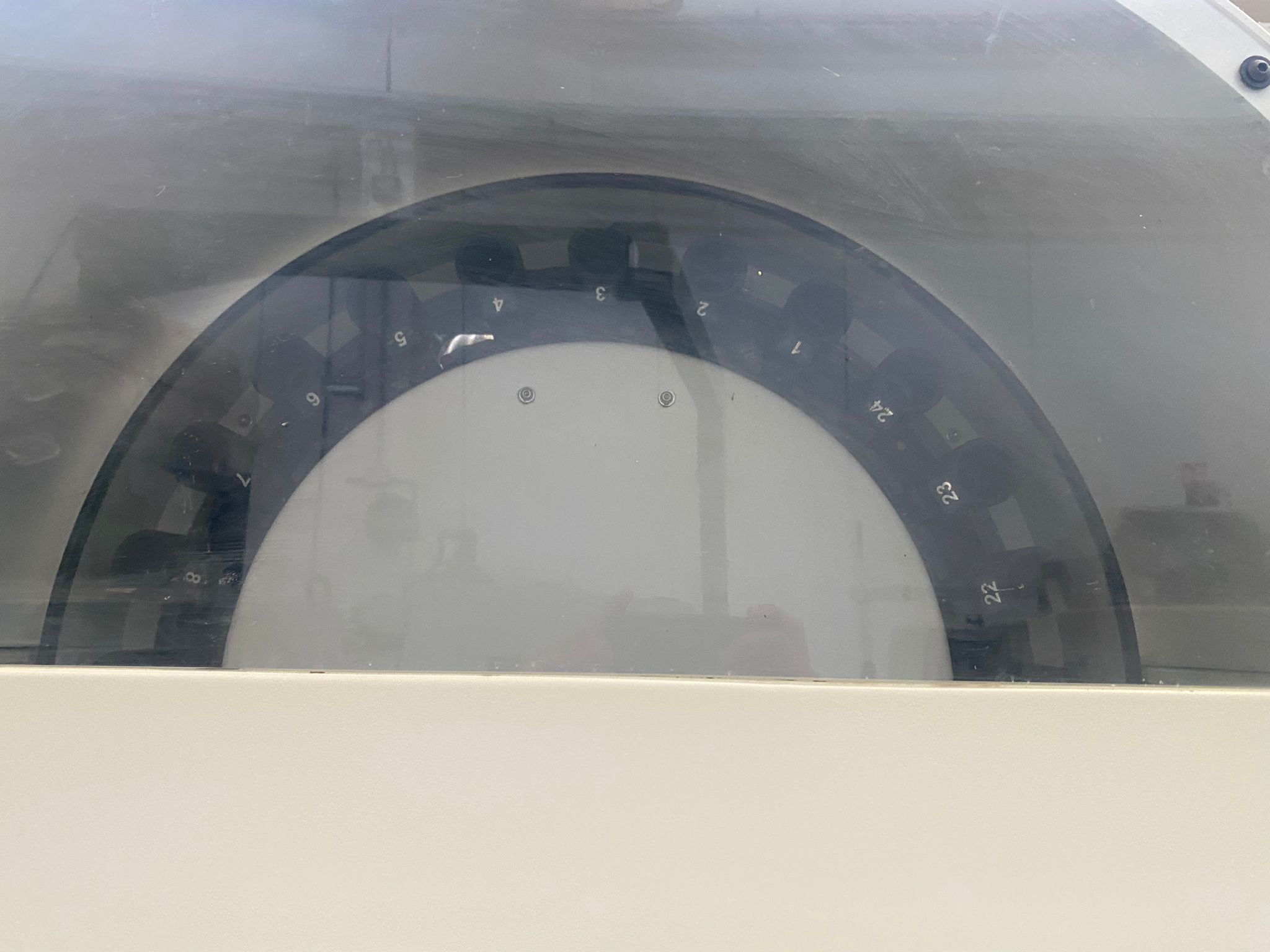

ATC capicity24 Stations
Max tool diameterØ 88 mm
Max tool lenght250 mm
Max tool weight7 Kg

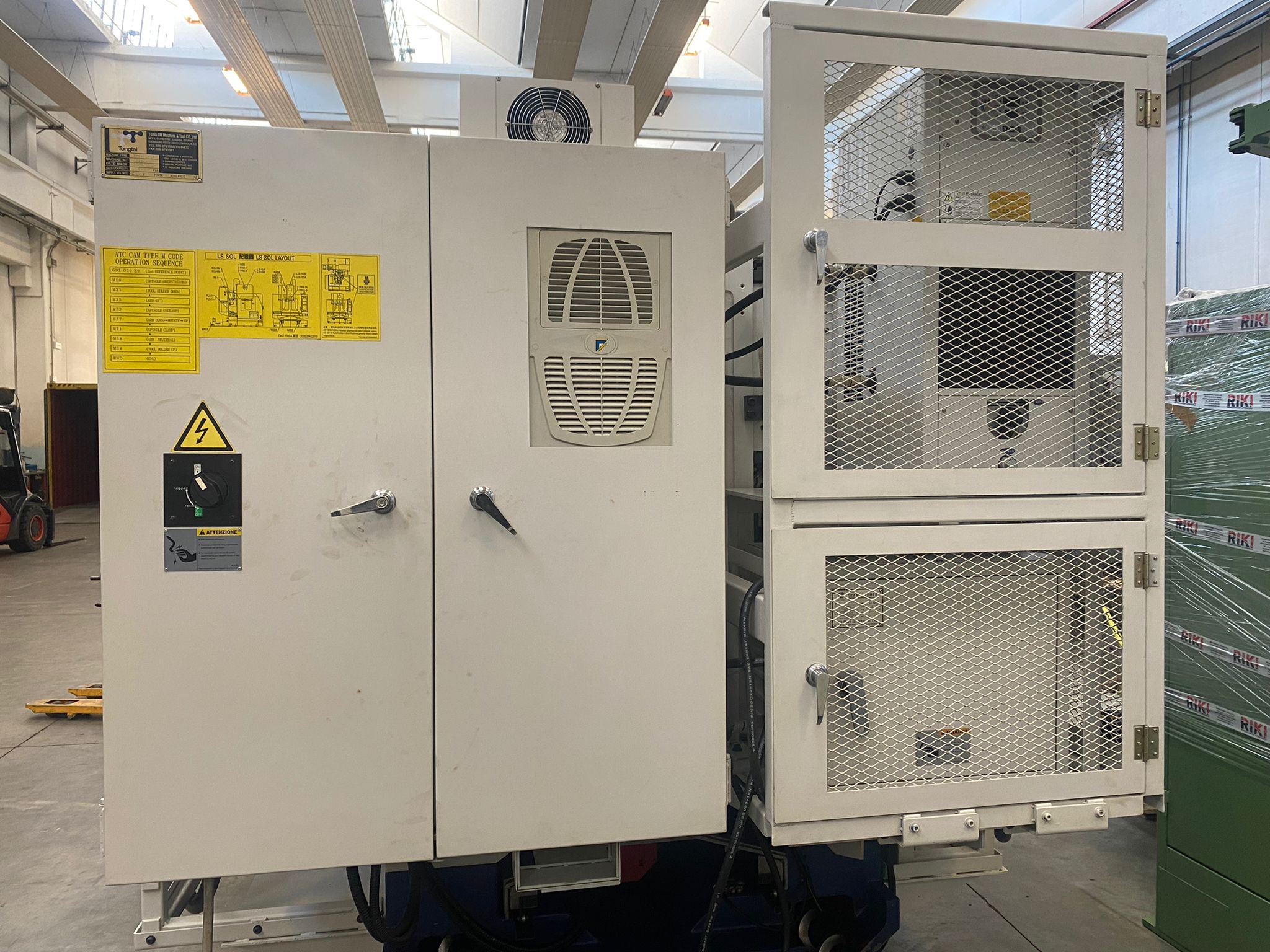

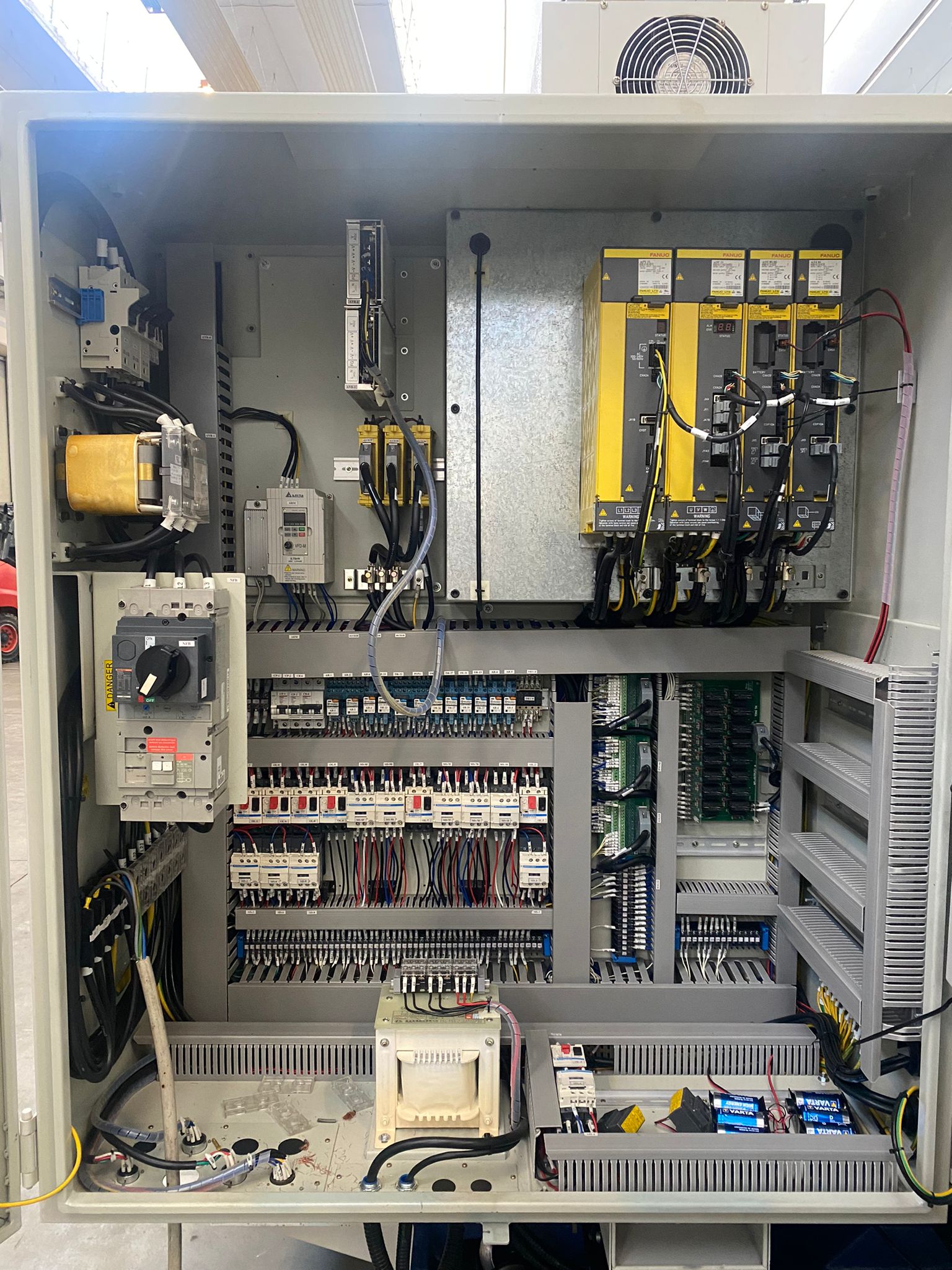

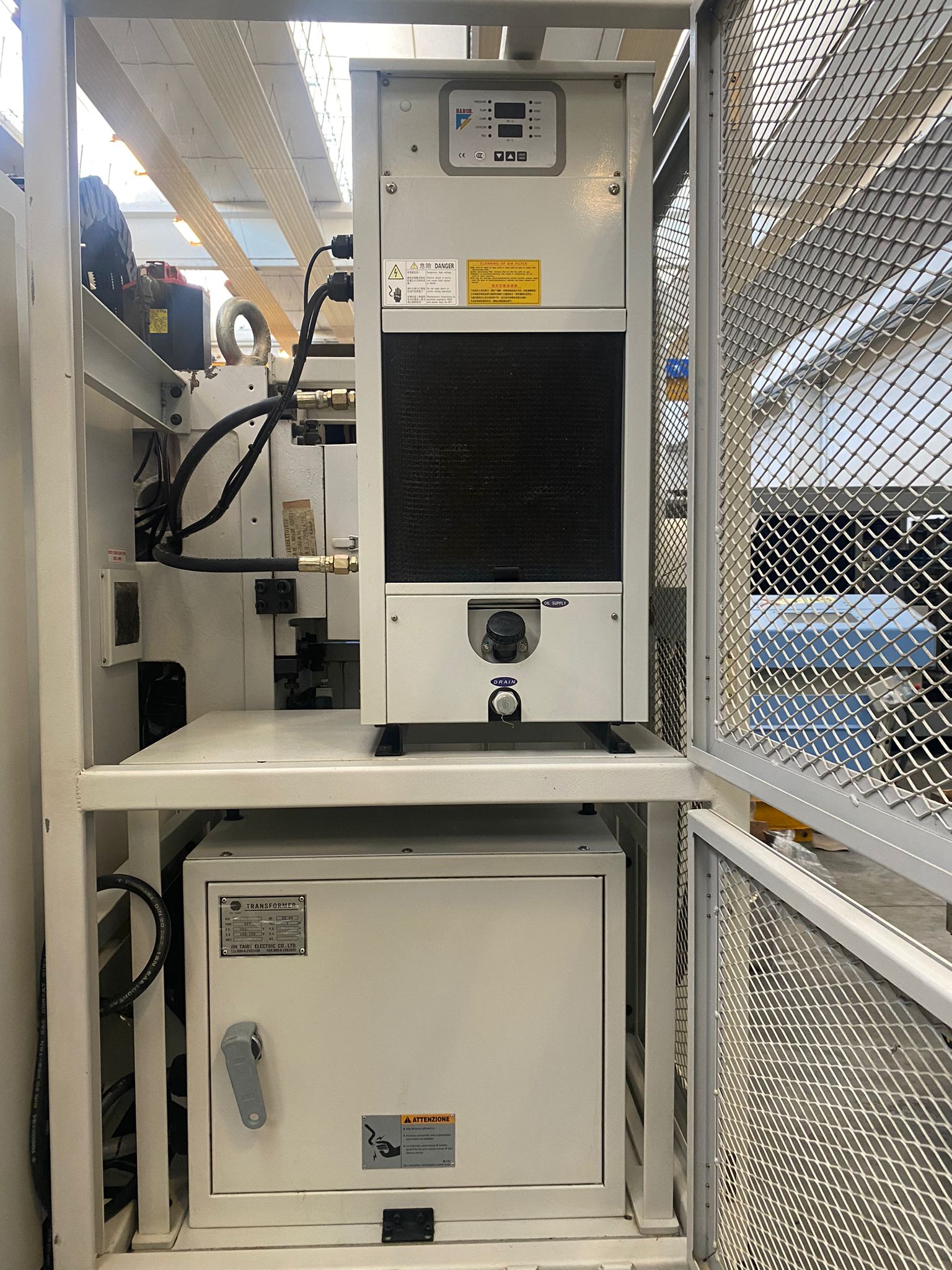

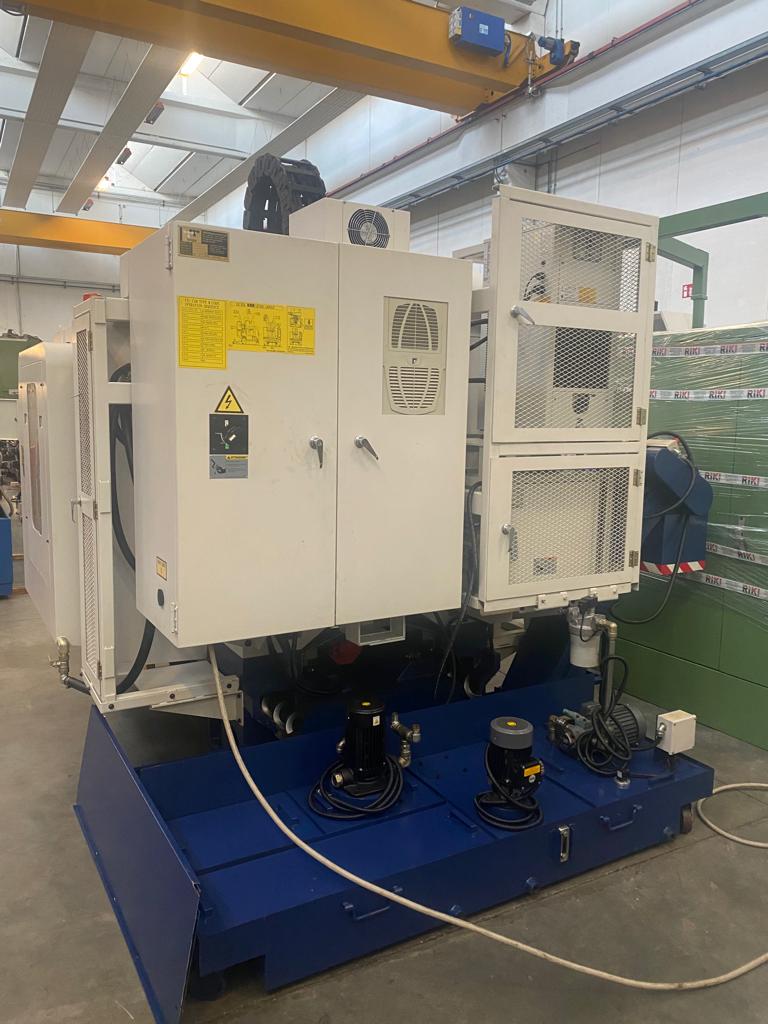

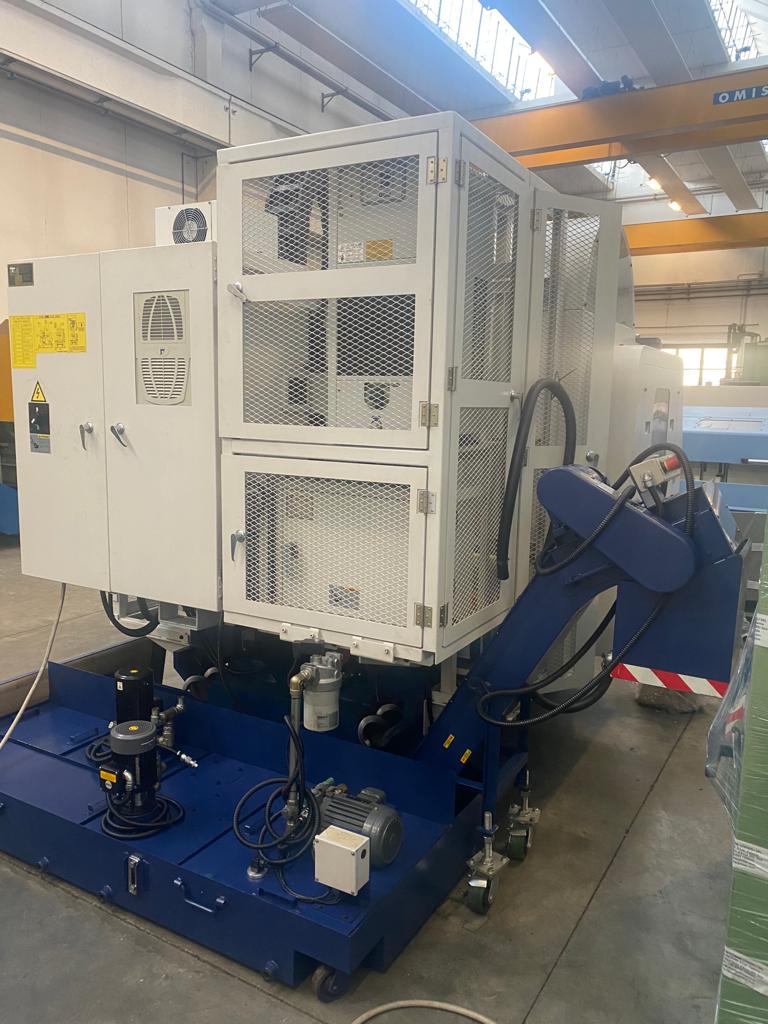

AccessoriesHigh pressure pump for coolant through spindle - Coolant tank with pumps - Chip conveyor + 2 screw type conveyor - Chiller for spindle head - Manuals - Electric diagrams - EC CE Decleration
