2002 DART VMC 650 XL/A Twin Speed

Sold

2002 DART VMC 650 XL/A Twin Speed

Description

Machine overhauled as follows:

  • ball screws X and Y axis overhauled + new bearing

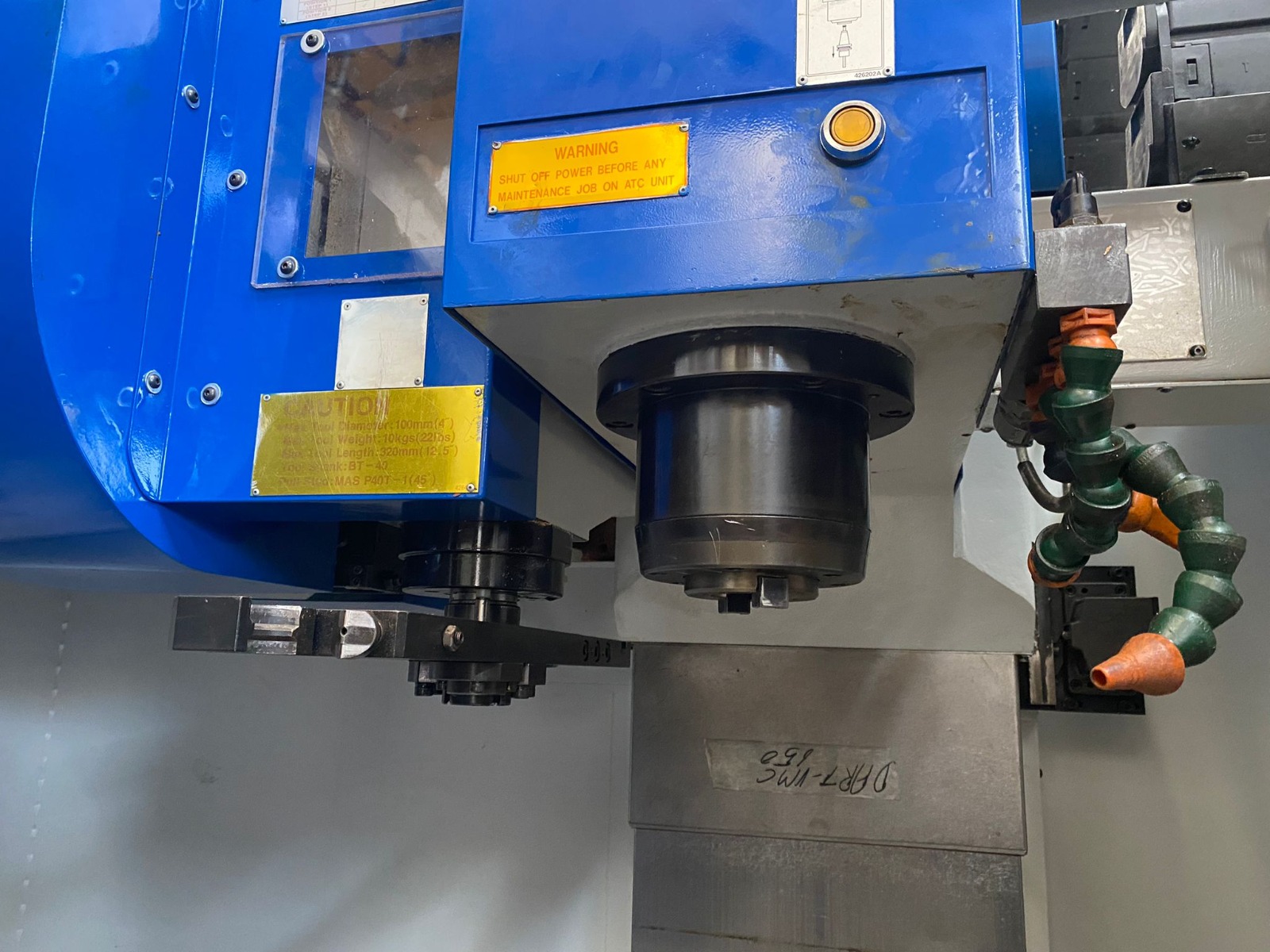

  • Spindle overhauled with new bearings, seals and new belt
  • Telescopic covers refurbished and new guides scrapers
  • Turcite B Material on X and Y axis controlled + lubrication system

Specifications

ManufacturerDART
ModelVMC 650 XL/A Twin Speed
Year2002
ConditionUsed

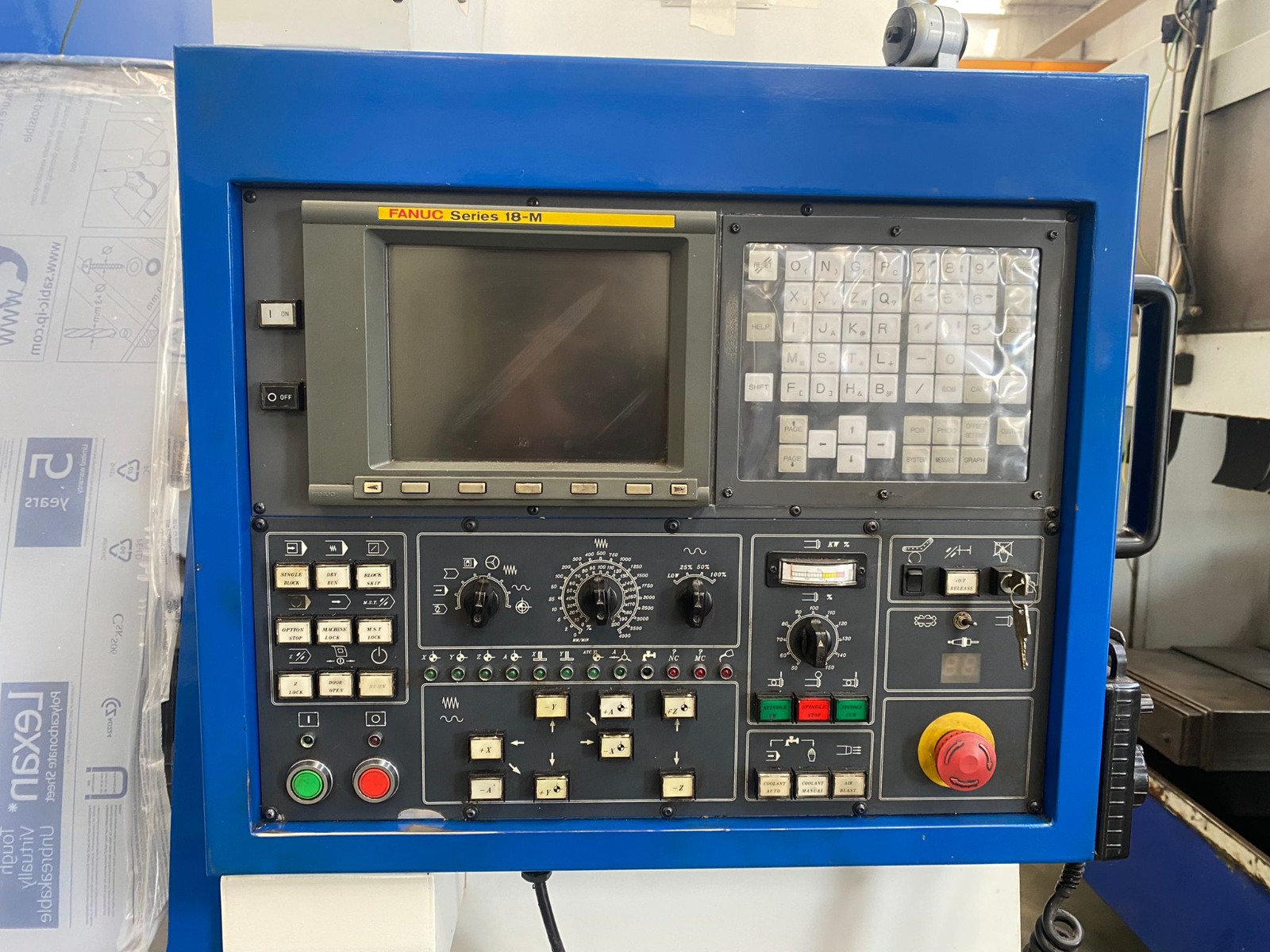

CNC ControlFANUC Sereies 18-M
Spindle tool sizeISO 40
Spindle speed60 ÷ 8.000 Giri/min
Spindle motor power (cont/30 min)11 / 15 kW
X axis800 mm
Y axis500 mm
Z axis610 mm
Distance between spindle nose - table surface100 ÷ 710 mm
Distance between spindle center - column550 mm
Table dimensions1.000 x 500 mm
Max load allowed on table400 Kg
X / Y Axes rapid feed30.000 mm/min
Z Axis rapid feed20.000 mm/min
X / Y / Z Axes working feed-rates in linear interpolation (max)1 ÷ 8.000 mm/min
Tool typeBT-40
Tool pull stud typeP40T1 (45°)
ATC capicity24 Stations
Max tool diameterØ 100 mm
Max tool lenght200 mm
Max tool weight10 Kg
AccessoriesScrew type chip conveyor - Coolant tank with pump - Chiller for spindle head - Manuals - Electric diagrams - EC CE Decleration
