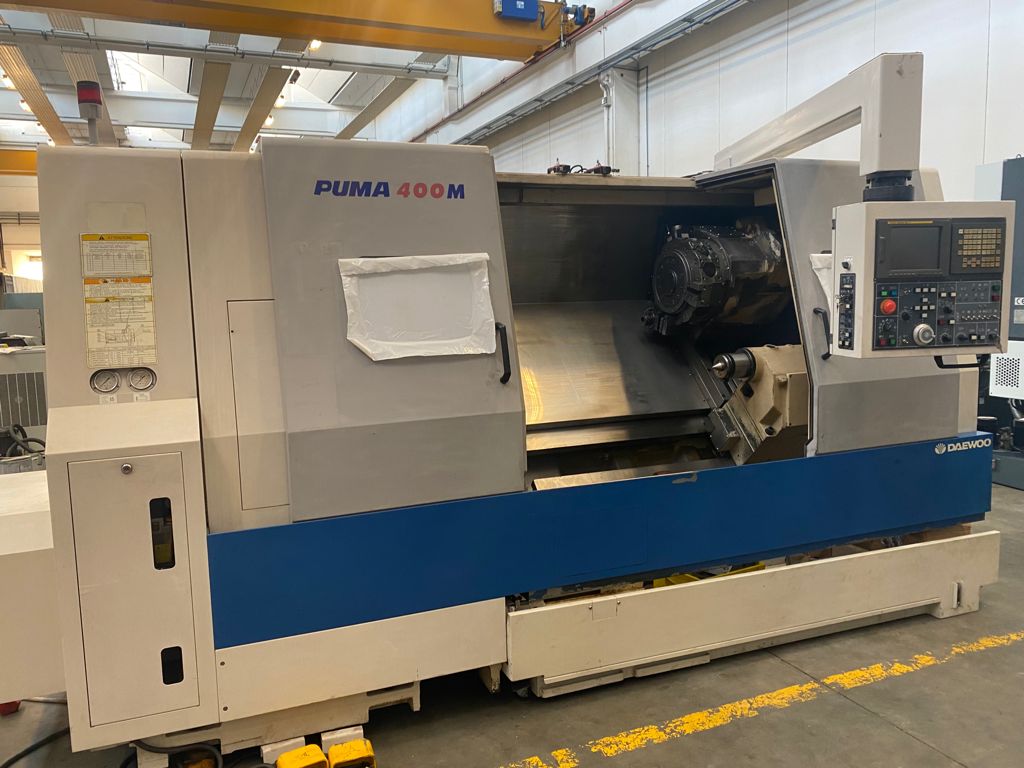

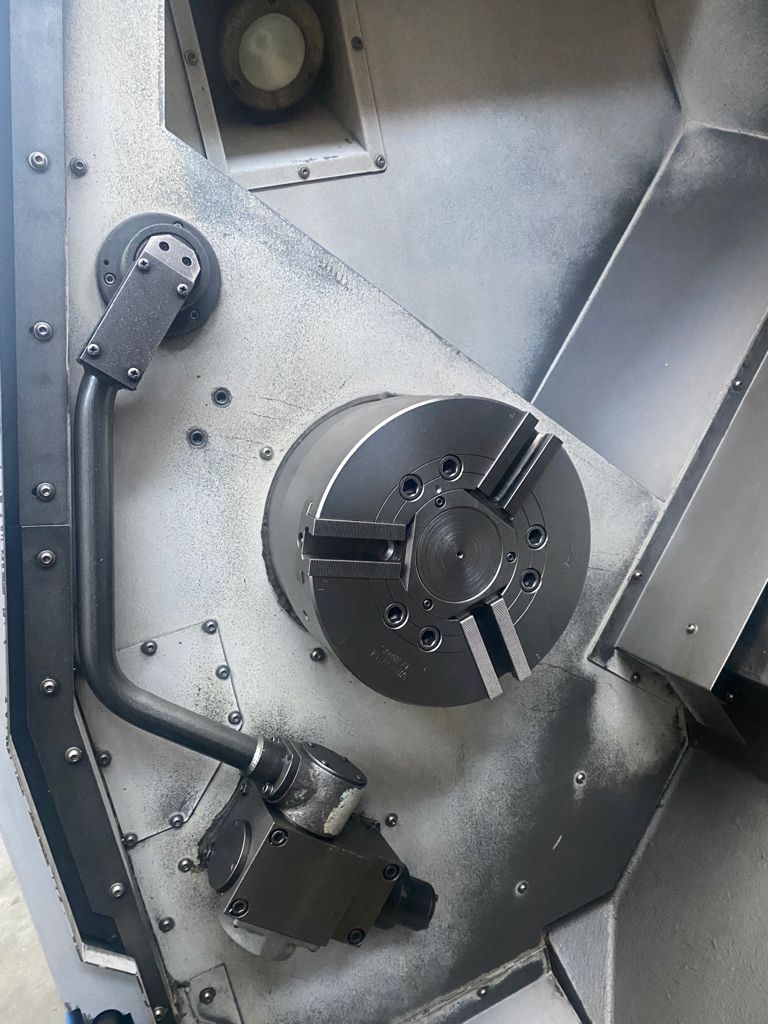

2002 Daewoo PUMA 400 MA
Sold
2002 Daewoo PUMA 400 MA
Specifications
| Manufacturer | Daewoo |
| Model | PUMA 400 MA |
| Year | 2002 |
| Condition | Used |

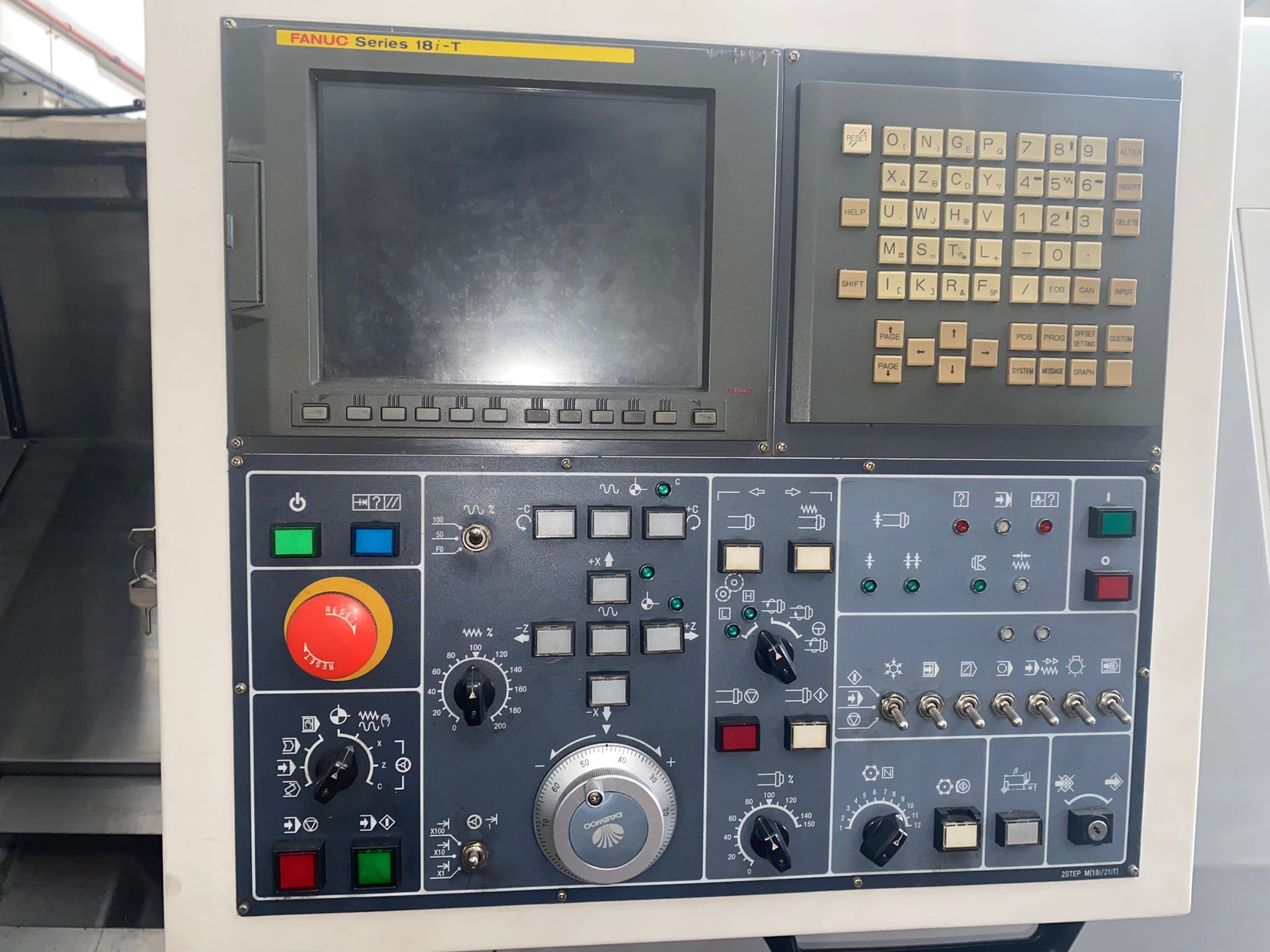

| CNC Control | FANUC Series 18i-T |
| Max swing over the bench | Ø 700 mm |
| Max swing over the carriage | Ø 480 mm |
| Max turning diameter | Ø 460 mm |
| Max turning length | 1.050 mm |
| Bar diameter capacity through the spindle | Ø 91 mm |
| X axis travel | 304 mm |
| Z axis travel | 1.105 mm |
| C axis minimum controlled angle | 0,001° (+/- 360°) |
| Spindle chuck diameter | Ø 304 mm |
| Spindle nose size | ASA A2-8 |
| Spindle speed | 3.000 Rpm |
| Speed gear steps | 2 Steps |
| Spindle motor power (cont/30 min) | 22 / 30 kW |

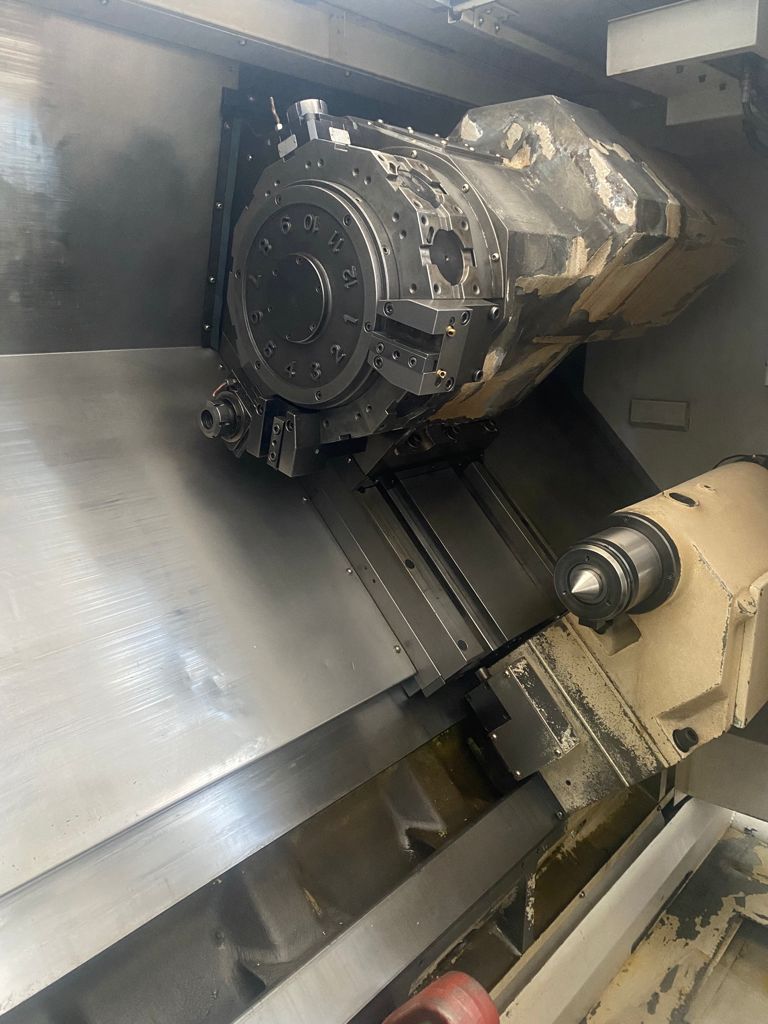

| Turret positions | 12 Stations (Live-tools also) |
| Live-tools speed | 3.000 Rpm |
| Live-tools motor power (cont/30 min) | 3,7 / 5,5 kW |
| Turning / boring tool dimensions | 25x25 mm / Ø 50 mm |
| X axis feedrate | 16.000 mm/min |
| Z axis feedrates | 20.000 mm/min |
| C axis feedrate | 200 Rpm |
| Tailstock quill diameter | Ø 120 mm |
| Tailstock taper size | MT-5 |
| Tailstock quill travel | 120 mm |

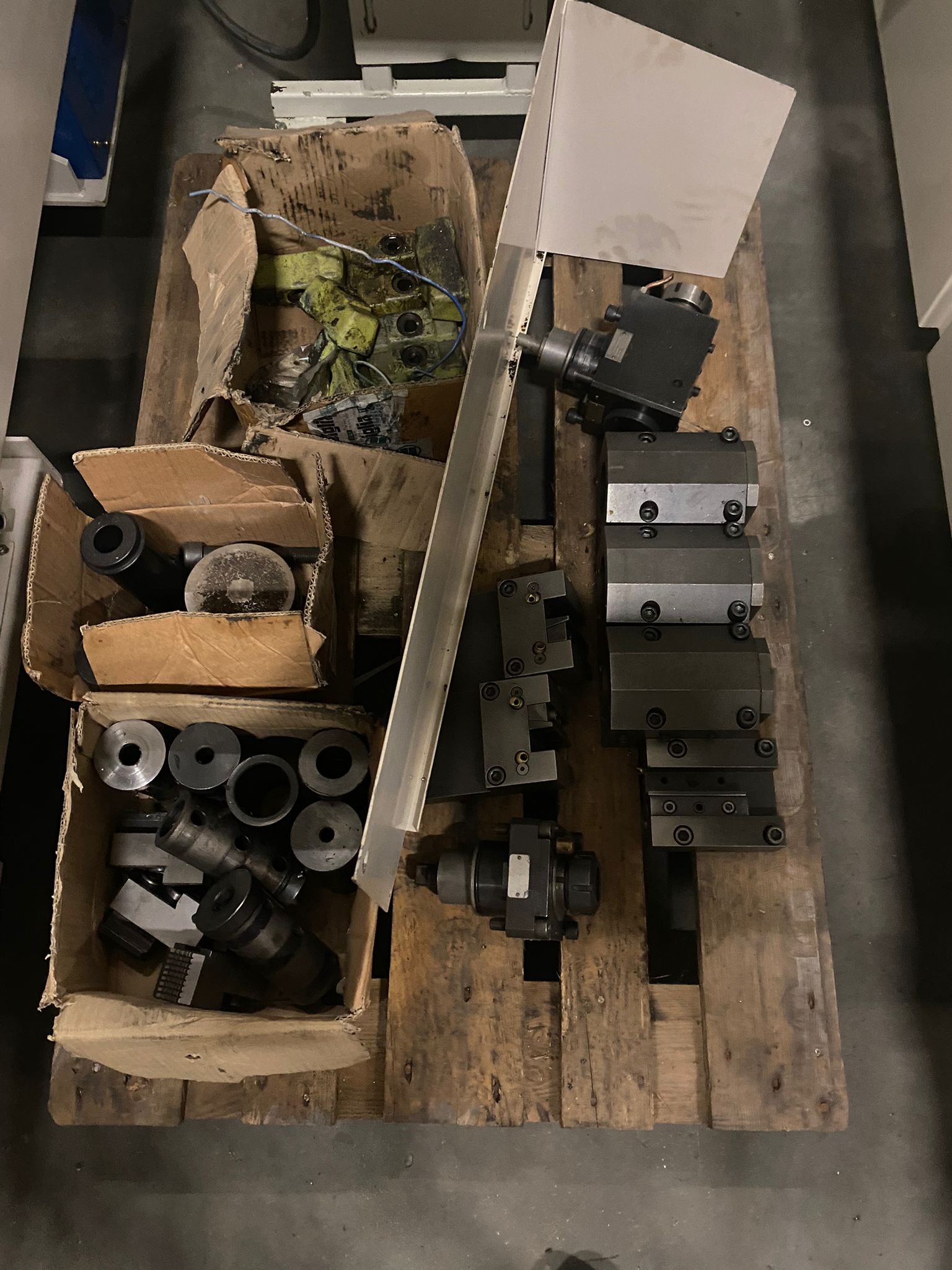

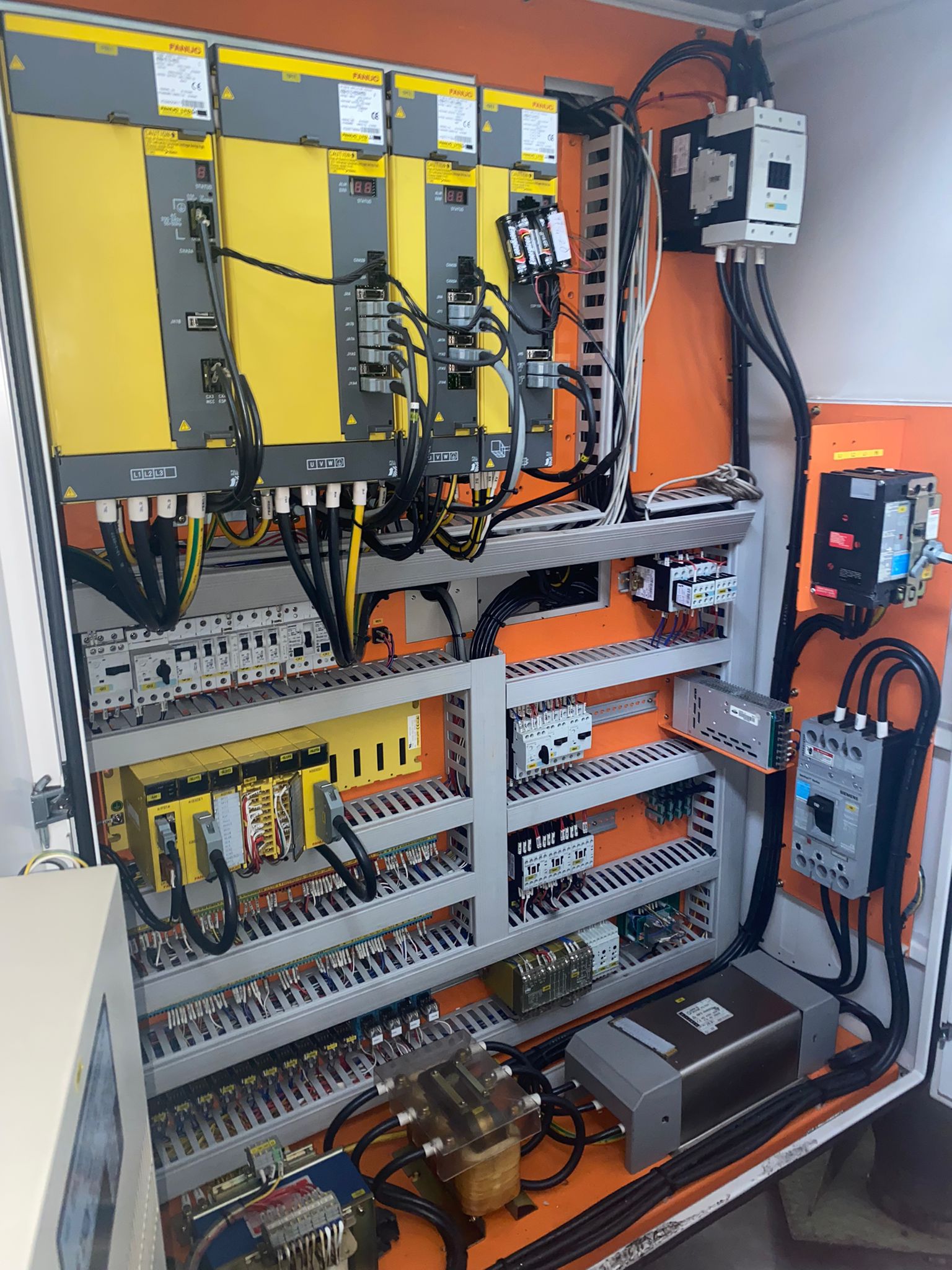

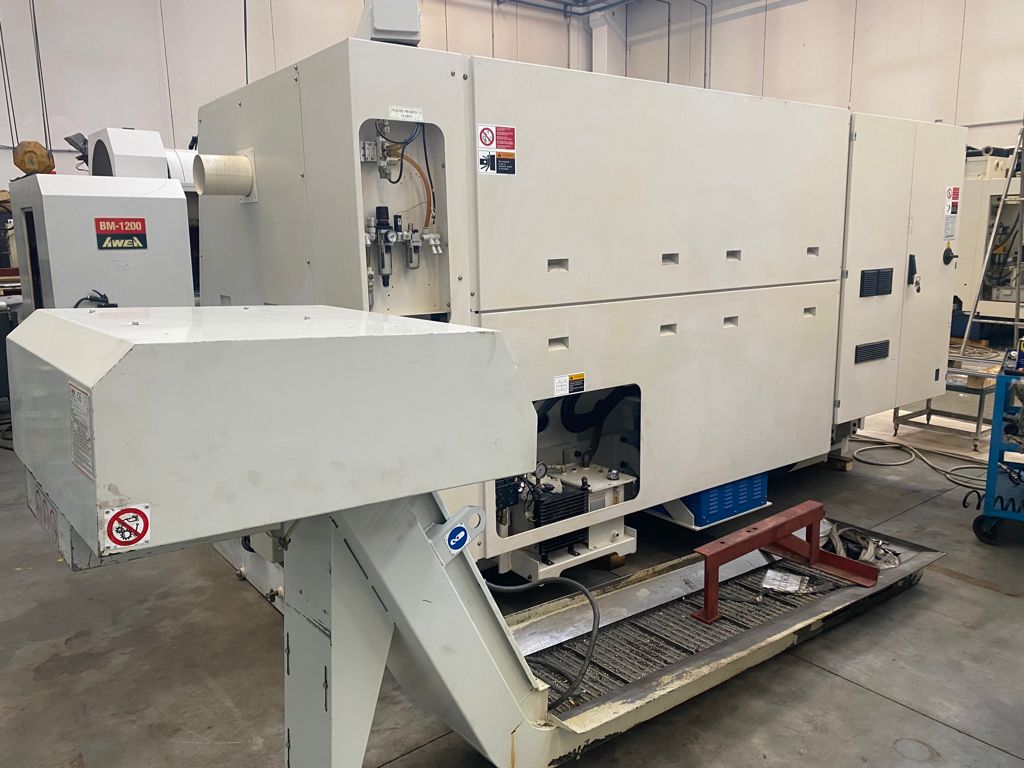

| Accessories | Q.ty 4 Live-tool holders (2 radial / 2 axial) - Q.ty 8 Fix tool holders - Automatic tool presetting arm - Chip conveyor - Coolant tank with pump - Manuals - Electric diagrams - EC CE Decleration |
