2004 Doosan Daewoo PUMA 300 LMB
Sold
2004 Doosan Daewoo PUMA 300 LMB
Specifications
| Manufacturer | Doosan Daewoo |
| Model | PUMA 300 LMB |
| Year | 2004 |
| Condition | Used |

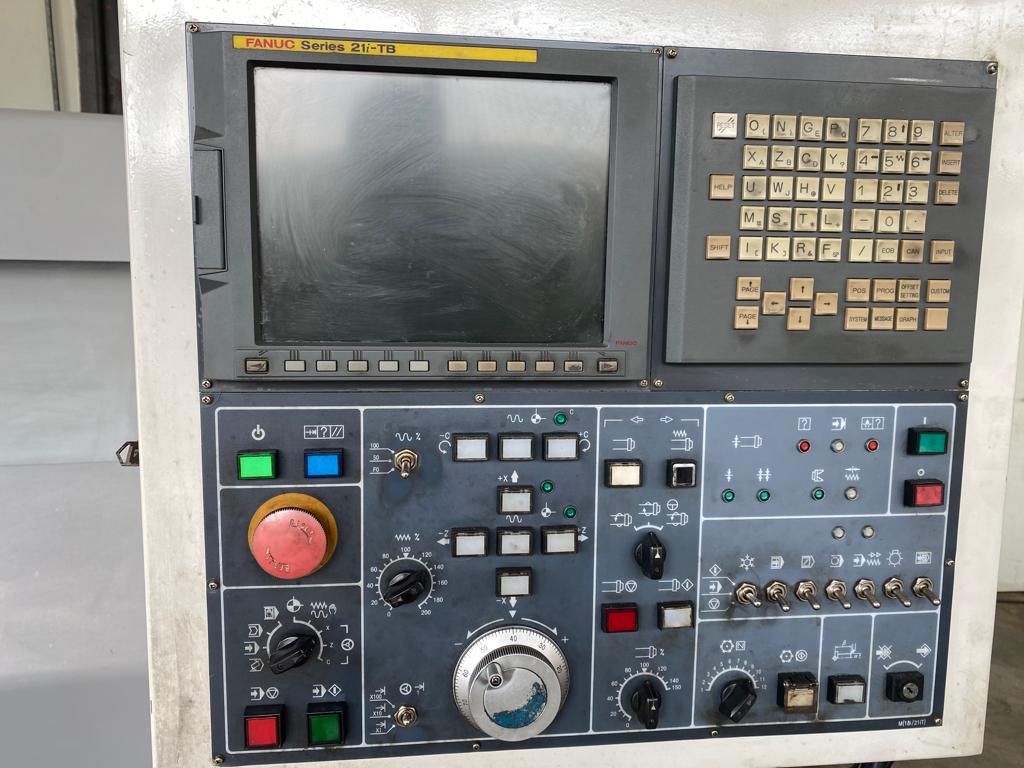

| CNC Control | FANUC Series 21i-TB |
| Max swing over the bench | Ø 570mm |
| Max swing over the carriage | Ø 370 mm |
| Max turning diameter | Ø 400 mm |
| Max turning length | 1.298 |
| Bar diameter capacity through the spindle | Ø 76 mm |
| X axis travel | 282 mm |
| Z axis travel | 1.330 mm |
| C axis minimum controlled angle | 0.001° (+/- 360°) |

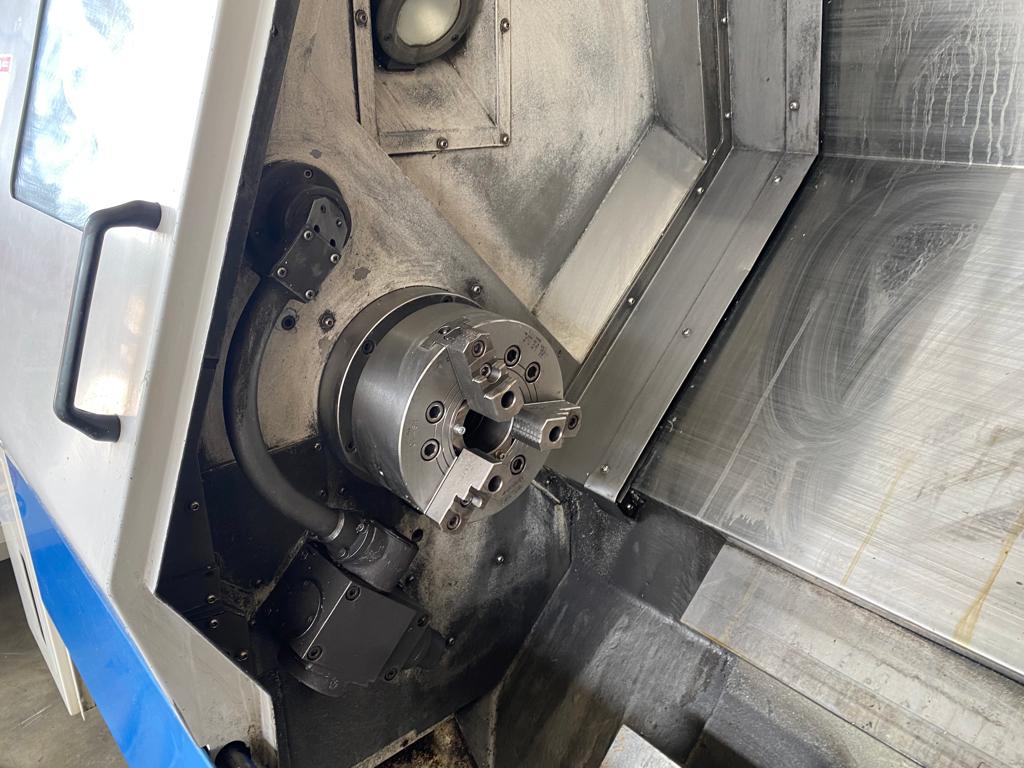

| Spindle chuck diameter | Ø 254 mm |
| Spindle speed | 35 ÷ 3.500 Rpm |
| Spindle nose size | ASA A2-8 |

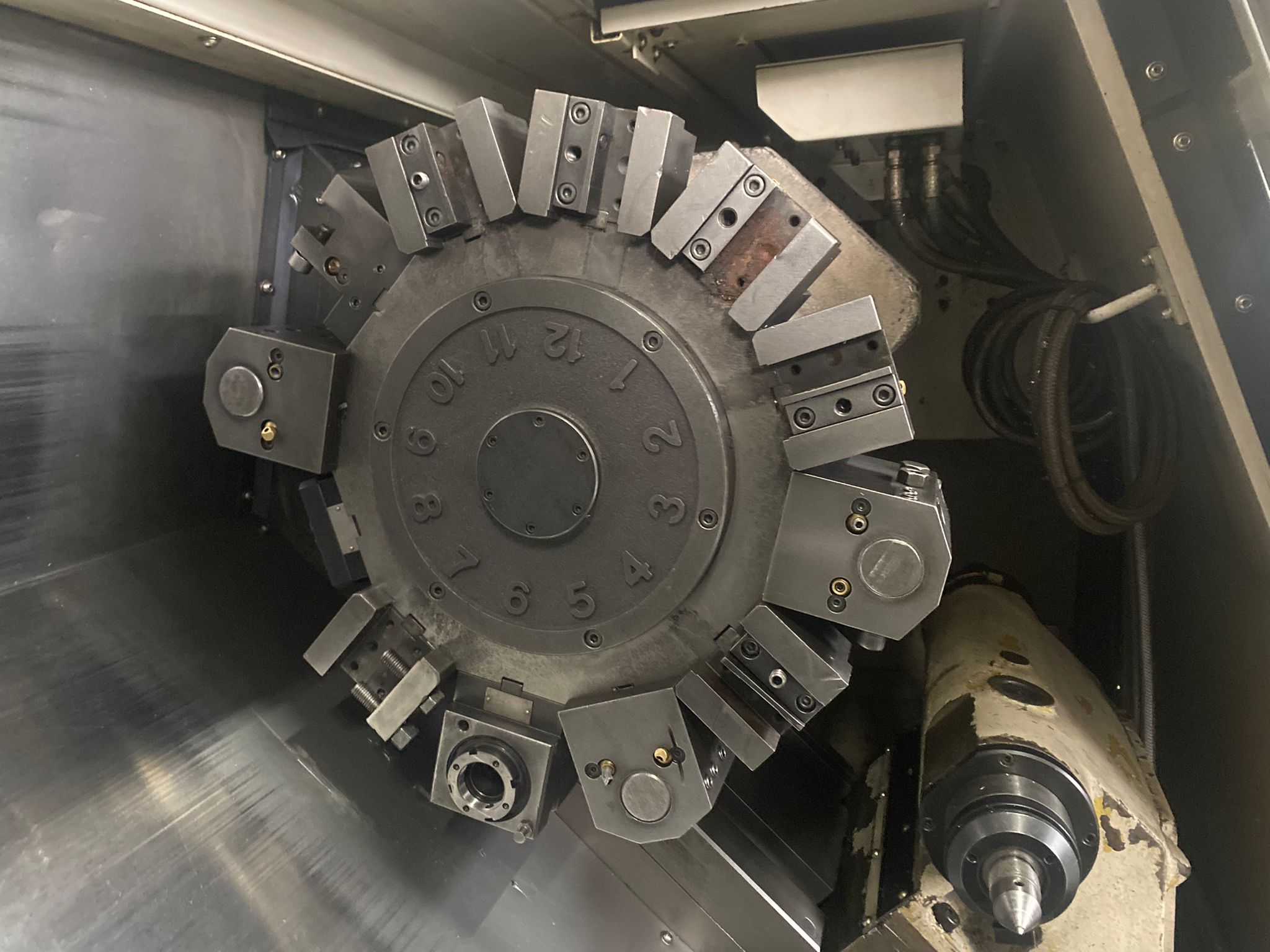

| Turret positions | 12 Stations (Live-tools) |
| Live-tools speed | 40 ÷ 4.000 Rpm |
| Turning / boring tool dimensions | 25 x 25 mm / Ø 40 mm |
| X axis feedrate | 20.000 mm/min |
| Z axis feedrates | 24.000 mm/min |

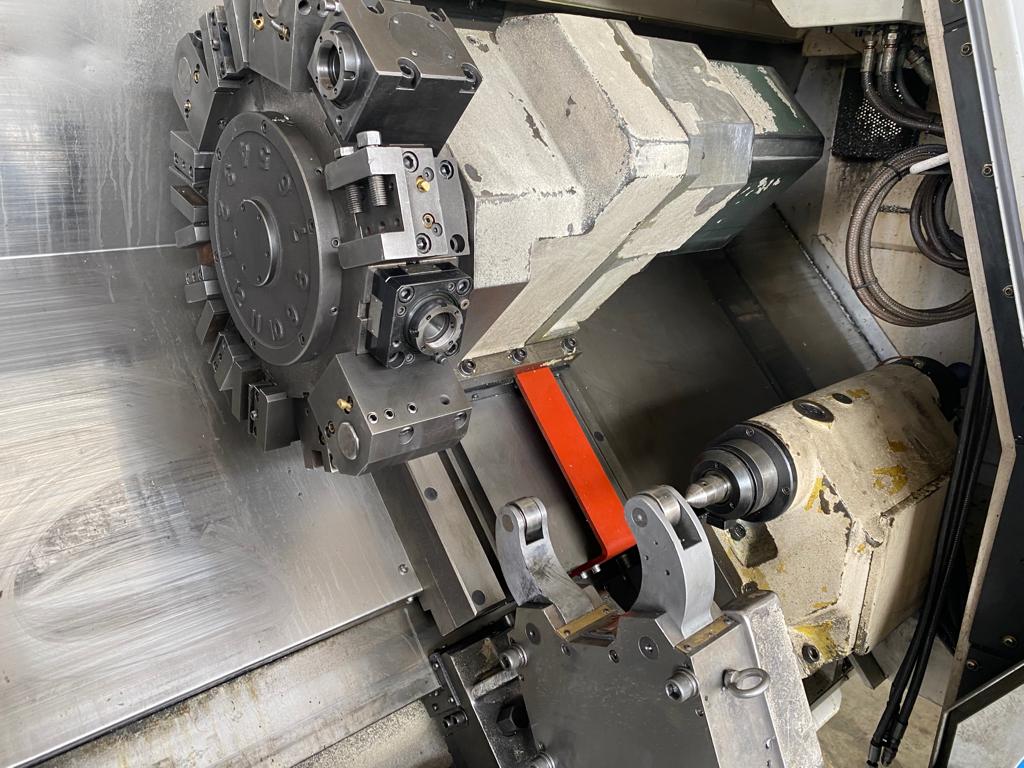

| Tailstock quill diameter | Ø 100 mm |
| Tailstock taper size | MT 4 |
| Tailstock quill travel | 100 mm |
| Accessories | Hydraulic steady - Tool presetting arm - Chip conveyor - Coolant tank - Nr. 4 Live-tool holders (3 radial / 1 axial) - Nr. 8 Fix tool holders - Manuals - Electric diagrams - EC CE Decleration |
