2004 Doosan Daewoo PUMA 240MC
Sold
2004 Doosan Daewoo PUMA 240MC
Specifications
| Manufacturer | Doosan Daewoo |
| Model | PUMA 240MC |
| Year | 2004 |
| Condition | Used |

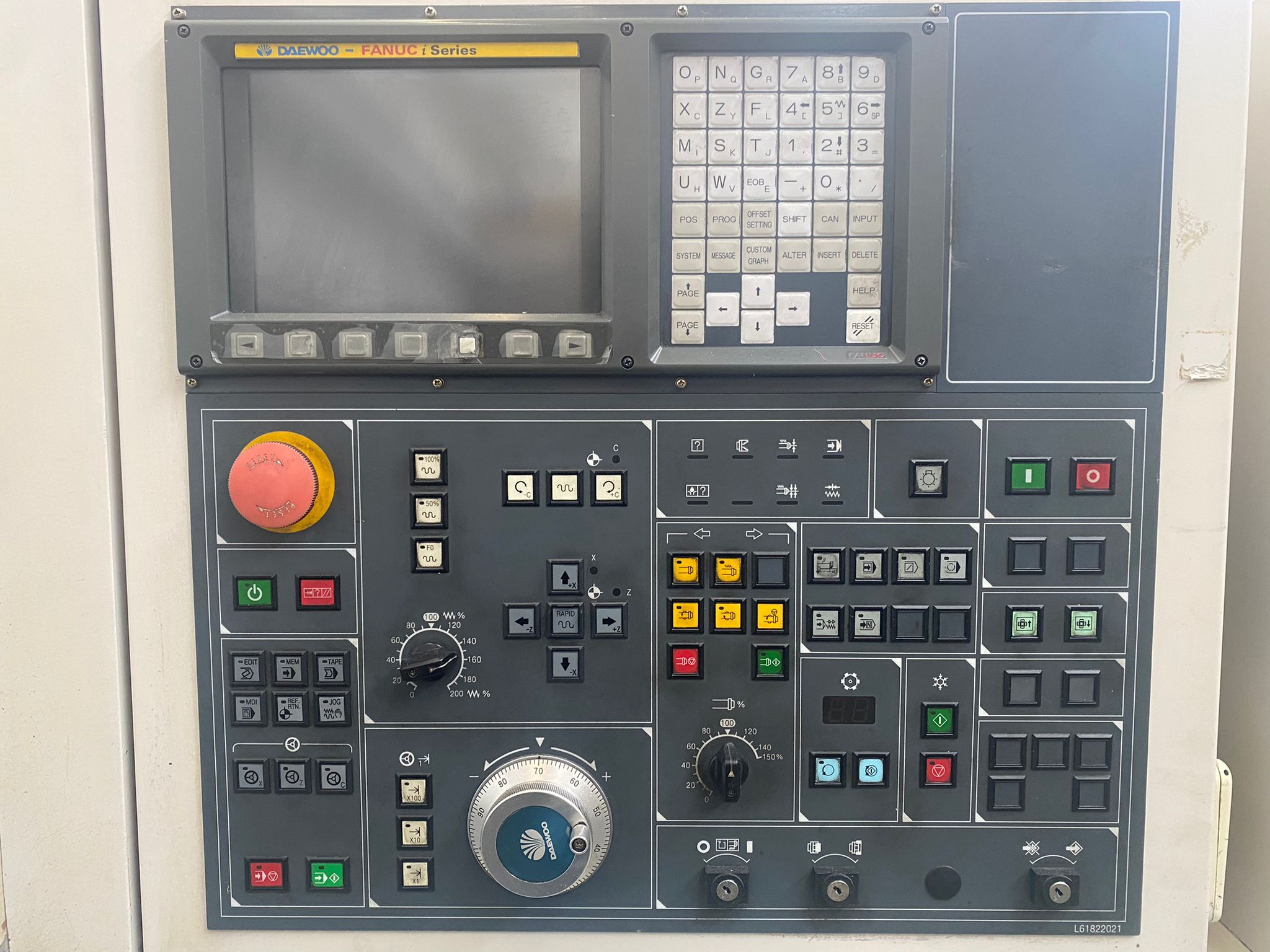

| CNC Control | FANUC i-Series |
| Max swing over the bench | Ø 550 mm |
| Max swing over the carriage | Ø 390 mm |
| Max turning diameter | Ø 290 mm |
| Max turning length | 501 mm |
| Bar diameter capacity through the spindle | Ø 76 mm |
| X axis travel | 205 mm |
| Z axis travel | 580 mm |
| C axis minimum controlled angle | +/- 360° (0.001°) |

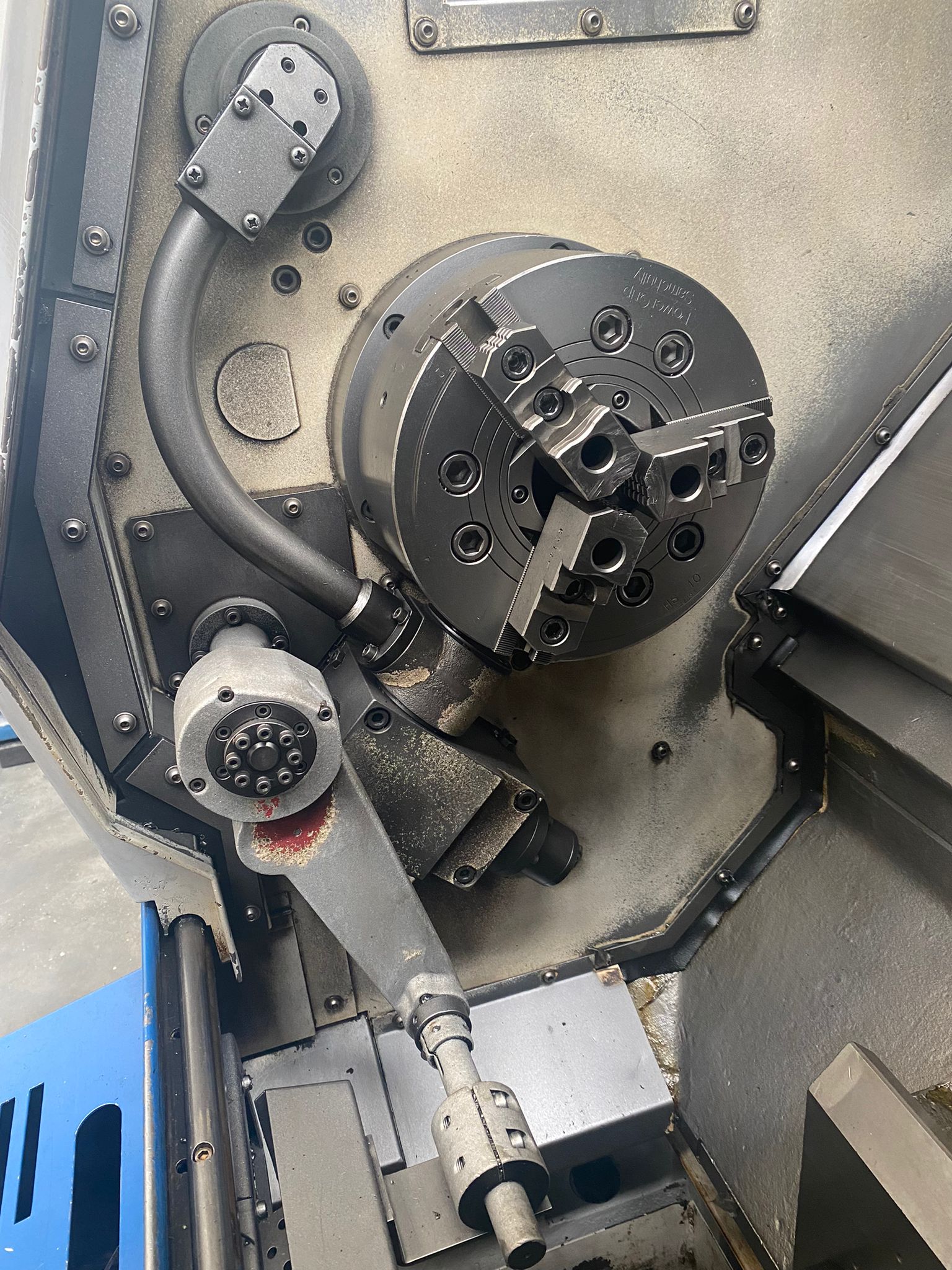

| Spindle chuck diameter | Ø 254 mm |
| Spindle speed | 35 ÷ 3.500 Rpm |
| Spindle nose size | ASA A2-8 |
| Spindle motor power (cont/30 min) | 15 / 18.5 kW |

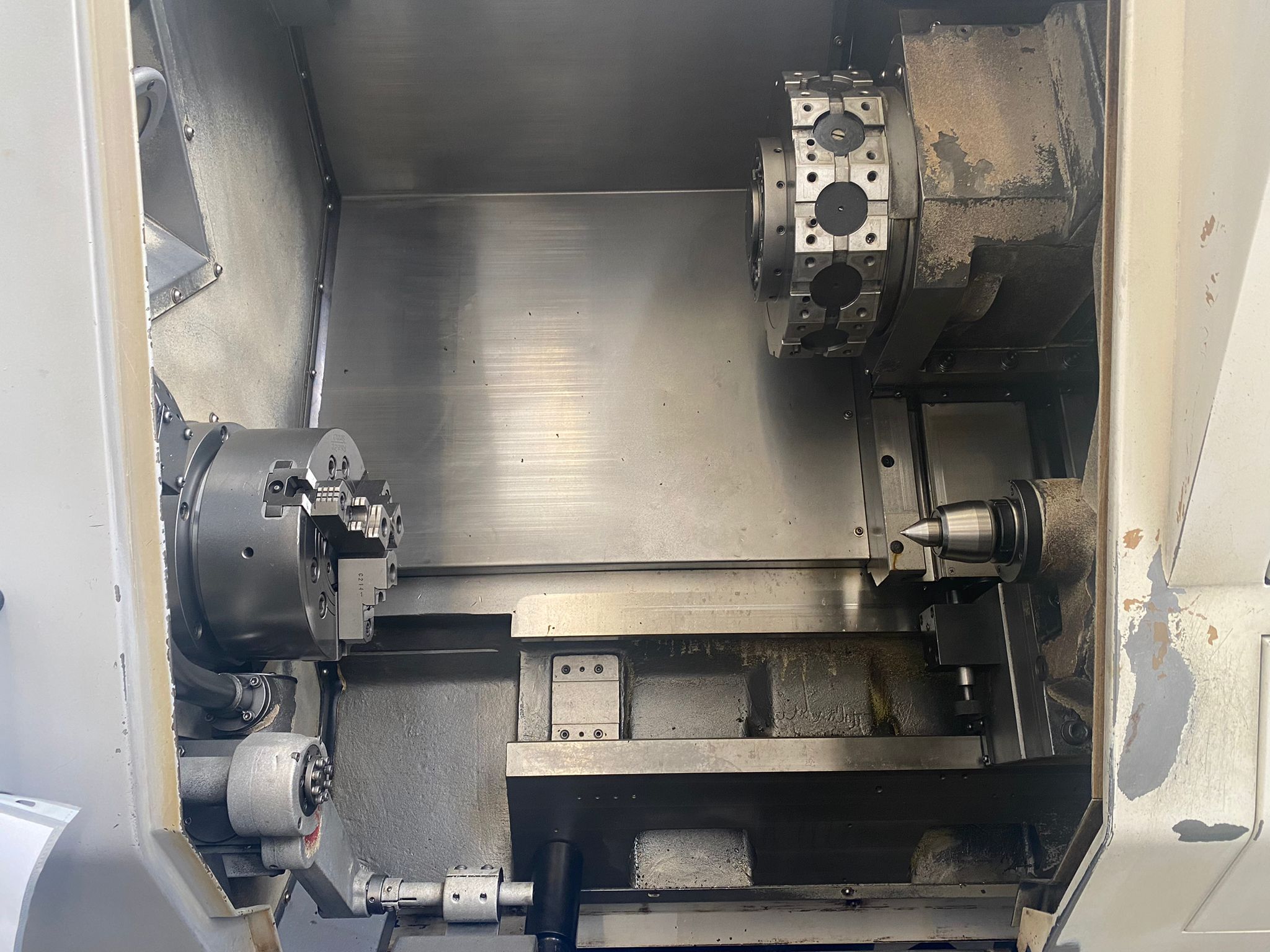

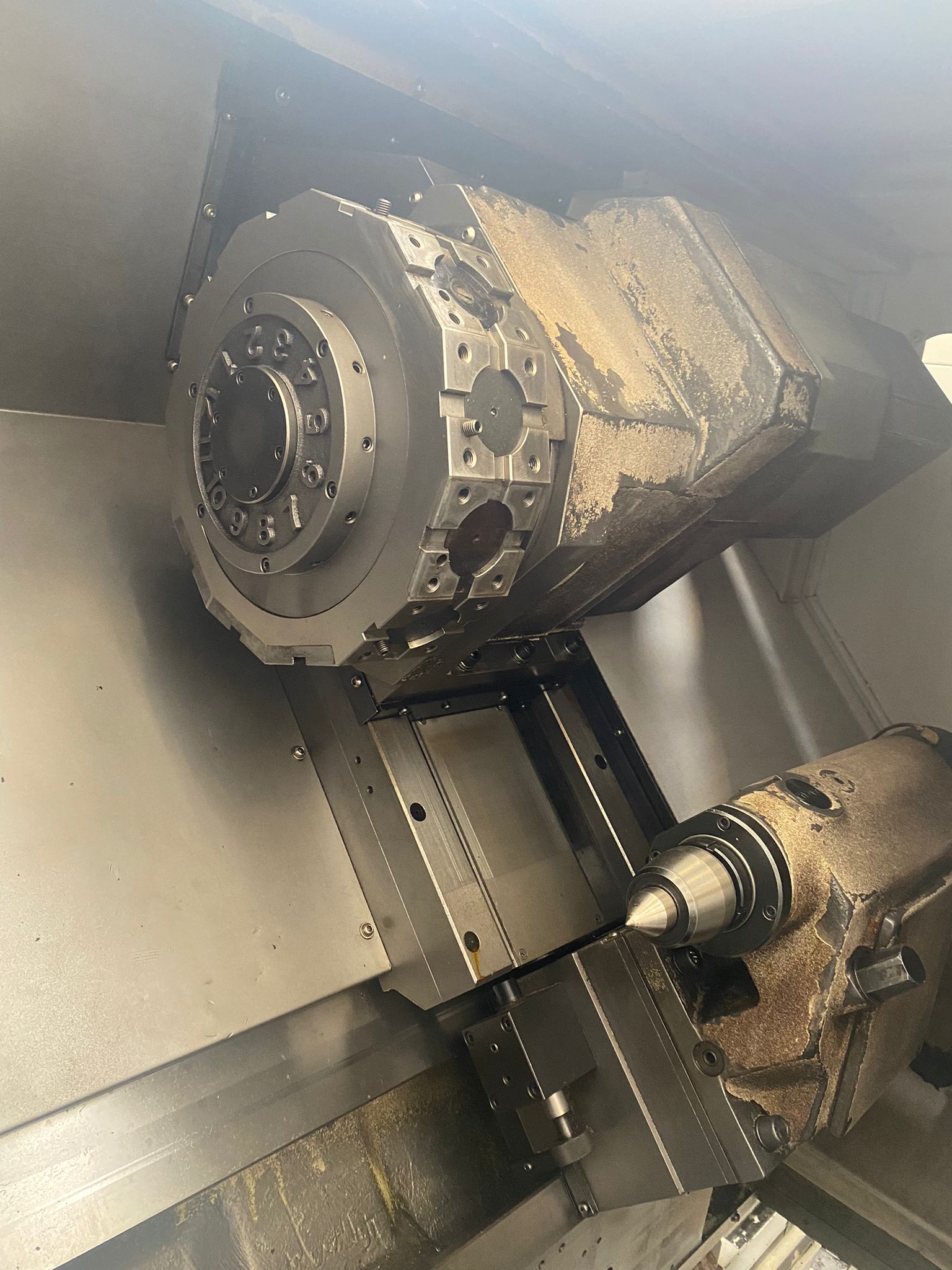

| Turret positions | 12 Stations (Also live-tool) |
| Live-tools speed | 50 - 5.000 Rpm |
| Turning / boring tool dimensions | 25 x 25 mm / Ø 40 mm |
| X axis feedrate | 24.000 mm/min |
| Z axis feedrates | 30.000 mm/min |
| C axis feedrate | 200 Rpm |
| Tailstock quill diameter | Ø 75 mm |
| Tailstock taper size | MT 4 |
| Tailstock quill travel | 80 mm |
| Accessories | Nr. Live-tool holders (2 radial / 2 axial) - Various fix tool holders - Tool presetting arm with M code button - Collect piece arm - Coolant tank (120 Lt) with (6 bar) pump - Chip conveyor with right side exit - Manuals - Electric diagrams - CE/EU declarations |
