2000 Rosa LINEA STEEL 13.7
Sold
2000 Rosa LINEA STEEL 13.7
Description

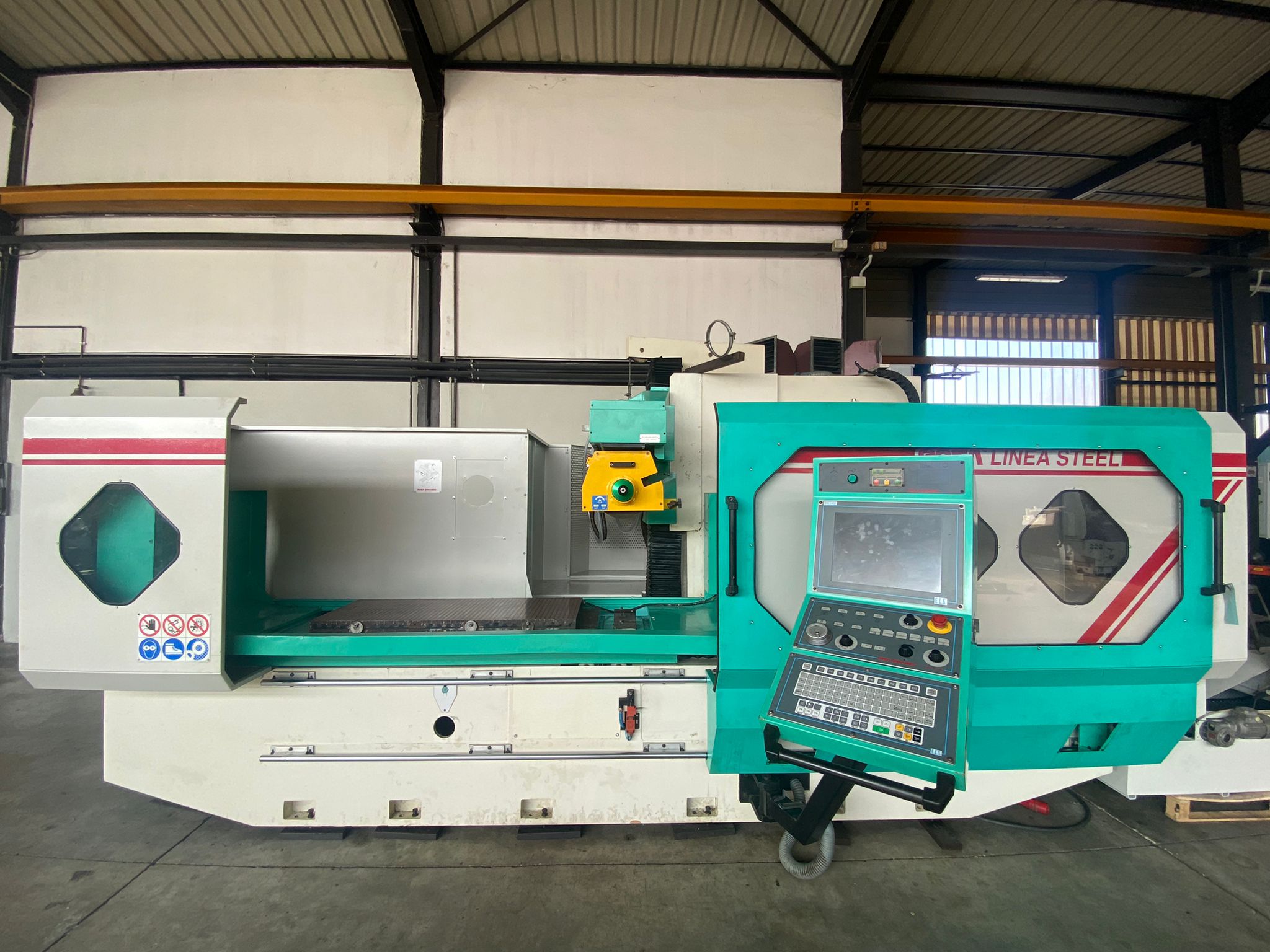

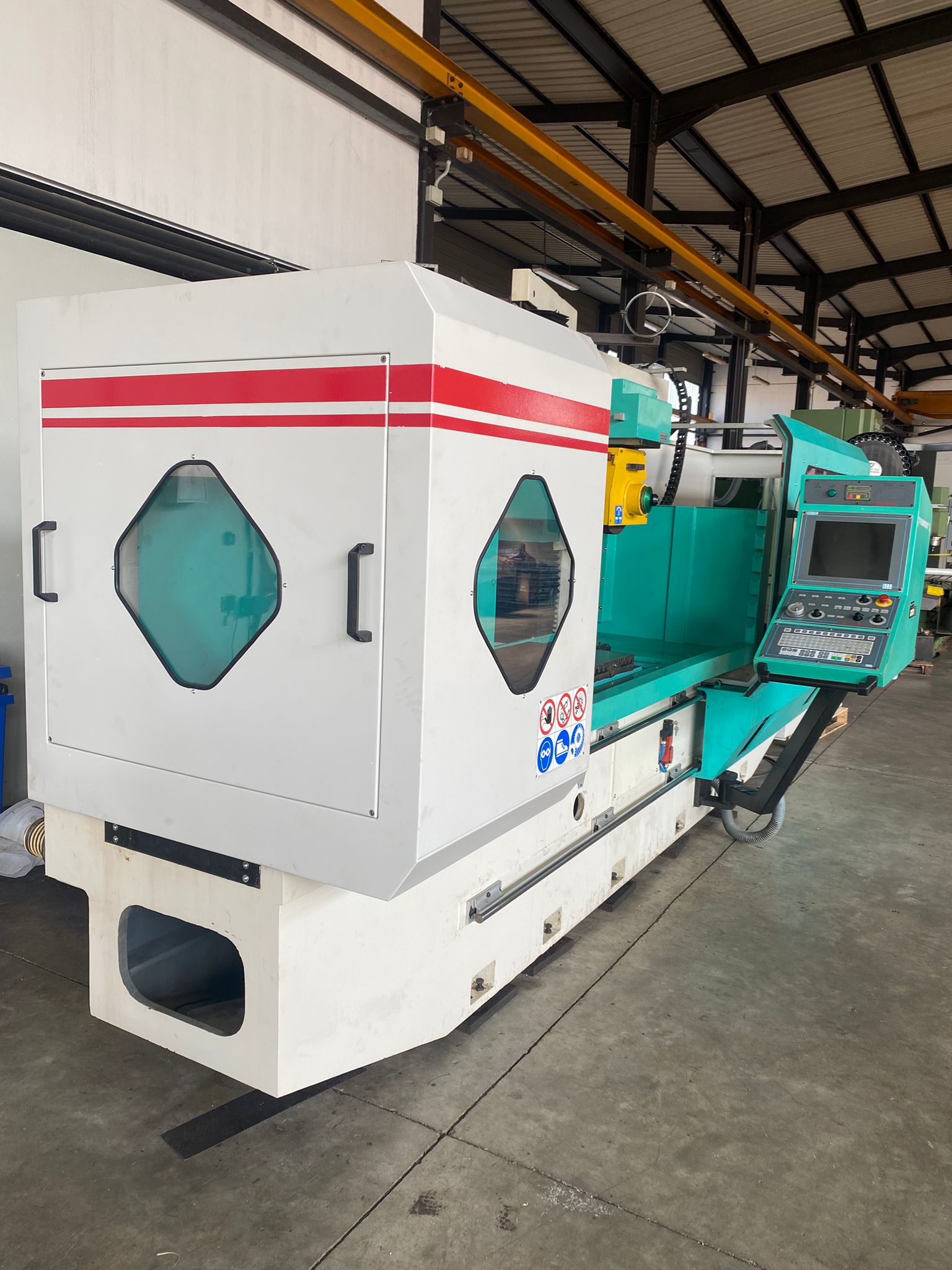

CNC tangential grinding machine refurbished in the following parts:

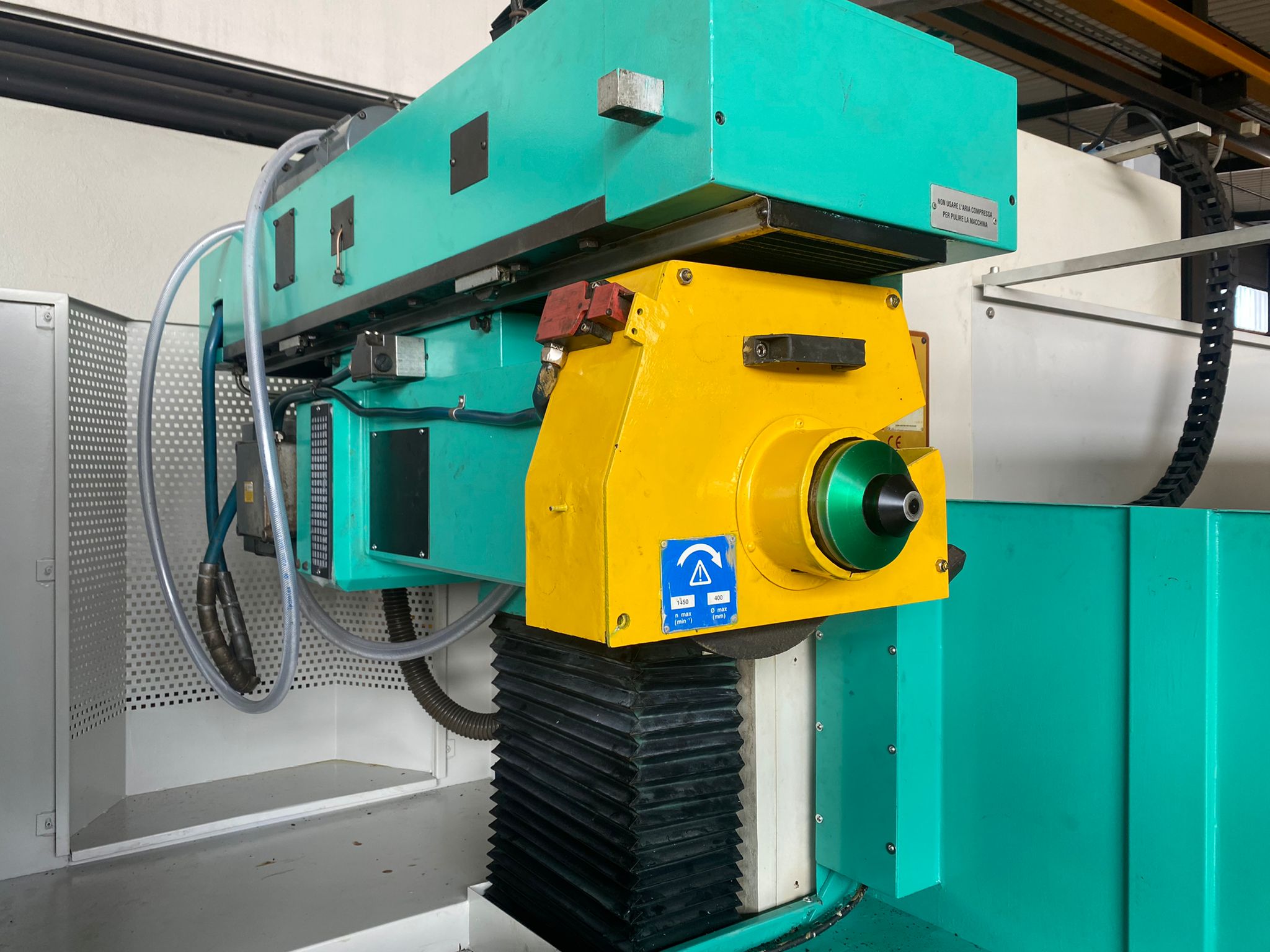

- Spindle overhauled with new bearings
- New spindle motor coupling
- On X axis turcite material scraping and all axis lubrication check-up
- New X-axis positioning belt

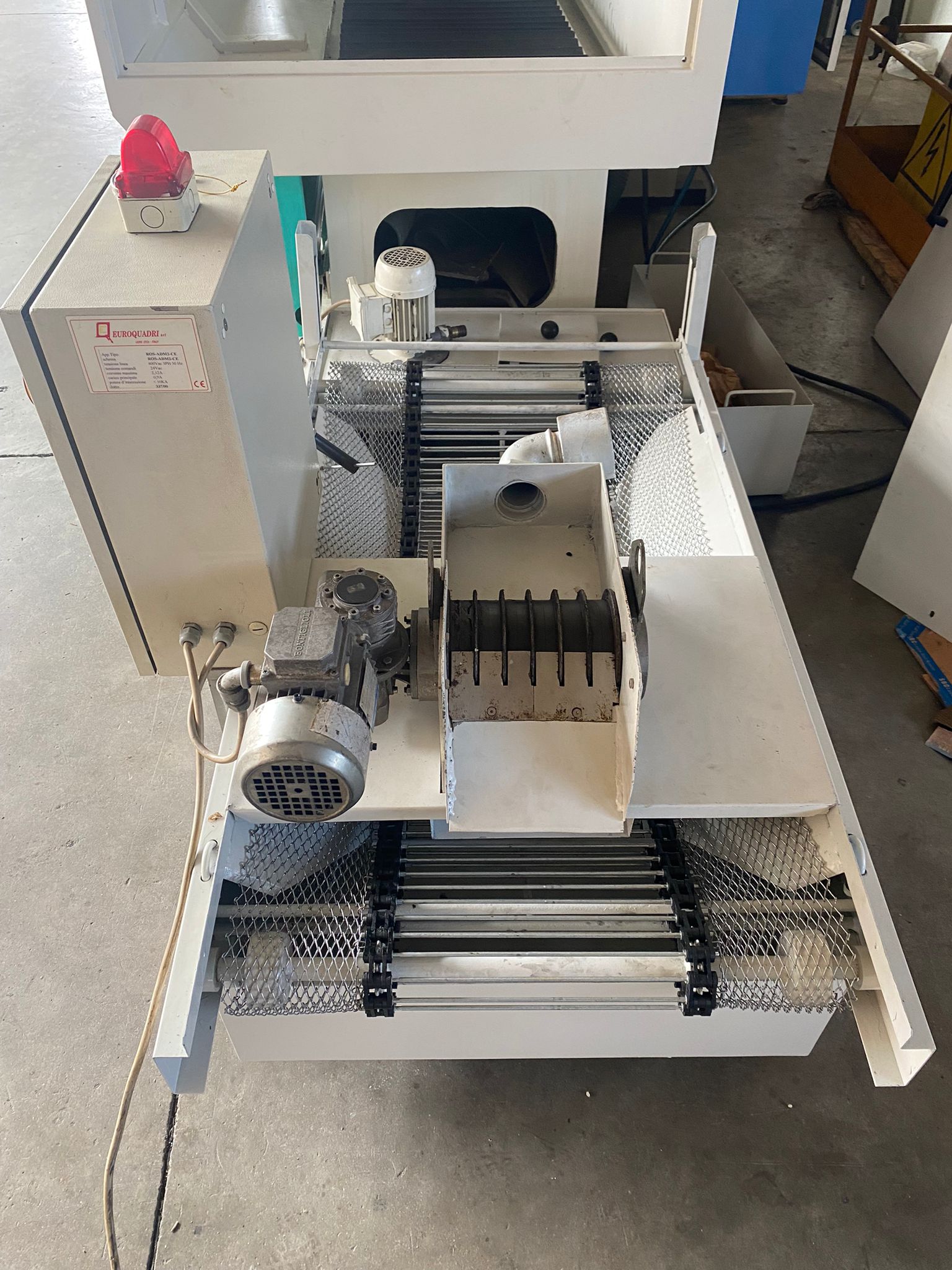

- Coolant tank refurbished with new chain
Specifications

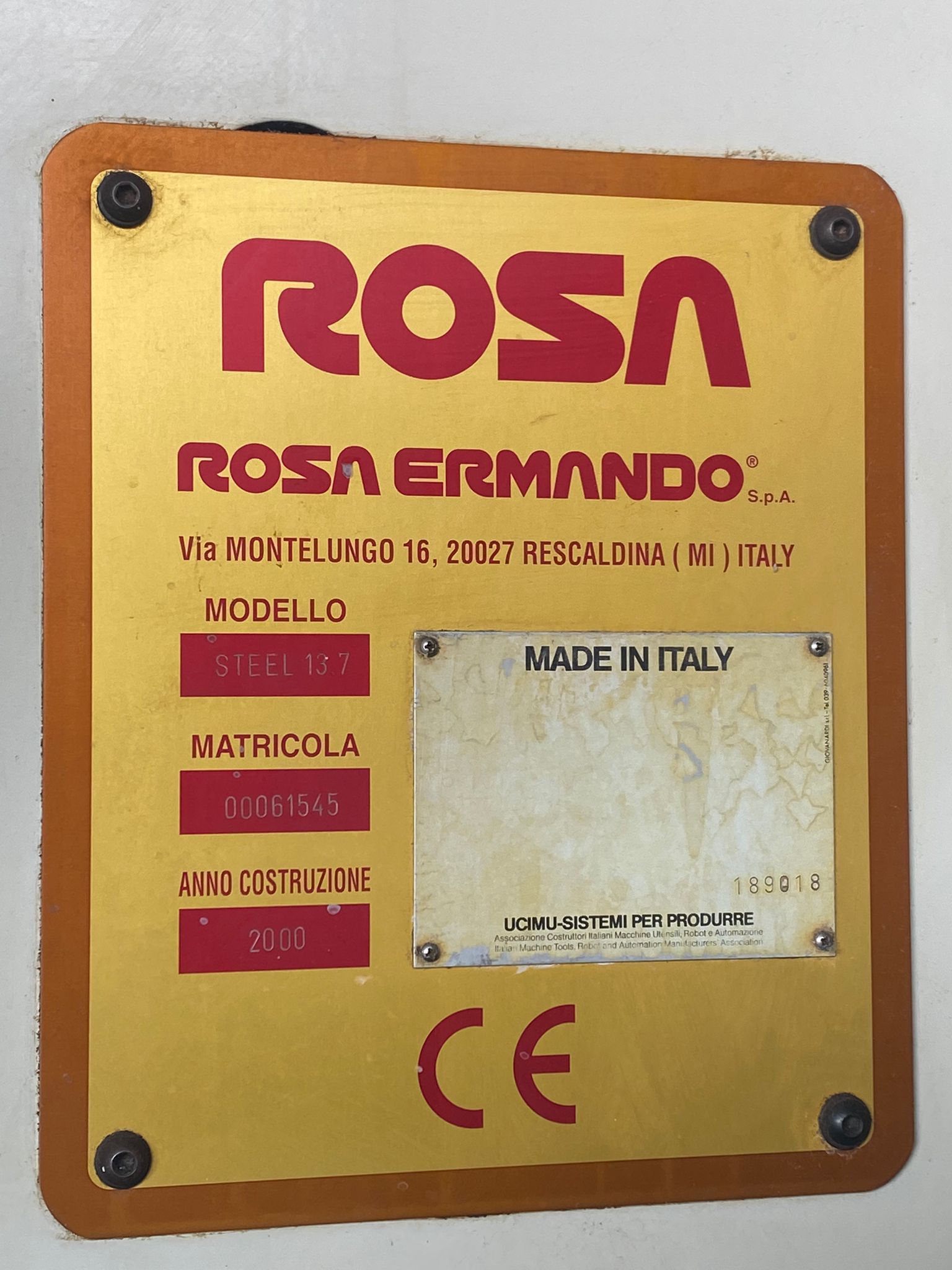

| Manufacturer | ROSA |
| Model | LINEA STEEL 13.7 |
| Year | 2000 |
| Condition | Used |
| Longitudinal travel | 1.650 mm |
| Longitudinal rectifiable | 1.500 mm |
| Table dimensions | 1.400 x 500 mm |
| Table load capacity | 1.700 Kg |
| Longitudinal translaion speed | 1.000 ÷ 40.000 mm/min |
| Trasversal travel | 650 mm |
| Trasversal rectifiable | 750 mm |
| Trasversal speed (adjustable) | 0 ÷ 4.000 mm/min |
| Trasversal feed (jerkily) | 0 ÷ 40 mm |
| Max rectiable height (vertical) | 600 mm |
| Automatic vertical feed | 0,003 ÷ 0,1 mm |
| Grinding wheel speed | 1.500 Rpm |
| Grinding wheel max dimensions (Ø external X thickness X Ø hole) | 400 x 100 x 127 mm |
| Grinding wheel motor power | 11/15 kW |

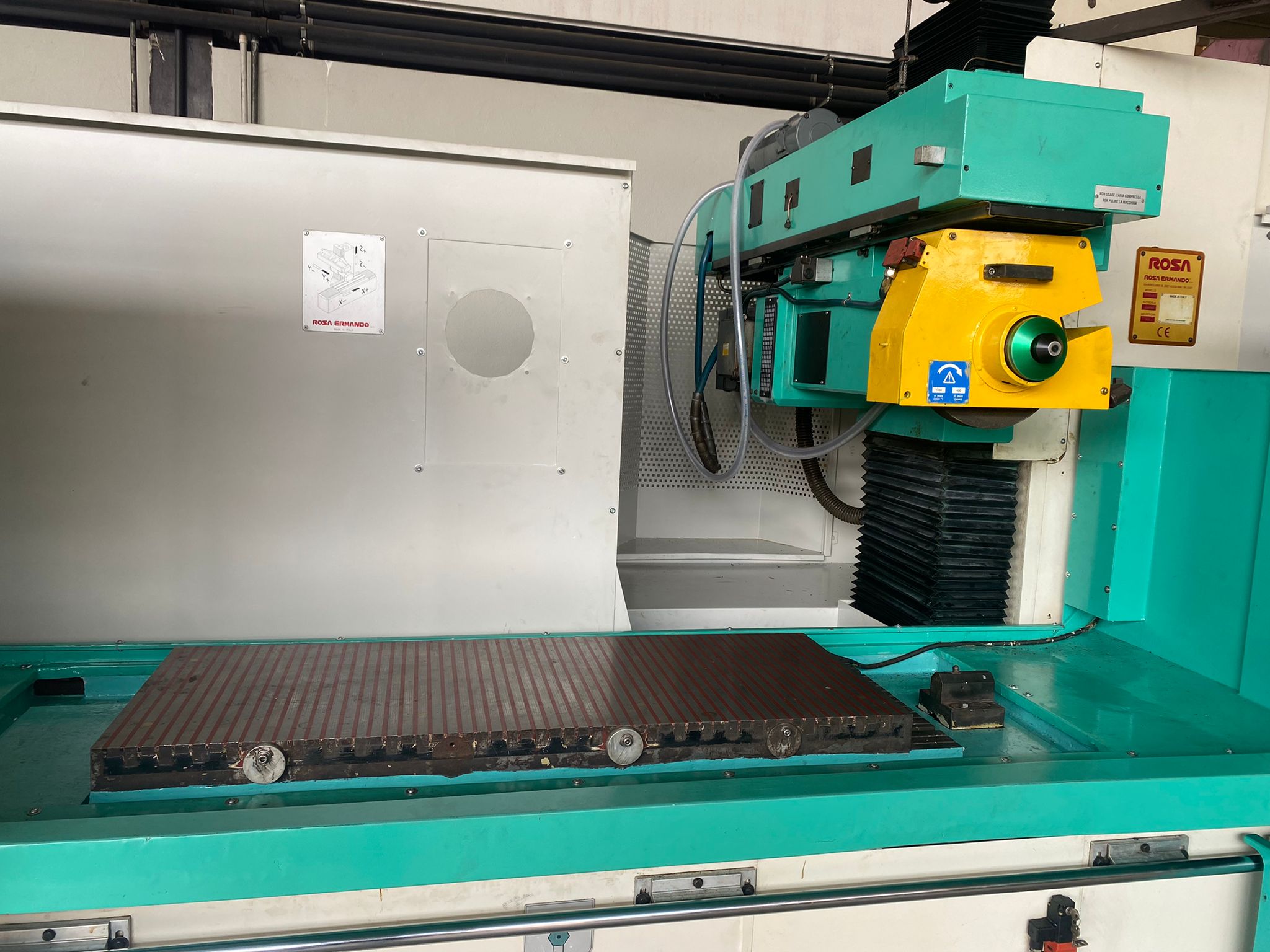

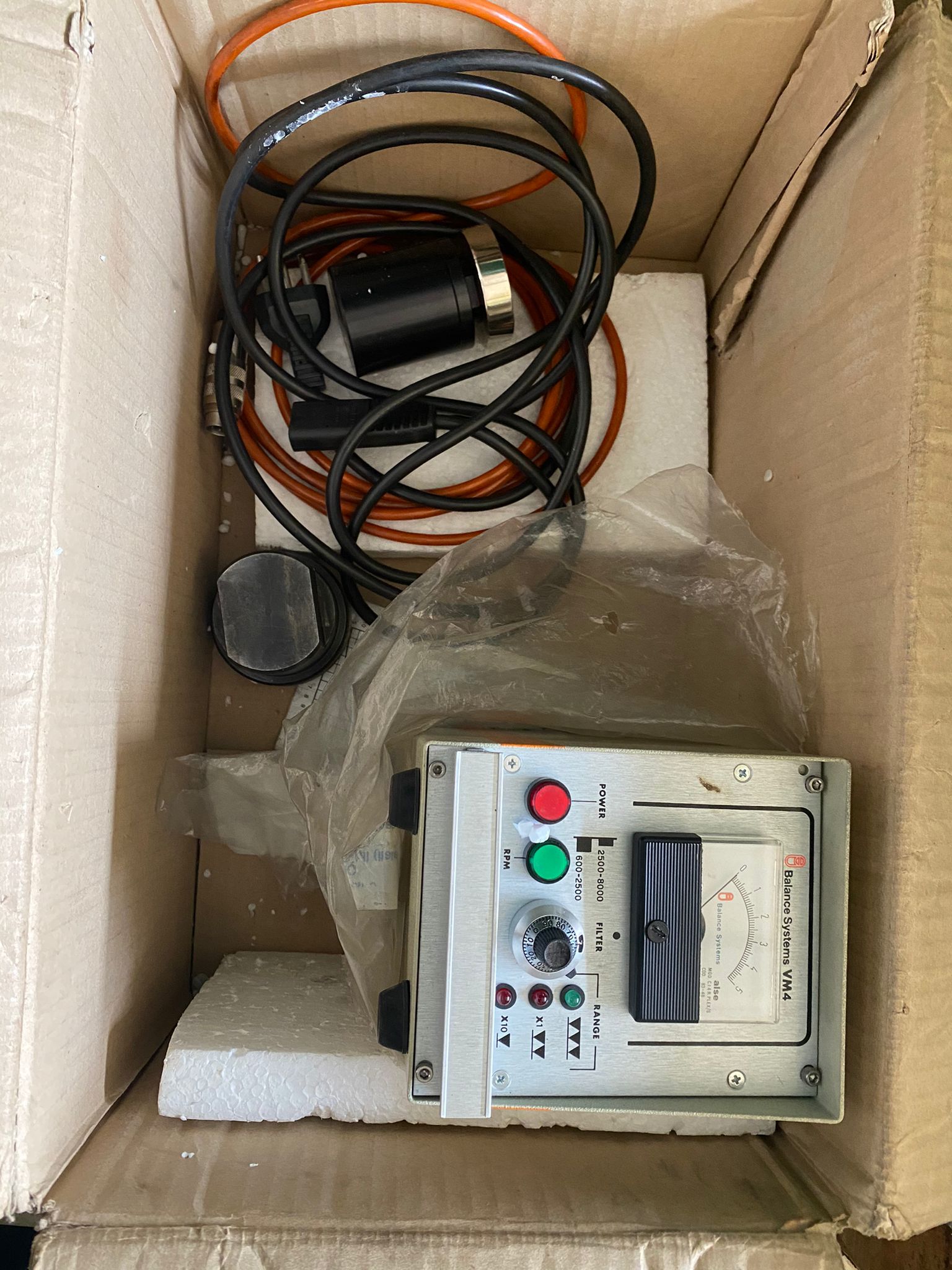

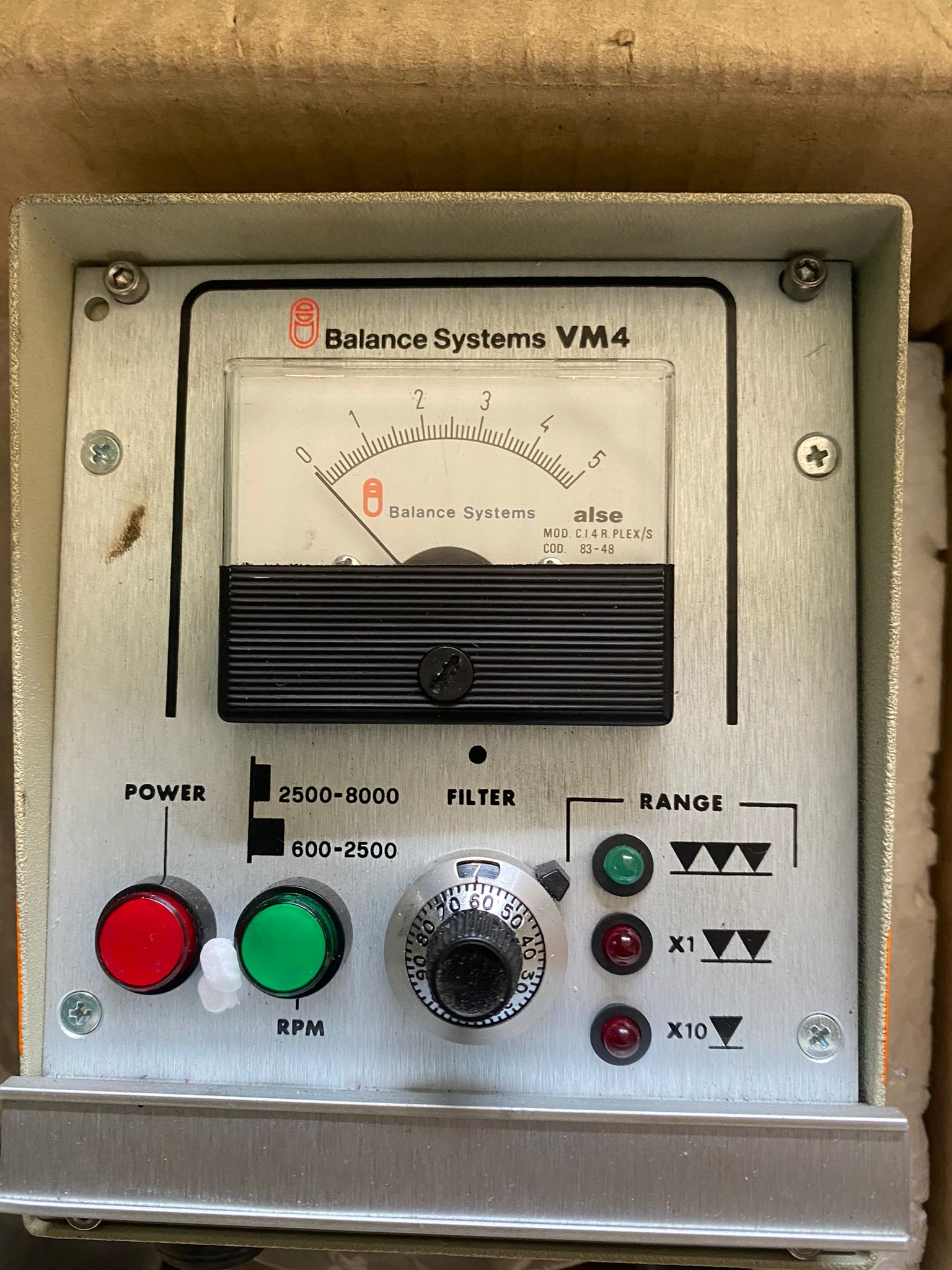

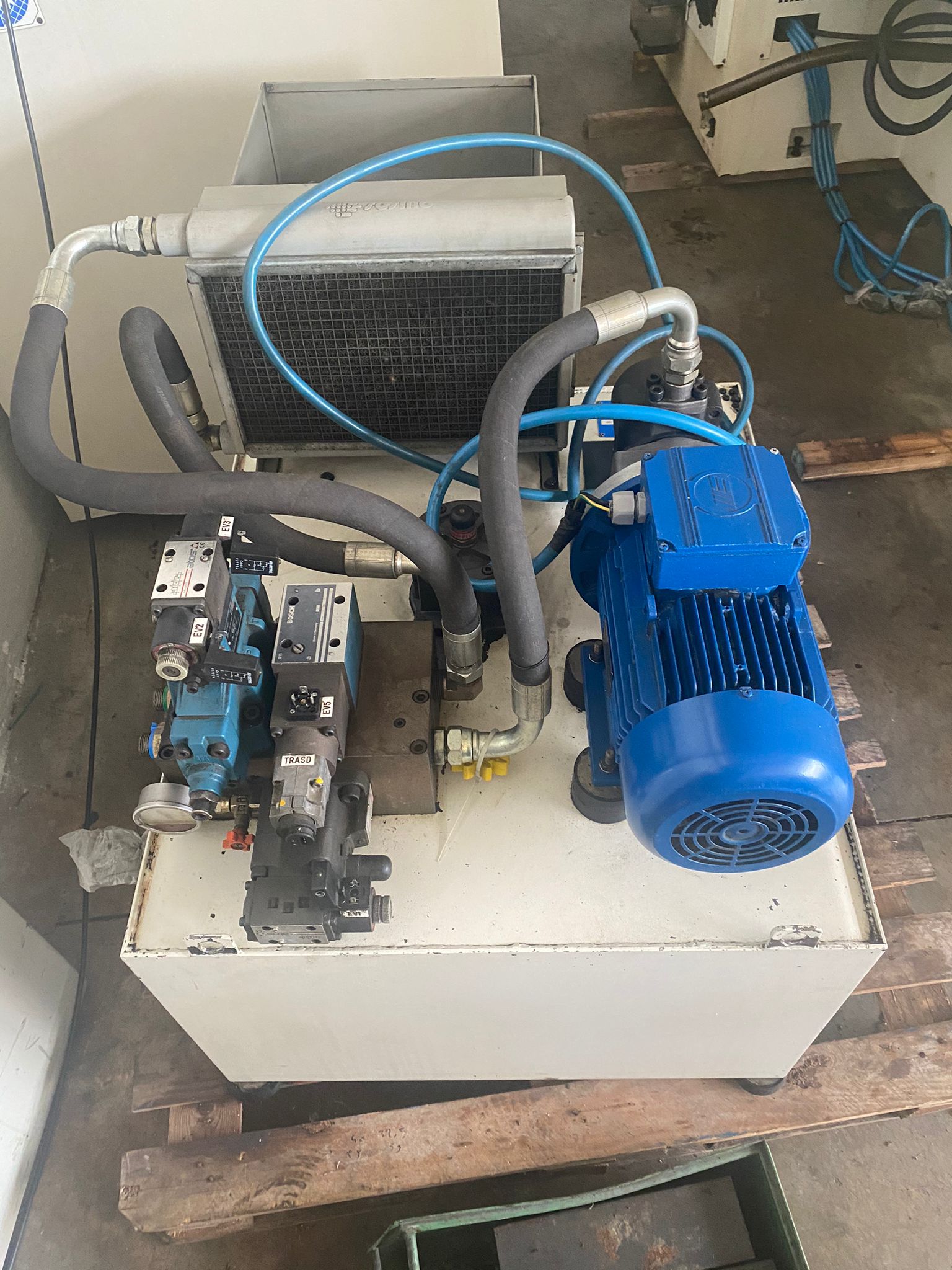

| Accessories | Magnetic worktable 1.300 x 500 mm - Coolant tank with pump and magnetic filter (filtration capacity 100 l/min. – tank capacity 320 Lt.) - Oil / air heat changer for hydraulic unit - Electric grinding wheel balancer up to Ø 450 mm |
