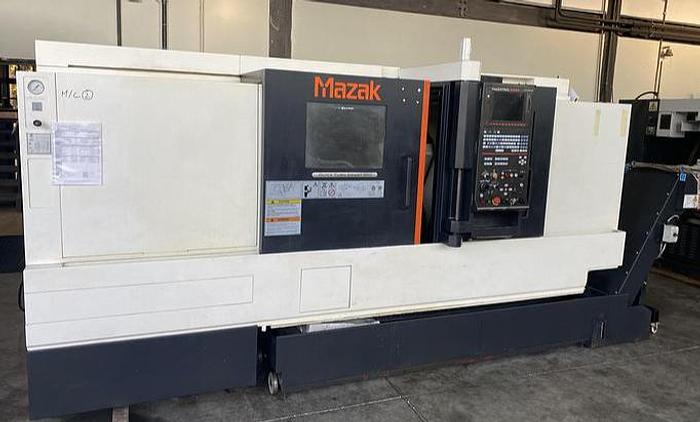

2012 MAZAK Quickturn SMART 300
Sold
2012 MAZAK Quickturn SMART 300
Specifications
| Manufacturer | MAZAK |
| Model | Quickturn SMART 300 |
| Year | 2012 |
| Condition | Used |

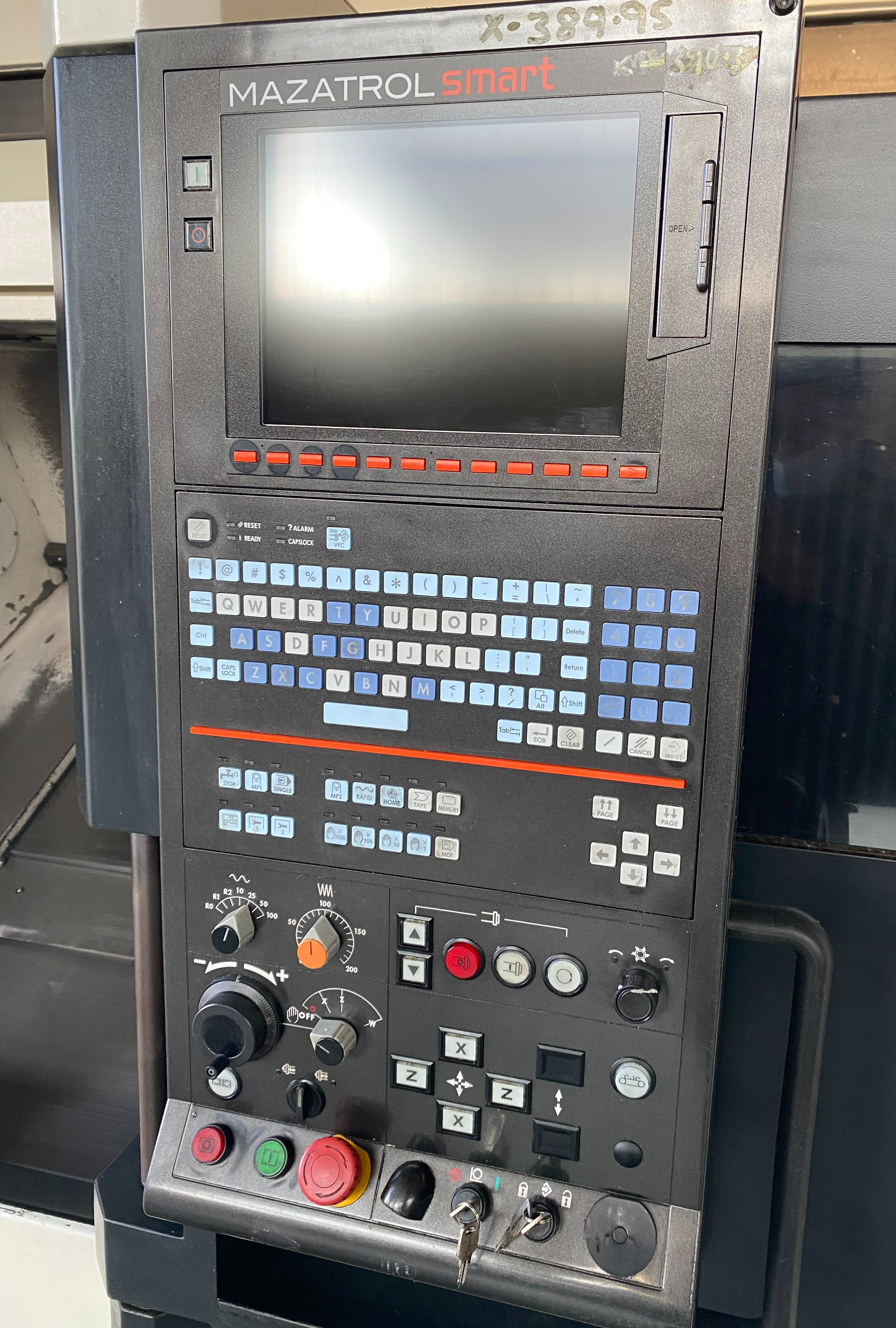

| CNC Control | MAZATROL SMART CNC |
| Max swing over the bench | Ø 720 mm |
| Max turning diameter | Ø 420 mm |
| Max turning length | 1.274 mm |
| Bar diameter capacity through the spindle | Ø 80 mm |
| X axis travel | 240 mm |
| Z axis travel | 1.305 mm |

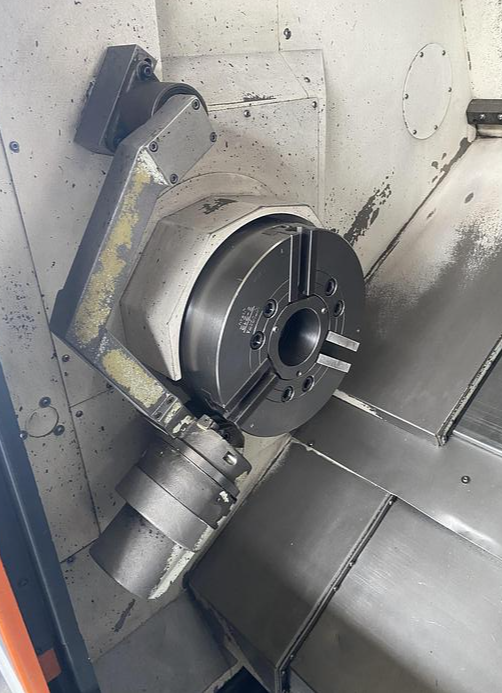

| Spindle chuck diameter | Ø 254 mm |
| Spindle speed | 4.000 RPM |
| Spindle nose size | ASA-8 |
| Spindle motor power (cont/30 min) | 26 kW |

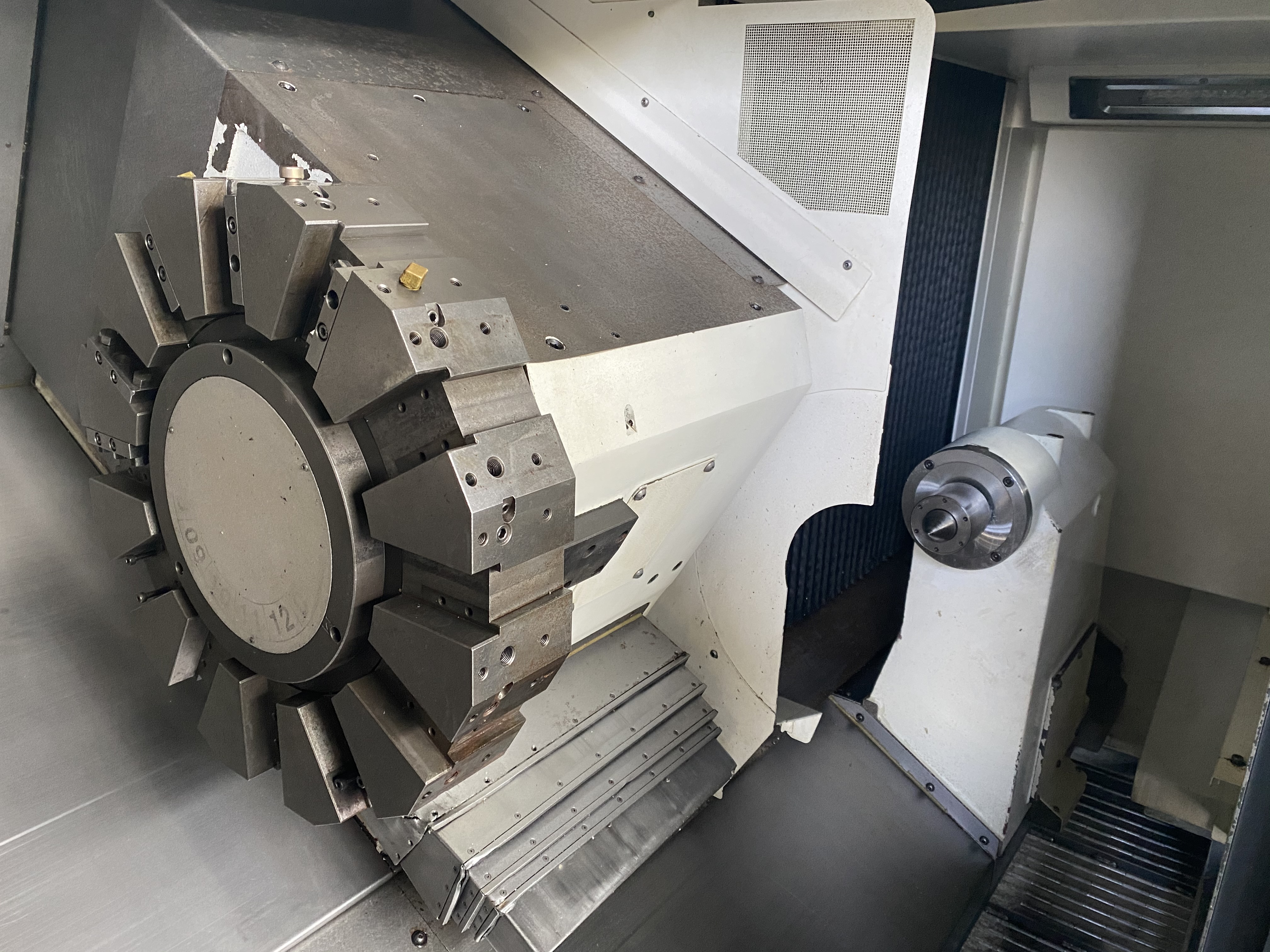

| Turret positions | 12 positions |
| Turning / boring tool dimensions | 25x25 mm / Ø 40 mm |
| X axis feedrate | 30.000 mm/min |
| Z axis feedrates | 33.000 mm/min |
| Tailstock taper size | Morse 5 |
| Tailstock body travel | 1.265 mm |
| Min / max tailstock thrust | 1.000 / 10.000 N |

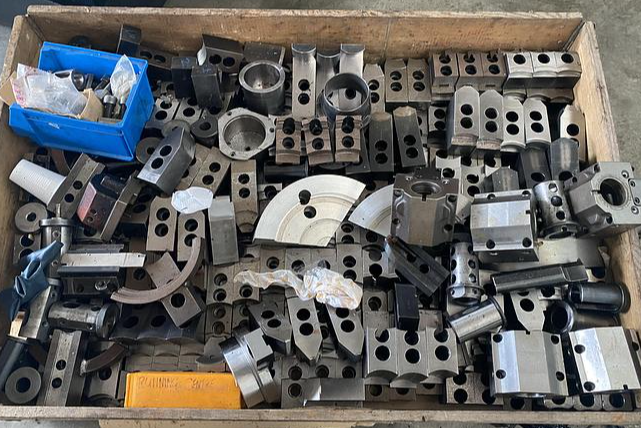

| Accessories | Tools presetting arm, coolant tank with pump and chip-conveyor, various fix tool holders and chuck’s jaws sets, Manuals and Electric diagrams |
