2000 LINEA METRO 11P
Sold
2000 LINEA METRO 11P
Specifications
| Manufacturer | LINEA |
| Model | METRO 11P |
| Year | 2000 |
| Condition | Used |

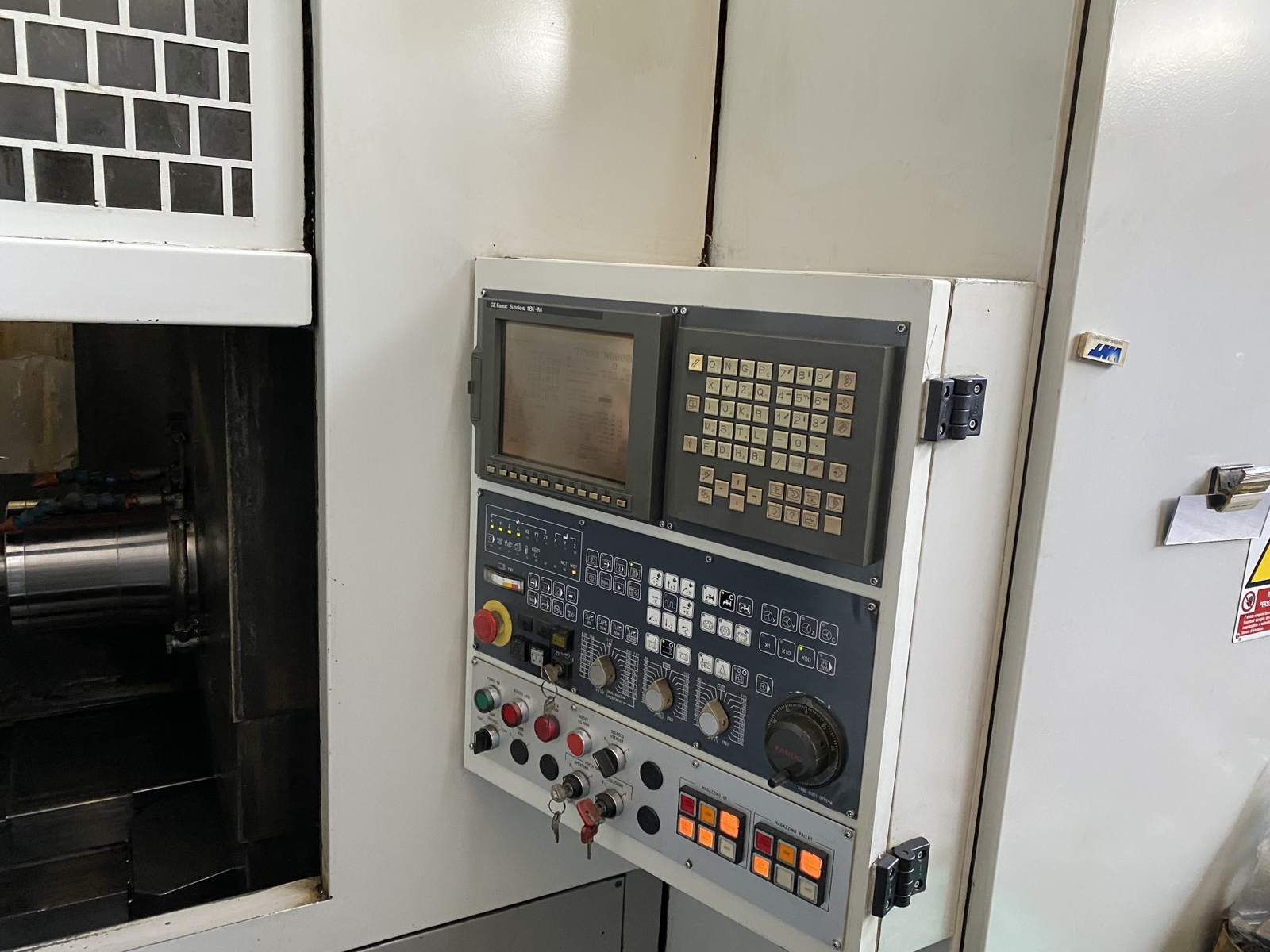

| CNC control | FANUC 18i-M |

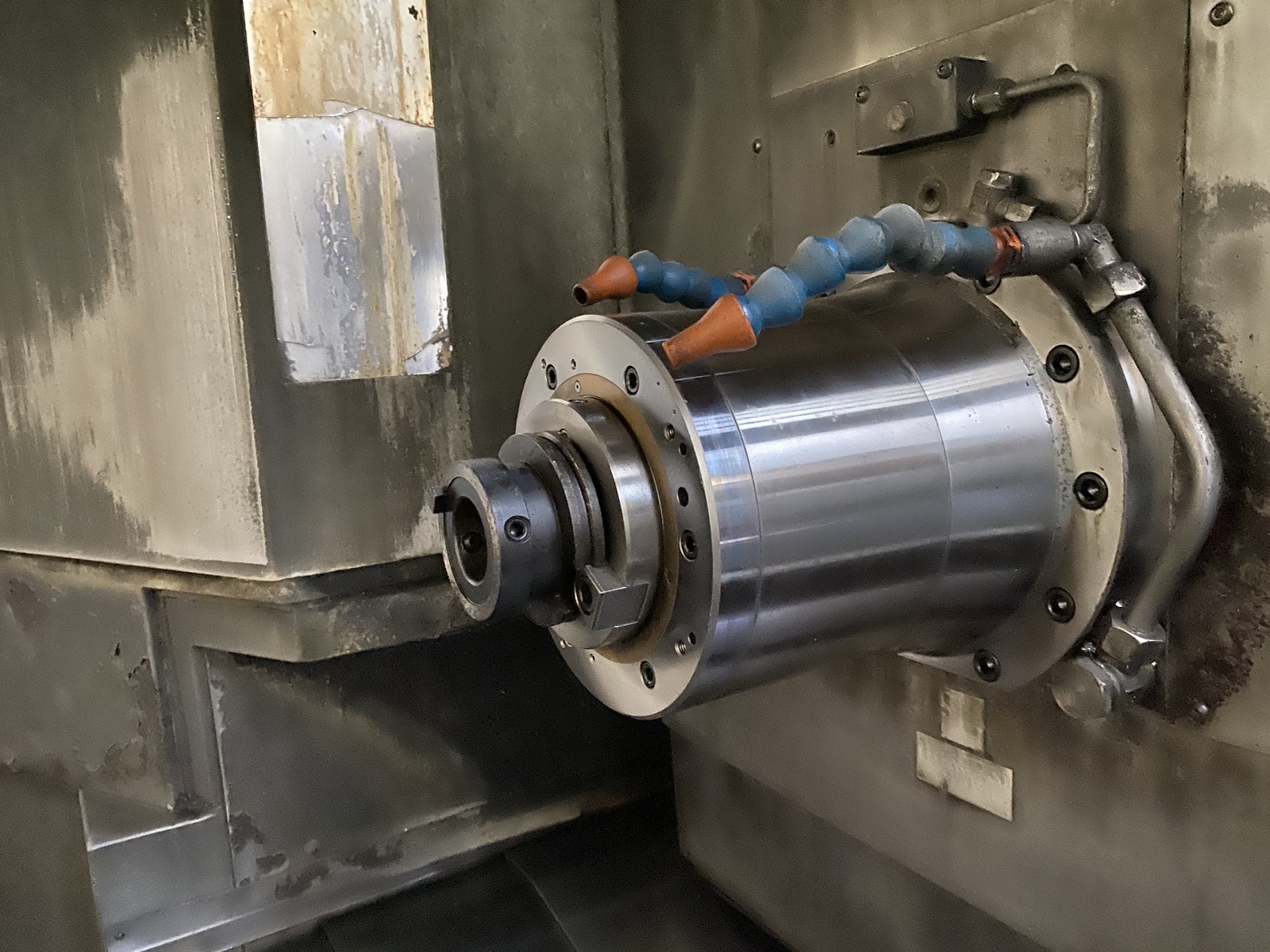

| Spindle size | ISO 50 |
| Spindle speed | 4.000 rpm |
| Spindle motor power (cont / 30 min) | 18.5 / 22 kw |
| X axis | 1.150 mm |
| Y axis | 850 mm |
| Z axis | 910 mm |
| Max workpiece diameter | Ø 1.100 mm |
| Max workpiece height | 1.000 mm |
| Positioning accuracy | +/- 0.005 mm |
| Repeatability accuracy | +/- 0.003 mm |
| Axis feed force | 12.000 N |

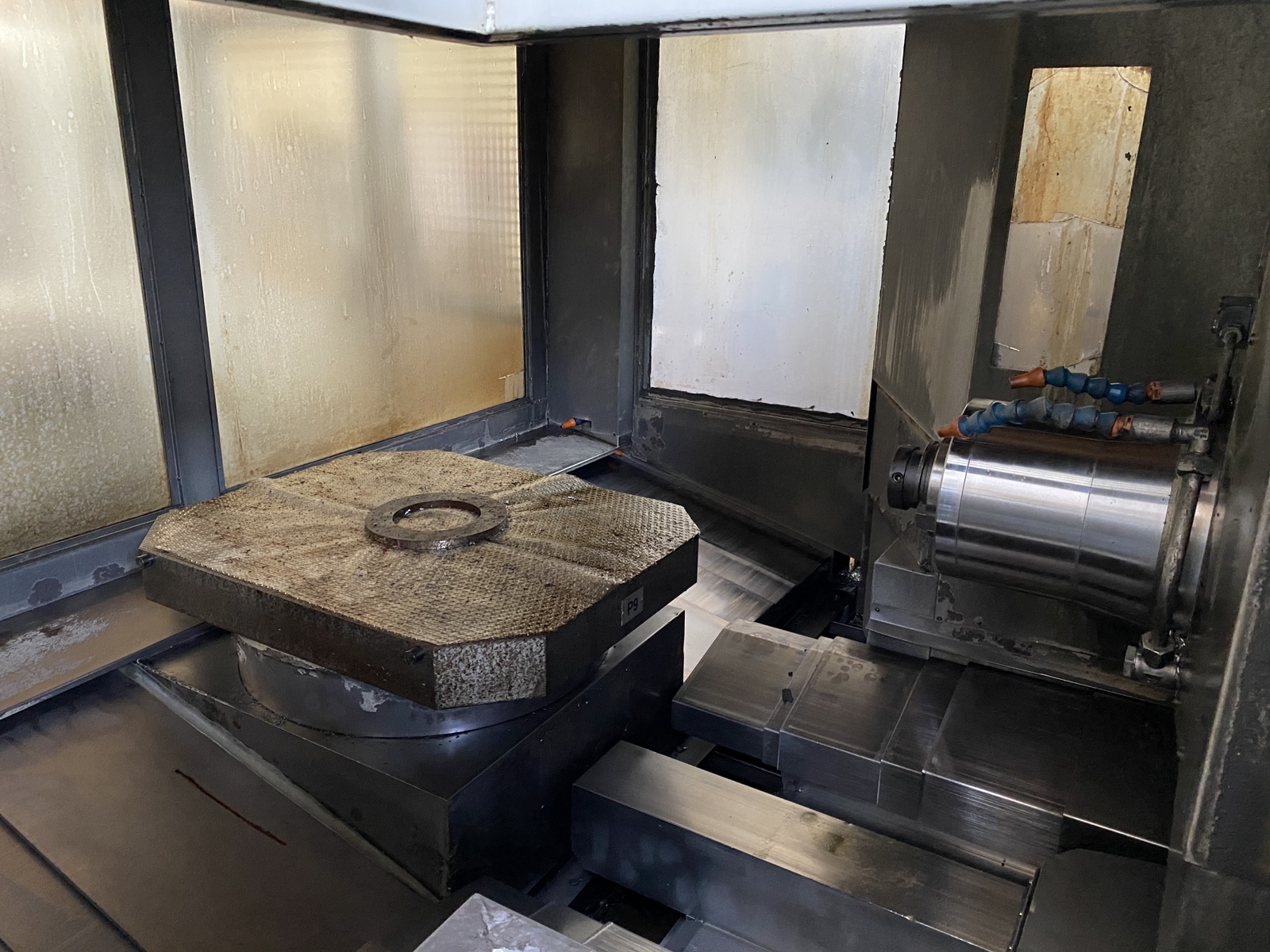

| Table dimensions | 800 x 630 mm |
| Max load allowed on table | 1.000 kg |
| Table rotation | 360 positions (indexed) |

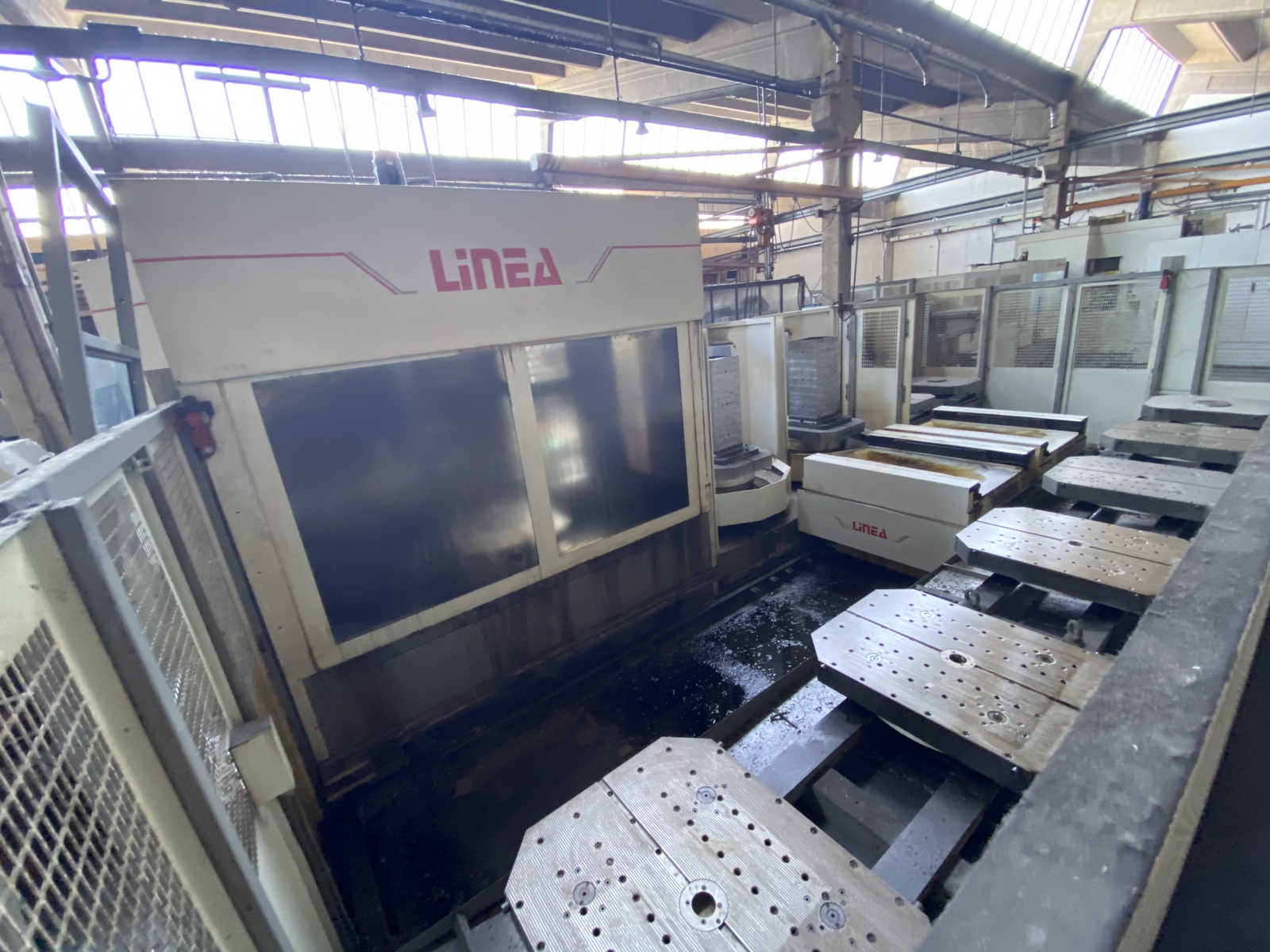

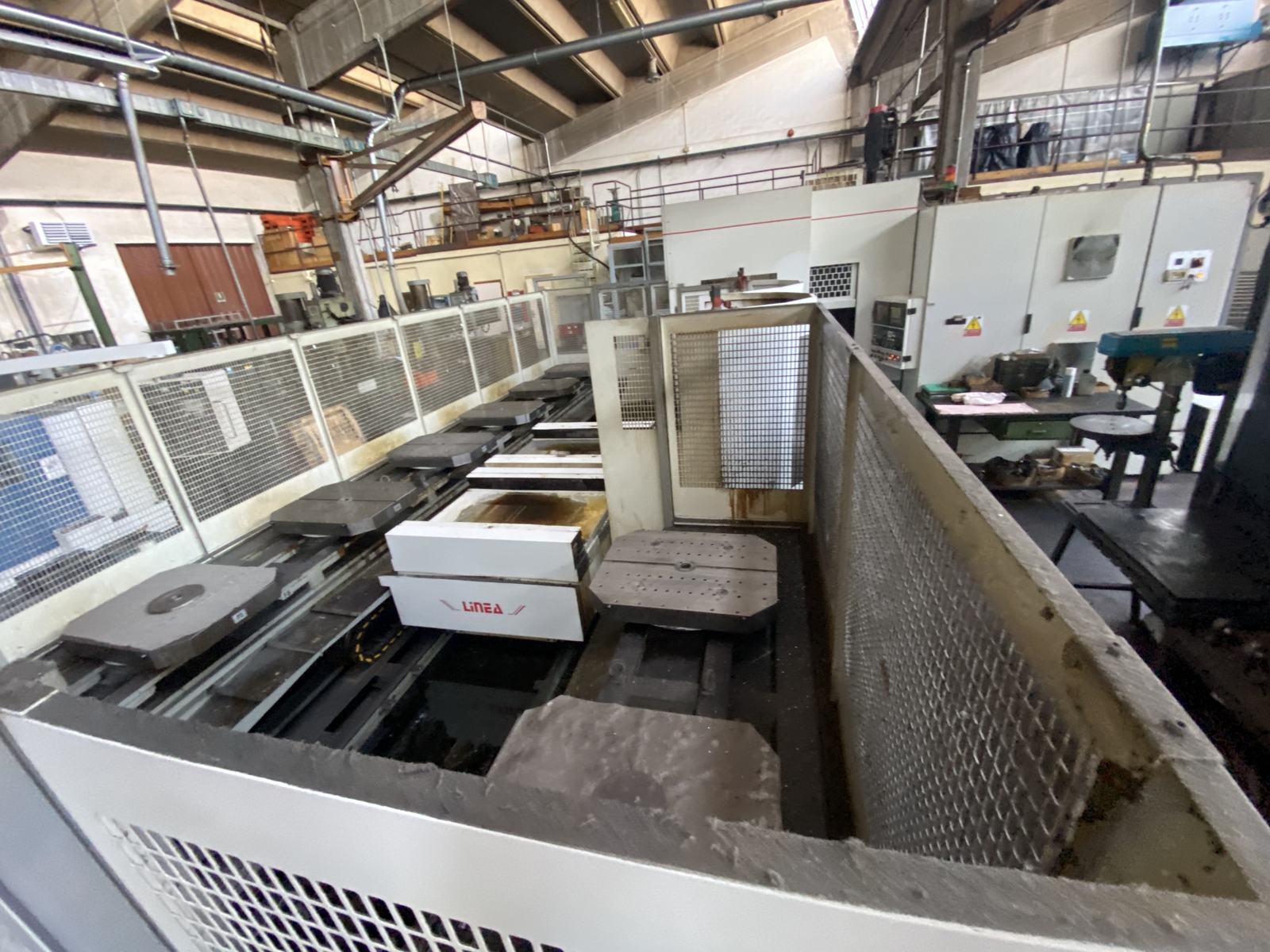

| Number of pallet stations | 11 stations |
| X / Y / Z axis feeds | 35.000 mm / min |
| Type of tool cone | DIN 69871 |
| Type of tool shank | DIN 69872 |
| Tool magazine capacity | 192 positions |
| Maximum tool diameter | 400/120 mm |
| Maximum tool length | 500 mm |
| Maximum tool weight | 25 kg |

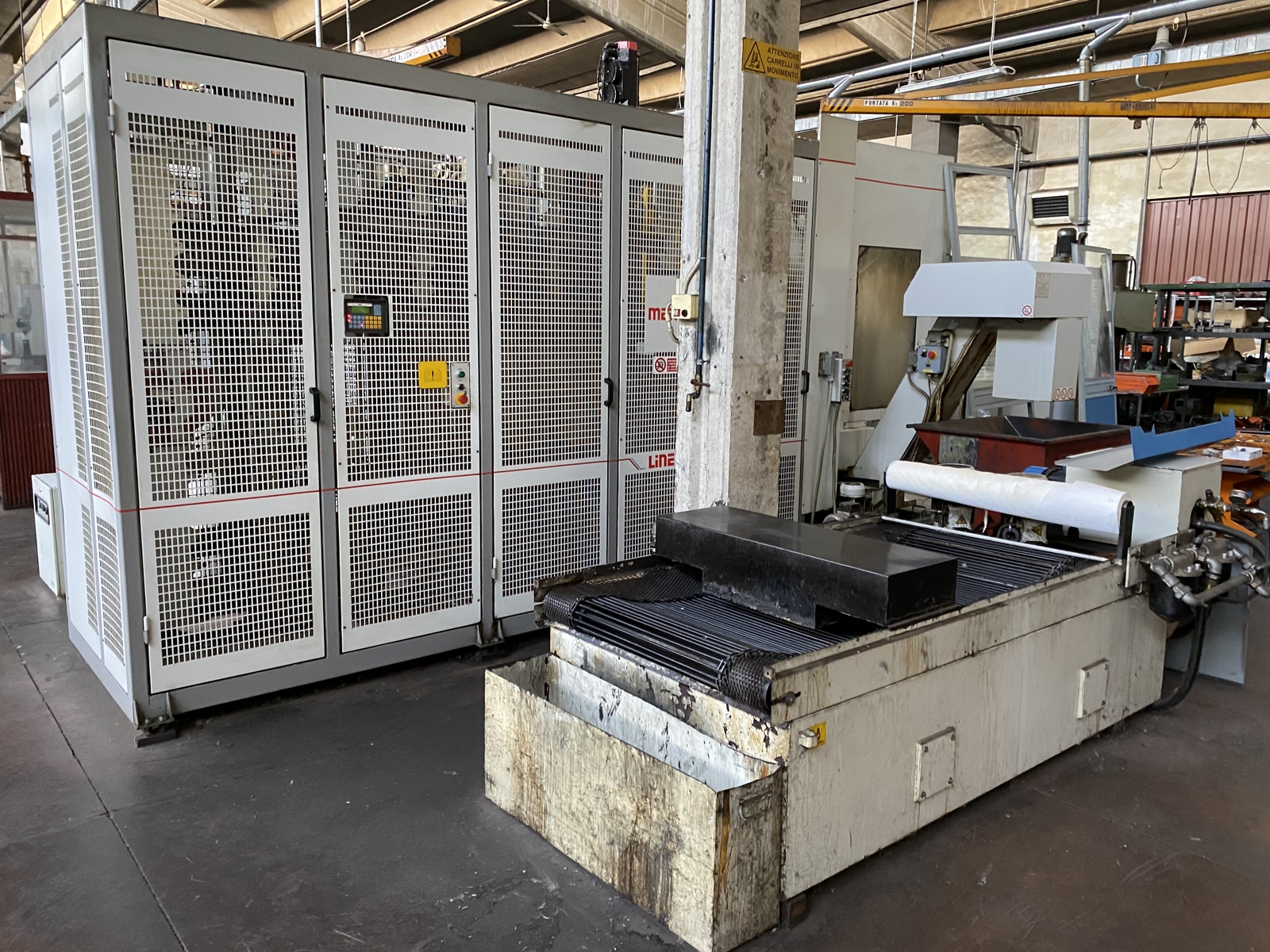

| Accessories and more | Chip conveyor, 50 bar high pressure pump + tank with filter, manuals, wiring diagrams and CE declaration |
